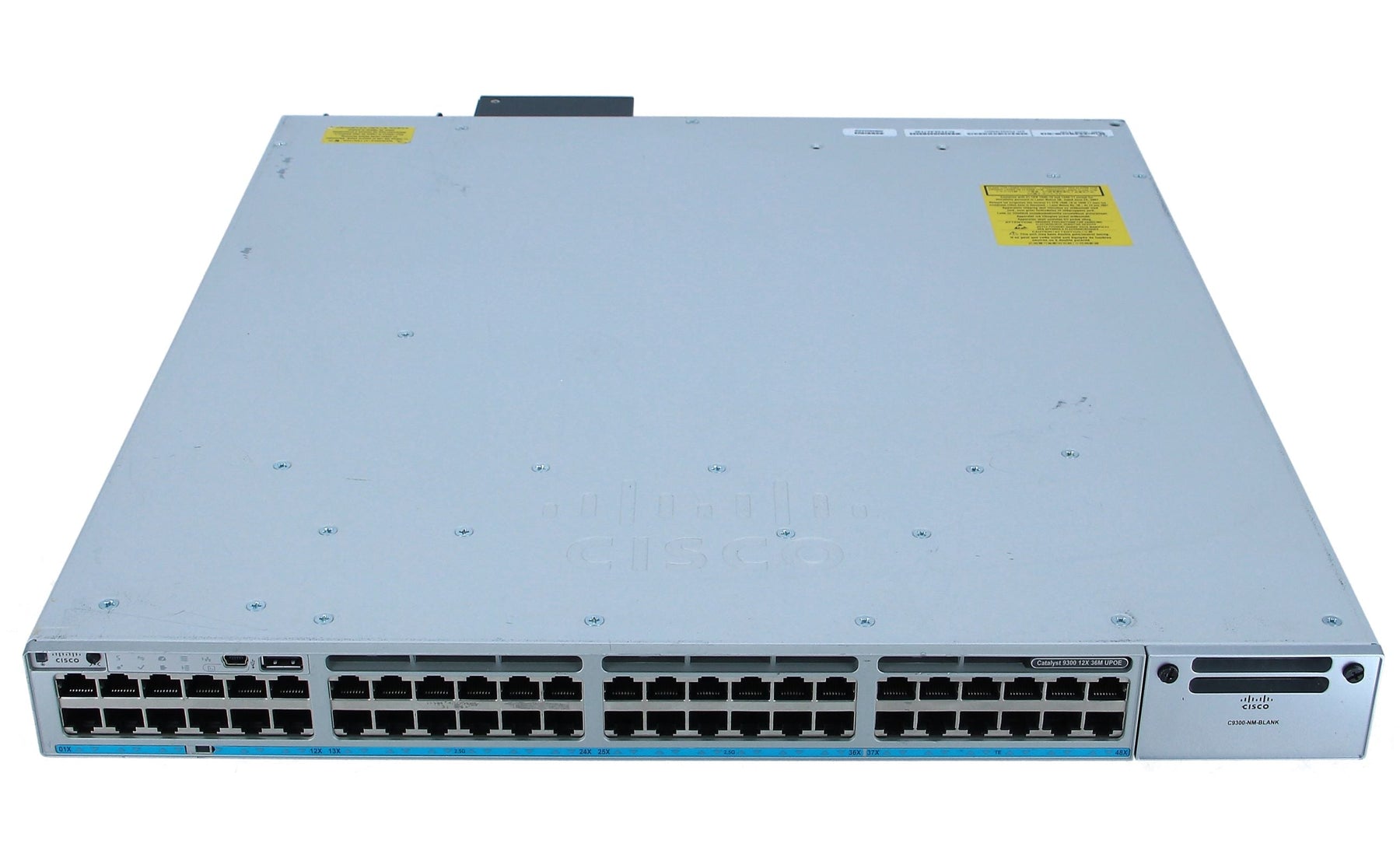

The Cisco Catalyst C9300-48UXM-E Multi-Gigabit Access Switch is a next-generation enterprise access-layer switch engineered to support the growing bandwidth demands of Wi-Fi 6/6E access points, high-performance workstations, and modern digital workplaces. As part of the Cisco Catalyst 9300 Series, this switch delivers exceptional throughput, advanced security, and scalable automation in a compact 1RU form factor.
The switch features 48 high-speed RJ45 access ports, including 12 Multi-Gigabit ports supporting 1G/2.5G/5G/10G speeds and 36 ports operating at 2.5Gbps, enabling seamless connectivity for devices that exceed traditional Gigabit Ethernet limits. With modular uplink flexibility, organizations can choose 1G, 10G, or 40G uplink modules to future-proof their campus edge.
Built on Cisco’s proven hardware architecture, the C9300-48UXM-E delivers a massive 880 Gbps switching capacity, 130.95 Mpps forwarding rate, and StackWise-480 technology, allowing up to 8 switches to operate as a single logical unit with 480 Gbps stack bandwidth. This ensures high availability, simplified management, and consistent performance across large deployments.
Running Cisco IOS XE with Network Essentials licensing, the switch supports Layer 2 switching, basic Layer 3 routing (static and RIP), IPv6, QoS, and comprehensive security features including 802.1X authentication, MACsec encryption, DHCP snooping, and Dynamic ARP Inspection. Integration with Cisco DNA Center, Plug-and-Play provisioning, and model-driven telemetry enables centralized management and automation.
Designed for enterprise reliability, the Cisco Catalyst C9300-48UXM-E supports modular redundant power supplies, redundant fans, and optimized back-to-front airflow, making it ideal for large campus networks, high-density wireless environments, and secure segmented access layers.
Product Specifications – Cisco Catalyst C9300-48UXM-E Multi-Gigabit Access Switch (C9300-48UXM-E)
CLICK HERE FOR DATA SHEET
| Category |
Specification Details |
| Product Name |
Cisco Catalyst C9300-48UXM-E |
| Model Number |
C9300-48UXM-E |
| Product Series |
Cisco Catalyst 9300 Series |
| Product Type |
Enterprise Access-Layer Switch |
| Target Deployment |
Campus Edge, High-Density Wireless Access |
| Form Factor |
Fixed Configuration, Rack-Mountable |
| Rack Height |
1 Rack Unit (1RU) |
| Total Access Ports |
48 × RJ-45 Ethernet Ports |
| Multi-Gigabit Ports |
12 × 1G/2.5G/5G/10G MultiGig |
| High-Speed Access Ports |
36 × 2.5Gbps Ethernet |
| PoE Capability |
Not Specified (UXM models typically non-PoE unless paired with PoE SKU) |
| Uplink Slot Type |
Modular Network Module Slot |
| Supported Uplink Modules |
1G SFP, 10G SFP+, 40G QSFP+ (module dependent, sold separately) |
| Switching Capacity |
880 Gbps |
| Forwarding Rate |
130.95 Million Packets per Second (Mpps) |
| Stacking Technology |
Cisco StackWise-480 |
| Stacking Bandwidth |
480 Gbps |
| Maximum Stack Size |
Up to 8 Switches |
| Processor Architecture |
x86-Based |
| DRAM |
8 GB |
| Flash Memory |
16 GB |
| Operating System |
Cisco IOS XE |
| License Tier |
Network Essentials |
| Layer 2 Features |
VLAN, STP, EtherChannel |
| Layer 3 Features |
Static Routing, RIP |
| IPv6 Support |
Yes |
| Quality of Service (QoS) |
Advanced QoS, Traffic Classification |
| Security Features |
802.1X, DHCP Snooping, Dynamic ARP Inspection |
| Encryption |
IEEE 802.1AE MACsec |
| Access Segmentation |
ACL-Based Segmentation |
| Management Interfaces |
Web UI, CLI |
| Monitoring & Telemetry |
SNMP, NetFlow Lite |
| Automation & Provisioning |
Plug-and-Play (PnP) |
| Cisco DNA Center Ready |
Yes |
| Smart Licensing |
Required |
| Power Supply |
Modular PSU (1 Included, Dual PSU Supported) |
| Cooling System |
Redundant Fans |
| Airflow Direction |
Back-to-Front |
| Operating Temperature |
0°C to 45°C (32°F to 113°F) |
| Operating Humidity |
5% to 95% (Non-Condensing) |
| High Availability |
Stacking, Redundant Power & Fans |
| Wireless Readiness |
Optimized for Wi-Fi 6 / Wi-Fi 6E AP Backhaul |
| Use Case – Campus |
Secure Enterprise Access Switching |
| Use Case – Wireless |
High-Bandwidth AP Aggregation |
| Use Case – Scalability |
Large-Scale, Segmented Campus Networks |
| Package Contents |
Switch Chassis, One Power Supply, Rack Kit (Uplink Modules Sold Separately) |
FAQs for C9300-48UXM-E:
What is the benefit of MultiGig ports?
They support speeds above 1Gbps (up to 10Gbps), ideal for high-throughput devices like access points or servers.
Can I use existing SFP uplink modules?
Yes, as long as they are compatible with the C9300 modular uplink slots.
Does this model include PoE?
No, C9300-48UXM-E is a data-only switch with no PoE support.
Is this switch stackable?
Yes, it supports StackWise-480 technology for stacking up to 8 switches.
Is DNA license included with this switch?
This version comes with Network Essentials; DNA licenses are sold separately based on subscription plans.
