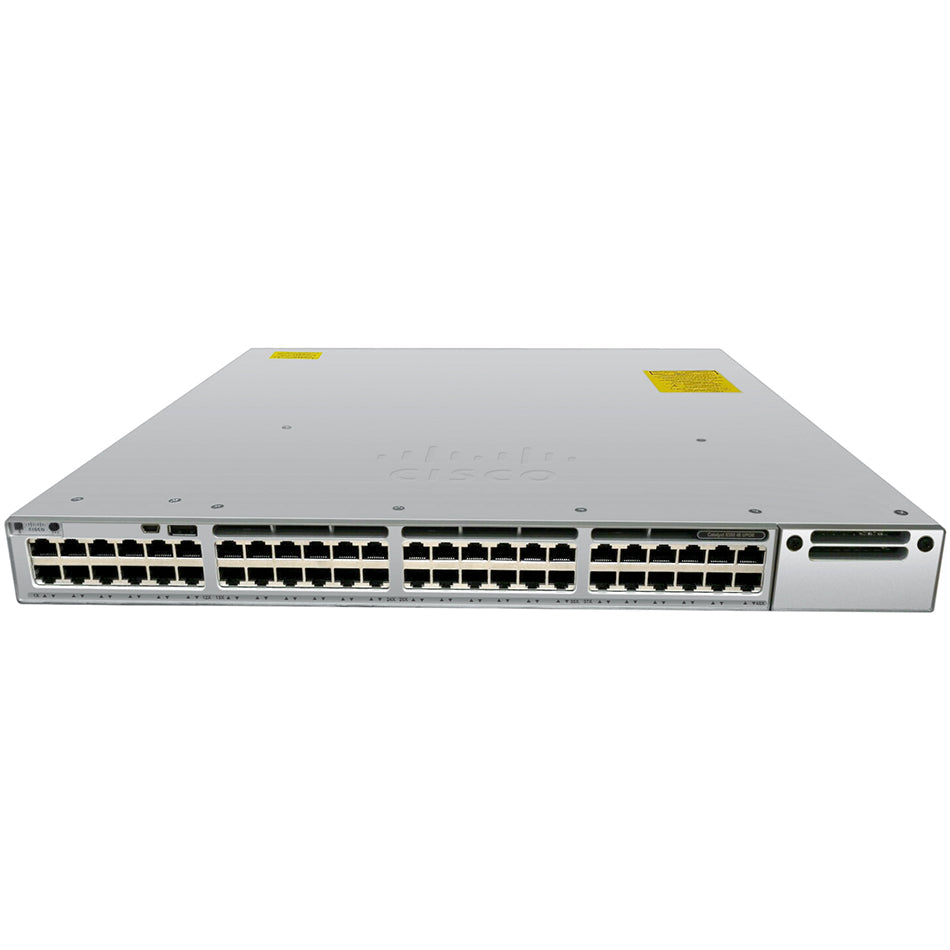

The Cisco Catalyst C9300-48U-A is a next-generation enterprise-class switch built for high-performance access layer deployments. Featuring 48 Gigabit Ethernet ports with Universal Power over Ethernet (UPOE) support (up to 60W per port) and modular uplink options (1G, 10G, or 25G), this switch delivers unmatched scalability, resiliency, and advanced network security.
With a switching capacity of 208 Gbps and a forwarding rate of 154.76 Mpps, the C9300-48U-A ensures ultra-fast data forwarding to handle modern business workloads. Its PoE power budget of up to 1100W makes it ideal for powering high-demand devices such as wireless access points, IP phones, video conferencing endpoints, and IoT devices.
Running on Cisco IOS XE with the Network Advantage license, this model enables a wide range of advanced Layer 2 and Layer 3 services, including OSPF, EIGRP, BGP, IPv6 routing, multicast, and Policy-Based Routing. Enhanced security features such as Cisco TrustSec, MACsec encryption, and SGT-based policies protect your network from evolving threats, while integration with Cisco DNA Center and Software-Defined Access (SD-Access) ensures simplified automation and centralized management.
The StackWise-480 technology allows up to 8 switches to be stacked with 480 Gbps of stack bandwidth, delivering high availability and redundancy. Combined with hot-swappable fans, redundant power supplies, ENERGY STAR certification, and enterprise-grade resiliency, the C9300-48U-A is engineered for always-on business environments.
The Cisco Catalyst C9300-48U-A is the ultimate solution for organizations that need future-ready, secure, and scalable access layer switching with powerful PoE capabilities and intelligent automation.
Product Specifications – Cisco Catalyst C9300-48U-A
CLICK HERE FOR DATA SHEET
| Specification |
Details |
| Model Number |
C9300-48U-A |
| Description |
48-port Gigabit Ethernet switch with full Cisco UPOE (up to 60W per port), modular uplinks, and Network Advantage license. Designed for enterprise-grade access with advanced Layer 3, automation, and security. |
| Ports & Interfaces |
- 48 x 10/100/1000 Mbps UPOE-capable Ethernet ports (up to 60W each)
- Modular uplink slot (supports 4x1G, 4x10G, 2x25G modules – sold separately)
- 1 x RJ-45 Console port
- 1 x USB Type-A storage port |
| Performance & Throughput |
- Switching capacity: Up to 208 Gbps
- Forwarding rate: 154.76 Mpps
- DRAM: 8 GB
- Flash memory: 16 GB
- MAC address table size: 32K |
| PoE & Power |
- Supports IEEE 802.3af (PoE), 802.3at (PoE+), and Cisco UPOE
- Up to 60W per port on UPOE
- Total available PoE power: Up to 1100W (depending on PSU)
- Intelligent power management
- Energy Efficient Ethernet (EEE) |
| Software & Features |
- Cisco IOS XE with Network Advantage license
- Advanced Layer 2/3 routing: OSPF, EIGRP, BGP
- IPv6 routing, Policy-Based Routing, multicast
- Security: Cisco TrustSec, MACsec, SGT-based policies
- Cisco DNA Center, SD-Access, Encrypted Traffic Analytics
- Flexible NetFlow and model-driven telemetry |
| Stacking & Redundancy |
- StackWise-480 support (up to 480 Gbps stack bandwidth)
- Stack up to 8 switches
- Redundant, hot-swappable power supplies and fans |
| Environmental & Compliance |
- Operating temperature: 0°C to 45°C
- Form factor: 1U rack-mountable
- ENERGY STAR certified
- RoHS and WEEE compliant |
FAQs for C9300-48U-A:
What is UPOE and how is it different from PoE+?
UPOE (Universal Power over Ethernet) provides up to 60W per port, nearly double that of standard PoE+, enabling support for more demanding devices like VDI terminals, compact switches, and video phones.
What kind of uplink modules are compatible with this switch?
It supports modular uplink slots with options for 4x1G, 4x10G, or 2x25G SFP/SFP+ modules depending on your network's needs.
Does this model support advanced routing protocols like OSPF and BGP?
Yes, with the Network Advantage license, it includes support for OSPF, EIGRP, BGP, and Policy-Based Routing.
Is this switch stackable with other Catalyst 9300 models?
Yes, it supports StackWise-480, allowing stacking with other 9300 switches to form a single logical switch.
Can I monitor traffic for security and analytics?
Absolutely. The switch supports Flexible NetFlow, Encrypted Traffic Analytics, and is fully integrated with Cisco DNA Center for deep visibility.
