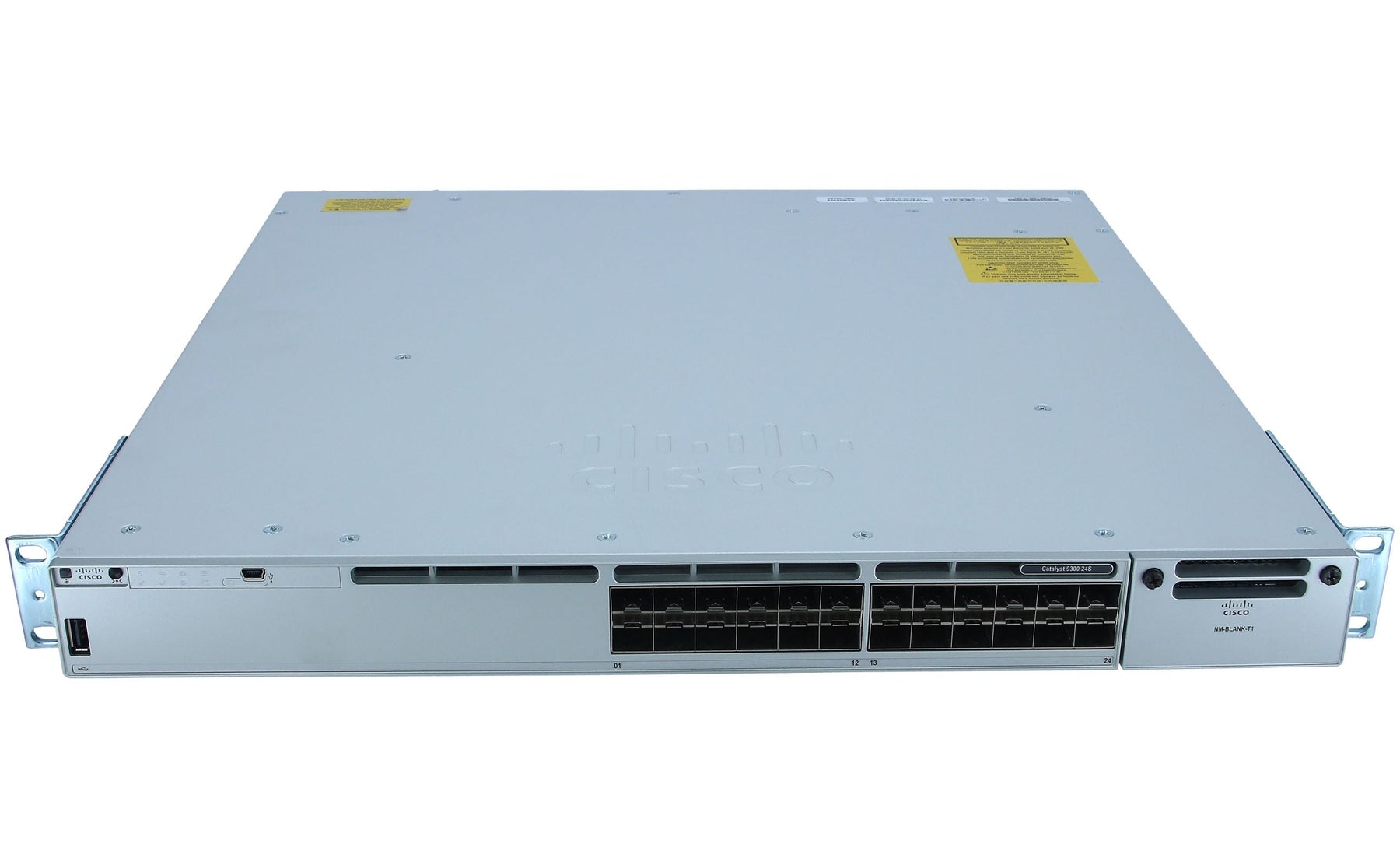

Boost your enterprise network with the Cisco Catalyst C9300-24S-E Switch, engineered for high-performance, secure, and scalable connectivity. Featuring 24 Gigabit Ethernet SFP fiber ports, this stackable switch supports modular uplink options including 10G, 25G, and 40G, delivering unmatched flexibility and network agility. With advanced Layer 3 capabilities, StackWise-480 technology for seamless scaling, and full support for Cisco DNA, the C9300-24S-E is ideal for campus, branch, and data center environments. Built for secure, efficient, and resilient operations, this switch offers future-ready infrastructure for growing businesses that demand enterprise-grade reliability, speed, and control.
Product Specifications: Cisco Catalyst C9300-24S-E Switch
| Specification Category |
Details |
| Model Number |
Cisco C9300-24S-E |
| Form Factor |
1RU Rack-Mountable |
| Physical Dimensions (H × W × D) |
1.73 in × 17.5 in × 17.5 in (4.4 cm × 44.5 cm × 44.5 cm) |
| Weight |
Approx. 16.07 lbs (7.29 kg) |
| Total Ports |
24 × 1G SFP fiber ports |
| Uplink Options |
Modular uplinks via network modules (supporting 10G, 25G, and 40G) |
| Stacking Support |
Up to 8 switches with Cisco StackWise-480 technology |
| Stacking Ports |
StackWise-480 and StackPower |
| Switching Capacity |
176 Gbps |
| Forwarding Rate |
261.9 Mpps |
| Default Power Supply |
350W AC |
| Power Consumption |
Approx. 69W (typical) |
| Operating Temperature |
23°F to 113°F (-5°C to 45°C) |
| Storage Temperature |
-40°F to 158°F (-40°C to 70°C) |
| Software Image |
Network Essentials (can be upgraded to Advantage) |
| Management Features |
Cisco DNA Center, SNMP, RMON, Syslog, CLI, Web UI |
| Security Features |
TrustSec, MACsec, 802.1X, DHCP Snooping, Port Security |
| Environmental Compliance |
RoHS, WEEE, REACH compliant |
FAQs for Cisco Catalyst C9300-24S-E
1. What type of ports does the Cisco C9300-24S-E have?
It features 24 Gigabit Ethernet SFP fiber ports, ideal for high-speed, fiber-based networking.
2. Does the switch support stacking?
Yes, it supports StackWise-480 technology, allowing up to 8 switches to be stacked for simplified management and redundancy.
3. What uplink modules are compatible with this switch?
It supports modular uplinks with 10G, 25G, and 40G connectivity options via Cisco network modules.
4. Does this model support PoE?
No, the C9300-24S-E is a non-PoE model. For PoE support, consider the C9300-24P-E variant.
5. Is the Cisco C9300-24S-E compatible with Cisco DNA Center?
Yes, it is Cisco DNA-ready and supports automation, analytics, and SD-Access when integrated with Cisco DNA Center.
