"Optimize your data-centric infrastructure with the Cisco Catalyst 9200L 48-port data switch. Featuring Network Essentials, this switch provides essential functionalities and reliable performance, empowering your business with efficient data handling and seamless connectivity."
"Upgrade your data network with the Cisco Catalyst 9200L 48-port data switch. Built with Network Essentials, this switch delivers essential features and capabilities optimized for data-intensive operations and high-speed 10G connectivity, ensuring seamless operation and efficient data transfer."
"Enhance your network infrastructure with the Cisco Catalyst 9200L 48-port data switch. Engineered with Network Essentials, this switch offers essential functionalities tailored to meet the demands of modern data environments, ensuring reliable connectivity and optimized network performance."

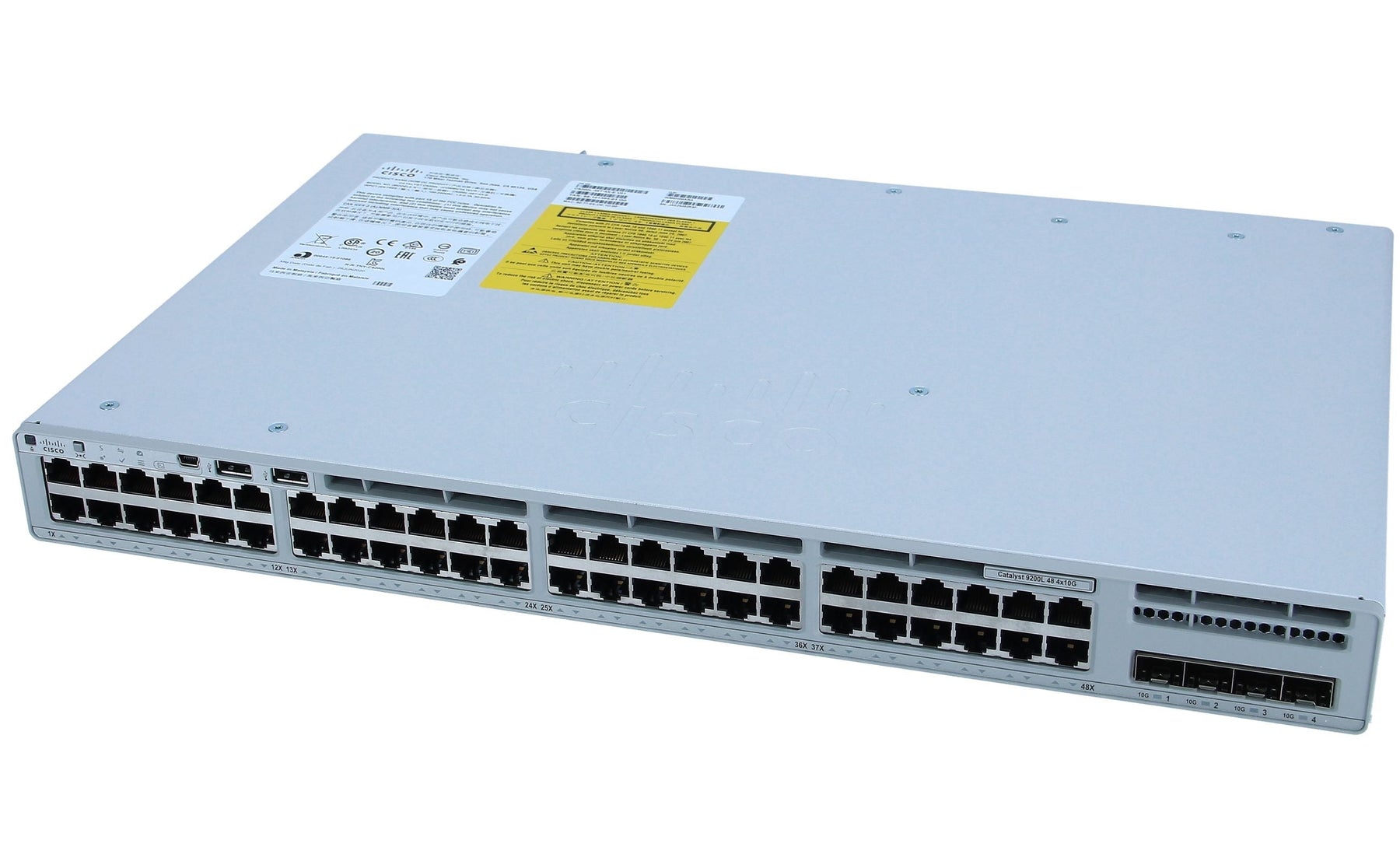

Product Specifications for Cisco C9200L-48T-4X-E (Data Sheet):
| Specification |
Details |
| Brand |
Cisco |
| Product Series |
Catalyst 9200L |
| Model |
C9200L-48T-4X-E |
| Form Factor |
1U rack-mountable |
| Total Ports |
48 x Gigabit Ethernet ports |
| PoE Support |
No (Data-only ports) |
| Uplink Ports |
4 x 10G SFP+ uplinks |
| Switching Capacity |
176 Gbps |
| Forwarding Rate |
130.95 Mpps |
| Power Supply |
Internal, modular (supports redundant power supply) |
| Layer Support |
Layer 2 and Layer 3 |
| MAC Address Table |
16K |
| VLAN Support |
4,096 VLAN IDs |
| Stacking Support |
Cisco StackWise-160, up to 8 units |
| Routing Protocols |
Static, EIGRP, OSPF, BGP, RIP |
| Security Features |
802.1X, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard |
| Management Options |
Cisco DNA Center, CLI, WebUI, SNMP, Telnet, SSH |
| Dimensions (L x W x H) |
1.73 x 17.5 x 11.3 in. (44 x 445 x 288 mm) |
| Weight |
10.6 lbs (4.8 kg) |
| Operating Temperature |
32°F to 113°F (0°C to 45°C) |
| Warranty |
Limited Lifetime Warranty |
FAQs:
1. Does the Cisco C9200L-48T-4X-E provide PoE functionality?
No, the C9200L-48T-4X-E model does not support Power over Ethernet (PoE). It is a data-only switch, making it ideal for environments where PoE is not required.
2. What uplink options are available on the Cisco C9200L-48T-4X-E?
This model comes with 4 x 10G SFP+ uplink ports, providing high-speed connectivity to core networks or other devices, ensuring fast data transfers and optimized network performance.
3. Is the Cisco C9200L-48T-4X-E stackable with other switches?
Yes, the switch supports Cisco StackWise-160 technology, allowing up to 8 switches to be stacked together, providing scalability, high availability, and simplified management.
4. What is the switching capacity of the C9200L-48T-4X-E?
The switch has a high switching capacity of 176 Gbps and a forwarding rate of 130.95 Mpps, ensuring excellent performance for demanding network environments.
5. What management tools are available for configuring the Cisco C9200L-48T-4X-E?
The switch can be managed using Cisco DNA Center, command-line interface (CLI), web-based interface (WebUI), SNMP, Telnet, and SSH, offering flexibility in how the network is monitored and controlled.
