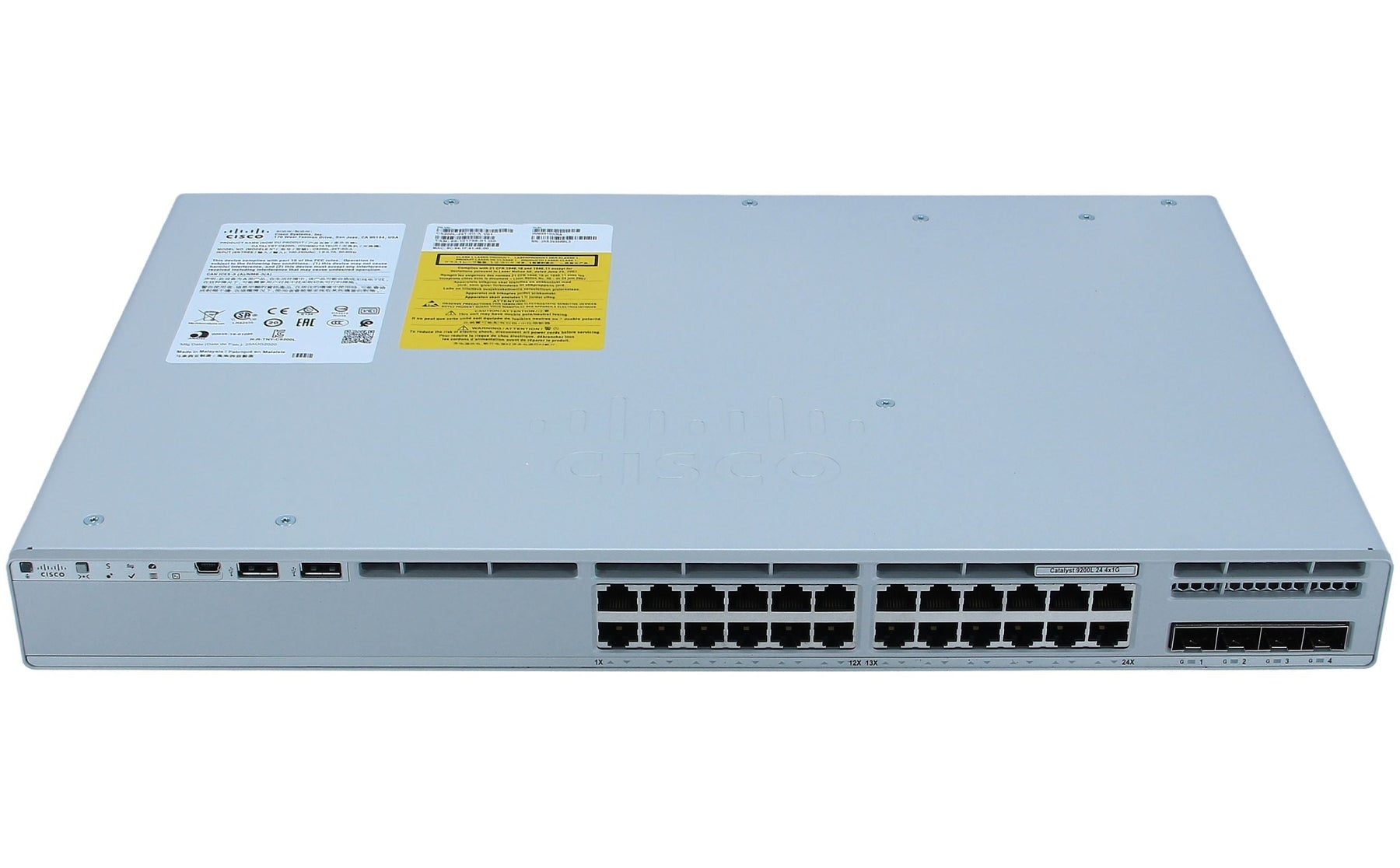

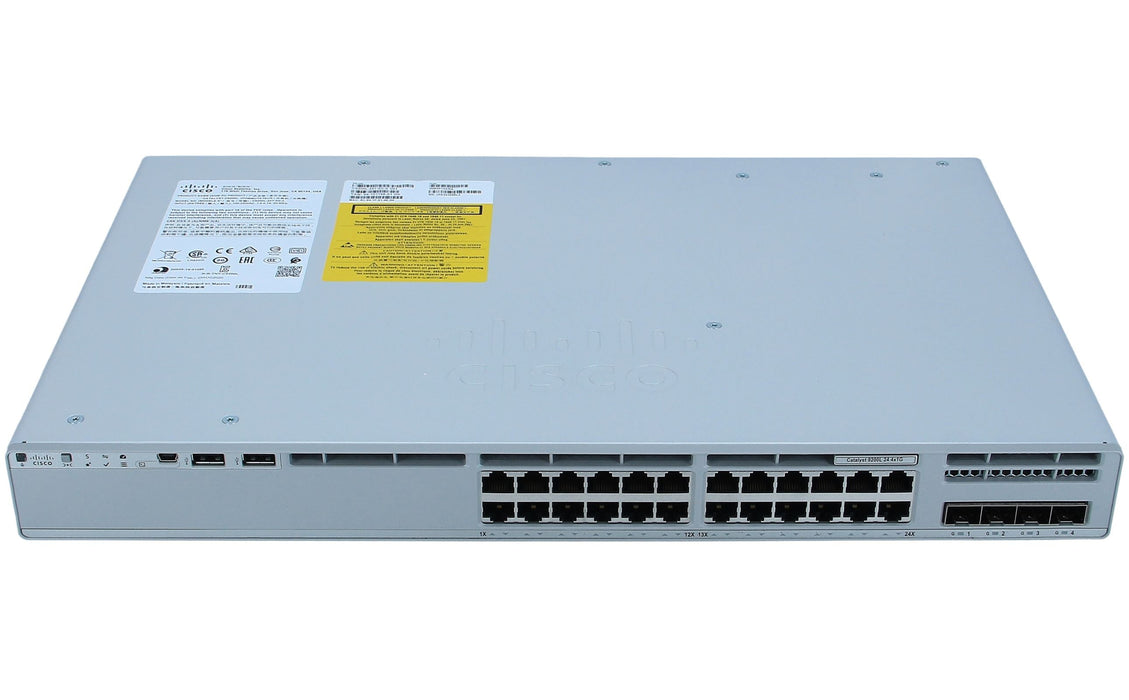

The Cisco Catalyst C9200L-24T-4G-A Layer 3 Access Switch is a secure, scalable enterprise campus switch designed for environments that require advanced routing and segmentation without PoE. Part of the Cisco Catalyst 9200L Series, this model delivers robust performance, high availability, and SD-Access readiness in a compact 1RU fixed form factor.
The switch provides 24 data-only Gigabit Ethernet RJ-45 ports and 4 fixed 1G SFP uplinks, making it ideal for connecting data-intensive endpoints, servers, and aggregation devices where Power over Ethernet is not required. With a 56 Gbps switching capacity and 83.33 Mpps forwarding rate, it ensures consistent throughput for demanding campus workloads.
Powered by Cisco IOS XE with Network Advantage licensing, the C9200L-24T-4G-A supports full Layer 3 routing capabilities, including OSPF, EIGRP, BGP, IS-IS, VRF, and policy-based routing (PBR). Native support for Cisco SD-Access enables simplified fabric-based segmentation and scalable campus architectures.
Enterprise-grade security features such as Cisco TrustSec, Scalable Group Tags (SGT), MACsec encryption, and 802.1X authentication help protect users, devices, and data across the access layer. Integration with Cisco DNA Center, Plug-and-Play (PnP) provisioning, and NetFlow telemetry allows centralized management, automation, and visibility across the network.
With StackWise-160 support, fixed internal power and cooling, and Smart Licensing, the Cisco Catalyst C9200L-24T-4G-A is an excellent choice for organizations seeking a cost-effective, non-PoE Layer 3 access switch with advanced routing and security for modern enterprise campuses.
Product Specifications – Cisco Catalyst C9200L-24T-4G-A Layer 3 Access Switch
CLICK HERE FOR DATA SHEET
| Category |
Specification Details |
| Product Name |
Cisco Catalyst C9200L-24T-4G-A |
| Model Number |
C9200L-24T-4G-A |
| Product Series |
Cisco Catalyst 9200L Series |
| Product Type |
Enterprise Access-Layer Switch |
| Target Deployment |
Secure Enterprise Campus Networks |
| Form Factor |
Fixed Configuration, Rack-Mountable |
| Rack Height |
1 Rack Unit (1RU) |
| Total Access Ports |
24 × 10/100/1000 Mbps RJ-45 |
| Port Type |
Data-Only Gigabit Ethernet (Non-PoE) |
| Uplink Ports |
4 × 1G SFP (Fixed) |
| Switching Capacity |
56 Gbps |
| Forwarding Rate |
83.33 Million Packets per Second (Mpps) |
| Stacking Technology |
Cisco StackWise-160 |
| Stacking Bandwidth |
160 Gbps |
| Maximum Stack Size |
Up to 8 Switches |
| Processor Architecture |
ARM-based CPU |
| DRAM |
2 GB |
| Flash Memory |
4 GB |
| Operating System |
Cisco IOS XE |
| License Tier |
Network Advantage |
| Layer 2 Features |
VLAN, STP, EtherChannel |
| Layer 3 Features |
OSPF, EIGRP, BGP, IS-IS, Policy-Based Routing (PBR), VRF |
| SD-Access Support |
Yes |
| Security Framework |
Cisco TrustSec, Scalable Group Tags (SGT) |
| Encryption |
IEEE 802.1AE MACsec |
| Access Control |
802.1X Authentication |
| Threat Protection |
DHCP Snooping, Dynamic ARP Inspection |
| Quality of Service (QoS) |
Advanced Classification, Policing, Shaping |
| Automation & Provisioning |
Cisco DNA Center, Plug-and-Play (PnP) |
| Telemetry & Monitoring |
SNMP, NetFlow |
| Management Interfaces |
CLI, Web UI |
| Smart Licensing |
Enabled |
| DNA Subscription |
DNA Advantage (Optional) |
| Power Supply |
Fixed Internal AC Power Supply |
| Cooling System |
Internal Fixed Fans |
| Airflow Direction |
Front-to-Back |
| Operating Temperature |
0°C to 45°C (32°F to 113°F) |
| Operating Humidity |
5% to 95% (Non-Condensing) |
| Optics Compatibility |
Cisco 1G SFP Modules |
| High Availability |
Stacking-Based Resiliency |
| Use Case – Campus |
Secure Enterprise Access Switching |
| Use Case – Non-PoE |
Data-Intensive Endpoints |
| Use Case – SD-Access |
Advanced Layer 3 & Segmentation |
| Package Contents |
Switch, Power Cord, Rack Mount Kit |
FAQs for C9200L-24T-4G-A:
Is this a PoE switch?
No, this model is data-only and does not support PoE.
Can it be stacked with other Catalyst 9200 models?
Yes, it supports StackWise-160 for stacking with other compatible C9200 models.
Does it support Layer 3 features?
Yes, full Layer 3 routing is supported under the Network Advantage license.
Are uplinks modular?
No, this model comes with 4 fixed 1G SFP uplink ports.
Is it DNA Center compatible?
Yes, it supports Cisco DNA Center automation and assurance tools.
