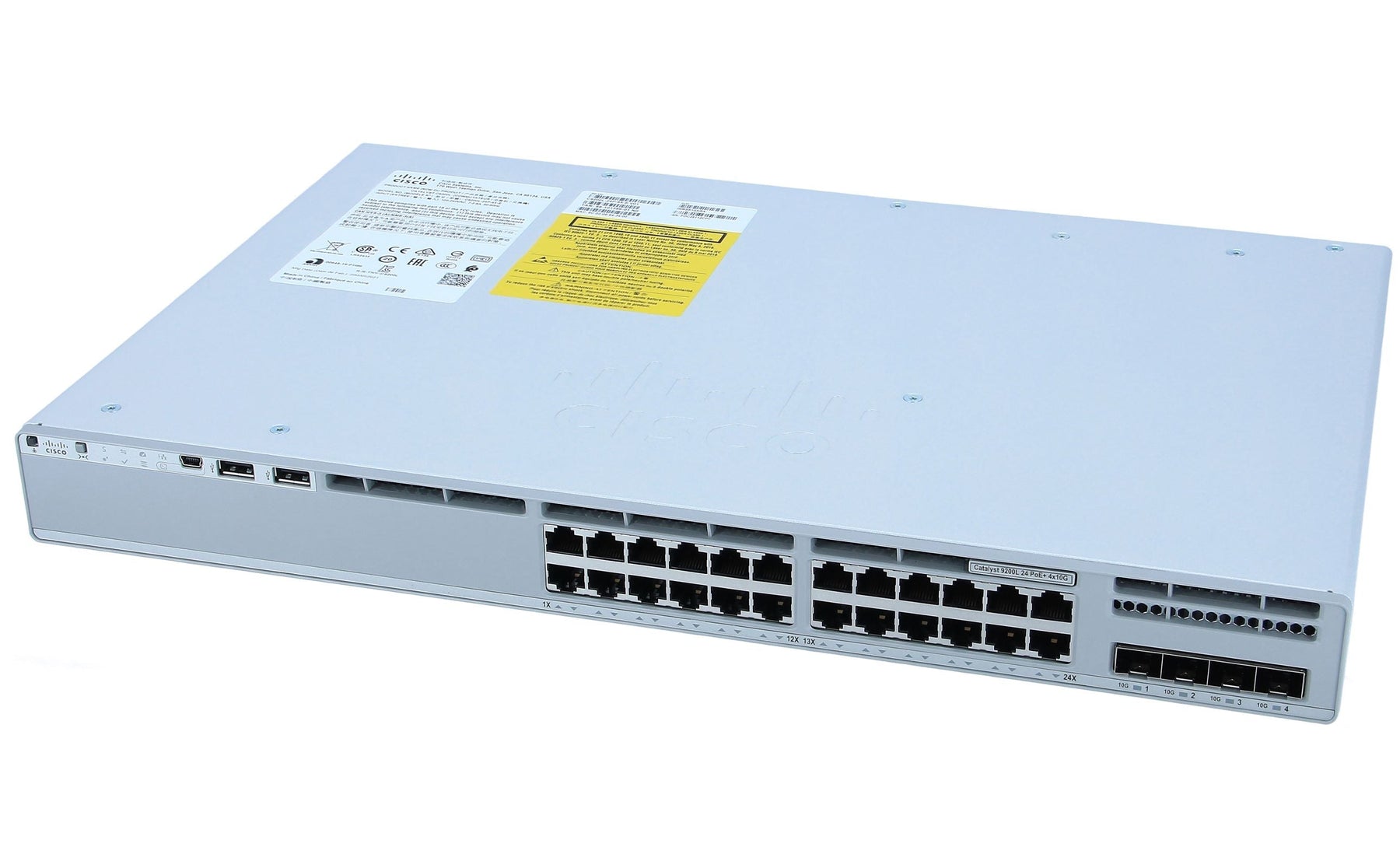

The Cisco Catalyst 9200L-24P-4X-E (C9200L-24P-4X-E) is a secure, resilient enterprise access-layer switch designed to support modern campus and branch networks with reliable PoE+ connectivity and high-speed 10G uplinks. Part of the Cisco Catalyst 9200L Series, this model delivers enterprise-grade performance with the Network Essentials feature set, making it ideal for organizations seeking robust access switching with essential Layer 2 and basic Layer 3 capabilities.
Equipped with 24 Gigabit Ethernet PoE+ ports and a PoE budget of up to 370W, the switch efficiently powers IP phones, wireless access points, and IP cameras while maintaining consistent data performance. The four fixed 1G/10G SFP+ uplinks provide high-speed backhaul to distribution or core layers, ensuring scalability for growing network demands.
Powered by Cisco IOS XE, the Catalyst 9200L-24P-4X-E supports advanced access-layer security and visibility features, including 802.1X authentication, DHCP snooping, Dynamic ARP Inspection, Cisco TrustSec, MACsec (hardware capable), and Scalable Group Tags (SGT). Built-in analytics such as Flexible NetFlow (Lite) and Encrypted Traffic Analytics (ETA) enhance traffic visibility and threat detection.
With StackWise-160 (limited stacking) and StackPower support, the switch enables simplified management, power sharing, and improved resiliency. Centralized management through Cisco DNA Center, along with Smart Licensing and web-based management options, streamlines deployment, monitoring, and lifecycle operations.
Housed in a compact 1RU rack-mountable form factor with efficient internal cooling, the Cisco Catalyst 9200L-24P-4X-E is an excellent choice for enterprises requiring secure PoE+ access switching with 10G uplinks, automation readiness, and long-term reliability.
Product Specifications – Cisco Catalyst 9200L-24P-4X-E (C9200L-24P-4X-E)
CLICK HERE FOR DATA SHEET
| Category |
Specification Details |
| Product Name |
Cisco Catalyst 9200L-24P-4X-E |
| Model Number |
C9200L-24P-4X-E |
| Product Series |
Cisco Catalyst 9200L Series |
| Product Type |
Enterprise Access Layer Switch |
| License Included |
Network Essentials |
| Form Factor |
Fixed Configuration, Rack-Mountable |
| Rack Height |
1 Rack Unit (1RU) |
| Target Deployment |
Enterprise Campus Access, Branch Offices |
| Ethernet Access Ports |
24 × 10/100/1000 Mbps Gigabit Ethernet |
| PoE Support |
PoE+ on all 24 ports (Up to 30W per port) |
| Maximum PoE Budget |
Up to 370 W |
| Uplink Ports |
4 × Fixed 1G/10G SFP+ |
| Console Ports |
1 × RJ-45 Console, 1 × USB Type-B Console |
| USB Ports |
1 × USB Type-A (Storage & Image Management) |
| Switching Capacity |
104 Gbps |
| Forwarding Rate |
77.38 Million Packets per Second (Mpps) |
| MAC Address Table |
16,000 Entries |
| System Memory (DRAM) |
4 GB |
| Flash Memory |
4 GB |
| Software Platform |
Cisco IOS XE |
| Layer Support |
Full Layer 2, Limited Layer 3 |
| Layer 3 Features |
Static Routing, Limited OSPF |
| IPv6 Support |
IPv6 Routing and Multicast |
| QoS Capabilities |
Advanced QoS, Traffic Classification & Policing |
| Traffic Analytics |
Flexible NetFlow (Lite), Encrypted Traffic Analytics (ETA) |
| Segmentation |
Cisco TrustSec, Scalable Group Tags (SGT) |
| Access Control |
Layer 2/3 Access Control Lists (ACLs) |
| Authentication |
802.1X Port-Based Authentication |
| Security Features |
DHCP Snooping, Dynamic ARP Inspection |
| Encryption |
MACsec (Hardware Capable) |
| Licensing Model |
Cisco Smart Licensing |
| Stacking Support |
Cisco StackWise-160 (Limited Stacking) |
| Stack Bandwidth |
Up to 160 Gbps |
| Power Sharing |
StackPower Supported |
| Power Supply (Default) |
PWR-C5-600WAC |
| Redundant Power Option |
Optional External Redundant Power Supply |
| Cooling System |
Internal Fans |
| Typical Power Consumption |
~55 W (Without PoE Load) |
| Operating Temperature |
0°C to 45°C (32°F to 113°F) |
| Operating Humidity |
5% to 95% (Non-Condensing) |
| Dimensions (H × W × D) |
1.73 × 17.5 × 11.3 in (4.4 × 44.5 × 28.8 cm) |
| Weight |
Approximately 9.5 lbs (4.3 kg) |
| Management Interfaces |
Web UI, CLI, SNMP |
| Centralized Management |
Cisco DNA Center |
| Automation Support |
Cisco DNA Essentials / Advantage |
| Interoperability |
Compatible with Cisco Catalyst 9200 & 9300 Series |
| High Availability |
Stack Resiliency, Power Redundancy |
| Use Case – PoE Access |
IP Phones, Wireless APs, IP Cameras |
| Use Case – Enterprise |
Secure, Resilient Campus Access Switching |
| Package Contents |
Switch Unit, Power Supply, Documentation |
FAQs for C9200L-24P-4X-E:
Can it power all 24 ports with PoE+ at once?
Yes, it supports up to 370W PoE budget across 24 ports, sufficient for full PoE+ usage depending on device wattage.
Is it stackable with other 9200L models?
Yes, it supports StackWise-160 and StackPower for redundancy and power sharing.
What uplinks are supported?
The 4 SFP+ uplinks support both 1G and 10G SFP/SFP+ modules, copper and fiber.
Does this model support advanced Layer 3 features like BGP?
No, it includes basic Layer 3 like static routing and limited OSPF under Network Essentials.
Is this switch fanless?
No, it uses internal fans for cooling.
