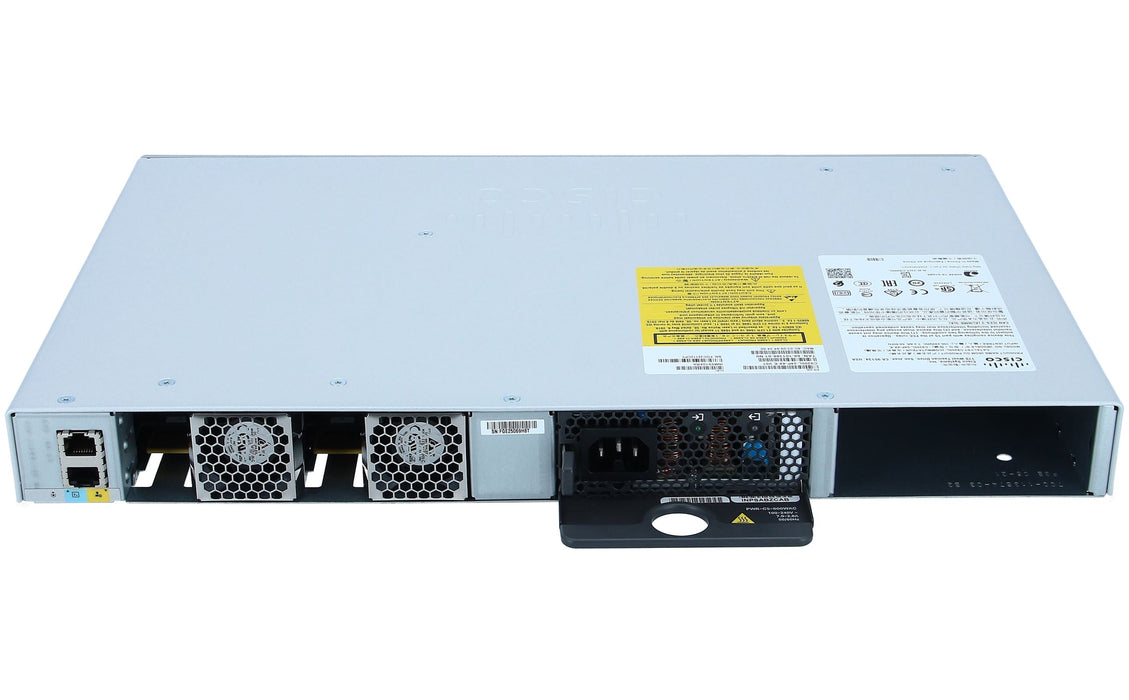

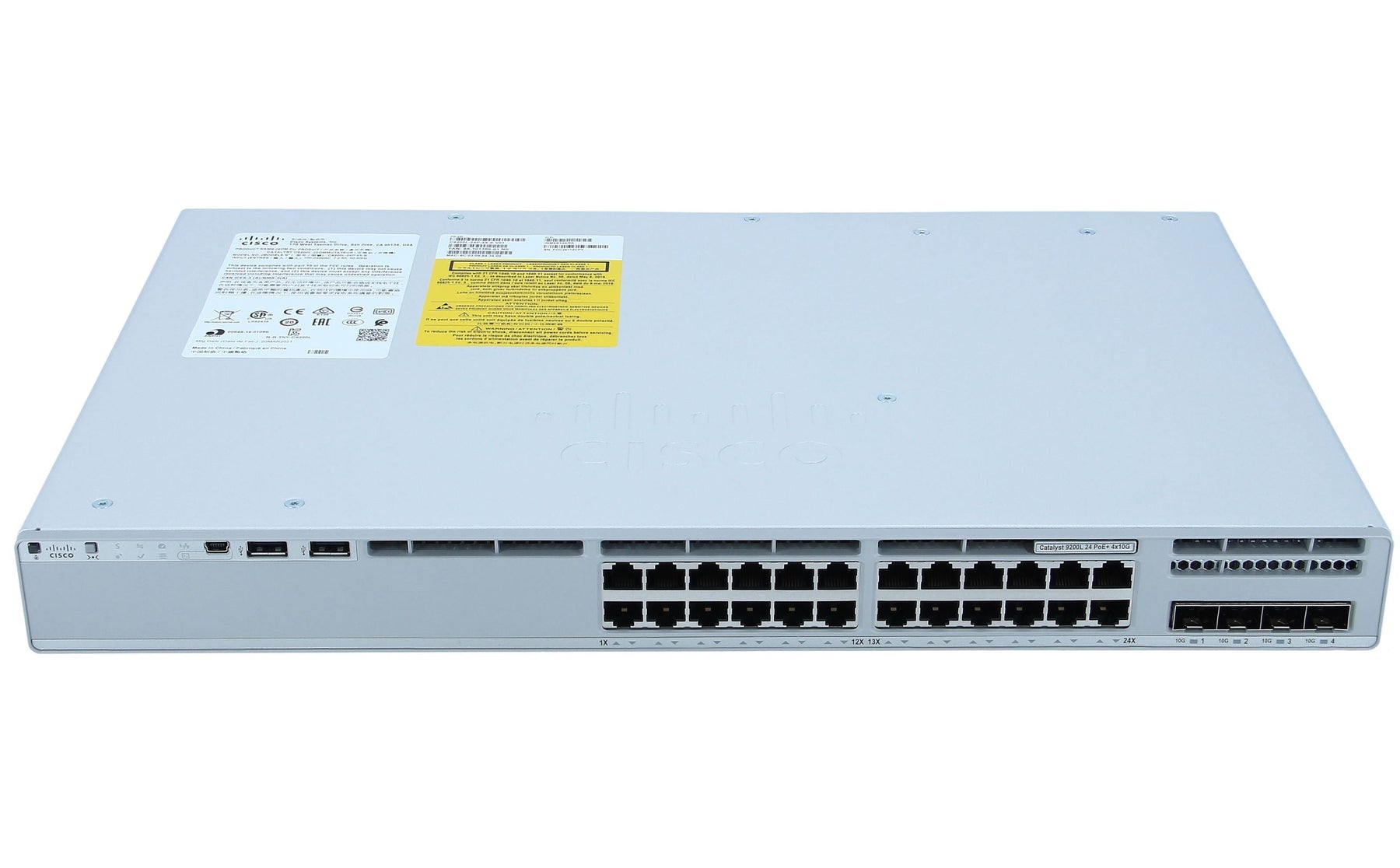

Cisco Catalyst C9200L-24P-4X-A – 24-Port PoE+ Switch with 4 x 10G SFP+ Uplinks
The Cisco Catalyst C9200L-24P-4X-A is a powerful, enterprise-grade network switch designed to deliver secure, scalable, and highly reliable connectivity for small to medium-sized businesses. Featuring 24 PoE+ ports with up to 30W per port and a total 195W power budget, this switch seamlessly powers IP phones, access points, cameras, and other PoE-enabled devices.
With 4 x 10 Gigabit SFP+ uplinks and a 128 Gbps switching capacity, the C9200L-24P-4X-A ensures fast data forwarding and low-latency performance, making it ideal for modern enterprise networks. Built on Cisco’s IOS XE with Network Advantage software, it supports advanced Layer 3 routing protocols (OSPF, EIGRP, BGP), automation, and programmability via Cisco DNA Center and SD-Access.
Designed with Cisco StackWise-160 technology, it enables stacking of up to 4 switches with 160 Gbps of stack bandwidth for scalability and redundancy. Security is a priority with 802.1X authentication, MACsec encryption, Dynamic ARP Inspection (DAI), and advanced QoS to protect and optimize traffic.
Built for efficiency, the switch offers energy-saving features, hot-swappable redundant power supply options, and quiet operation optimized for office and enterprise environments.
Whether you’re expanding your business network or upgrading for automation and security, the Cisco Catalyst C9200L-24P-4X-A delivers the performance, flexibility, and resilience needed to support your digital transformation.
Product Specifications – Cisco Catalyst C9200L-24P-4X-A
CLICK HERE FOR DATA SHEET
| Category |
Details |
| Model Number |
C9200L-24P-4X-A |
| Description |
24-Port PoE+ switch with 4 x 10 Gigabit Ethernet uplinks, powered by Cisco IOS XE with Network Advantage license. Provides advanced Layer 2/3 features, automation, and enterprise-grade security. |
| Ports & Interfaces |
- 24 x 10/100/1000 Mbps RJ-45 PoE+ ports (up to 30W per port)
- 4 x 10 Gigabit Ethernet SFP+ uplink ports
- USB Type-A port
- RJ-45 Console port |
| Performance & Switching Capacity |
- Switching capacity: 128 Gbps
- Forwarding rate: Up to 95.24 Mpps
- Supports Cisco StackWise-160 stacking (up to 4 switches) |
| Power & PoE |
- Supports IEEE 802.3at PoE+ (up to 30W per port)
- Total PoE power budget: 195W
- Energy Efficient Ethernet (EEE) supported |
| Software & Features |
- Cisco IOS XE with Network Advantage license
- Advanced Layer 3 routing: OSPF, EIGRP, BGP
- Enhanced security: 802.1X, MACsec, Dynamic ARP Inspection (DAI)
- Automation & programmability with Cisco DNA Center and Cisco SD-Access
- Flexible QoS and multicast support |
| Stacking & Redundancy |
- Cisco StackWise-160 technology for stack resiliency
- Up to 160 Gbps stack bandwidth
- Stack power sharing supported
- Redundant power supply options |
| Environmental & Compliance |
- Operating temperature: 0°C to 45°C
- Designed for low-noise office environments
- Compliance: RoHS, WEEE, ENERGY STAR |
| Form Factor |
Fixed-configuration rack-mountable switch (1RU) |
| Management & Monitoring |
- CLI, SNMP, RMON, NetFlow
- Cisco DNA Center integration for centralized automation and analytics |
| Reliability |
- Hot-swappable redundant power supplies (optional)
- Field-replaceable fan units |
FAQs for C9200L-24P-4X-A:
What is the maximum PoE power per port on this switch?
Each port supports up to 30W of power, compliant with the PoE+ IEEE 802.3at standard.
Can this switch be stacked with other Cisco switches?
Yes, it supports stacking of up to 4 switches using Cisco StackWise-160 technology.
Does it support Layer 3 routing?
Yes, the Network Advantage license enables advanced Layer 3 routing protocols such as OSPF, EIGRP, and BGP.
What uplink options are available?
The switch includes 4 modular 10 Gigabit Ethernet SFP+ uplink ports for flexible high-speed connectivity.
Is this switch suitable for small and medium business networks?
Absolutely, it offers a scalable, secure, and power-efficient solution ideal for SMB and enterprise access layers.
