The Cisco Catalyst C9200L-24P-4G-E is a next-generation enterprise access switch designed to bring intent-based networking, strong security, and simplified operations to small and medium-sized business environments. As part of the Catalyst 9200L Series, it delivers the reliability of Cisco’s enterprise switching portfolio in a compact, cost-effective form factor.

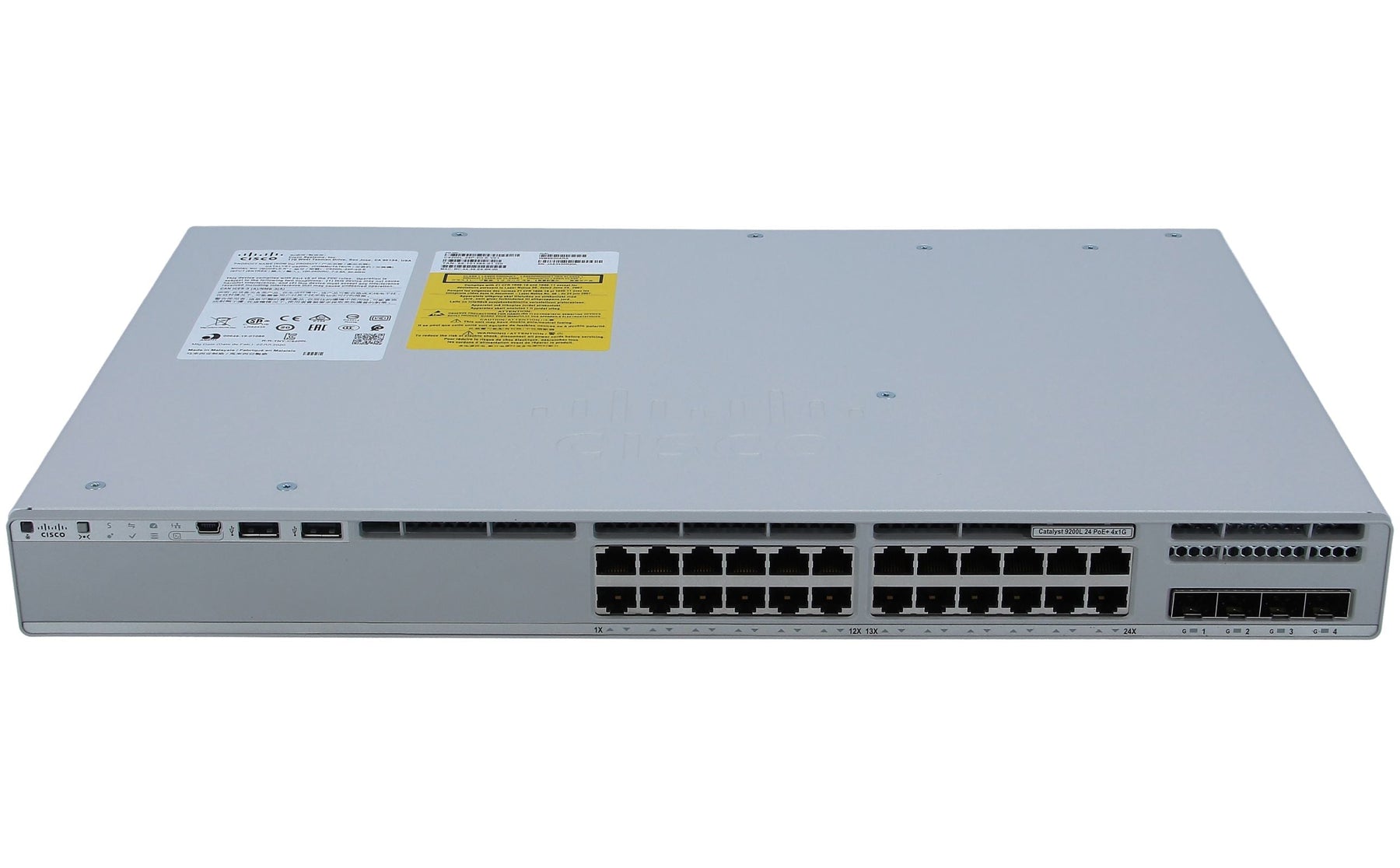

Equipped with 24 full PoE+ Gigabit Ethernet ports and a 370W power budget, the switch easily supports wireless access points, IP phones, security cameras, and IoT devices. The four fixed 1G SFP uplinks provide flexible, high-speed connectivity to the distribution or core layer, ensuring consistent performance across the access network.

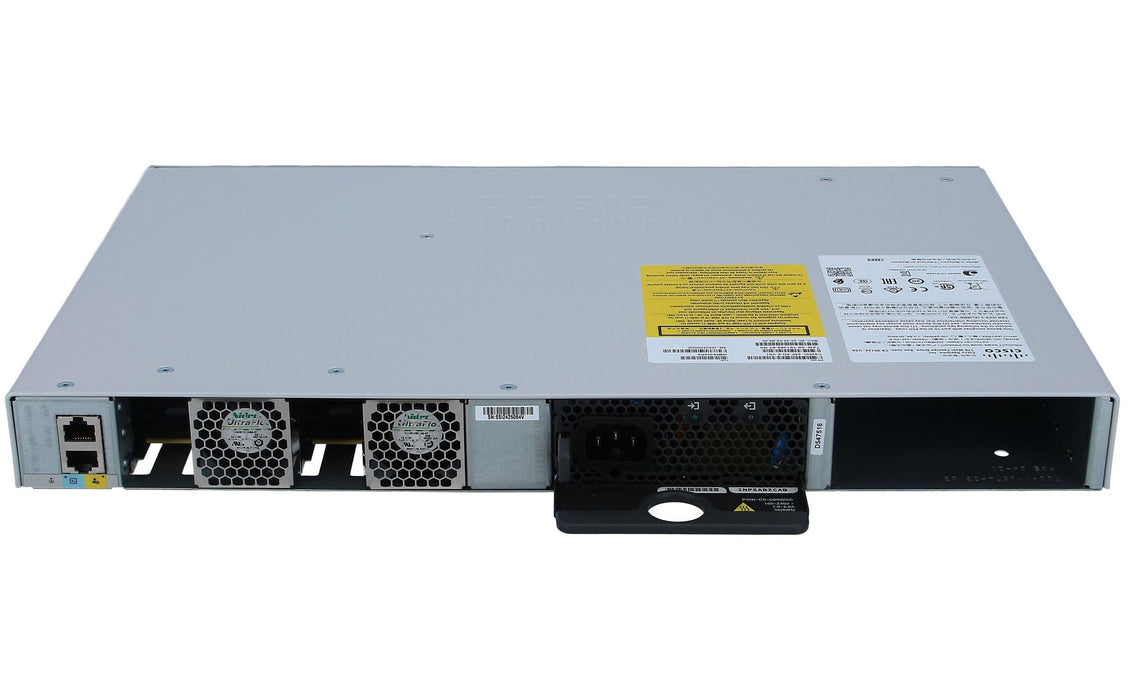

Running Cisco IOS XE with the Network Essentials license, the C9200L-24P-4G-E offers foundational Layer 3 features alongside advanced security capabilities such as IEEE 802.1X authentication, Cisco TrustSec, and AES-128 MACsec encryption. Built-in resiliency with optional dual field-replaceable power supplies and redundant fans helps maintain uptime in mission-critical access deployments.
With support for StackWise-80, multiple switches can be combined into a single logical unit, simplifying management and enabling scalable growth. Seamless integration with Cisco DNA Center and Plug-and-Play (PnP) automation further reduces operational complexity, making this switch an ideal entry point for modernizing enterprise access networks.
Product Specifications – Cisco Catalyst C9200L-24P-4G-E PoE+ Access Switch
CLICK HERE FOR DATA SHEET
| Category |
Specification Details |
| Product Name |
Cisco Catalyst C9200L-24P-4G-E |
| Model Number |
C9200L-24P-4G-E |
| Switch Series |
Cisco Catalyst 9200L Series |
| Product Type |
Enterprise-Class Stackable Access Switch |
| Target Deployment |
Small to Medium Enterprise Access Layer |
| Total Access Ports |
24 × 10/100/1000 Mbps RJ-45 |
| PoE Support |
IEEE 802.3af / 802.3at (PoE / PoE+) |
| Maximum PoE Budget |
370W |
| PoE Power per Port |
Up to 30W |
| Uplink Ports |
4 × 1G SFP (fixed) |
| Console Ports |
1 × RJ-45 Console |
| USB Ports |
1 × USB Type-A |
| Switching Capacity |
56 Gbps |
| Forwarding Rate |
83.33 Mpps |
| Stacking Technology |
StackWise-80 |
| Stacking Bandwidth |
Up to 80 Gbps |
| Maximum Stack Size |
Up to 8 switches |
| MAC Address Table |
16,000 entries |
| VLAN Support |
Up to 4,096 VLANs |
| DRAM |
2 GB |
| Flash Memory |
4 GB |
| Layer 2 Features |
VLAN, STP, RSTP, MST, EtherChannel |
| Layer 3 Features |
Static routing, RIP (foundational L3) |
| Operating System |
Cisco IOS XE |
| License Included |
Network Essentials |
| Cisco DNA Support |
Yes (subscription optional) |
| Security Features |
802.1X, TrustSec, AES-128 MACsec |
| Access Security |
DHCP Snooping, Dynamic ARP Inspection |
| Traffic Visibility |
NetFlow Lite |
| Management Options |
Web UI, CLI, SNMP |
| Automation |
Plug-and-Play (PnP), Cisco DNA Center |
| Power Supply |
Modular PSU |
| Power Redundancy |
Optional dual field-replaceable PSUs |
| Cooling |
Redundant field-replaceable fans |
| Form Factor |
1RU, rack-mountable |
| Operating Temperature |
0°C to 45°C (32°F to 113°F) |
| Operating Humidity |
5% to 95% non-condensing |
| IoT Readiness |
Designed for IoT and edge device connectivity |
| Cloud Readiness |
Cloud-managed visibility via DNA Center |
| Primary Use Case – PoE |
Wireless APs, IP phones, cameras |
| Primary Use Case – Access |
Secure enterprise campus switching |
| Primary Use Case – Modernization |
Intent-based networking adoption |
| Mounting Hardware |
Included |
| Package Contents |
Switch chassis, power supply, rack kit |
FAQs:
Q1. What is the difference between "Network Essentials" and "Network Advantage"?
Network Essentials (the "E" in the part number) provides foundational Layer 3 features like static routing and OSPF. Network Advantage provides more advanced capabilities like full EIGRP, BGP, and advanced segmentation features.
Q2. Does this switch have removable uplink modules?
No, the C9200L models feature "fixed" uplinks. This specific model has 4 fixed 1G SFP ports that cannot be swapped or upgraded to 10G.
Q3. How much PoE power is available for my devices?
By default, the C9200L-24P-4G-E provides 370W of PoE power. This allows you to power all 24 ports at approximately 15.4W (PoE) or about 12 ports at the full 30W (PoE+).
Q4. Can I stack this switch with other Catalyst 9200 models?
You can stack C9200L models with other C9200L models using an optional C9200L-STACK-KIT. However, C9200L (fixed) switches cannot be stacked with C9200 (modular) switches.
Q5. Is a cooling fan included, or is it fanless?
This switch is equipped with internal fans. It features a redundant fan design to ensure proper cooling for the PoE components during high-density operations.
