"Upgrade your network infrastructure with the Cisco Catalyst 9200L 24-port PoE+ switch. Featuring Network Advantage, this switch offers advanced features for Power over Ethernet applications and high-speed connectivity, ensuring seamless operation and optimal performance."
"Maximize the efficiency of your PoE+ network with the Cisco Catalyst 9200L 24-port PoE+ switch. Powered by Network Advantage, this switch provides advanced features and capabilities optimized for PoE+ applications and high-speed data transfer, ensuring reliable connectivity and seamless operation."
"Enhance your network infrastructure with the Cisco Catalyst 9200L 24-port PoE+ switch. Designed with Network Advantage, this switch offers advanced functionalities tailored to meet the demands of modern networking environments, ensuring seamless connectivity and high performance."

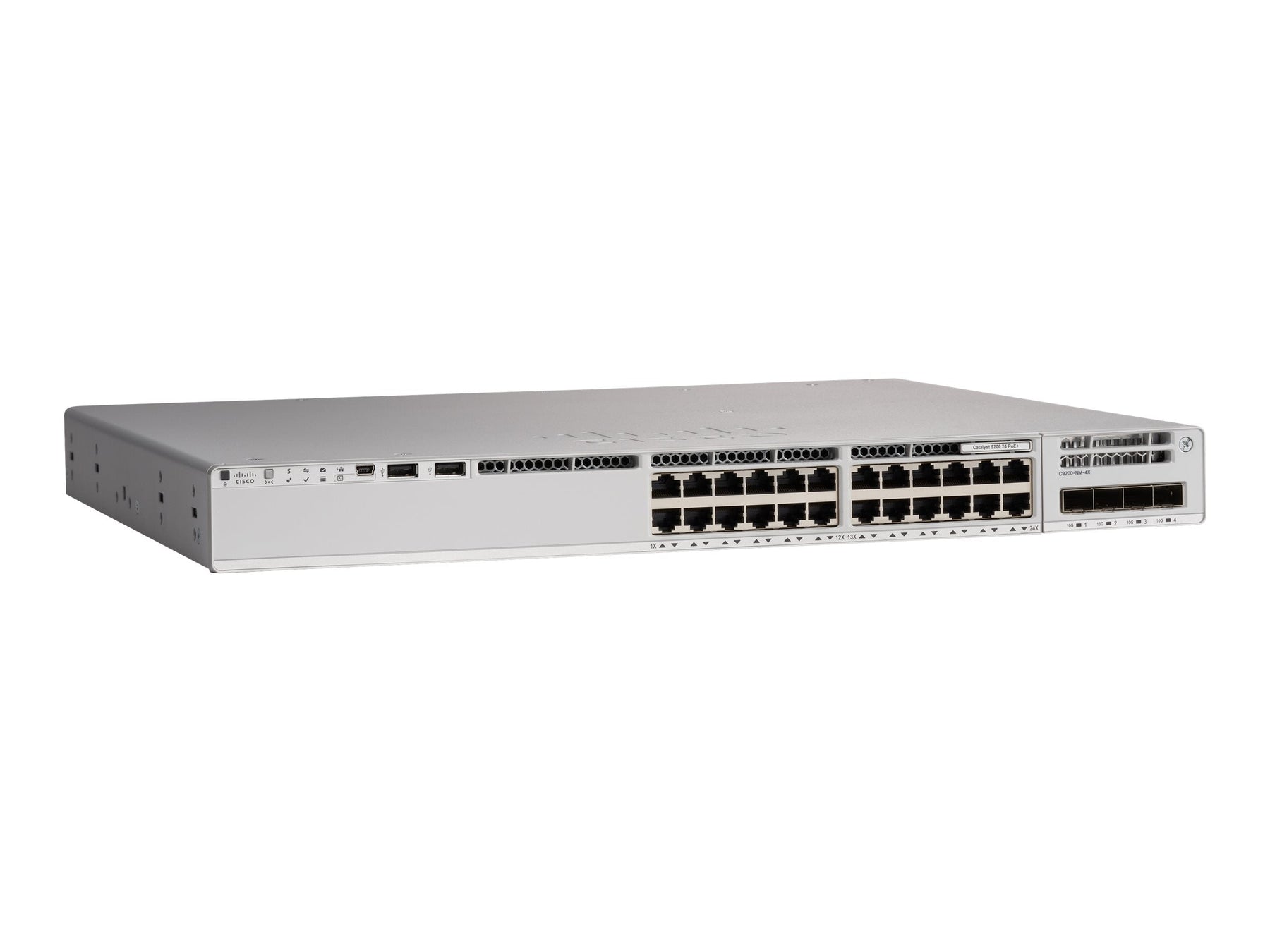

Product Specifications for Cisco C9200L-24P-4G-A (Data Sheet):
| Specification |
Details |
| Brand |
Cisco |
| Product Series |
Catalyst 9200L |
| Model |
C9200L-24P-4G-A |
| Form Factor |
1U rack-mountable |
| Total Ports |
24 x Gigabit Ethernet ports |
| PoE Support |
Yes, PoE+ (Power over Ethernet Plus) |
| PoE Budget |
370W |
| Uplink Ports |
4 x 1G SFP uplinks |
| Switching Capacity |
56 Gbps |
| Forwarding Rate |
41.66 Mpps |
| Power Supply |
Internal, modular (supports redundant power supply) |
| Layer Support |
Layer 2 and Layer 3 |
| MAC Address Table |
16K |
| VLAN Support |
4,096 VLAN IDs |
| Stacking Support |
Cisco StackWise-160, up to 8 units |
| Routing Protocols |
Static, EIGRP, OSPF, BGP, RIP |
| Security Features |
802.1X, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard |
| Management Options |
Cisco DNA Center, CLI, WebUI, SNMP, Telnet, SSH |
| Dimensions (L x W x H) |
1.73 x 17.5 x 10.5 in. (44 x 445 x 269 mm) |
| Weight |
10.1 lbs (4.6 kg) |
| Operating Temperature |
32°F to 113°F (0°C to 45°C) |
| Warranty |
Limited Lifetime Warranty |
FAQs:
1. What is the power budget for PoE on the Cisco C9200L-24P-4G-A?
The Cisco C9200L-24P-4G-A switch provides a Power over Ethernet (PoE) budget of 370W, enabling it to power multiple devices such as IP phones, cameras, and wireless access points directly through the Ethernet ports.
2. Can the Cisco C9200L-24P-4G-A be stacked with other switches?
Yes, the C9200L-24P-4G-A supports Cisco StackWise-160 technology, allowing up to 8 switches to be stacked together for improved redundancy and scalability.
3. What management options are available for the Cisco C9200L-24P-4G-A?
This switch can be managed through multiple platforms including the Cisco DNA Center, command-line interface (CLI), web-based interface, SNMP, Telnet, and SSH, providing flexible management options based on your network needs.
4. Does the Cisco C9200L-24P-4G-A support Layer 3 routing?
Yes, it supports both Layer 2 and Layer 3 functionalities, including routing protocols like OSPF, EIGRP, BGP, and RIP for comprehensive network management.
5. What are the uplink options on the C9200L-24P-4G-A switch?
The switch comes equipped with 4 x 1G SFP uplink ports, which provide high-speed connectivity options to core switches or other network devices.
