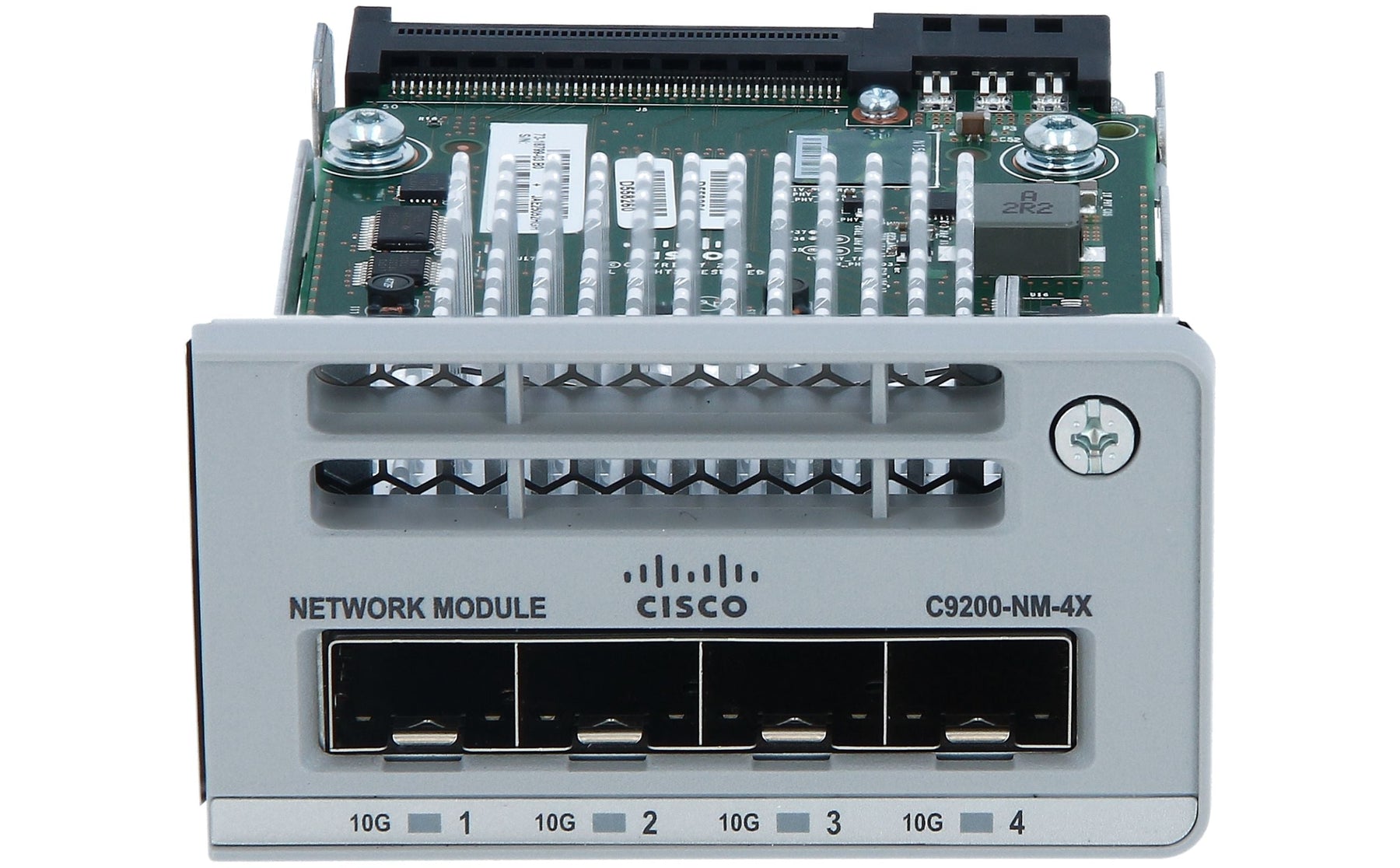

The Cisco C9200-NM-4X 4-Port 10 Gigabit Ethernet SFP+ Network Module is a high-performance uplink expansion module designed for Cisco Catalyst 9200 Series Switches. Engineered to enhance enterprise campus and branch network performance, it provides four 10 Gigabit Ethernet SFP+ uplink ports that deliver high-speed fiber connectivity, increased bandwidth, and flexible network expansion for growing business environments.
Designed as a plug-in network module, the Cisco C9200-NM-4X seamlessly integrates with Catalyst 9200 Series switches, enabling organizations to upgrade uplink capacity without replacing existing switching infrastructure. Supporting both 1 Gigabit SFP and 10 Gigabit SFP+ optical transceivers, as well as compatible Direct Attach Copper (DAC) cables, the module offers deployment flexibility for short- and long-distance fiber connections.
The module delivers up to 40 Gbps of aggregate uplink bandwidth, providing line-rate performance for bandwidth-intensive applications such as cloud services, data center interconnects, unified communications, virtualization, and enterprise network aggregation. Its support for IEEE 802.3ad Link Aggregation (LACP) allows multiple uplinks to be combined for increased throughput and enhanced network resilience.
Running with Cisco IOS XE, the Cisco C9200-NM-4X supports advanced enterprise networking features including VLAN tagging (IEEE 802.1Q), jumbo frames, hardware-based Quality of Service (QoS), and secure network access technologies, ensuring reliable and efficient traffic management across modern business networks. The module also integrates with Cisco DNA Center and Cisco Prime Infrastructure, simplifying network provisioning, monitoring, automation, and lifecycle management.
Its hot-swappable design enables installation or replacement without powering down the host switch, minimizing network downtime and simplifying maintenance. Powered directly by the Catalyst 9200 switch and utilizing passive cooling, the module requires no additional power source while maintaining reliable enterprise-class operation.
Ideal for enterprise campus networks, high-speed switch uplinks, fiber backbone expansion, network aggregation, data center connectivity, and business network upgrades, the Cisco C9200-NM-4X 4-Port 10 Gigabit Ethernet SFP+ Network Module provides scalable, high-bandwidth uplink connectivity and dependable performance for modern enterprise networking infrastructures.
Product Specifications - Cisco C9200-NM-4X 4-Port 10 Gigabit Ethernet SFP+ Network Module
CLICK HERE FOR DATA SHEET
| Specification |
Details |
| Product Name |
Cisco C9200-NM-4X 4-Port 10 Gigabit Ethernet SFP+ Network Module |
| Manufacturer |
Cisco Systems |
| Part Number |
C9200-NM-4X |
| Product Series |
Cisco Catalyst 9200 Series |
| Product Type |
Network Module |
| Module Type |
Fixed Uplink Expansion Module |
| Port Configuration |
4 × 10 Gigabit Ethernet SFP+ Ports |
| Interface Type |
SFP+ Fiber Uplink Interfaces |
| Port Speed |
1/10 Gigabit Ethernet (SFP/SFP+ Dependent) |
| Supported Transceivers |
Cisco 1G SFP and 10G SFP+ Optical & DAC Transceivers |
| Network Standards |
IEEE 802.3, IEEE 802.3ae 10 Gigabit Ethernet |
| Uplink Connectivity |
Fiber Ethernet Uplinks |
| Hot Swappable |
Yes |
| Compatibility |
Cisco Catalyst 9200 Series Switches |
| Switch Integration |
Seamless Integration with Cisco Catalyst 9200 Series |
| Operating System Compatibility |
Cisco IOS XE |
| Switching Architecture |
Uses Host Switch Backplane |
| Forwarding |
Line-Rate Uplink Performance |
| Bandwidth |
Up to 40 Gbps Aggregate Uplink Bandwidth |
| Link Aggregation |
IEEE 802.3ad LACP Supported |
| VLAN Support |
IEEE 802.1Q VLAN Tagging |
| Jumbo Frame Support |
Supported |
| Quality of Service (QoS) |
Hardware-Based QoS |
| Security Features |
IEEE 802.1X, MACsec (Platform Dependent), Secure Network Access |
| High Availability |
Hot-Swappable Module for Minimal Downtime |
| Management |
Cisco IOS XE CLI, SNMP, Cisco DNA Center, Cisco Prime Infrastructure |
| Installation Type |
Plug-in Expansion Module |
| Form Factor |
Plug-in Network Module |
| Power Source |
Powered by Host Switch |
| Cooling |
Passive Cooling via Host Switch |
| Deployment |
Enterprise Campus, Branch Office and Distribution Networks |
| Application |
High-Speed Fiber Uplinks and Network Expansion |
| Reliability |
Enterprise-Class Cisco Networking |
| Condition |
Refurbished |
| Use Cases |
Enterprise Campus Networks, High-Speed Switch Uplinks, Data Center Connectivity, Network Aggregation, Fiber Backbone Expansion, Business Network Upgrades |
FAQs
Q1. Which switches are compatible with the C9200-NM-4X?
The module is designed specifically for Cisco Catalyst 9200 Series switches.
Q2. How many uplink ports does the C9200-NM-4X provide?
It provides four 10 Gigabit Ethernet SFP+ uplink ports for high-speed fiber connectivity.
Q3. Is the C9200-NM-4X hot-swappable?
Yes. The module supports hot-swappable installation, allowing replacement or upgrades with minimal network disruption.
Q4. What type of transceivers does this module support?
The C9200-NM-4X uses standard Cisco-compatible SFP+ transceivers for 10 Gigabit Ethernet connectivity.
Q5. What environments is the C9200-NM-4X best suited for?
It is ideal for enterprise campuses, branch offices, data centers, and organizations requiring high-speed fiber uplinks and scalable network expansion.
