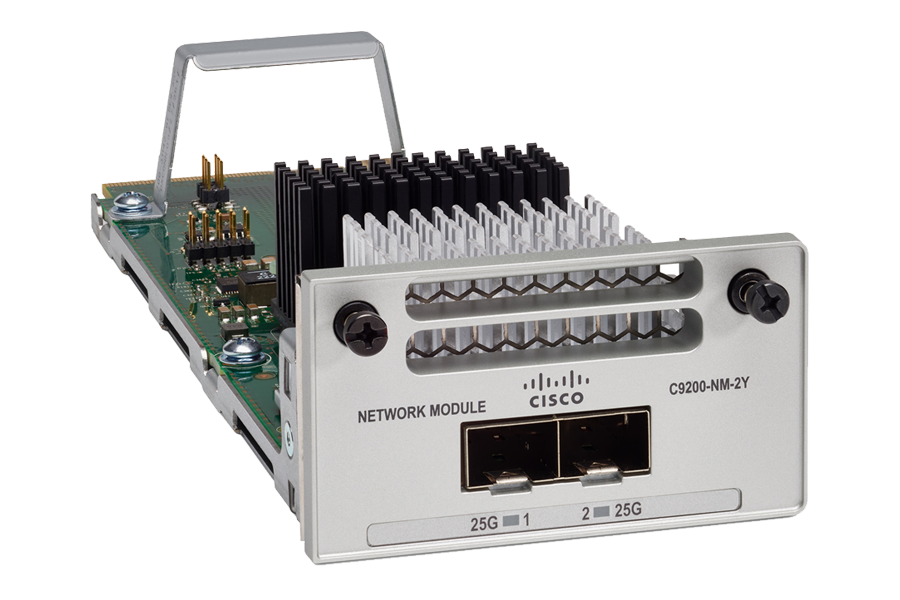

The Cisco Catalyst C9200-NM-2Y Network Module is a high-performance, modular uplink expansion designed for Cisco Catalyst 9200 Series switches. Featuring two multi-rate SFP28 ports, this network module supports 25G, 10G, and 1G connectivity, enabling enterprises to scale uplink bandwidth without replacing their existing access switches.
Built for modern, bandwidth-intensive environments, the C9200-NM-2Y provides seamless integration with Cisco IOS XE and Cisco DNA Center, allowing centralized management, automation, and visibility across the network. Its hot-swappable, field-replaceable design ensures minimal downtime during upgrades or maintenance, making it ideal for enterprise access-to-distribution deployments.
With support for fiber and DAC connections and backward compatibility with legacy SFP and SFP+ optics, this module offers excellent investment protection. Whether you are upgrading to 25GbE uplinks, reducing congestion, or future-proofing your campus network, the Cisco Catalyst C9200-NM-2Y delivers flexible, high-speed connectivity with enterprise-grade reliability from Cisco Systems.
Product Specifications – Cisco Catalyst C9200-NM-2Y Network Module
CLICK HERE FOR DATA SHEET
| Specification Category |
Details |
| Product Name |
Cisco Catalyst C9200-NM-2Y Network Module |
| Manufacturer |
Cisco Systems |
| Part Number |
C9200-NM-2Y |
| Product Type |
Modular Uplink Network Module |
| Compatible Switch Series |
Cisco Catalyst 9200 Series |
| Supported Switch Models |
C9200-24T, C9200-24P, C9200-48T, C9200-48P |
| Interface Ports |
2 × SFP28/SFP+ ports |
| Supported Port Speeds |
25G SFP28, 10G SFP+, 1G SFP |
| Maximum Throughput |
25 Gbps per port |
| Media Support |
Fiber optics and copper DAC cables |
| Transceiver Support |
SFP28, SFP+, and SFP modules (Cisco-qualified) |
| Form Factor |
Plug-in network module |
| Hot-Swappable |
Yes |
| Installation |
Tool-less, field-replaceable |
| Software Compatibility |
Cisco IOS XE |
| Management |
Cisco DNA Center, CLI, SNMP |
| Backward Compatibility |
Supports legacy 10G and 1G optics |
| Use Case |
High-speed uplinks, aggregation, future bandwidth expansion |
| Deployment Layer |
Access to Distribution / Aggregation |
| Environmental Compliance |
RoHS compliant |
| Warranty & Support |
Cisco SMARTnet eligible |
FAQs:
Q1. Can this module be used in Catalyst 9200L switches?
No. The "L" models (e.g., C9200L-24P-4G) have fixed uplinks. This module is only compatible with the modular C9200 series (e.g., C9200-24P, C9200-48T).
Q2. Do I need to reboot the switch to install this module?
No. The C9200-NM-2Y is hot-swappable, meaning it can be inserted or removed while the switch is powered on without interrupting system operation.
Q3. Does this module support 10G SFP+ optics?
Yes. Each port on the C9200-NM-2Y is backward compatible with 10G SFP+ and 1G SFP transceivers, providing great flexibility for mixed-speed environments.
Q4. Can I use both ports simultaneously for a 50G uplink?
Yes. You can configure the two ports in an EtherChannel (Link Aggregation) to provide a combined logical bandwidth of 50 Gbps to a core or distribution switch.
Q5. Are the SFP28 transceivers included with the module?
No. Transceivers (optics) and cables (DAC/AOC) must be purchased separately based on your distance and media requirements (e.g., SFP-25G-SR-S).
