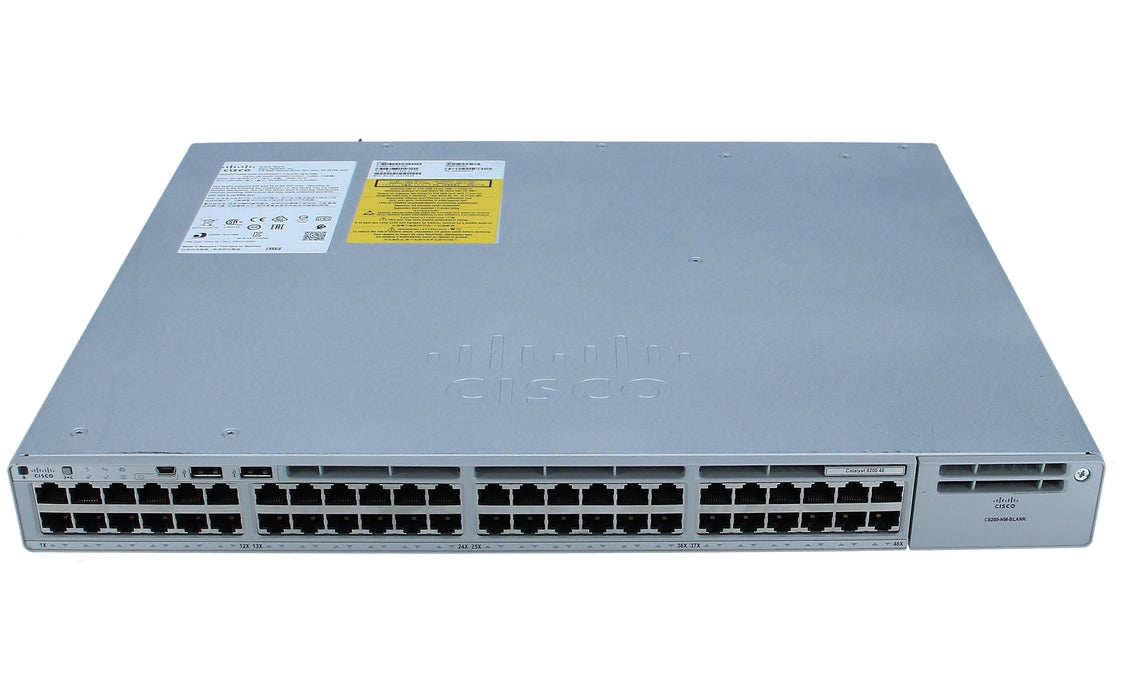

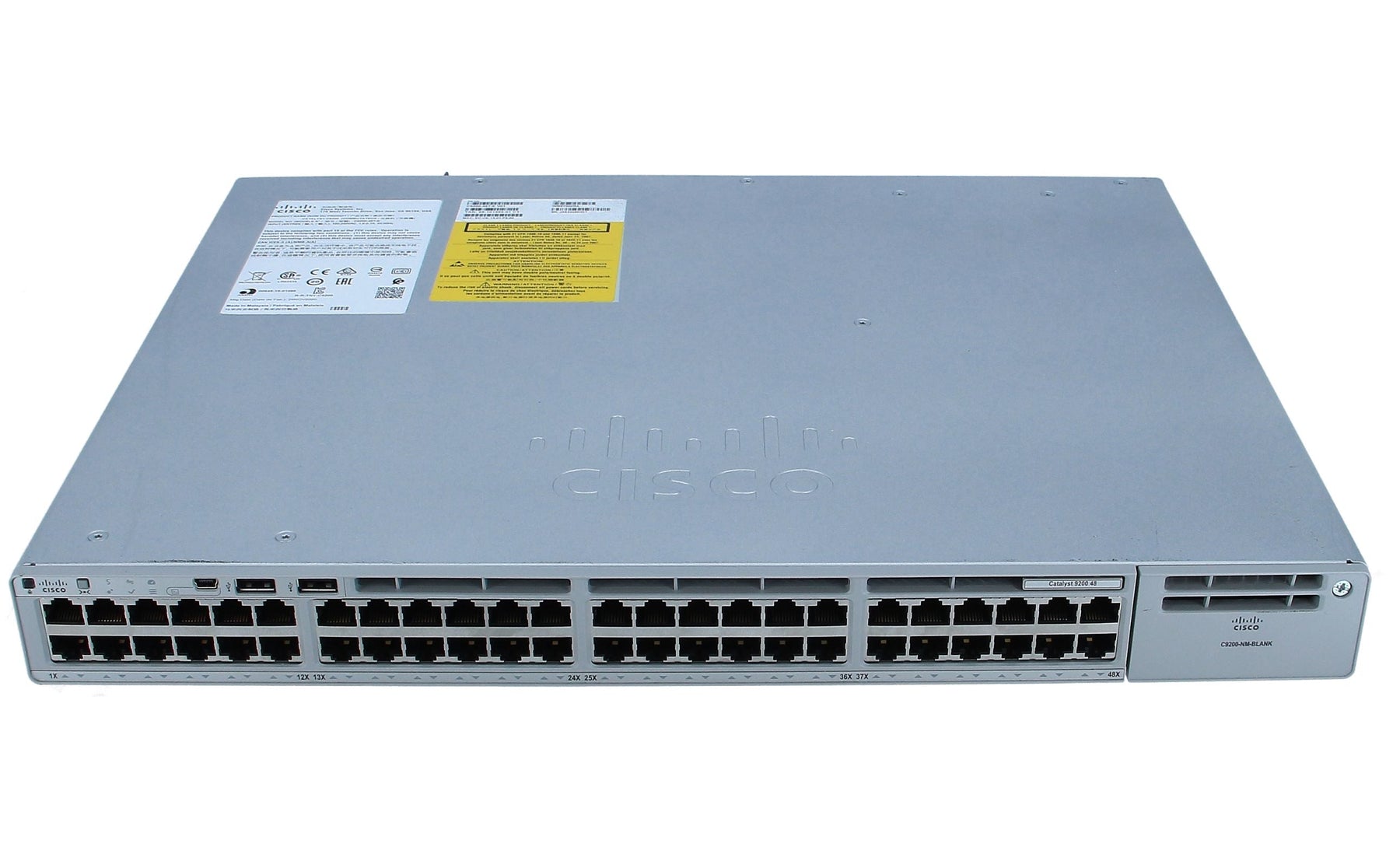

The Cisco Catalyst C9200-48T-E is a modular, enterprise-grade access layer switch built for secure, scalable, and high-performance wired networks. Featuring 48 Gigabit Ethernet data-only ports, this switch is ideal for environments where PoE is not required - such as offices, campuses, and branch networks connecting desktops, printers, and servers.
Powered by Cisco Network Essentials software, the C9200-48T-E delivers foundational Layer 3 routing, including OSPF, EIGRP-Stub, RIP, and static routing, while maintaining strong security with AES-128 MACsec encryption, Secure Boot, and Trust Anchor technology. Its modular uplink architecture allows seamless upgrades to 1G, 10G, 25G, or 40G, ensuring long-term investment protection.
With StackWise-160, up to eight switches can operate as a single logical unit, providing 160 Gbps stacking bandwidth, simplified management, and high availability. Dual redundant, field-replaceable power supplies and modular fans further enhance resiliency, making the Cisco Catalyst C9200-48T-E a reliable choice for modern enterprise access networks and Cisco SD-Access–ready deployments.
Product Specifications – Cisco Catalyst C9200-48T-E
CLICK HERE FOR DATA SHEET
| Specification Category |
Details |
| Product Name |
Cisco Catalyst C9200-48T-E |
| Product Series |
Cisco Catalyst 9200 Series |
| Category |
Enterprise Access Layer Switch (Data-Only) |
| Manufacturer |
Cisco Systems |
| Part Number |
C9200-48T-E |
| Switch Type |
Modular, Stackable Gigabit Ethernet Switch |
| Downlink Ports |
48 × 10/100/1000 Mbps RJ-45 (Non-PoE / Data-Only) |
| Uplink Interfaces |
Modular network module slot (modules sold separately) |
| Supported Uplink Modules |
4×1G SFP, 4×10G SFP+, 2×25G SFP28, 2×40G QSFP+ |
| Switching Capacity |
176 Gbps |
| Forwarding Rate |
130.95 Mpps |
| Stacking Technology |
StackWise-160 |
| Stacking Bandwidth |
160 Gbps |
| Maximum Stack Size |
Up to 8 switches |
| Software Tier |
Network Essentials |
| Layer 3 Features |
Static Routing, OSPF (up to 1000 routes), RIP, EIGRP-Stub |
| Security Features |
AES-128 MACsec, Secure Boot, Trust Anchor Module |
| Network Architecture |
Cisco SD-Access ready |
| Memory (DRAM) |
4 GB |
| Flash Memory |
4 GB |
| Power Supply |
Modular power supply slots |
| Power Redundancy |
Dual redundant, field-replaceable PSUs supported |
| Cooling |
Modular, redundant fan trays |
| High Availability |
Stacking, redundant PSUs, redundant fans |
| Management & Automation |
Cisco IOS-XE, Cisco DNA Center, CLI, SNMP |
| Form Factor |
1RU rack-mountable |
| Typical Use Cases |
Enterprise access layer, campus networks, branch offices, data-only endpoint connectivity |
FAQs:
Q1. Does this switch support Power over Ethernet (PoE)?
No. The "T" in C9200-48T-E stands for "Data-Only." If you need to power devices like IP phones or access points, you would need the C9200-48P (PoE+) model.
Q2. What is the advantage of this model over the C9200L-48T-4G-E?
The C9200 (this model) features modular uplinks and a higher stacking bandwidth of 160 Gbps. The C9200L features fixed (built-in) uplinks and is limited to 80 Gbps stacking.
Q3. Are the uplink modules included with the switch?
No, the network modules are sold separately. You can choose a module like the C9200-NM-4X (4x10G) based on your specific uplink requirements.
Q4. Can I upgrade the software to "Network Advantage"?
Yes. You can purchase a license upgrade to move from Network Essentials to Network Advantage if you require advanced features like full BGP, IS-IS routing, or VRF-lite.
Q5. Can this switch be used in a Cisco SD-Access environment?
Yes. The Catalyst 9200 series is an entry-level platform for Cisco’s Software-Defined Access, providing policy-based automation from the edge to the cloud.
