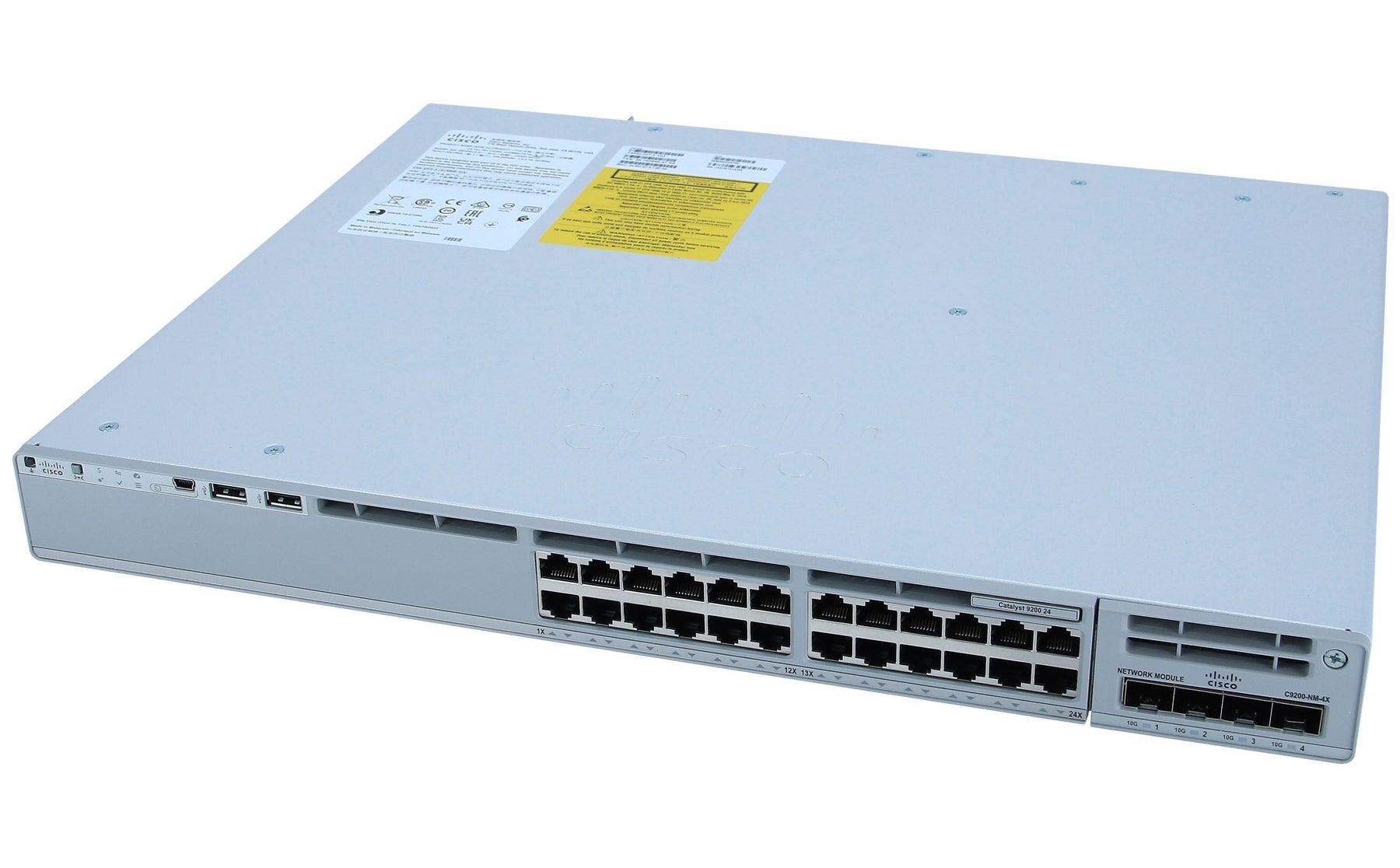

The Cisco C9200-24T-E Catalyst 9200 Series Switch is a reliable and cost-effective enterprise access switch designed for branch offices, campus networks, and small-to-medium business environments. Built to extend Cisco’s intent-based networking, this switch delivers secure, scalable, and simplified connectivity for modern IT infrastructure.
Featuring 24 × Gigabit Ethernet data-only ports, the C9200-24T-E provides stable and high-performance connectivity for end-user devices, ensuring smooth operation across business applications. With modular uplink support (optional modules), organizations can easily expand network capacity with 1G or 10G uplinks, offering flexibility for future growth.
Powered by Cisco IOS XE, the switch supports essential Layer 2 features under the Network Essentials license, enabling efficient switching, network segmentation, and simplified management. It also integrates with Cisco DNA Center, allowing centralized control, automation, and enhanced network visibility.
Security is built into the core of the C9200-24T-E, with features such as 802.1X authentication, access control lists (ACLs), DHCP snooping, and secure access policies, ensuring protection against unauthorized access and network threats.
Designed for high availability and scalability, the switch supports Cisco StackWise-160 technology, allowing up to 8 switches to operate as a single logical unit, simplifying management and improving resilience. Additional support for redundant power options and energy-efficient operation makes it suitable for continuous business operations.
With its combination of performance, security, scalability, and ease of management, the Cisco C9200-24T-E is an ideal solution for organizations seeking a dependable and future-ready access layer switch for enterprise networking environments.
Product Specifications - Cisco C9200-24T-E Catalyst 9200 Series 24-Port Gigabit Ethernet Switch
CLICK HERE FOR DATA SHEET
| Specification |
Details |
| Product Name |
Cisco C9200-24T-E Catalyst 9200 Series Switch |
| Manufacturer |
Cisco Systems |
| Part Number |
C9200-24T-E |
| Product Series |
Cisco Catalyst 9200 Series |
| Product Type |
Fixed-Configuration Enterprise Switch |
| Port Configuration |
24 × 10/100/1000 Gigabit Ethernet (Data Only) |
| PoE Support |
No (Data-only model) |
| Uplink Options |
Modular uplink slots (modules sold separately) |
| Uplink Types Supported |
1G, 10G (via optional network modules) |
| Switching Capacity |
Up to ~128 Gbps (platform dependent) |
| Forwarding Rate |
Up to ~95 Mpps |
| Layer Support |
Layer 2 |
| License Type |
Network Essentials |
| Operating System |
Cisco IOS XE |
| Management Interfaces |
CLI, Web UI, SNMP |
| Automation Support |
Cisco DNA, REST APIs, basic automation |
| Security Features |
802.1X, ACLs, DHCP Snooping, basic encryption |
| Access Control |
Port-based security and authentication |
| Stack Support |
Cisco StackWise-160 |
| Stack Size |
Up to 8 switches |
| High Availability |
Redundancy via stacking and failover |
| Power Supply |
Internal power supply |
| Redundancy |
Optional external redundant power supply (RPS) |
| Cooling System |
Fixed internal fans |
| Form Factor |
1 Rack Unit (1RU), rack-mountable |
| Dimensions |
Standard 19-inch rack |
| Operating Temperature |
0°C to 45°C |
| Storage Temperature |
-40°C to 70°C |
| Energy Efficiency |
Energy Efficient Ethernet (EEE) support |
| Deployment Type |
Enterprise LAN, branch, campus networks |
| Application |
Access layer switching |
| Condition |
New / Cisco Certified |
| Use Cases |
SMB networks, enterprise access, office LANs, infrastructure upgrades |
FAQs
Q1. What is included in the Network Essentials license?
It provides essential Layer 2 features, basic security, and simplified network management.
Q2. Does this switch support PoE?
No, this is a data-only model and does not support Power over Ethernet.
Q3. Can uplink modules be added?
Yes, it supports modular uplinks that can be added separately.
Q4. Is this suitable for enterprise environments?
Yes, it is designed for enterprise branch and campus networks.
Q5. What operating system does it run on?
It runs on Cisco IOS XE, supporting automation and easy network management.
