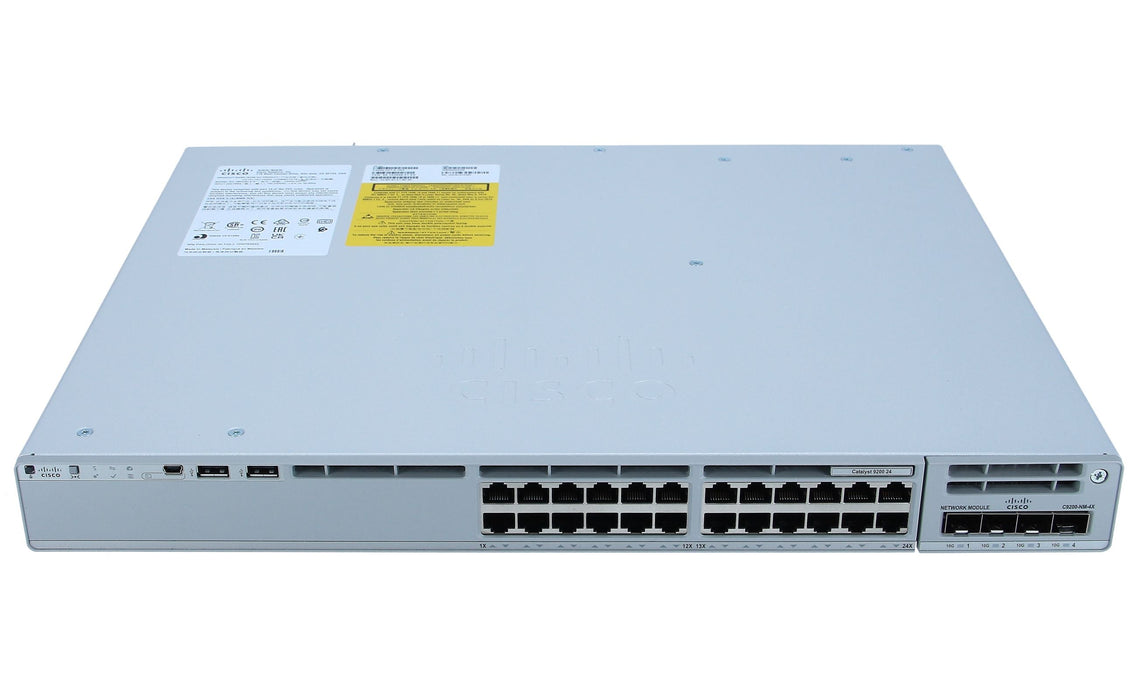

The Cisco C9200-24T-A Catalyst 9200 Series Switch is a secure, scalable, and high-performance enterprise-class access switch designed for branch offices, campus networks, and enterprise LAN environments. Built to extend Cisco’s intent-based networking, this switch delivers advanced capabilities, simplified management, and robust security for modern business infrastructure.
Featuring 24 × Gigabit Ethernet data-only ports, the C9200-24T-A provides reliable connectivity for end devices while maintaining high performance and efficiency. With modular uplink support (optional modules), organizations can easily scale their network by adding 1G or 10G uplinks, ensuring flexibility for future growth.
Powered by Cisco IOS XE, the switch supports advanced Layer 2 and Layer 3 features with the Network Advantage license, enabling protocols such as OSPF, BGP, and advanced routing capabilities. It also integrates seamlessly with Cisco DNA Center, allowing for automation, policy-based management, and enhanced network visibility.
Security is a core strength of the C9200-24T-A, featuring secure boot, Trust Anchor technology, MACsec encryption, and network segmentation, helping protect against evolving cyber threats. Additional features like 802.1X authentication, ACLs, and DHCP snooping ensure secure access control across the network.
Designed for high availability, the switch supports Cisco StackWise-160 technology, enabling up to 8 switches to operate as a single logical unit, simplifying management and increasing resiliency. It also offers redundancy options and energy-efficient operation, making it ideal for mission-critical deployments.
With its combination of performance, security, scalability, and automation, the Cisco C9200-24T-A is an ideal solution for organizations looking to build a reliable and future-ready enterprise network infrastructure.
Product Specifications - Cisco C9200-24T-A Catalyst 9200 Series 24-Port Gigabit Ethernet Switch
CLICK HERE FOR DATA SHEET
| Specification |
Details |
| Product Name |
Cisco C9200-24T-A Catalyst 9200 Series Switch |
| Manufacturer |
Cisco Systems |
| Part Number |
C9200-24T-A |
| Product Series |
Cisco Catalyst 9200 Series |
| Product Type |
Fixed-Configuration Enterprise Switch |
| Port Configuration |
24 × 10/100/1000 Gigabit Ethernet (Data Only) |
| PoE Support |
No (Data-only model) |
| Uplink Options |
Modular uplink slots (modules sold separately) |
| Uplink Types Supported |
1G, 10G (via optional network modules) |
| Switching Capacity |
Up to ~128 Gbps (platform dependent) |
| Forwarding Rate |
Up to ~95 Mpps |
| Layer Support |
Layer 2 and Layer 3 |
| License Type |
Network Advantage |
| Operating System |
Cisco IOS XE |
| Management Interfaces |
CLI, Web UI, SNMP, REST APIs |
| Automation Support |
Cisco DNA, Python, Ansible, RESTCONF |
| Security Features |
Secure Boot, Trust Anchor, MACsec encryption, segmentation |
| Access Control |
ACLs, 802.1X authentication, DHCP Snooping |
| Stack Support |
Cisco StackWise-160 (up to 160 Gbps stacking bandwidth) |
| Stack Size |
Up to 8 switches |
| High Availability |
Stateful switchover, redundancy support |
| Power Supply |
Internal power supply |
| Redundancy |
Optional redundant power supply (RPS support) |
| Cooling System |
Fixed internal fans |
| Form Factor |
1 Rack Unit (1RU), rack-mountable |
| Dimensions |
Standard 19-inch rack |
| Operating Temperature |
0°C to 45°C |
| Storage Temperature |
-40°C to 70°C |
| Energy Efficiency |
Energy Efficient Ethernet (EEE) support |
| Deployment Type |
Enterprise LAN, branch offices, campus networks |
| Application |
Secure access layer switching |
| Condition |
New / Cisco Certified |
| Use Cases |
Enterprise access, campus edge, secure office networks, IT infrastructure upgrades |
FAQs
Q1. What does the Network Advantage license include?
It provides advanced Layer 3 features, enhanced security, and automation capabilities for enterprise networks.
Q2. Does this switch support PoE?
No, this model is data-only and does not support Power over Ethernet (PoE).
Q3. Can uplink modules be added to this switch?
Yes, it supports modular uplink options that can be added separately based on network needs.
Q4. Is this suitable for enterprise networks?
Yes, it is designed for enterprise-grade deployments including campus and branch environments.
Q5. What operating system does this switch use?
It runs on Cisco IOS XE, which supports automation, security, and advanced network management features.
