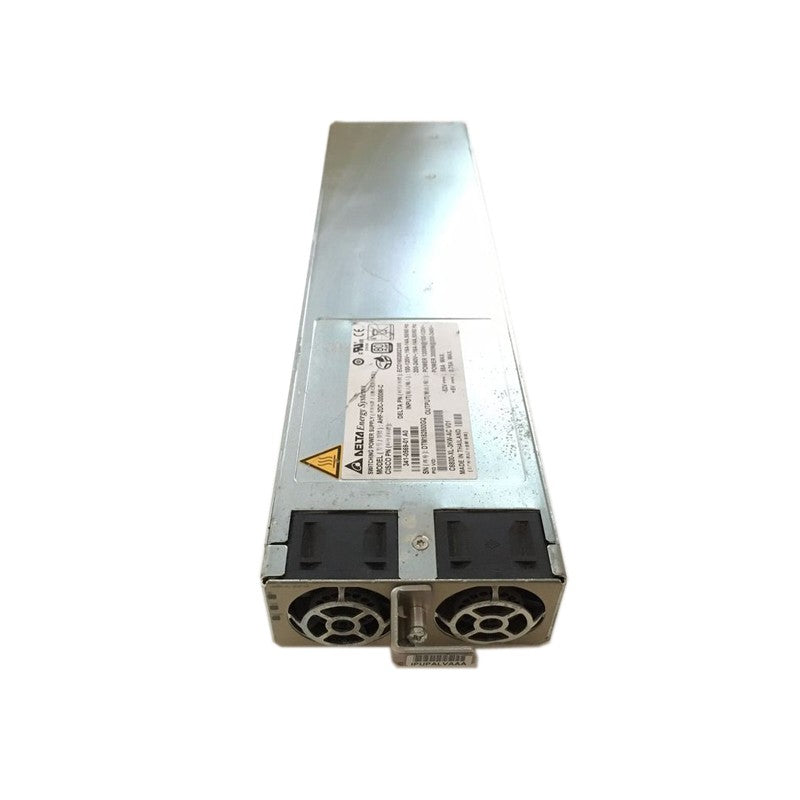

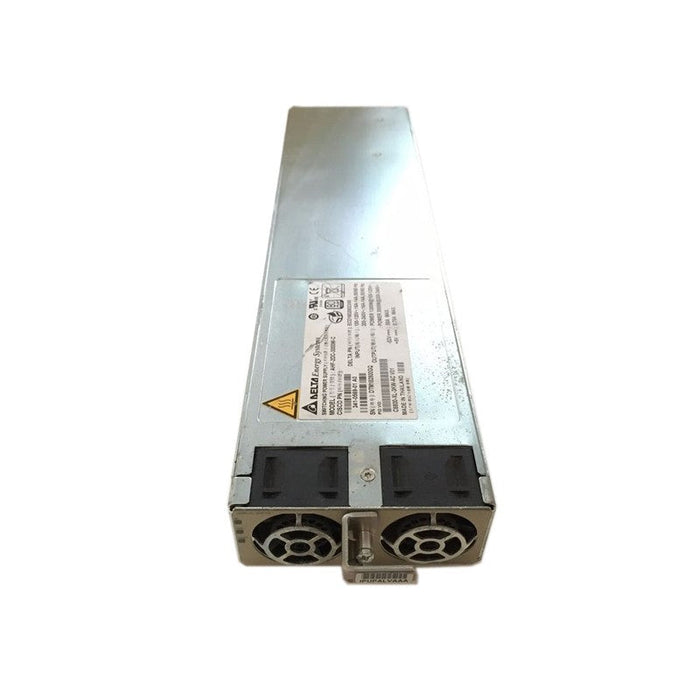

The Cisco C6800-XL-3KW-AC is a 3000W AC power supply designed for the Cisco Catalyst 6807-XL Modular Switch. It provides high-capacity power delivery for enterprise campus networks, core switching infrastructure, and data center environments. Supporting high-line AC input of 200–240V, this power supply delivers up to 3000W of output to meet the power requirements of compatible Catalyst 6807-XL chassis configurations.
Designed for enterprise-grade switching infrastructure, the C6800-XL-3KW-AC supports redundant and combined power configurations, helping organizations maintain reliable power delivery for compatible switching hardware. Its modular, field-replaceable design simplifies maintenance, while support for multiple power supplies per chassis enables flexible power planning for high-availability network deployments.
The Cisco C6800-XL-3KW-AC Catalyst 6807-XL Power Supply is suitable for enterprise campus core switching, data center networking, high-capacity modular switching, and redundant power configurations. It is an appropriate replacement or additional power module for organizations maintaining compatible Cisco Catalyst 6807-XL infrastructure.
Product Specifications -Cisco C6800-XL-3KW-AC Catalyst 6807-XL 3000W AC Power Supply
CLICK HERE FOR DATA SHEET
|
Specification
|
Details
|
|
Manufacturer
|
Cisco Systems
|
|
Product Name
|
Cisco Catalyst 6807-XL 3000W AC Power Supply
|
|
Part Number / SKU
|
C6800-XL-3KW-AC
|
|
Product Type
|
AC Power Supply Module
|
|
Compatible Platform
|
Cisco Catalyst 6807-XL Modular Switch
|
|
Rated Power Class
|
3000W
|
|
Maximum Output at High-Line Input
|
3000W at 200–240V AC
|
|
Output at 120V AC
|
Approximately 1300W, according to the chassis hardware guide
|
|
AC Input Voltage
|
90–132V AC at low line; 170–264V AC at high line
|
|
Input Frequency
|
50/60 Hz
|
|
Input Current
|
Up to 16A at 120V or 240V, depending on operating mode
|
|
Input Type
|
Autoranging AC input with power factor correction
|
|
Output Rails
|
+3.3V, +5V, +12V, and +42V
|
|
Power Supply Slots Supported
|
Up to 4 per Catalyst 6807-XL chassis
|
|
Redundancy
|
Supports N+1 redundant power configurations
|
|
Operating Modes
|
Redundant and combined power modes
|
|
Hot-Swappable
|
Supports online insertion and removal under Cisco's documented procedures
|
|
Power Connection
|
Compatible AC power cords and chassis power entry module
|
|
Cooling
|
Integrated power-supply cooling
|
|
Power Factor Correction
|
Supported
|
|
Heat Dissipation
|
Approximately 12,046 BTU/hour at full output
|
|
Product Weight
|
6 lbs (2.72 kg)
|
|
Primary Application
|
Power delivery for compatible Catalyst 6807-XL switching hardware
|
|
Deployment Environments
|
Enterprise campus, core switching, and data center networks
|
We offer free FedEx Ground shipping to all our customers in the continental US. If you need more information on expedited or international shipping please see our Shipping & Returns page or ask us directly via phone, email or using our Contact Form page.
FAQs
Q1. What is the Cisco C6800-XL-3KW-AC?
The Cisco C6800-XL-3KW-AC is a 3000W AC power supply designed to provide power for compatible Cisco Catalyst 6807-XL switches.
Q2. Who should buy the Cisco C6800-XL-3KW-AC?
The Cisco C6800-XL-3KW-AC is suitable for enterprises, data centers, service providers, and network operators maintaining compatible Catalyst 6807-XL switching infrastructure.
Q3. Is a refurbished Cisco C6800-XL-3KW-AC worth buying?
Yes. A professionally refurbished Cisco C6800-XL-3KW-AC can provide reliable high-capacity power delivery and compatibility with existing Catalyst 6807-XL infrastructure while offering a practical lower-cost alternative to new equipment.
Q4. What is the power capacity of the Cisco C6800-XL-3KW-AC?
The Cisco C6800-XL-3KW-AC provides a rated power output of 3000 watts, making it suitable for compatible high-power Catalyst 6807-XL chassis configurations.
Q5. What equipment is compatible with the Cisco C6800-XL-3KW-AC?
The Cisco C6800-XL-3KW-AC is designed for use with the Cisco Catalyst 6807-XL Switch and should be installed only in compatible chassis configurations according to Cisco hardware requirements.
