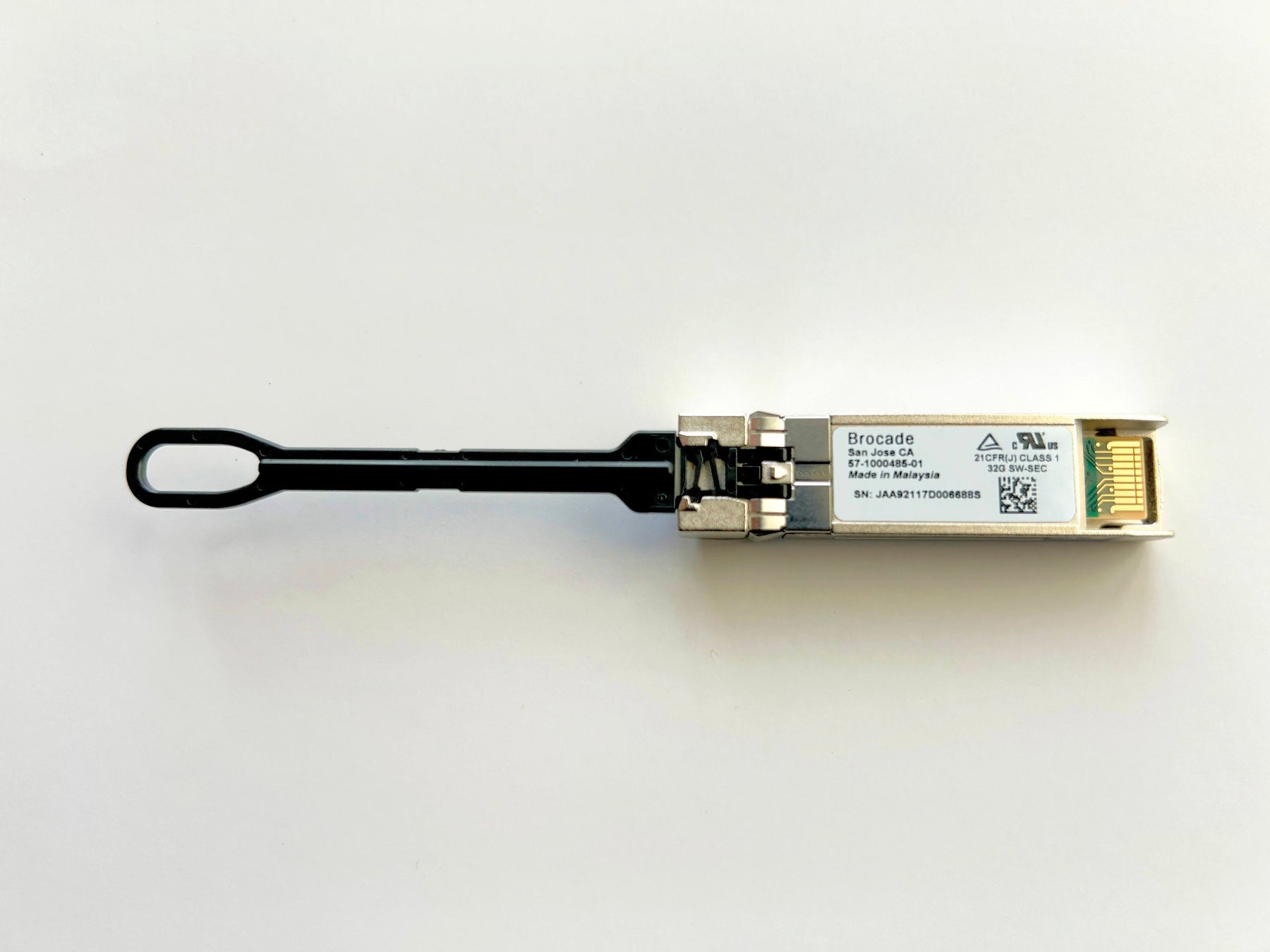

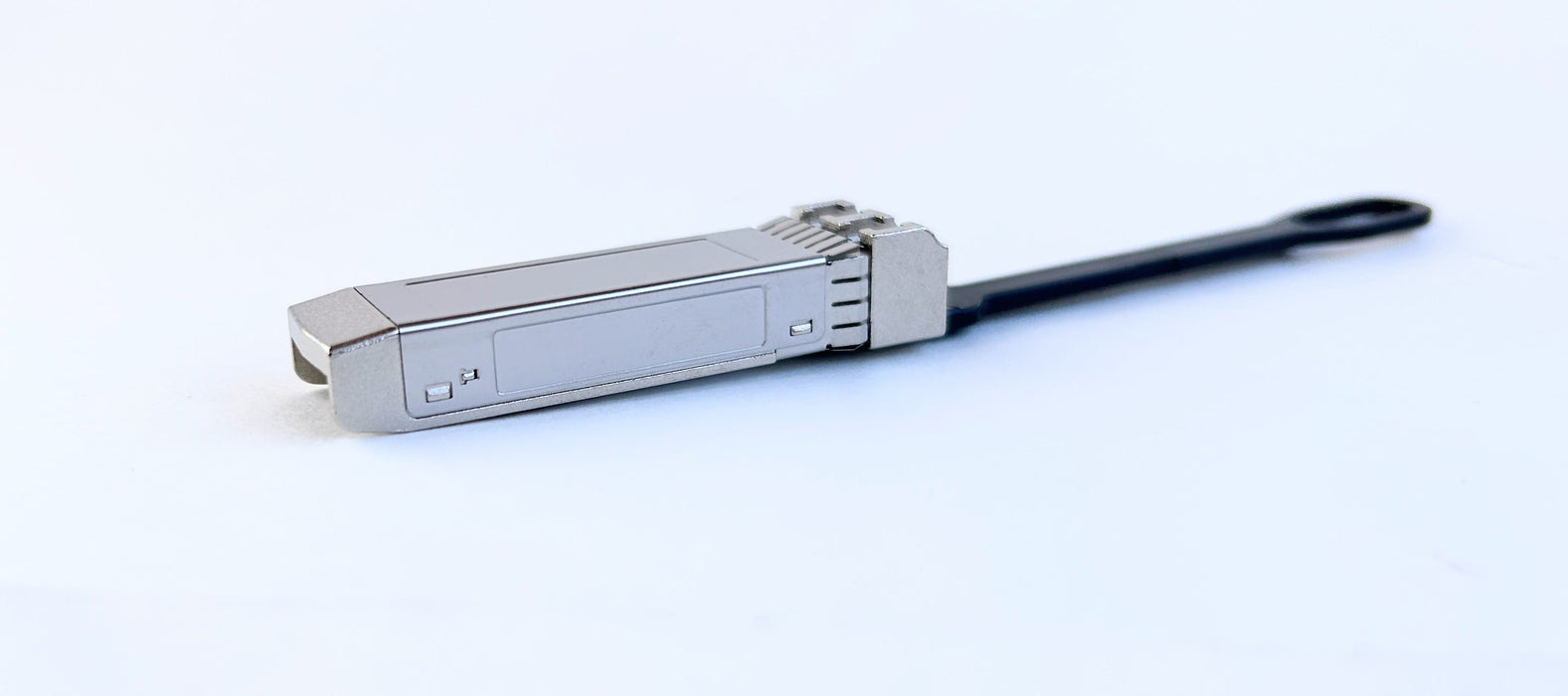

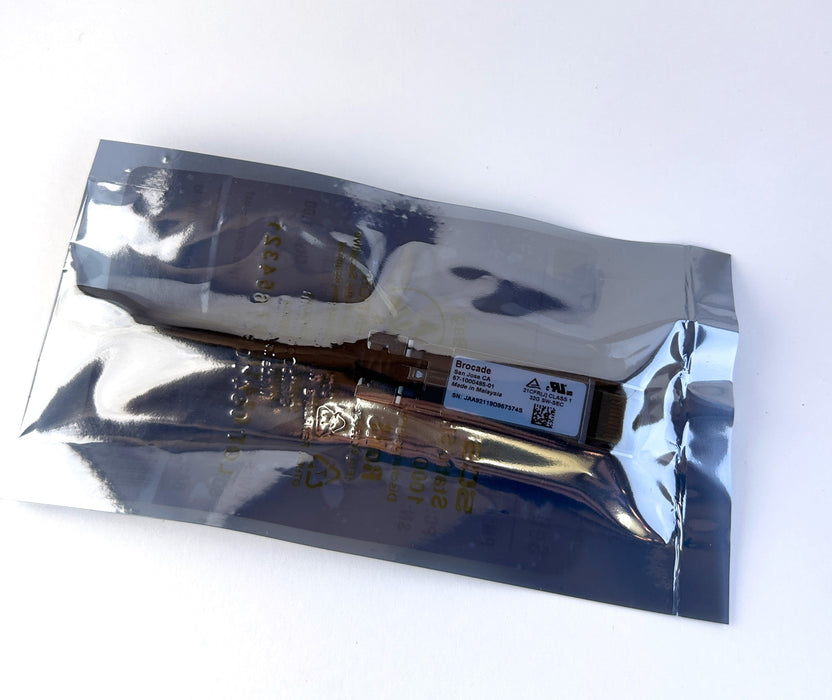

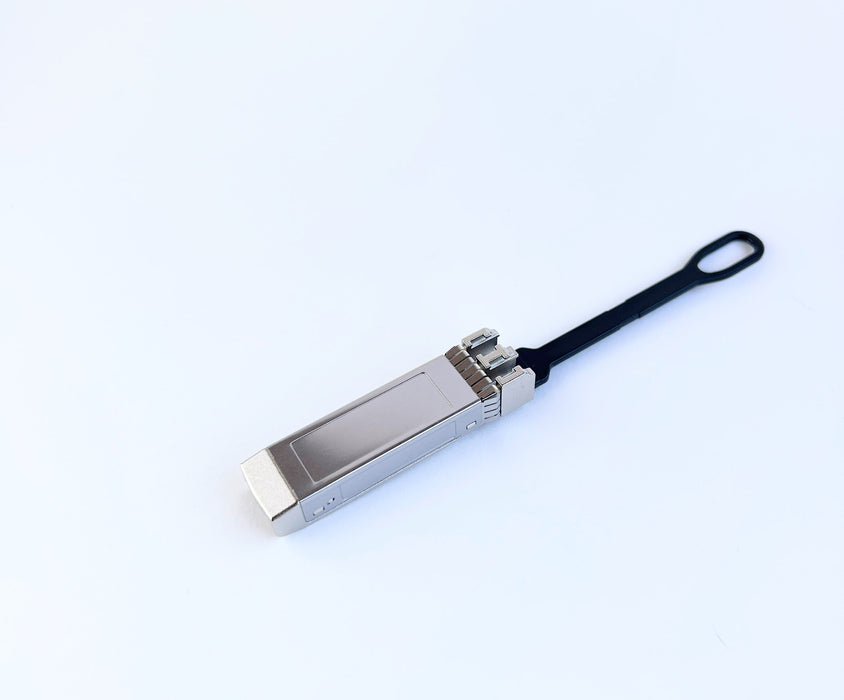

Brocade 57-1000485-01 / XBR-000412 32G FC SWL SFP+ — 850nm MMF LC, Refurbished
Clique ou role para ampliar
Toque ou belisque para ampliar
Brocade 57-1000485-01 / XBR-000412 32G FC SWL SFP+ — 850nm MMF LC, Refurbished
Clique ou role para ampliar
Toque ou belisque para ampliar
Brocade 57-1000485-01 / XBR-000412 32G FC SWL SFP+ — 850nm MMF LC, Refurbished
Clique ou role para ampliar
Toque ou belisque para ampliar
Brocade 57-1000485-01 / XBR-000412 32G FC SWL SFP+ — 850nm MMF LC, Refurbished
Brocade 57-1000485-01 / XBR-000412 32G FC SWL SFP+ — 850nm MMF LC, Refurbished

Brocade 57-1000485-01 / XBR-000412 32G FC SWL SFP+ — 850nm MMF LC, Refurbished

por Broadcom
R$ 1.770,00
Pedir por e-mail
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

32G FC SWL SFP+ — multimode short-reach Fibre Channel, not LWL / single-mode

Brocade (Broadcom) 57-1000485-01 / XBR-000412 — 32Gb/s FC SWL SFP+, 850nm MMF, duplex LC

Brocade Part Number: 57-1000485-01
Ordering / Alias: XBR-000412 (1-pack) · XBR-000413 (8-pack)
Description: 32G Fibre Channel short-wavelength (SWL) SFP+ optical transceiver, 850nm multimode, duplex LC, hot-pluggable, with digital diagnostics

This is the short-wavelength multimode 32G FC optic — the one that goes into Brocade Gen 6 / Gen 7 Fibre Channel switch and director SFP+ ports when your plant is OM3 or OM4 multimode. It auto-senses 8 / 16 / 32 Gbps Fibre Channel so mixed-speed fabrics stay sane during upgrades.

Brocade lists the manufacturing part as 57-1000485-01 and the 1-pack order code as XBR-000412. Purchase histories, BOMs and FRU labels may show either number. Same module. The 8-pack order code is XBR-000413 — identical optics, different pack size.

Going into You need
Brocade Gen 6 / Gen 7 FC switch or director SFP+ port (G610, G620, G630, G720, G730, FC32 blade ports, and related) 32G FC SWL SFP+ — this product (57-1000485-01 / XBR-000412)
Same platforms, but the run is single-mode and measured in kilometers 32G FC LWL (e.g. 57-1000332-01 / XBR-000238 family, ~10 km) — not this module
16G-only FC fabric with no 32G ports A 16G SWL SFP+ — not this module (this optic will not make a 16G port into 32G)
Ethernet / InfiniBand / RoCE switch SFP+ An Ethernet or IB optic — not this module (Fibre Channel coding and protocol)
You need eight identical units for a blade or dense switch fill XBR-000413 8-pack of the same optic, or eight of this 1-pack SKU

SWL vs LWL is the first fork. SWL is 850nm multimode for short in-row and adjacent-row SAN links. LWL is 1310nm single-mode for longer campus or building runs. Ordering by “32G Brocade SFP+” alone is how the wrong wavelength shows up on the dock.

A 16G-only port does not become 32G because you insert this module. The host port sets the ceiling; this optic negotiates down to 8/16G when the link partner requires it.

Specification Value
Brocade Part Number 57-1000485-01
Ordering Part Number (1-pack) XBR-000412
Ordering Part Number (8-pack) XBR-000413
Form Factor SFP+ (hot-pluggable)
Protocol / Data Rate 32G Fibre Channel (28.05 Gb/s line rate); auto-negotiation 8 / 16 / 32 Gbps
Optical Interface SWL, 850nm (typ. 840–860nm), multimode (MMF)
Connector Duplex LC
Reach (typical) OM4/OM5 ≈100m @ 32G · OM3 ≈70m @ 32G · longer at 16G/8G (see distance note)
DOM / DDM Supported (SFF-8472) — temperature, voltage, bias, Tx/Rx power
Power ≤ ~1.0W typical class for this optic family
Operating Temperature 0°C to 70°C (commercial)
Host Platforms Brocade / Broadcom Gen 6 and Gen 7 Fibre Channel switches and directors (e.g. G610, G620, G630, G720, G730, FC32 port blades) — confirm against current Brocade transceiver matrix for your exact FOS / platform
Standards FC-PI-6, SFP+ MSA, SFF-8472, Class 1 laser, RoHS
Warranty Lifetime, backed by Resilient Tec
Condition Refurbished

Brocade and module datasheets commonly quote ~70m on OM3 and ~100m on OM4/OM5 at 32G. Some reseller sheets also print a looser “up to 300m” multimode figure that applies at lower rates or under ideal lab conditions — not what you should design a 32G SAN ISL against. Design to the OM3/OM4 32G figures for fabric planning. Longer runs at 32G usually mean LWL on single-mode, not stretching SWL past budget.

At 16G and 8G the same optic reaches farther on the same fiber (roughly OM3 ≈100m / OM4 ≈125m at 16G; OM3 ≈150m / OM4 ≈190m at 8G on typical tables). Usable distance still depends on connector count and patch-panel loss. Planning a long ISL? Talk to us first.

  • This is Fibre Channel, not Ethernet. A “32G SFP+” Ethernet or InfiniBand optic will not speak FC to a Brocade SAN port — and this module will not bring up an Ethernet link.
  • LWL lookalikes share the same speed class. 57-1000332-01 / XBR-000238 (and later LWL PIDs) are 32G long-wavelength on single-mode. Same speed, wrong fiber plant.
  • Older 32G SWL PIDs exist. 57-1000333-01 / XBR-000212 is an earlier 32G SWL 1-pack. Do not assume every “32G SWL” FRU is interchangeable without checking the Brocade support matrix for your FOS and platform.
  • Secure / SW-SEC variants appear in some Brocade docs under related PIDs. If your fabric policy requires secure optics, say so before you order — we will confirm what you actually need rather than ship the wrong FRU.
  • Inserting this into a non-Brocade Ethernet switch “because it is SFP+” is a common wrong buy. Coding and protocol matter.
  • Your patch cords must be multimode duplex LC. Single-mode LC jumpers will light poorly or not at all on SWL optics.

You are filling a Brocade / Broadcom Fibre Channel SFP+ port on a Gen 6 or Gen 7 platform. Your fiber is OM3 or OM4 multimode with duplex LC. Your runs are inside the ~70–100m 32G SWL envelope (or you are fine negotiating down to 16G/8G on longer MMF). You want the 1-pack FRU known as 57-1000485-01 / XBR-000412.

In stock at Resilient Tec · Qty limited on this refurbished unit · Additional units typically available on short lead time.
Building out a fabric or stocking spares? Tell us how many FC ports you are filling and we will quote matching SWL/LWL optics together. Request a quote →

Warranty: lifetime, backed by Resilient Tec — not a manufacturer term. When a module fails you reach a named seller in the US, not a ticket queue.

  • Matching duplex LC OM3/OM4 multimode patch cords for each port you populate
  • 32G FC LWL optics if any ISL leaves the multimode plant — tell us distance and fiber type
  • Additional 57-1000485-01 / XBR-000412 units for spares (1-pack) or denser fills
  • Product guides — structured cabling, switches and the rest of the rack
  • Request a quote — bulk FC optic fills and mixed SWL/LWL BOMs

Lifetime warranty — how Resilient Tec backs what we sell

Product guides

Request a quote for fabric fills and spare kits

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

32G FC SWL SFP+ — multimode short-reach Fibre Channel, not LWL / single-mode

Brocade (Broadcom) 57-1000485-01 / XBR-000412 — 32Gb/s FC SWL SFP+, 850nm MMF, duplex LC

Brocade Part Number: 57-1000485-01
Ordering / Alias: XBR-000412 (1-pack) · XBR-000413 (8-pack)
Description: 32G Fibre Channel short-wavelength (SWL) SFP+ optical transceiver, 850nm multimode, duplex LC, hot-pluggable, with digital diagnostics

This is the short-wavelength multimode 32G FC optic — the one that goes into Brocade Gen 6 / Gen 7 Fibre Channel switch and director SFP+ ports when your plant is OM3 or OM4 multimode. It auto-senses 8 / 16 / 32 Gbps Fibre Channel so mixed-speed fabrics stay sane during upgrades.

Brocade lists the manufacturing part as 57-1000485-01 and the 1-pack order code as XBR-000412. Purchase histories, BOMs and FRU labels may show either number. Same module. The 8-pack order code is XBR-000413 — identical optics, different pack size.

Which One Do I Need?
Going into You need
Brocade Gen 6 / Gen 7 FC switch or director SFP+ port (G610, G620, G630, G720, G730, FC32 blade ports, and related) 32G FC SWL SFP+ — this product (57-1000485-01 / XBR-000412)
Same platforms, but the run is single-mode and measured in kilometers 32G FC LWL (e.g. 57-1000332-01 / XBR-000238 family, ~10 km) — not this module
16G-only FC fabric with no 32G ports A 16G SWL SFP+ — not this module (this optic will not make a 16G port into 32G)
Ethernet / InfiniBand / RoCE switch SFP+ An Ethernet or IB optic — not this module (Fibre Channel coding and protocol)
You need eight identical units for a blade or dense switch fill XBR-000413 8-pack of the same optic, or eight of this 1-pack SKU

SWL vs LWL is the first fork. SWL is 850nm multimode for short in-row and adjacent-row SAN links. LWL is 1310nm single-mode for longer campus or building runs. Ordering by “32G Brocade SFP+” alone is how the wrong wavelength shows up on the dock.

A 16G-only port does not become 32G because you insert this module. The host port sets the ceiling; this optic negotiates down to 8/16G when the link partner requires it.

Technical Specifications
Specification Value
Brocade Part Number 57-1000485-01
Ordering Part Number (1-pack) XBR-000412
Ordering Part Number (8-pack) XBR-000413
Form Factor SFP+ (hot-pluggable)
Protocol / Data Rate 32G Fibre Channel (28.05 Gb/s line rate); auto-negotiation 8 / 16 / 32 Gbps
Optical Interface SWL, 850nm (typ. 840–860nm), multimode (MMF)
Connector Duplex LC
Reach (typical) OM4/OM5 ≈100m @ 32G · OM3 ≈70m @ 32G · longer at 16G/8G (see distance note)
DOM / DDM Supported (SFF-8472) — temperature, voltage, bias, Tx/Rx power
Power ≤ ~1.0W typical class for this optic family
Operating Temperature 0°C to 70°C (commercial)
Host Platforms Brocade / Broadcom Gen 6 and Gen 7 Fibre Channel switches and directors (e.g. G610, G620, G630, G720, G730, FC32 port blades) — confirm against current Brocade transceiver matrix for your exact FOS / platform
Standards FC-PI-6, SFP+ MSA, SFF-8472, Class 1 laser, RoHS
Warranty Lifetime, backed by Resilient Tec
Condition Refurbished
Note on Reach: 70m / 100m / “300m” Numbers

Brocade and module datasheets commonly quote ~70m on OM3 and ~100m on OM4/OM5 at 32G. Some reseller sheets also print a looser “up to 300m” multimode figure that applies at lower rates or under ideal lab conditions — not what you should design a 32G SAN ISL against. Design to the OM3/OM4 32G figures for fabric planning. Longer runs at 32G usually mean LWL on single-mode, not stretching SWL past budget.

At 16G and 8G the same optic reaches farther on the same fiber (roughly OM3 ≈100m / OM4 ≈125m at 16G; OM3 ≈150m / OM4 ≈190m at 8G on typical tables). Usable distance still depends on connector count and patch-panel loss. Planning a long ISL? Talk to us first.

Good to Know
  • This is Fibre Channel, not Ethernet. A “32G SFP+” Ethernet or InfiniBand optic will not speak FC to a Brocade SAN port — and this module will not bring up an Ethernet link.
  • LWL lookalikes share the same speed class. 57-1000332-01 / XBR-000238 (and later LWL PIDs) are 32G long-wavelength on single-mode. Same speed, wrong fiber plant.
  • Older 32G SWL PIDs exist. 57-1000333-01 / XBR-000212 is an earlier 32G SWL 1-pack. Do not assume every “32G SWL” FRU is interchangeable without checking the Brocade support matrix for your FOS and platform.
  • Secure / SW-SEC variants appear in some Brocade docs under related PIDs. If your fabric policy requires secure optics, say so before you order — we will confirm what you actually need rather than ship the wrong FRU.
  • Inserting this into a non-Brocade Ethernet switch “because it is SFP+” is a common wrong buy. Coding and protocol matter.
  • Your patch cords must be multimode duplex LC. Single-mode LC jumpers will light poorly or not at all on SWL optics.
Quick Checklist — Is This the Right Module?

You are filling a Brocade / Broadcom Fibre Channel SFP+ port on a Gen 6 or Gen 7 platform. Your fiber is OM3 or OM4 multimode with duplex LC. Your runs are inside the ~70–100m 32G SWL envelope (or you are fine negotiating down to 16G/8G on longer MMF). You want the 1-pack FRU known as 57-1000485-01 / XBR-000412.

Availability

In stock at Resilient Tec · Qty limited on this refurbished unit · Additional units typically available on short lead time.
Building out a fabric or stocking spares? Tell us how many FC ports you are filling and we will quote matching SWL/LWL optics together. Request a quote →

Warranty: lifetime, backed by Resilient Tec — not a manufacturer term. When a module fails you reach a named seller in the US, not a ticket queue.

You Might Also Need
  • Matching duplex LC OM3/OM4 multimode patch cords for each port you populate
  • 32G FC LWL optics if any ISL leaves the multimode plant — tell us distance and fiber type
  • Additional 57-1000485-01 / XBR-000412 units for spares (1-pack) or denser fills
  • Product guides — structured cabling, switches and the rest of the rack
  • Request a quote — bulk FC optic fills and mixed SWL/LWL BOMs
Related Guides

Lifetime warranty — how Resilient Tec backs what we sell

Product guides

Request a quote for fabric fills and spare kits
