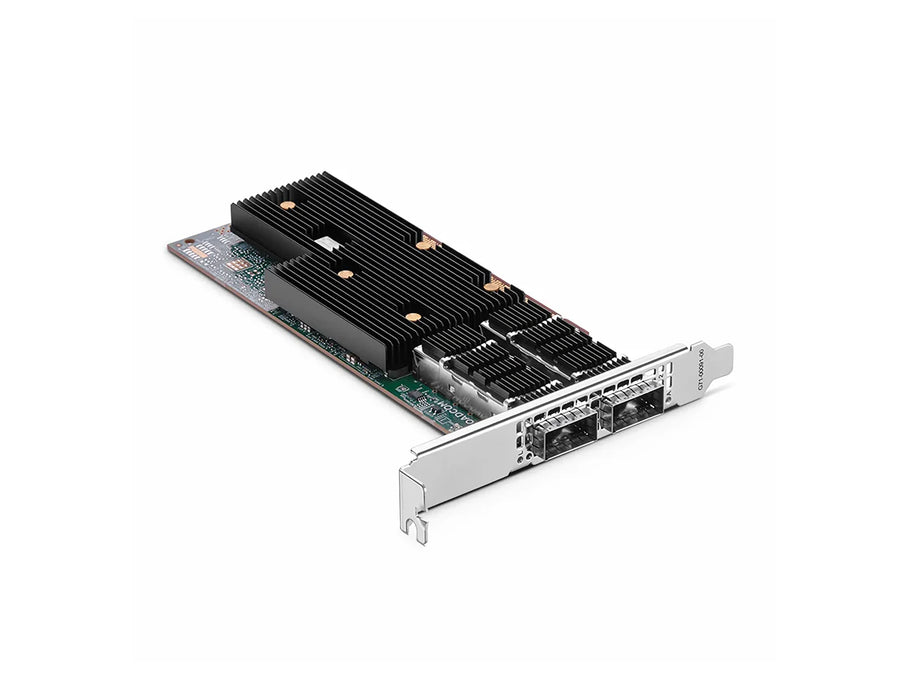

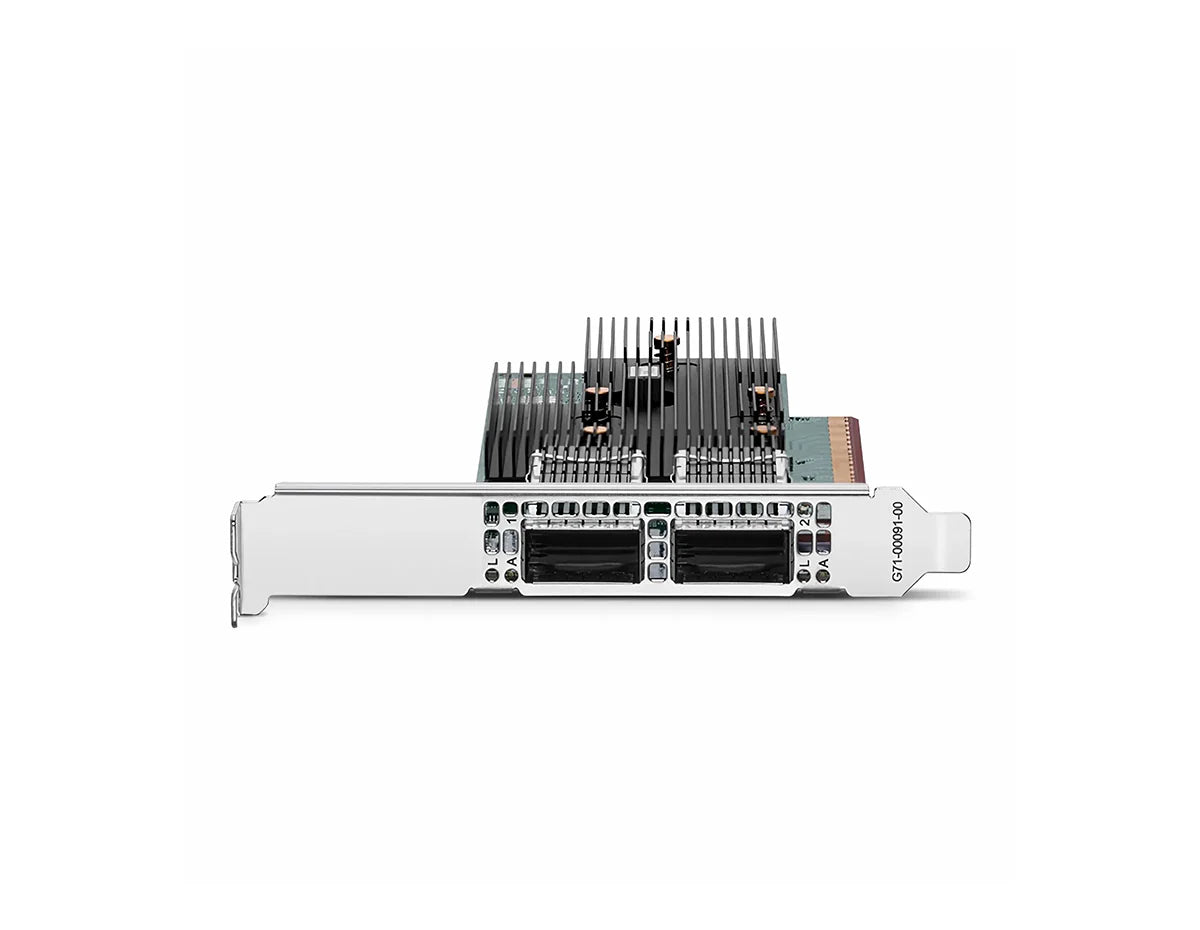

Broadcom BCM957608-P2200GQF00 Dual-Port 200G Network Interface Card
Clique ou role para ampliar
Toque ou belisque para ampliar
Broadcom BCM957608-P2200GQF00 Dual-Port 200G Network Interface Card
Broadcom BCM957608-P2200GQF00 Dual-Port 200G Network Interface Card

Broadcom BCM957608-P2200GQF00 Dual-Port 200G Network Interface Card

por Broadcom
R$ 20.388,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] Dual-port 200G QSFP112, PCIe 5.0 x16, RoCEv2 with DCQCN, TruFlow acceleration, 400Gb/s total bandwidth [/shortdesc]

[properties]

Brand Broadcom
Model BCM957608-P2200GQF00
Product Type Ethernet Network Interface Card (NIC)
ASIC / Controller BCM57608
Host Interface PCI Express 5.0 x16
PCIe Form Factor HHHL (Half-Height, Half-Length)
Bracket Support Standard-profile and Low-profile
Ports 2x QSFP112
Supported Ethernet Speeds 1x 400GbE or 2x 200/100/50/25GbE
Total Bandwidth 400Gb/s
SerDes 8 SerDes capable of 100/50G PAM4 and 25G NRZ
Auto-Negotiation Yes (Auto-detect)
RDMA Support RoCEv2 (Standards-based)
IEEE Timing IEEE-1588v2
SR-IOV Yes
Platform Security HW Secure Boot (RoT), Attestation (SPDM), OCP Secure Recovery, Secure Wipe and Restore
Storage Temperature -40 to 70°C
Operating Temperature 0 to 55°C
Typical Power (50% Ethernet Traffic) 12.7W (Passive DAC) / 23.6W (Optical Transceivers)
Typical Power (100% Ethernet Traffic) 12.9W (Passive DAC) / 23.8W (Optical Transceivers)
Airflow Requirement @ 25°C 200 LFM
Airflow Requirement @ 35°C 250 LFM

[/properties]

[specifications]

PCI Express Specification PCI Express Base Specification Revision 5.0
PCIe Link Rates 32, 16, 8, 5, 2.5 GT/s
Lane Configuration Support x16, x8, x4, x2, x1
MSI-X Supported
Network Connectors 2x QSFP112
Port Signaling 50/100G PAM4 or 25G NRZ
RoCE Congestion Control DCQCN
Peer Memory Direct Supported
Networking Offloads VXLAN, GRE, NVGRE, Geneve, IP-in-IP; tunnel-aware stateless offloads
Stateless TCP Offloads IP/TCP/UDP checksum, LSO, LRO, GRO, TSS, RSS, aRFS, interrupt coalescing
Security Offloads kTLS hardware offload encryption/decryption; QUIC hardware offload encryption/decryption
TruFlow™ Flow Processing Flexible matching key; NAT/NAPT; tunnel encap/decap; connection tracking; flow aging; sampling/mirroring; rate-limiting/metering; flow-based statistics; network traffic hairpin
Manageability NC-SI; MCTP; MCTP over SMBus/I2C; MCTP over PCIe VDM; NC-SI over MCTP; PLDM (Base, Monitoring/Control, FW update); I2C device control
Network Boot UEFI PXE boot; UEFI L2 iSCSI boot; UEFI support for x86
LED Indicators Per-port Activity LED and Link LED (2 LEDs per QSFP112 port)
Link LED Behavior Green: linked at 200Gb/s or 400Gb/s; Amber: linked at lower speed
Activity LED Behavior Green blinking: link up (traffic flowing); Off: no activity
Board Dimensions 167.64 mm x 68.91 mm (board outline)
Compliance (Safety) EN IEC 62368-1:2020 +A11:2020; IEC 62368-1 (ed. 2)
EMC Compliance EN 55032:2015 +AC:2016 Class A; EN 55024:2010 +A1:2015; EN 55035; EN 61000-3-2:2014; EN 61000-3-3:2013; CFR47 Part 15 Subpart B Class A; ICES-003 Class A; AS/NZS CISPR 32:2015 Class A; CNS 15936:2016; KN32 Class A; KN35
UL Flammability UL 94 V0

[/specifications]

The Broadcom BCM957608-P2200GQF00 is a high-performance dual-port 200GbE Ethernet Network Interface Card engineered for AI clusters, cloud data centers, HPC environments, and storage disaggregation. Built on Broadcom’s scalable 400G Ethernet controller architecture and powered by the BCM57608 controller, it delivers up to 400Gb/s total bandwidth with advanced hardware acceleration to maximize server efficiency and reduce CPU overhead.

  • Dual 200G QSFP112 Connectivity: Supports 2x 200/100/50/25GbE or 1x 400GbE with 8 SerDes lanes capable of 100/50G PAM4 and 25G NRZ signaling, ensuring high-density, high-throughput deployments.
  • PCIe 5.0 x16 Host Interface: Delivers up to 32.0 GT/s link rate across 16 lanes, eliminating host bottlenecks in GPU servers and performance-intensive workloads.
  • Advanced RoCEv2 with DCQCN: Standards-based RDMA over Converged Ethernet with hardware-based congestion control for ultra-low latency and scalable AI fabric deployments.
  • TruFlow™ Flow Processing: Hardware acceleration for NAT, NAPT, tunnel encap/decap, connection tracking, flow aging, rate limiting, and traffic mirroring to free CPU cycles and increase VM density.
  • Comprehensive Virtualization & Security: SR-IOV, VF isolation, VXLAN, GRE, Geneve, kTLS and QUIC offload, plus secure boot and silicon root of trust for hardened server platforms.
  • GPU server networking for AI and machine learning clusters
  • High-performance computing and research environments
  • Cloud-scale data center deployments
  • NVMe storage disaggregation architectures
  • Network function virtualization infrastructure
  • Model: BCM957608-P2200GQF00
  • Controller: Broadcom BCM57608
  • Ports: 2x QSFP112
  • Supported Speeds: 400/200/100/50/25GbE
  • Total Bandwidth: 400Gb/s
  • Host Interface: PCI Express 5.0 x16
  • PCIe Link Rate: 32.0 GT/s
  • RDMA Support: RoCEv2 with DCQCN
  • Operating Temperature: 0°C to 55°C
  • Form Factor: Half-height, half-length (HHHL), standard and low-profile brackets supported

Deploy scalable 200G Ethernet with hardware-accelerated performance and AI-ready networking efficiency. Order today.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] Dual-port 200G QSFP112, PCIe 5.0 x16, RoCEv2 with DCQCN, TruFlow acceleration, 400Gb/s total bandwidth [/shortdesc]

[properties]

Brand Broadcom
Model BCM957608-P2200GQF00
Product Type Ethernet Network Interface Card (NIC)
ASIC / Controller BCM57608
Host Interface PCI Express 5.0 x16
PCIe Form Factor HHHL (Half-Height, Half-Length)
Bracket Support Standard-profile and Low-profile
Ports 2x QSFP112
Supported Ethernet Speeds 1x 400GbE or 2x 200/100/50/25GbE
Total Bandwidth 400Gb/s
SerDes 8 SerDes capable of 100/50G PAM4 and 25G NRZ
Auto-Negotiation Yes (Auto-detect)
RDMA Support RoCEv2 (Standards-based)
IEEE Timing IEEE-1588v2
SR-IOV Yes
Platform Security HW Secure Boot (RoT), Attestation (SPDM), OCP Secure Recovery, Secure Wipe and Restore
Storage Temperature -40 to 70°C
Operating Temperature 0 to 55°C
Typical Power (50% Ethernet Traffic) 12.7W (Passive DAC) / 23.6W (Optical Transceivers)
Typical Power (100% Ethernet Traffic) 12.9W (Passive DAC) / 23.8W (Optical Transceivers)
Airflow Requirement @ 25°C 200 LFM
Airflow Requirement @ 35°C 250 LFM

[/properties]

[specifications]

PCI Express Specification PCI Express Base Specification Revision 5.0
PCIe Link Rates 32, 16, 8, 5, 2.5 GT/s
Lane Configuration Support x16, x8, x4, x2, x1
MSI-X Supported
Network Connectors 2x QSFP112
Port Signaling 50/100G PAM4 or 25G NRZ
RoCE Congestion Control DCQCN
Peer Memory Direct Supported
Networking Offloads VXLAN, GRE, NVGRE, Geneve, IP-in-IP; tunnel-aware stateless offloads
Stateless TCP Offloads IP/TCP/UDP checksum, LSO, LRO, GRO, TSS, RSS, aRFS, interrupt coalescing
Security Offloads kTLS hardware offload encryption/decryption; QUIC hardware offload encryption/decryption
TruFlow™ Flow Processing Flexible matching key; NAT/NAPT; tunnel encap/decap; connection tracking; flow aging; sampling/mirroring; rate-limiting/metering; flow-based statistics; network traffic hairpin
Manageability NC-SI; MCTP; MCTP over SMBus/I2C; MCTP over PCIe VDM; NC-SI over MCTP; PLDM (Base, Monitoring/Control, FW update); I2C device control
Network Boot UEFI PXE boot; UEFI L2 iSCSI boot; UEFI support for x86
LED Indicators Per-port Activity LED and Link LED (2 LEDs per QSFP112 port)
Link LED Behavior Green: linked at 200Gb/s or 400Gb/s; Amber: linked at lower speed
Activity LED Behavior Green blinking: link up (traffic flowing); Off: no activity
Board Dimensions 167.64 mm x 68.91 mm (board outline)
Compliance (Safety) EN IEC 62368-1:2020 +A11:2020; IEC 62368-1 (ed. 2)
EMC Compliance EN 55032:2015 +AC:2016 Class A; EN 55024:2010 +A1:2015; EN 55035; EN 61000-3-2:2014; EN 61000-3-3:2013; CFR47 Part 15 Subpart B Class A; ICES-003 Class A; AS/NZS CISPR 32:2015 Class A; CNS 15936:2016; KN32 Class A; KN35
UL Flammability UL 94 V0

[/specifications]

Accelerate AI and HPC Networks with 400Gb/s-Class Performance

The Broadcom BCM957608-P2200GQF00 is a high-performance dual-port 200GbE Ethernet Network Interface Card engineered for AI clusters, cloud data centers, HPC environments, and storage disaggregation. Built on Broadcom’s scalable 400G Ethernet controller architecture and powered by the BCM57608 controller, it delivers up to 400Gb/s total bandwidth with advanced hardware acceleration to maximize server efficiency and reduce CPU overhead.

Key Benefits & Features
  • Dual 200G QSFP112 Connectivity: Supports 2x 200/100/50/25GbE or 1x 400GbE with 8 SerDes lanes capable of 100/50G PAM4 and 25G NRZ signaling, ensuring high-density, high-throughput deployments.
  • PCIe 5.0 x16 Host Interface: Delivers up to 32.0 GT/s link rate across 16 lanes, eliminating host bottlenecks in GPU servers and performance-intensive workloads.
  • Advanced RoCEv2 with DCQCN: Standards-based RDMA over Converged Ethernet with hardware-based congestion control for ultra-low latency and scalable AI fabric deployments.
  • TruFlow™ Flow Processing: Hardware acceleration for NAT, NAPT, tunnel encap/decap, connection tracking, flow aging, rate limiting, and traffic mirroring to free CPU cycles and increase VM density.
  • Comprehensive Virtualization & Security: SR-IOV, VF isolation, VXLAN, GRE, Geneve, kTLS and QUIC offload, plus secure boot and silicon root of trust for hardened server platforms.
Ideal Use Cases
  • GPU server networking for AI and machine learning clusters
  • High-performance computing and research environments
  • Cloud-scale data center deployments
  • NVMe storage disaggregation architectures
  • Network function virtualization infrastructure
Technical Specifications
  • Model: BCM957608-P2200GQF00
  • Controller: Broadcom BCM57608
  • Ports: 2x QSFP112
  • Supported Speeds: 400/200/100/50/25GbE
  • Total Bandwidth: 400Gb/s
  • Host Interface: PCI Express 5.0 x16
  • PCIe Link Rate: 32.0 GT/s
  • RDMA Support: RoCEv2 with DCQCN
  • Operating Temperature: 0°C to 55°C
  • Form Factor: Half-height, half-length (HHHL), standard and low-profile brackets supported
Power Your 200G Infrastructure Today

Deploy scalable 200G Ethernet with hardware-accelerated performance and AI-ready networking efficiency. Order today.
