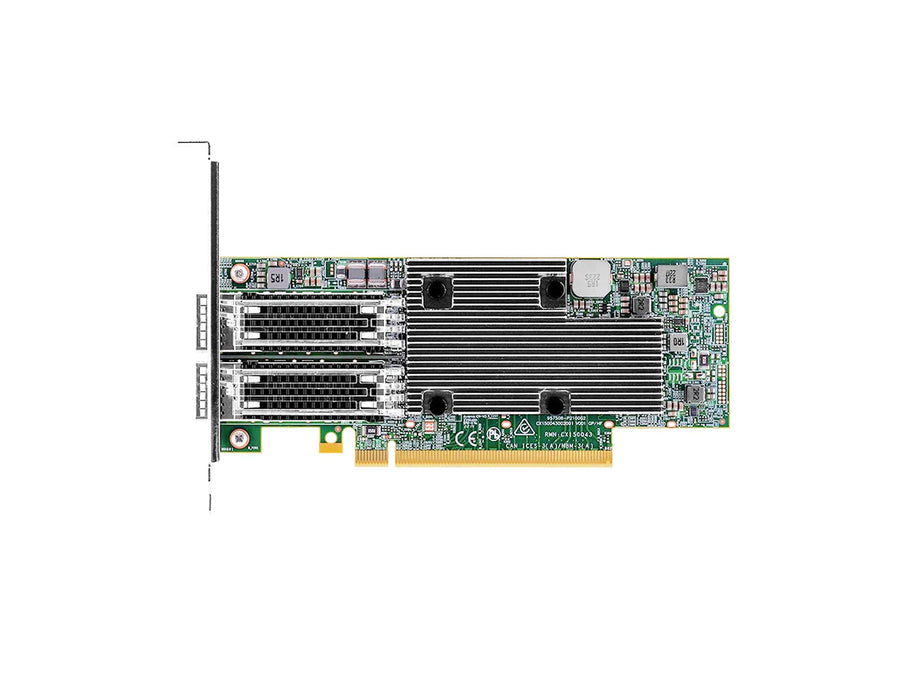

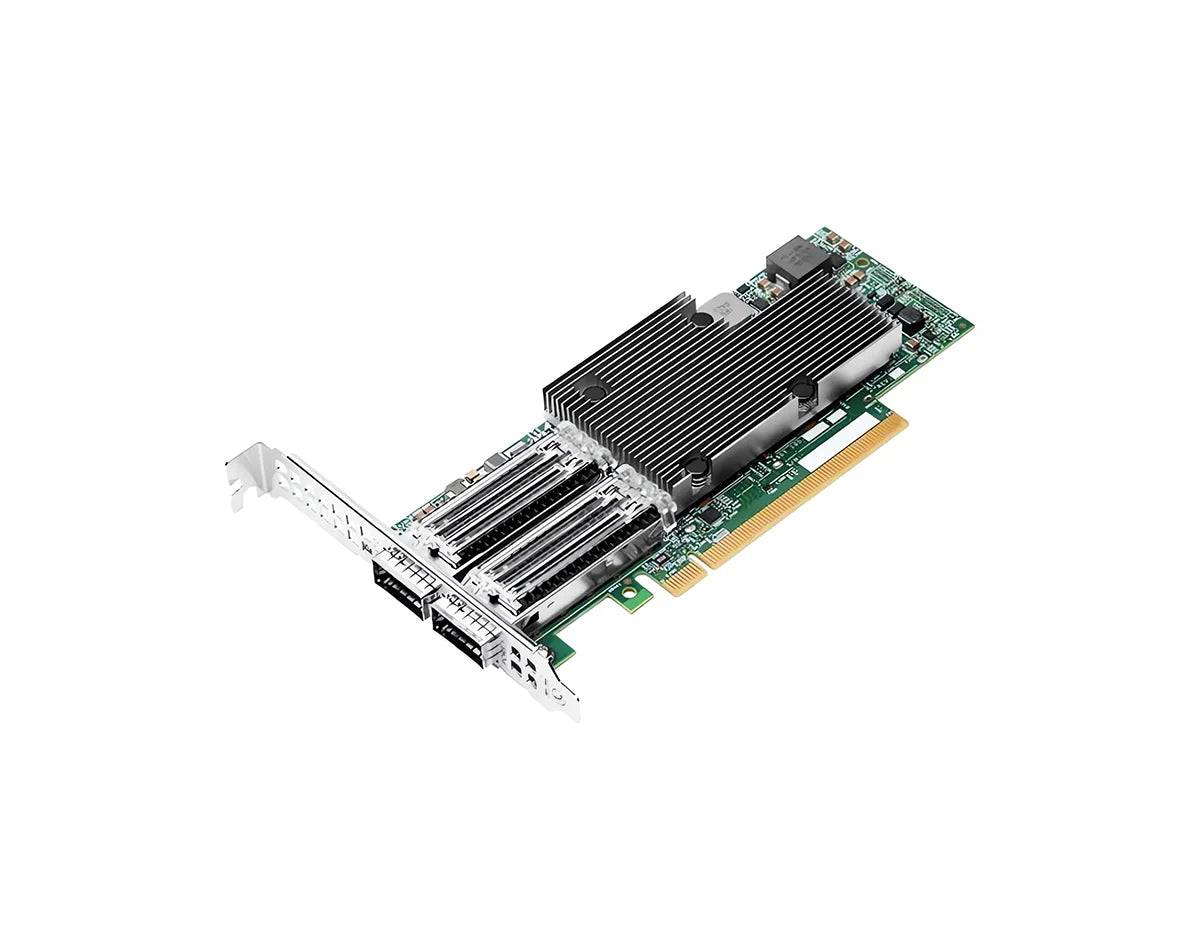

Broadcom BCM957508-P2100G Dual-Port 100GbE Network Interface Card
Clique ou role para ampliar
Toque ou belisque para ampliar
Broadcom BCM957508-P2100G Dual-Port 100GbE Network Interface Card
Broadcom BCM957508-P2100G Dual-Port 100GbE Network Interface Card

Broadcom BCM957508-P2100G Dual-Port 100GbE Network Interface Card

por Broadcom
R$ 5.700,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] Dual-port 100GbE QSFP56, PCIe 4.0 x16, Broadcom BCM57508 controller, SR-IOV up to 1K VFs, RoCE support, Standard and low-profile brackets [/shortdesc]

[properties]

Brand Broadcom
SKU BCM957508-P2100G
Model P2100G
Product Type Ethernet Network Interface Card (NIC)
Ports Dual-port
Port Speed 100 Gb/s per port
Connector Type QSFP56
Supported Media QSFP56/QSFP28/QSFP+ optical modules; copper direct-attach cables
Host Interface PCI Express 4.0 x16
Controller Broadcom BCM57508 200GbE MAC controller
Transceiver Integrated dual-channel 100GbE SFI transceiver
Signaling Support 50G PAM-4, 25G NRZ, 10G NRZ
SR-IOV Up to 1k virtual functions (VFs)
Jumbo Frames Up to 9 KB
Network Boot PXE, UEFI
iSCSI Boot Yes
RDMA Support RDMA over Converged Ethernet (RoCE)
DCB Support PFC, ETS, QCN, DCBx
Virtualization Offloads VXLAN, NVGRE, Geneve, GRE encap/decap
Form Factor PCIe Low Profile, Half Length
Bracket Standard and Low-Profile brackets included
Board Dimensions (W x H) 167.64 mm x 68.91 mm
Weight 167 g
Operating Temperature 0 to 55 Celsius
Storage Temperature -40 to 70 Celsius
Storage Humidity Maximum 90% at 35 Celsius (non-condensing)
Power Consumption (Typical) 16.0W (Passive DAC), 21.0W (Optical Transceiver)
Power Consumption (Max) 17.1W (Passive DAC), 22.0W (Optical Transceiver)

[/properties]

[specifications]

Media Interface Dual-port pluggable media interface compatible with QSFP56/QSFP28/QSFP+ optical transceiver or copper direct-attach cable
PCIe Compliance PCI Express Base Specification Revision 4.0
PCIe Lane Width x16
Multi-Host Support Dual-Host x8 mode signaling compatible
Standards Compliance Fully compliant with SFF-8402
Offloads IPv4 and IPv6 offloads; TCP, UDP, and IP checksum offloads
Large Packet Offloads LSO, LRO, TSO
Scaling RSS, TSS
VLAN VLAN insertion/removal
Interrupts Interrupt coalescing; MSI and MSI-X
Virtual Switching vSwitch acceleration; tunnel-aware stateless offloads
Flow Processing TruFlow flow processing engine
Congestion Management Advanced congestion avoidance
Queue Features Multiqueue, NetQueue, VMQ
Sideband Management Network Controller Sideband Interface (NC-SI)
Management Transport MCTP over SMBus
SMBus SMBus 2.0
Function-Level Reset FLR support
FRU FRU support
Airflow Requirement (Hot Aisle) 225 LFM (Passive DAC), 420 LFM (Optical Transceiver)
Ambient Temperature (Hot Aisle) 55 Celsius
Regulatory Approvals CE/European Union EN 62368-1:2014; UL/USA IEC 62368-1 (ed. 2)
EMC Compliance EN 55032 Class A; EN 55024; EN 61000-3-2; EN 61000-3-3; FCC CFR47 Part 15 Subpart B Class A; ICES-003 Class A; AS/NZS CISPR 22 Class A; CNS 13438 Class A; CNS 15663
ESD Compliance EN55035 (EN 61000-4-2) Air/Direct discharge

[/specifications]

[accesories]

Optional QSFP56/QSFP28/QSFP+ optical transceivers; copper direct-attach cables

[/accesories]

The Broadcom BCM957508-P2100G is a dual-port 100GbE PCI Express 4.0 x16 network interface card built for modern data center servers, virtualization stacks, and high-throughput storage fabrics. Based on the Broadcom BCM57508 200GbE MAC controller with an integrated dual-channel 100GbE SFI transceiver, it delivers reliable 100GbE connectivity while supporting advanced virtualization and tunneling acceleration.

Designed for QSFP56 environments, this NIC supports QSFP56, QSFP28, and QSFP+ optical modules as well as copper direct-attach cables, making it a flexible choice for upgrades, mixed-speed deployments, and scalable server builds.

  • Dual-port 100GbE connectivity: Built for high-throughput server uplinks using two QSFP56 ports for data center and cloud workloads.
  • BroadSAFE security technology: Designed as an industry-focused secure PCIe adapter solution leveraging Broadcom BroadSAFE technology.
  • SR-IOV virtualization at scale: Supports SR-IOV with up to 1K virtual functions (VFs) to increase VM density and reduce CPU overhead.
  • TruFlow flow processing engine: Helps accelerate vSwitch and flow processing to improve efficiency in virtualized environments.
  • Advanced tunnel and offload support: Supports VXLAN, NVGRE, Geneve, and GRE encapsulation/decapsulation with tunnel-aware stateless offloads.
  • 100GbE server uplinks in enterprise and cloud data centers
  • Virtualization hosts requiring SR-IOV and vSwitch acceleration
  • High-performance computing and low-latency east-west traffic
  • RoCE-enabled environments for RDMA-based workloads
  • Storage and network fabrics using QSFP56 DAC or optical connectivity
  • SKU: BCM957508-P2100G
  • Ports: Dual-port QSFP56
  • Network Speed: 2 x 100GbE (supports 50G PAM-4, 25G NRZ, 10G NRZ signaling)
  • Host Interface: PCI Express 4.0 x16
  • Controller: Broadcom BCM57508 200GbE MAC with integrated dual-channel 100GbE SFI transceiver
  • Supported Media: QSFP56/QSFP28/QSFP+ optical modules and copper direct-attach cables
  • Virtualization: SR-IOV up to 1K VFs, vSwitch acceleration, multiqueue, VMQ
  • RDMA: RDMA over Converged Ethernet (RoCE)
  • Jumbo Frames: Up to 9 KB
  • Power Consumption: 16.0W typical (passive DAC), up to 22.0W max (optical transceiver)
  • Operating Temperature: 0 to 55 Celsius
  • Form Factor: PCIe add-in card, low-profile half-length (standard and low-profile brackets included)

Deploy the Broadcom BCM957508-P2100G for scalable 100GbE performance, secure virtualization, and modern offload acceleration. Order today.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] Dual-port 100GbE QSFP56, PCIe 4.0 x16, Broadcom BCM57508 controller, SR-IOV up to 1K VFs, RoCE support, Standard and low-profile brackets [/shortdesc]

[properties]

Brand Broadcom
SKU BCM957508-P2100G
Model P2100G
Product Type Ethernet Network Interface Card (NIC)
Ports Dual-port
Port Speed 100 Gb/s per port
Connector Type QSFP56
Supported Media QSFP56/QSFP28/QSFP+ optical modules; copper direct-attach cables
Host Interface PCI Express 4.0 x16
Controller Broadcom BCM57508 200GbE MAC controller
Transceiver Integrated dual-channel 100GbE SFI transceiver
Signaling Support 50G PAM-4, 25G NRZ, 10G NRZ
SR-IOV Up to 1k virtual functions (VFs)
Jumbo Frames Up to 9 KB
Network Boot PXE, UEFI
iSCSI Boot Yes
RDMA Support RDMA over Converged Ethernet (RoCE)
DCB Support PFC, ETS, QCN, DCBx
Virtualization Offloads VXLAN, NVGRE, Geneve, GRE encap/decap
Form Factor PCIe Low Profile, Half Length
Bracket Standard and Low-Profile brackets included
Board Dimensions (W x H) 167.64 mm x 68.91 mm
Weight 167 g
Operating Temperature 0 to 55 Celsius
Storage Temperature -40 to 70 Celsius
Storage Humidity Maximum 90% at 35 Celsius (non-condensing)
Power Consumption (Typical) 16.0W (Passive DAC), 21.0W (Optical Transceiver)
Power Consumption (Max) 17.1W (Passive DAC), 22.0W (Optical Transceiver)

[/properties]

[specifications]

Media Interface Dual-port pluggable media interface compatible with QSFP56/QSFP28/QSFP+ optical transceiver or copper direct-attach cable
PCIe Compliance PCI Express Base Specification Revision 4.0
PCIe Lane Width x16
Multi-Host Support Dual-Host x8 mode signaling compatible
Standards Compliance Fully compliant with SFF-8402
Offloads IPv4 and IPv6 offloads; TCP, UDP, and IP checksum offloads
Large Packet Offloads LSO, LRO, TSO
Scaling RSS, TSS
VLAN VLAN insertion/removal
Interrupts Interrupt coalescing; MSI and MSI-X
Virtual Switching vSwitch acceleration; tunnel-aware stateless offloads
Flow Processing TruFlow flow processing engine
Congestion Management Advanced congestion avoidance
Queue Features Multiqueue, NetQueue, VMQ
Sideband Management Network Controller Sideband Interface (NC-SI)
Management Transport MCTP over SMBus
SMBus SMBus 2.0
Function-Level Reset FLR support
FRU FRU support
Airflow Requirement (Hot Aisle) 225 LFM (Passive DAC), 420 LFM (Optical Transceiver)
Ambient Temperature (Hot Aisle) 55 Celsius
Regulatory Approvals CE/European Union EN 62368-1:2014; UL/USA IEC 62368-1 (ed. 2)
EMC Compliance EN 55032 Class A; EN 55024; EN 61000-3-2; EN 61000-3-3; FCC CFR47 Part 15 Subpart B Class A; ICES-003 Class A; AS/NZS CISPR 22 Class A; CNS 13438 Class A; CNS 15663
ESD Compliance EN55035 (EN 61000-4-2) Air/Direct discharge

[/specifications]

[accesories]

Optional QSFP56/QSFP28/QSFP+ optical transceivers; copper direct-attach cables

[/accesories]

High-Density 100GbE Server Networking with Broadcom Performance

The Broadcom BCM957508-P2100G is a dual-port 100GbE PCI Express 4.0 x16 network interface card built for modern data center servers, virtualization stacks, and high-throughput storage fabrics. Based on the Broadcom BCM57508 200GbE MAC controller with an integrated dual-channel 100GbE SFI transceiver, it delivers reliable 100GbE connectivity while supporting advanced virtualization and tunneling acceleration.

Designed for QSFP56 environments, this NIC supports QSFP56, QSFP28, and QSFP+ optical modules as well as copper direct-attach cables, making it a flexible choice for upgrades, mixed-speed deployments, and scalable server builds.

Key Benefits & Features
  • Dual-port 100GbE connectivity: Built for high-throughput server uplinks using two QSFP56 ports for data center and cloud workloads.
  • BroadSAFE security technology: Designed as an industry-focused secure PCIe adapter solution leveraging Broadcom BroadSAFE technology.
  • SR-IOV virtualization at scale: Supports SR-IOV with up to 1K virtual functions (VFs) to increase VM density and reduce CPU overhead.
  • TruFlow flow processing engine: Helps accelerate vSwitch and flow processing to improve efficiency in virtualized environments.
  • Advanced tunnel and offload support: Supports VXLAN, NVGRE, Geneve, and GRE encapsulation/decapsulation with tunnel-aware stateless offloads.
Ideal Use Cases
  • 100GbE server uplinks in enterprise and cloud data centers
  • Virtualization hosts requiring SR-IOV and vSwitch acceleration
  • High-performance computing and low-latency east-west traffic
  • RoCE-enabled environments for RDMA-based workloads
  • Storage and network fabrics using QSFP56 DAC or optical connectivity
Technical Specifications
  • SKU: BCM957508-P2100G
  • Ports: Dual-port QSFP56
  • Network Speed: 2 x 100GbE (supports 50G PAM-4, 25G NRZ, 10G NRZ signaling)
  • Host Interface: PCI Express 4.0 x16
  • Controller: Broadcom BCM57508 200GbE MAC with integrated dual-channel 100GbE SFI transceiver
  • Supported Media: QSFP56/QSFP28/QSFP+ optical modules and copper direct-attach cables
  • Virtualization: SR-IOV up to 1K VFs, vSwitch acceleration, multiqueue, VMQ
  • RDMA: RDMA over Converged Ethernet (RoCE)
  • Jumbo Frames: Up to 9 KB
  • Power Consumption: 16.0W typical (passive DAC), up to 22.0W max (optical transceiver)
  • Operating Temperature: 0 to 55 Celsius
  • Form Factor: PCIe add-in card, low-profile half-length (standard and low-profile brackets included)
Upgrade to 100GbE Without Compromise

Deploy the Broadcom BCM957508-P2100G for scalable 100GbE performance, secure virtualization, and modern offload acceleration. Order today.
