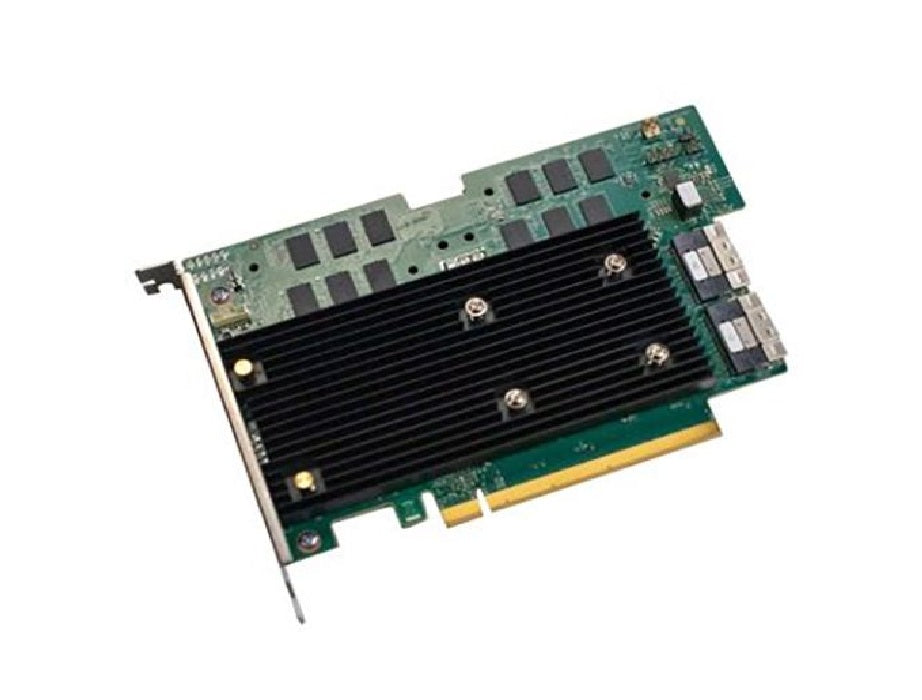

The 05-50113-00 is the official Broadcom manufacturer part number for the MegaRAID 9670W-16i Tri-Mode Storage Adapter
The High-Performing 16- and 24-Port Family of 9600 RAID and eHBAs Delivers Breakthrough RAID Rebuild Times, Application Storage Performance, and Advanced Data Protection Capabilities.
The new Broadcom® 9600 family of 24G SAS MegaRAID adapters and HBAs address the performance shift that today's data centers are facing as they transition to higher core count CPUs and SSD-based server storage. The 9600 series Tri-Mode RAID adapters and eHBAs enable high-performing 24G serial-attached SCSI (SAS), PCIe Gen 4.0 storage connectivity, and flexible system designs to support NVMe, SAS, and SATA devices.
The 16- and 24-port 9600 series adapters are powered by the Broadcom 8th generation of Tri-Mode 4000 series I/O Controllers (IOC) and 4100 series RAID-on-Chip (ROC) families, based on the industry-leading Fusion- MPT (Message Passing Technol
- 3rd-Generation Tri-Mode Storage Interface
- 22.5, 12, and 6Gb/s SAS and 6Gb/s SATA data transfer rates
- x16 and x8 PCIe Gen 4.0 Host Interface
- Hardware Secure Boot and Attestation
- Universal Backplane Management (UBM) ready (SFF-TA-1005)
- Unified Drivers and Utilities
Product Specification:
|
| Host Interface: PCI Express 4.0 x16 |
| Product Type: SAS Controller |
| Device Supported: Server |
| Manufacturer Part Number: 05-50113-00 |
| Manufacturer Website Address: https://www.broadcom.com |
| Packaged Quantity: 1 |
| Platform Supported: PC,Linux |
| Features: S.M.A.R.T. Support,Load Balancing |
| Form Factor: Plug-in Card |
| Manufacturer: Broadcom Corporation |
| Product Model: 9670W-16i |
| Product Name: MegaRAID 9670W-16i SAS Controller |
| Product Line: MegaRAID |
| Raid Levels: 0,1,10,5,50,6,60,JBOD |
| Controller Type: 24Gb/s SAS |
| Product Series: 9600 |
| Brand Name: Broadcom |
| Operating System Supported: Windows,Red Hat Enterprise Linux,SUSE Linux,Ubuntu Linux,Citrix XenServer,CentOS,Debian Linux,Oracle Enterprise Linux,Fedora,FreeBSD OS |
| Card Height: Full-height |
| Maximum Data Transfer Rate: 24 Gbit/s |
| Raid Supported: Yes |
| Total Number Of Sas Ports: 16 |
| Number Of Sas Ports (Internal): 16 |
| Sas Connector Details: 2 8 SFF-8654 |
| Feature1: 3rd-Generation Tri-Mode Storage Interface |
| Feature2: 22.5, 12, and 6Gb/s SAS and 6Gb/s SATA data transfer rates |
| Feature3: x16 and x8 PCIe Gen 4.0 Host Interface |
| Feature4: Hardware Secure Boot and Attestation |
| Feature5: Universal Backplane Management (UBM) ready (SFF-TA-1005) |
| Feature6: Unified Drivers and Utilities |
