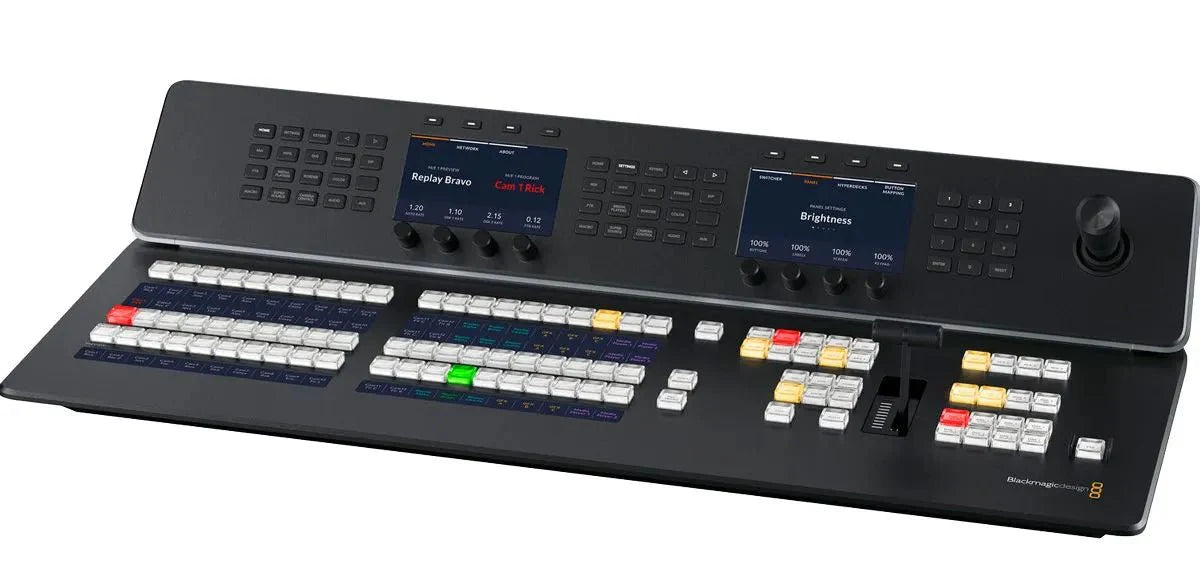

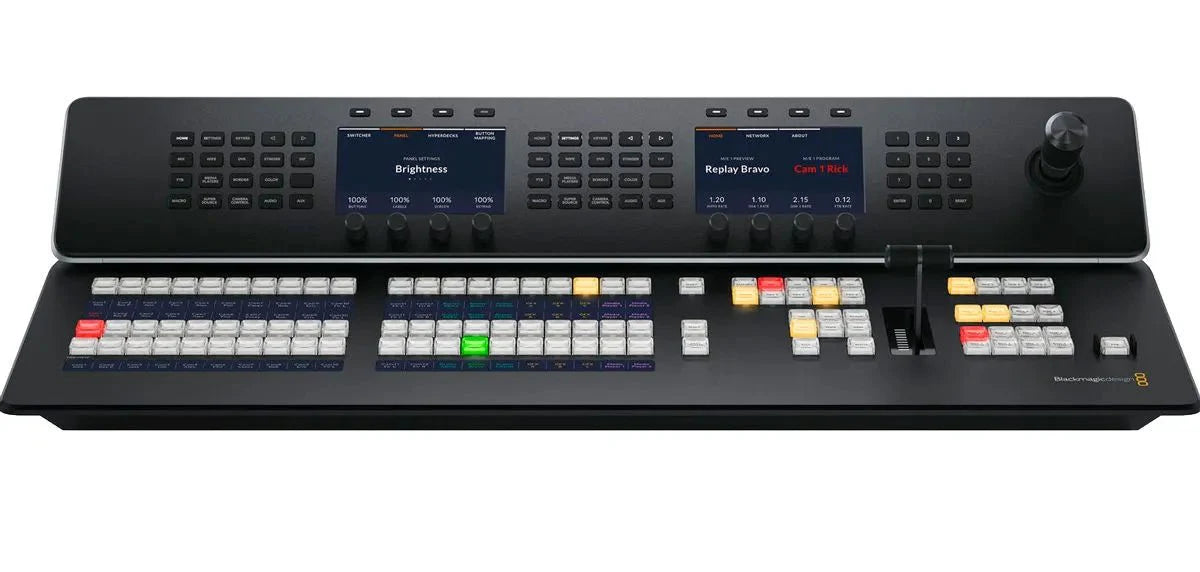

Mastering Live Production: An Overview of the Blackmagic Design ATEM 1 M/E Advanced Panel 20
Overview:
The Blackmagic Design ATEM 1 M/E Advanced Panel 20 stands out as a top-tier broadcast hardware control panel tailored for Blackmagic Design ATEM switchers. With its 20 input buttons, 2 system control LCDs, and dedicated buttons for managing 4 upstream and 4 downstream keyers, this panel ensures seamless live production switching. Whether you're handling input selection, transition control, or audio mixing, this panel has got you covered. Designed for diverse settings like broadcast studios, mobile production trucks, and live event venues, it boasts a compact yet robust build that snugly fits into a standard equipment rack. Among its notable features are large backlit input buttons with LCD scribble strips, a joystick for DVE and camera tweaks, and a T-bar fader for fluid transitions. The panel also comes with two system control LCDs for real-time monitoring and configuration. Its specifications include 20 inputs and outputs, 4 keyers each for upstream and downstream, a 12-channel audio mixer, and 10 macro buttons. Connection-wise, it's equipped with Ethernet and USB-C ports. Measuring 435 x 95 x 300 mm and weighing 3.5 kg, it's both compact and lightweight. Additional features like shift buttons, on-air indicators, LCD menu displays, and a redundant power supply further enhance its functionality. In essence, the Blackmagic Design ATEM 1 M/E Advanced Panel 20 is the go-to control panel for comprehensive live production needs, catering to both small-scale studios and expansive broadcast centers.
More Details:
-
Backlit Input Buttons: Large buttons with LCD scribble strips ensure easy identification during live sessions.
-
Comprehensive Control: Dedicated buttons for all major switcher functions, from keying to transition control.
-
Precision Joystick: Ideal for DVE control and camera adjustments on-the-fly.
-
Smooth Transitions: T-bar fader designed for fluid and professional transitions.
-
Dual System LCDs: Two system control LCDs offer real-time monitoring and configuration.
-
Compact Yet Robust: Designed to fit standard equipment racks, ensuring durability for on-the-go productions.
-
Versatile Keying: Features 4 upstream and 4 downstream keyers for diverse production needs.
-
Connectivity: Equipped with Ethernet for switcher connection and USB-C for firmware updates.
-
Power Efficiency: Redundant power supply ensures uninterrupted live production sessions.
