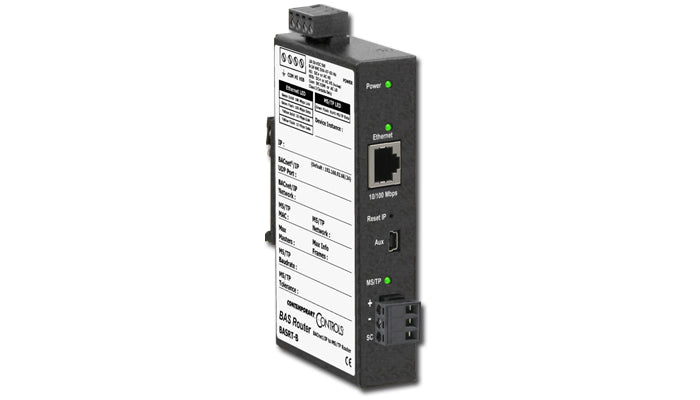

BASRT-B-U | BAS Router BACnet/IP to MS/TP DIN rail mount Made in USA | Contemporary Controls

The Contemporary Controls BASRT-B-U (Made ini USA) is a powerful and versatile BACnet multi-network router, enabling seamless integration between BACnet/IP and BACnet MS/TP networks. This DIN-rail mountable device simplifies the connection of various BACnet devices, allowing system integrators to effortlessly combine different network technologies within a single BACnet internetwork.

Key Features:

• Dual Communication Protocols: Supports both BACnet/IP (Ethernet) and BACnet MS/TP, offering flexible network connectivity options. The Ethernet port operates at 10/100 Mbps with auto-MDIX, automatically adapting to straight-through or crossover cables. The MS/TP port supports data rates ranging from 9600 to 76800 bps.
• BACnet BBMD Functionality: Acts as a BACnet Broadcast Management Device (BBMD), ensuring efficient distribution of broadcast messages across the network.
• Simplified Configuration: Features a user-friendly web interface for easy configuration and troubleshooting via any standard web browser.[1]
• Robust Diagnostics: Provides comprehensive diagnostic tools, including network statistics and a routing table, for streamlined maintenance and troubleshooting.
• Compact and Convenient: Its compact design and DIN-rail mounting ensure easy and efficient installation in various environments.
• Power Options: Operates with either 24 VAC @ 4 VA or 24 VDC @ 167 mA.
