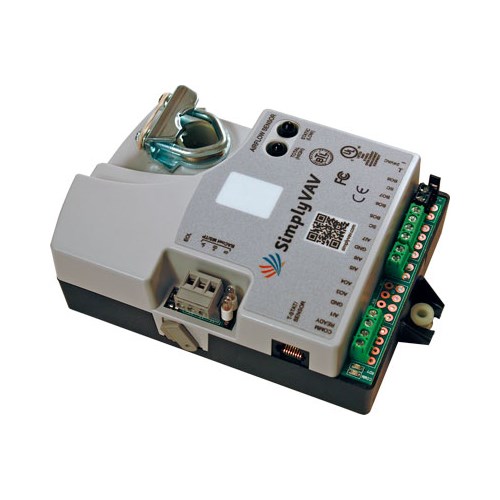

BAC-8205 | BACnet ASC: SimplyVAV, Fan and Reheat, Position, 40 in-lbs, 60 sec. | KMC

BACnet ASC: SimplyVAV, Fan and Reheat, Position, 40 in-lbs, 60 sec.

The SimplyVAV series of controllers are an easy and unique approach to operating a wide variety of VAV terminal units. The integrated actuators, internal airflow sensors, and wide variety of application programs make these BACnet Application Specific controllers ideal for either new or retrofit installations.

Model BAC-8205 is supplied with inputs, outputs, and sequences of operation for the following functions.

• Single duct heating and cooling VAV
• Modulating, floating, time proportional, and staged reheat
• Series and parallel fan control
• Automatic heating/cooling changeover
• Discharge air temperature limiting
• Occupancy setback—requires STE-8201
• Actuator position feedback for true damper positioning
• System diagnostic indicators
• Airflow balancing
• A 60-second actuator for control of RTU, HPU, or other unitary equipment in zoning applications. See the BAC-120063CW-ZEC FlexStat Zoning Equipment Controller.

Analog Inputs

2

Analog Outputs

2

Application

VAV

BACnet Profile

Application Specific Controller

Brand

KMC Controls

Connectivity

MS/TP

Feedback

Feedback Pot

Mounting

V-Bolt/ Screws

Timing (sec)

80

Triac Outputs

5

VAV Control

Pressure Independent

VAV Fan

None, Parallel, Series

VAV Reheat

Floating, Modulating, Staged, Time Proportioned

VAV Type

Single Duct
