[shortdesc]Explosion-protected horn speaker certified for Class I Div 1 & Zone 1 hazardous environments with >110 dB output, PoE, built-in DSP and Axis Edge Vault cybersecurity.[/shortdesc]
[properties]
| Model |
AXIS XC1311 (02962-001) |
| Product Type |
Explosion-protected network horn speaker |
| Power |
PoE IEEE 802.3af/802.3at Type 1 Class 3; Typical 7 W, Max 12.95 W |
| Operating Temperature |
-40 °C to 60 °C (-40 °F to 140 °F) |
| Storage Temperature |
-40 °C to 65 °C (-40 °F to 149 °F) |
| Humidity |
Operating: 10–100% RH (condensing); Storage: 5–95% RH (non-condensing) |
| Weight |
4220 g (9.3 lb.) |
| Casing |
IP66/IP67, NEMA 4X, impact-resistant aluminum, RAL 3000 |
| Network Interface |
RJ45 10BASE-T/100BASE-TX PoE |
| Memory |
1024 MB RAM, 1024 MB Flash |
| SoC |
NXP i.MX 8M Nano |
| Languages Supported |
English, German, French, Spanish, Italian, Russian, Simplified Chinese, Traditional Chinese, Japanese, Korean, Portuguese, Polish, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese |
[/properties]
[specifications]
| Audio Hardware |
Re-entrant horn loudspeaker with compression driver, built-in 7 W Class D amplifier, digital signal processing |
| Max Sound Pressure Level |
>110 dB at 1 m |
| Frequency Response |
400 Hz – 5.5 kHz |
| Coverage Pattern |
54° |
| Audio Encoding |
AAC LC, G.711 PCM, G.726 ADPCM, Axis µ-law, WAV, MP3 (64–320 kbps), 8–48 kHz sampling |
| Streaming |
One-way audio |
| Audio Management |
AXIS Audio Manager Edge (preinstalled), with zone, content, scheduling, prioritization, health monitoring and user access control |
| System Integration |
Open API (VAPIX), SIP, AXIS Camera Station compatibility, third-party VMS support, MQTT |
| Network Protocols |
IPv4/IPv6, HTTP, HTTPS, DHCP, TCP/IP, UDP, FTP, SFTP, NTP, PTP, SNMP v1/v2c/v3, SSH, RTP, RTSP, IGMP, DNS, SIP, QoS, SOCKS |
| Cybersecurity Software |
Signed firmware, secure boot, brute force protection, OAuth 2.0, digest authentication, FIPS 140-2 cryptographic module |
| Cybersecurity Hardware |
Axis Edge Vault secure element (CC EAL 6+), Axis Device ID, secure keystore |
| Environmental Ratings |
IP66/IP67, NEMA 4X |
| Explosion Certifications |
Class I Div 1 Groups A–D; Class I Zone 1 AEx db IIC T5 Gb; Zone 21 AEx tb IIIC T91°C Db; IECEx & ATEX certified |
| EMC & Safety |
EN 55035, EN 55032 Class A, EN 61000-6-1/-6-2, FCC Part 15 Class A; IEC/EN/UL 62368-1 |
| Reliability |
Designed for 24/7 operation |
[/specifications]
[accesories]
| Included |
Horn speaker, installation guide, terminal block connector, ring terminal, owner authentication key |
| Optional Accessories |
Pole Mount ExCam XF, Pole Mount ExCam XPT |
[/accesories]

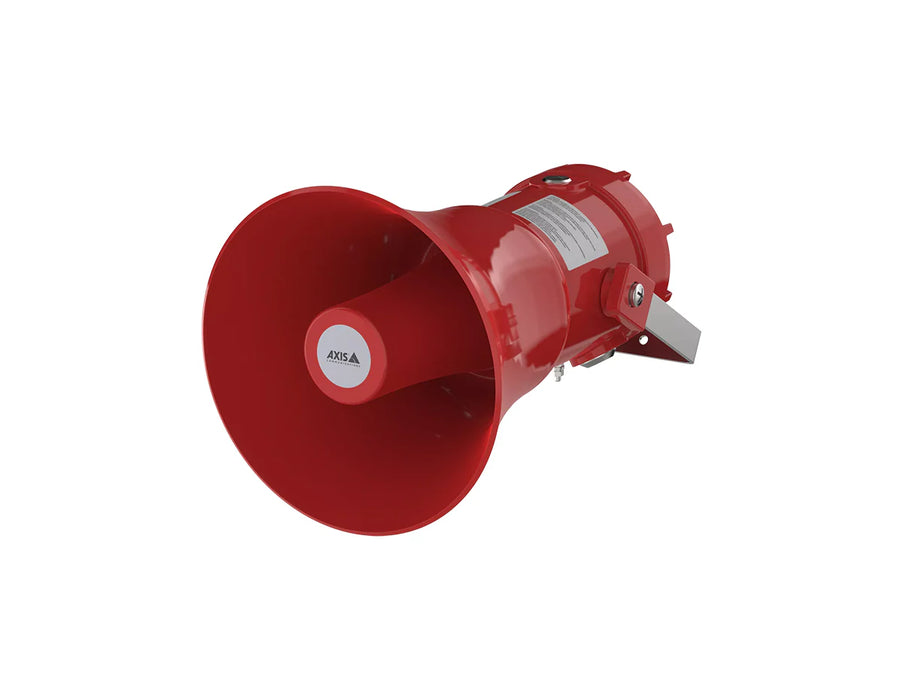

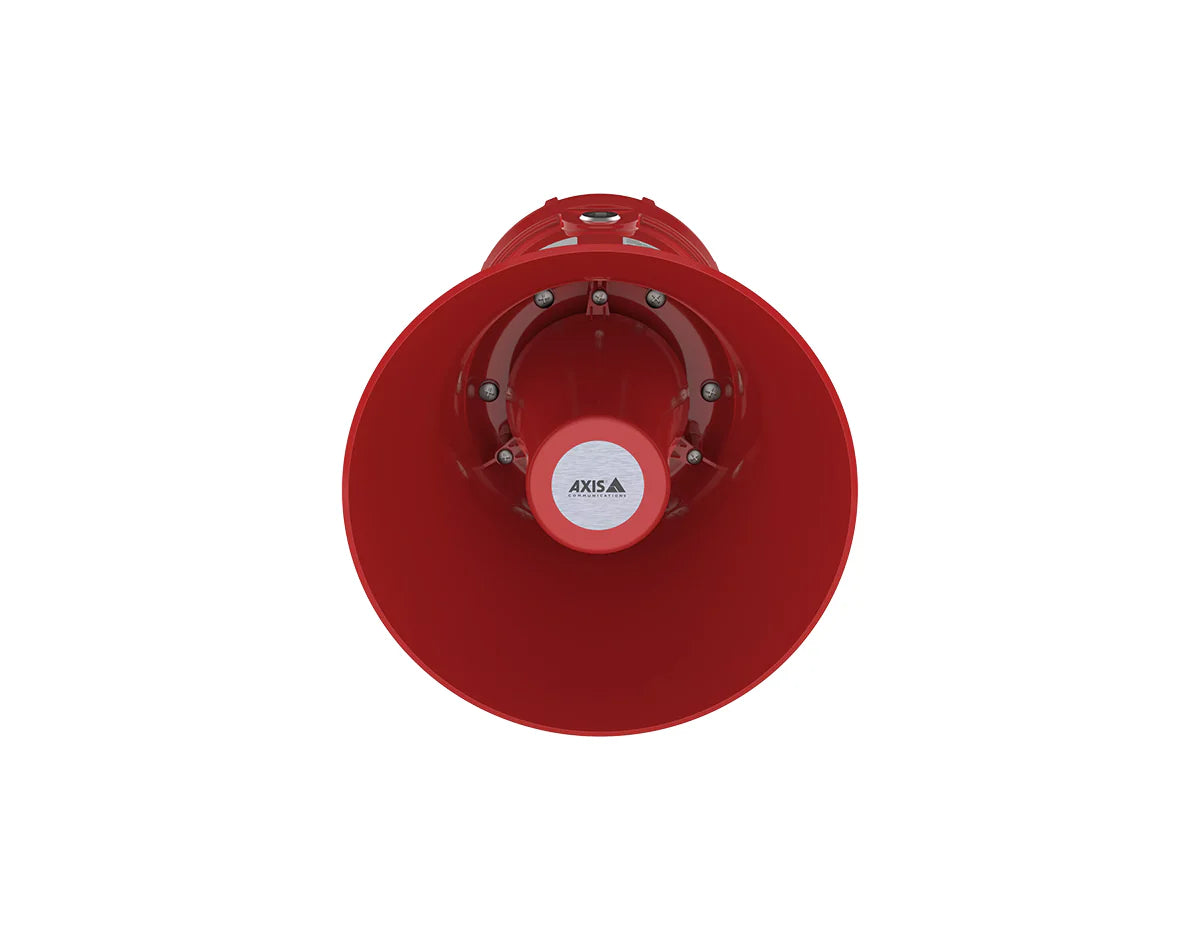

The AXIS XC1311 Explosion-Protected Horn Speaker delivers powerful, clear voice-based warnings and alerts in hazardous areas where electrical sparks must be avoided. With a >110 dB output and optimized acoustic horn design, announcements remain clear even amid high ambient noise. Installation is streamlined with a single PoE connection for power and data, reducing infrastructure cost and complexity.
The unit is certified for worldwide explosive-risk environments including Class I Div 1, Zone 1 IIC, and carries IP66/IP67/NEMA 4X ingress rating for resilience against dust, corrosion and water. Built-in Axis Edge Vault ensures best-in-class cybersecurity and device authentication.
