[shortdesc]A robust and reliable body worn camera delivering sharp video, clear audio, GNSS positioning, secure encryption, and long operating time for frontline personnel.[/shortdesc]
[properties]
| Model |

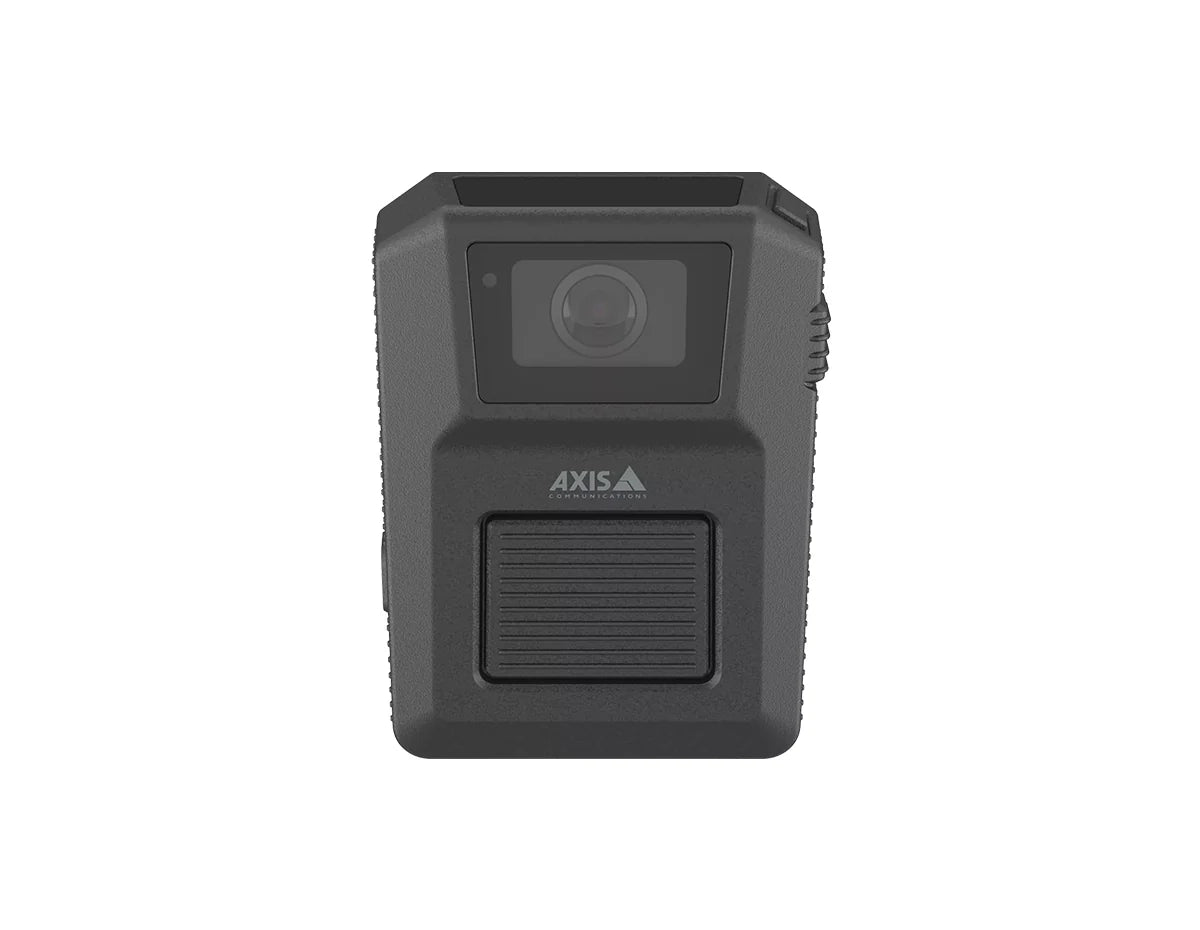

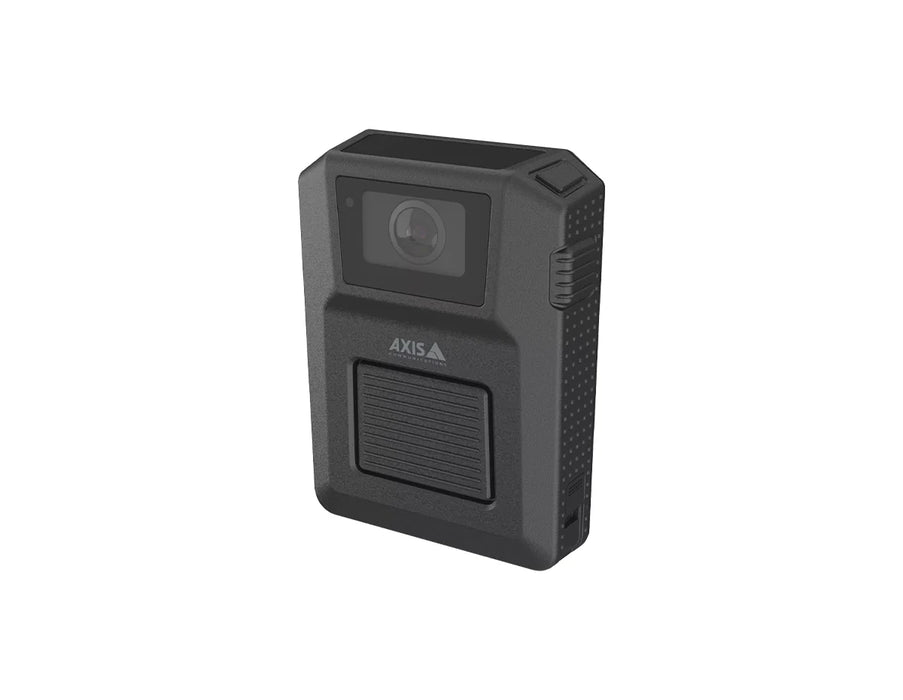

AXIS W102 Body Worn Camera Black (02785-004) |
| Product Type |
Body Worn Camera |
| Weight |
178 g (0.39 lb) |
| Operating Temperature |
-20 °C to 55 °C (-4 °F to 131 °F) |
| Humidity |
10–100% RH (condensing) |
| Battery |
Li-ion 3600 mAh, up to 15 h (720p), 14 h (1080p), 29 h standby |
| Casing |
IP67-rated plastic; drop tested up to 2 m; Color: black NCS S 9000-N |
| Mounting |
Klick Fast™ System |
| Storage Capacity |
64 GB non-volatile memory (up to 30 h recorded video) |
| Throughput |
100 Mbit/s camera-to-system controller |
| Certifications |
UL/cUL, CE, KC, VCCI, RCM, BSMI, MIC, FCC, ICES, CONATEL, ANATEL, ICASA, NCC, ENACOM, BIS, IFT, NOM, SRRC |
[/properties]
[specifications]
| Image Sensor |
1/2.9" progressive scan RGB CMOS, 0.1 lux |
| Lens |
2.3 mm fixed; HFOV 137°; VFOV 76°; F2.1 |
| Shutter |
1/20000 s to 1/25 s (50 Hz), 1/20000 s to 1/30 s (60 Hz) |
| Video |
H.264 High Profile; 1920x1080 & 1280x720; 25/30 fps; WDR; EIS (720p); barrel distortion correction; Axis Zipstream |
| Audio |
Dual built-in microphones; voice enhancer; noise cancellation; AAC-LC (1-ch & 2-ch) |
| Connectivity |
Bluetooth 5.1 LE & Classic; Wi-Fi 5 a/b/g/n/ac (2.4/5 GHz); USB Type-C (vendor-specific class); Pogo pin pads |
| GNSS / Location |
GPS, GLONASS, Galileo, BeiDou; track start & end |
| Sensors |
3-axis gyroscope, accelerometer, compass |
| User Interface |
0.96" IPS TFT display (160x80); status indicators; audio & vibration feedback |
| Recording |
Configurable prebuffer (0–120 s) & postbuffer (0–60 s) |
| Power |
Operating time: 15 h (720p), 14 h (1080p), 29 h standby; charging 4–6 hours depending on temperature |
| Environmental |
IP67; MIL-STD-810H (501.7, 503.7, 505.7, 509.7, 512.6, 516.8); storage temp −20 °C to 45 °C (short term) |
| Security Features |
Signed OS; secure boot; encrypted filesystem (AES-XTS-Plain64 256-bit); Axis Edge Vault; TEE; Axis device ID; secure keystore; signed video; IEEE 802.1AR; HTTPS/HSTS; TLS 1.2/1.3; WPA/WPA2-PSK |
| Wireless Certifications |
EN 300328, EN 300440, EN 301893, EN 303413, EN 301489-1, EN 301489-17, FCC Part 15C, RSS-247 |
[/specifications]
[accesories]
| Optional Accessories |
Klick Fast™ mounts; AXIS TW1200 Mini Bullet Sensor; AXIS TW1201 Mini Cube Sensor; AXIS TW1906 Battery Replacement; AXIS Body Worn Assistant app |
[/accesories]
The AXIS W102 Body Worn Camera delivers dependable performance for officers and security professionals who need reliable, high-quality evidence capture. With a sensitive CMOS sensor, wide 137° field of view, and advanced image processing including WDR and EIS, it maintains clarity in fast-moving or low-light conditions. Dual microphones enhance audio quality while reducing wind noise, ensuring clear voice capture in dynamic environments.
Built for demanding operations, it offers long battery life, robust IP67 and MIL-STD-810H protection, and strong wireless connectivity via Wi-Fi 5 and Bluetooth 5.1. Integrated GNSS (GPS, GLONASS, Galileo, BeiDou), encrypted storage, and Axis Edge Vault hardware security provide complete protection of video evidence from capture to handoff.
