• The AXIS TU1001-VE Outdoor Microphone delivers robust, weatherproof audio capture for outdoor surveillance applications with hemispherical directionality

[/shortdesc]

[specifications] [/specifications]

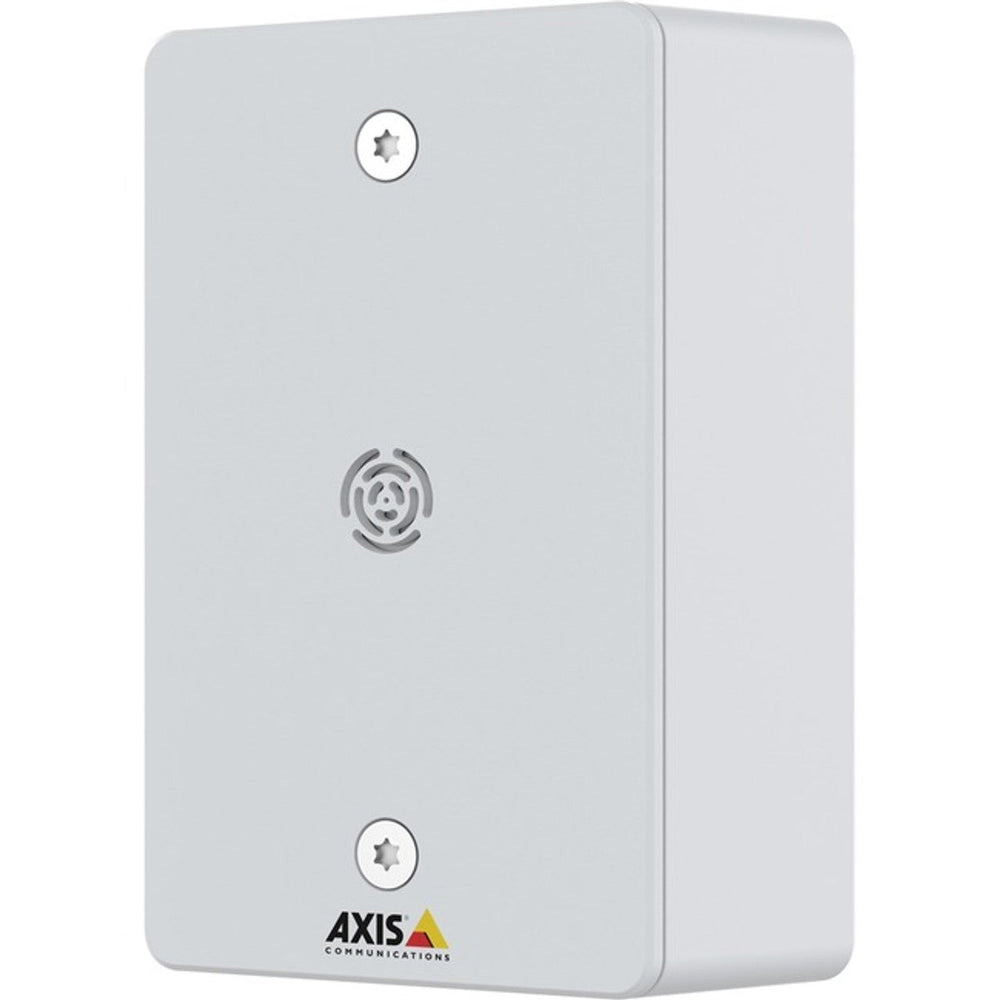

AXIS TU1001-VE Outdoor Microphone (02269-001)

The AXIS TU1001-VE Outdoor Microphone is a high-performance, vandal-proof microphone designed for reliable audio capture in demanding outdoor environments. Featuring IK10 and IP66 ratings, it is protected against physical impacts and harsh weather conditions. This microphone is compatible with network devices supporting a 3.5mm audio input, such as Axis cameras, audio modules, and audio bridges. With its hemispherical directionality and a frequency range of 20 Hz to 20 kHz, it provides precise and clear sound recording. Its durable aluminum casing and versatile mounting options, including wall and ceiling installation, make it ideal for professional surveillance setups.

• Outdoor-Ready Design: Built to withstand challenging weather conditions with IP66 weatherproof and IK10 impact resistance ratings.
• Wide Frequency Range: Captures audio between 20 Hz and 20 kHz for detailed sound recording.
• Versatile Compatibility: Compatible with network products supporting microphone input via a 3.5mm stereo plug.
• Easy Installation: Offers wall and ceiling mounting options with conduit compatibility through AXIS ACI Conduit Adapters.
• Low Power Consumption: Operates on 2–10 V DC with a maximum power consumption of 0.006 W.

• Directionality: Hemispherical
• Audio Sensitivity: -32.1 dB ±3 dB at 1 kHz
• Maximum SPL: 115.3 dB (10% THD)
• Signal-to-Noise Ratio: 71.4 dB A-weighted
• Power Input: 2–10 V DC
• Operating Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
• Dimensions: 51 x 119 x 75 mm (2 x 4.69 x 2.95 in)
• Weight: 0.9 lb (409 g)
• Included Accessories: Installation guide, cable gasket M16 3 mm
