• The AXIS TQ1601-E Conduit Back Box is a durable, aluminum mounting solution with corrosion-resistant coating, designed for secure conduit installation and vibration dissipation in indoor and outdoor environments.

[/shortdesc]

[specifications] [/specifications]

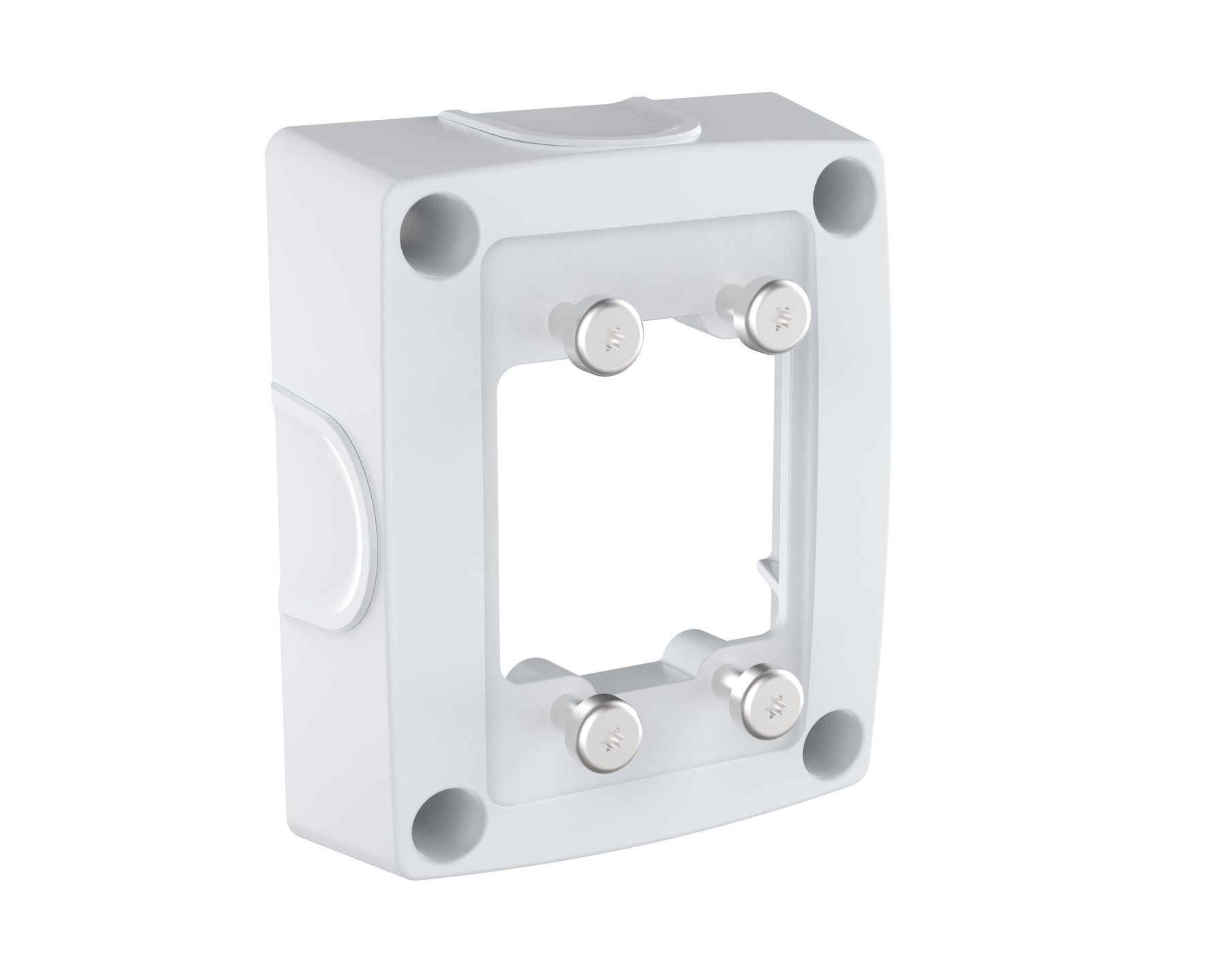

AXIS TQ1601-E Conduit Back Box (02336-001)

The AXIS TQ1601-E Conduit Back Box is a robust aluminum back box designed for flexible conduit installation and enhanced mounting possibilities. Featuring a corrosion-resistant coating, it ensures long-term durability in harsh environments. Its design includes top, bottom, and side conduit entries compatible with 3/4" conduits and M25 cable protection products, simplifying installation. Additionally, the structure helps dissipate vibrations, ensuring stable mounting. This back box is ideal for use with AXIS wall mounts and housings, allowing secure cable routing and concealment.

• Durable Construction: Made from powder-coated aluminum with corrosion resistance.
• Flexible Cable Routing: Supports back, side, and bottom conduit entries (M25, 3/4").
• Vibration Dissipation: Special design minimizes impact from environmental vibrations.
• Weatherproof & Impact-Resistant: IP66/IP67-rated for water and dust protection, IK10-rated for impact resistance.
• Compatible with AXIS Accessories: Works with AXIS ACI adapters, wall mounts, and outdoor housings.
• Indoor & Outdoor Use: Designed to withstand harsh environmental conditions.

• Material: Powder-coated aluminum
• Color: White (NCS S 1002-B)
• Maximum Load: 8 kg (17.6 lb)
• Mounting Compatibility: AXIS T94Q01A Wall Mount, T92E Series, T93F Series, P13-E, Q16-E, T92G20 Outdoor Housing, T91E61 Wall Mount
• Cable Routing: Back cable hole, side conduit hole M25 (3/4"), bottom conduit hole M25 (3/4")
• Ingress Protection: IP66/IP67 (dust and water-resistant)
• Impact Resistance: IK10 (high-impact protection)
• Dimensions: 130 x 158 x 50 mm (5.1 x 6.2 x 1.9 in)
• Weight: 540 g (1.19 lb)
