• The AXIS TM3101 is a compact pendant wall mount with concealed cabling, ideal for Axis mini fixed dome cameras across retail, indoor surveillance, and smart analytic setups

[/shortdesc]

[specifications] [/specifications]

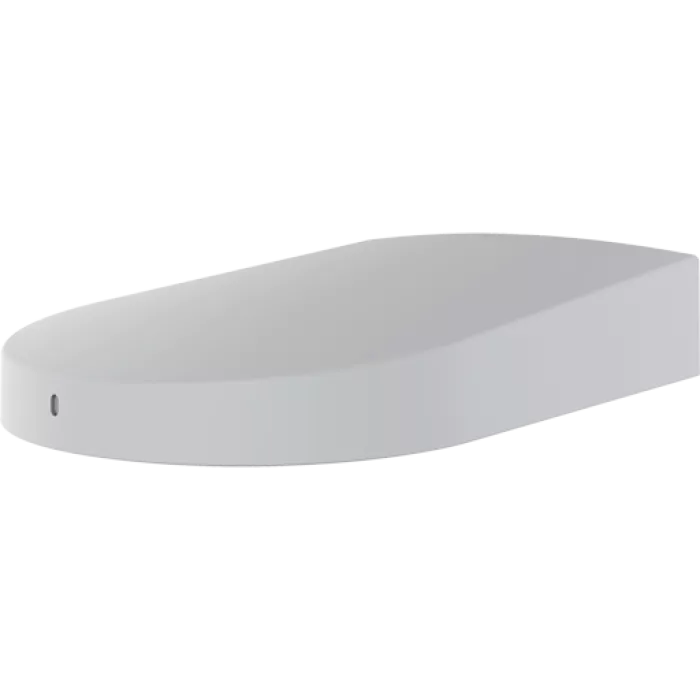

AXIS TM3101 Pendant Wall Mount

The AXIS TM3101 Pendant Wall Mount offers a clean, discreet solution for installing Axis mini fixed dome cameras in indoor settings. With a modern, low-profile design and concealed cabling, this mount allows for seamless integration into commercial interiors and retail environments. It supports installation on walls, ceilings, and countertops, and features an internal compartment for accessories such as microphones and connectivity devices. Available in both white and black finishes, it complements any space while ensuring compatibility with a broad range of Axis camera models including M20, M30, M31, M42, and P39 series. The mount supports flexible cable management and secure camera positioning for optimal performance in analytics-focused deployments.

• Minimalist Design: Clean, wall-hugging form with concealed screws and cable routing for professional finishes
• Accessory Compartment: Integrated compartment to house microphones or network accessories for expanded camera functionality
• Flexible Mounting: Supports wall, ceiling, and countertop installation
• Multi-Camera Compatibility: Works with Axis M20, M30, M31, M42, and P39 series dome cameras
• Color Options: Available in white (NCS S 1002-B) and black (NCS S 9000-N) to match camera or interior aesthetics
• Indoor Rated: Designed for indoor use with operating range of -10°C to 50°C (14°F to 122°F)
• Sustainable Build: Constructed from 22% recycled plastics and PVC-free materials

• Model: AXIS TM3101 Pendant Wall Mount
• Mount Type: Pendant wall mount for mini fixed dome cameras
• Material: Cover: PC/ABS blend; Bracket: Glass fiber reinforced polyamide
• Compatible Cameras: AXIS M20, M30, M31, M42, and P39 series (P39 series compatibility applies only when not intended for onboard use)
• Color Options: White (NCS S 1002-B), Black (NCS S 9000-N)
• Dimensions: 175 x 124 x 39 mm (6.9 x 4.9 x 1.5 in)
• Weight: 159 g (0.35 lb)
• Maximum Load: 1.5 kg (3.3 lbs)
• Operating Temperature: -10°C to 50°C (14°F to 122°F)
• Storage Temperature: -40°C to 65°C (-40°F to 149°F)
• Humidity: 10–85% RH (non-condensing)
• Included Accessories: Installation guide, camera mount screws
• Optional Accessories: AXIS TP3701 J-box & Pole Adapter, AXIS T8643 PoE+ over Coax Compact, AXIS T6101 Audio and I/O Interface, AXIS Device Microphones A & B
