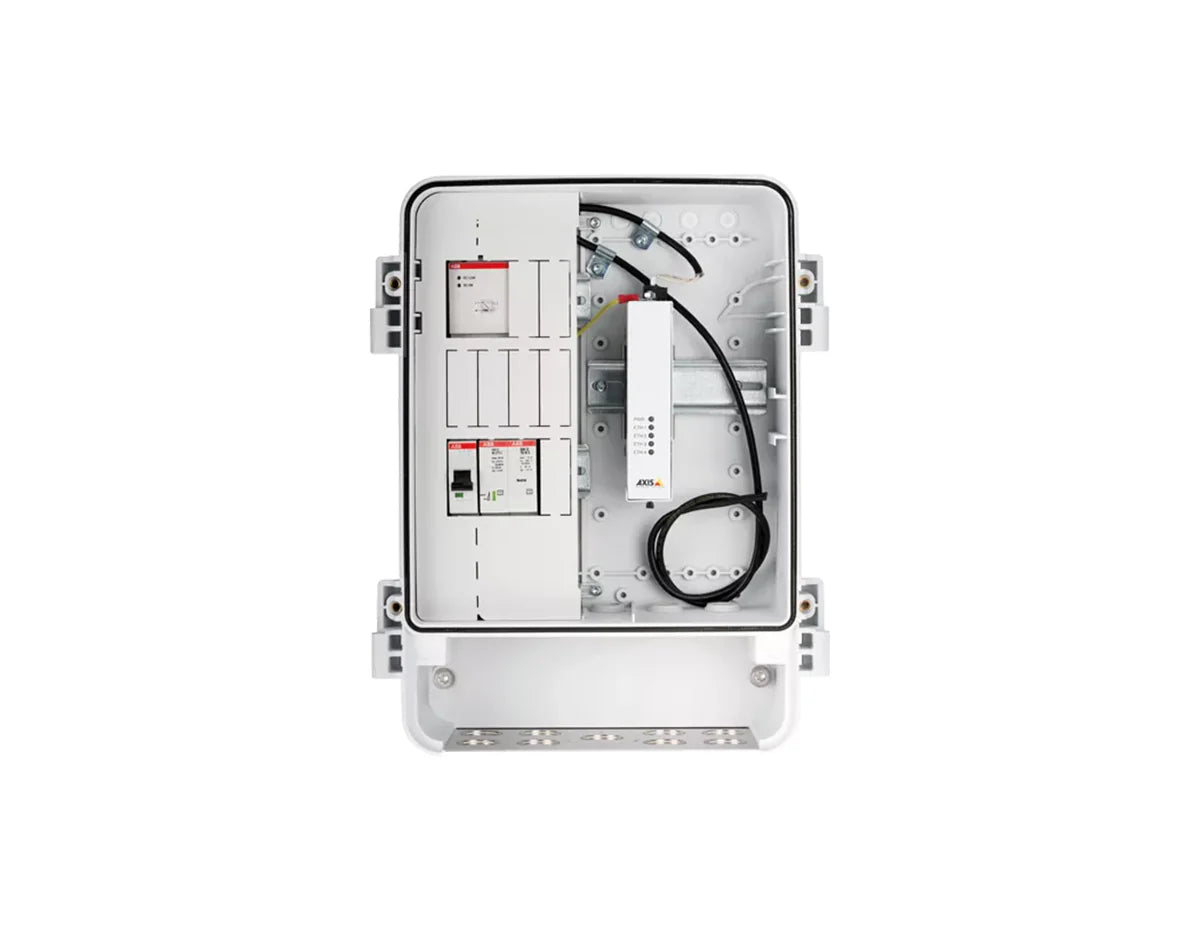

AXIS T98A17-VE Media Converter Cabinet A 120 V (5505-371)
AXIS T98A17-VE Media Converter Cabinet A 120 V (5505-371)

AXIS T98A17-VE Media Converter Cabinet A 120 V (5505-371)

por Axis
R$ 14.340,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] Outdoor-ready IK10/IP66 protection, pre-installed power supply and AXIS T8604 media converter, 12 V DC output, dual RJ45 ports, dual SFP fiber ports [/shortdesc]

[properties]

Model AXIS T98A17-VE Media Converter Cabinet A (120 V) (5505-371)
Product Type Outdoor-Ready Media Converter Cabinet
Casing Polycarbonate cabinet & stainless steel mounting plate
Color White NCS 1002-B & stainless steel
Environment Indoor / Outdoor
Power Input 90–175 V AC, Max. 4 A
Power Output 12 V DC, 20 W
Connectors 2x RJ45 (10/100 Mbps); 2x SFP (100/1000 Mbps)
Operating Temperature -40 °C to 65 °C (-40 °F to 149 °F)
Humidity 10–100% RH (condensing)
Approvals IP66, NEMA 250 Type 4X, IK10, EN 50121-4, EN 60529, EN 50581, EN 62368-1, UL 50/50E
Dimensions 361 x 282 x 131 mm
Weight 4.4 kg (9.7 lb)

[/properties]

[specifications]

Supported Cameras Cameras using 12 V DC input
SFP Compatibility 100/1000 Mbps SFP fiber optic modules or SFP-to-copper modules
Included Electronics AXIS T8604 Media Converter Switch, 12 V DC power supply, pre-mounted surge protection, electrical safety kit
Installation Components Pre-mounted DIN rails, cable gaskets, cable clamps, MCB fuse cover
Certifications (EMC) FCC Part 15 Subpart B Class A (120 V), VCCI Class A, ICES-003 Class A, C-tick AS/NZS CISPR 22 Class A
Material Durability IK10 impact protection; IEC 60068-2-6 4M4, IEC 60068-2-27 4M4

[/specifications]

[accesories]

Included in the Box Installation guide; Pre-mounted cable gaskets; Pre-mounted DIN rails; Cable clamps; Pre-mounted MCB fuse cover; Pre-mounted surge protection; Pre-mounted 12 V DC power supply
Optional Accessories AXIS Cabinet Lock A; AXIS Door Switch A; AXIS T98-VE Sunshield; AXIS T95A64; AXIS T95A67

[/accesories]

The AXIS T98A17-VE Media Converter Cabinet A 120 V delivers a complete, pre-configured solution for installing Axis fixed dome outdoor cameras. Built to withstand dust, water, impact, and extreme temperatures, it combines power delivery, fiber media conversion, and electrical safety into one secure enclosure. This cabinet ensures faster installation, lower field labor costs, and long-term reliability for mission-critical surveillance environments.

  • Rugged IP66 and IK10 design: Protects equipment against weather, vandalism, dust, and impact, ensuring stable outdoor performance.
  • Pre-installed power and media converter: Includes a 12 V DC power supply and AXIS T8604 Media Converter Switch for fiber or copper connectivity.
  • Simplified camera integration: Door pre-drilled for Axis fixed dome cameras, reducing installation time and ensuring precise fit.
  • Flexible network options: Dual RJ45 (10/100 Mbps) and dual SFP (100/1000 Mbps) ports support fiber modules and extended network distances.
  • Extreme temperature tolerance: Operates from -40 °C to 65 °C for reliable performance in harsh climate conditions.
  • City surveillance installations requiring vandal-resistant outdoor cabinets
  • Critical infrastructure sites with fiber connectivity needs
  • Perimeter security for utilities, transportation, and industrial facilities
  • Remote or high-risk camera deployments needing protected power and conversion
  • Power Input: 90–175 V AC (120 V model), Max. 4 A
  • Power Output: 12 V DC, 20 W
  • RJ45 Ports: 2x 10/100 Mbps
  • SFP Ports: 2x 100/1000 Mbps
  • Operating Temperature: -40 °C to 65 °C
  • Humidity: 10–100% RH (condensing)
  • Casing: Polycarbonate with stainless steel mounting plate
  • Environmental Rating: IP66, NEMA 4X, IK10
  • Dimensions: 361 x 282 x 131 mm
  • Weight: 4.4 kg (9.7 lb)
  • Included Accessories: Electrical safety kit, power supply, surge protection, gaskets, clamps

Ensure maximum protection and performance — order now.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] Outdoor-ready IK10/IP66 protection, pre-installed power supply and AXIS T8604 media converter, 12 V DC output, dual RJ45 ports, dual SFP fiber ports [/shortdesc]

[properties]

Model AXIS T98A17-VE Media Converter Cabinet A (120 V) (5505-371)
Product Type Outdoor-Ready Media Converter Cabinet
Casing Polycarbonate cabinet & stainless steel mounting plate
Color White NCS 1002-B & stainless steel
Environment Indoor / Outdoor
Power Input 90–175 V AC, Max. 4 A
Power Output 12 V DC, 20 W
Connectors 2x RJ45 (10/100 Mbps); 2x SFP (100/1000 Mbps)
Operating Temperature -40 °C to 65 °C (-40 °F to 149 °F)
Humidity 10–100% RH (condensing)
Approvals IP66, NEMA 250 Type 4X, IK10, EN 50121-4, EN 60529, EN 50581, EN 62368-1, UL 50/50E
Dimensions 361 x 282 x 131 mm
Weight 4.4 kg (9.7 lb)

[/properties]

[specifications]

Supported Cameras Cameras using 12 V DC input
SFP Compatibility 100/1000 Mbps SFP fiber optic modules or SFP-to-copper modules
Included Electronics AXIS T8604 Media Converter Switch, 12 V DC power supply, pre-mounted surge protection, electrical safety kit
Installation Components Pre-mounted DIN rails, cable gaskets, cable clamps, MCB fuse cover
Certifications (EMC) FCC Part 15 Subpart B Class A (120 V), VCCI Class A, ICES-003 Class A, C-tick AS/NZS CISPR 22 Class A
Material Durability IK10 impact protection; IEC 60068-2-6 4M4, IEC 60068-2-27 4M4

[/specifications]

[accesories]

Included in the Box Installation guide; Pre-mounted cable gaskets; Pre-mounted DIN rails; Cable clamps; Pre-mounted MCB fuse cover; Pre-mounted surge protection; Pre-mounted 12 V DC power supply
Optional Accessories AXIS Cabinet Lock A; AXIS Door Switch A; AXIS T98-VE Sunshield; AXIS T95A64; AXIS T95A67

[/accesories]

Streamline Outdoor Camera Deployments with Rugged Fiber-Ready Protection

The AXIS T98A17-VE Media Converter Cabinet A 120 V delivers a complete, pre-configured solution for installing Axis fixed dome outdoor cameras. Built to withstand dust, water, impact, and extreme temperatures, it combines power delivery, fiber media conversion, and electrical safety into one secure enclosure. This cabinet ensures faster installation, lower field labor costs, and long-term reliability for mission-critical surveillance environments.

Key Benefits & Features
  • Rugged IP66 and IK10 design: Protects equipment against weather, vandalism, dust, and impact, ensuring stable outdoor performance.
  • Pre-installed power and media converter: Includes a 12 V DC power supply and AXIS T8604 Media Converter Switch for fiber or copper connectivity.
  • Simplified camera integration: Door pre-drilled for Axis fixed dome cameras, reducing installation time and ensuring precise fit.
  • Flexible network options: Dual RJ45 (10/100 Mbps) and dual SFP (100/1000 Mbps) ports support fiber modules and extended network distances.
  • Extreme temperature tolerance: Operates from -40 °C to 65 °C for reliable performance in harsh climate conditions.
Ideal Use Cases
  • City surveillance installations requiring vandal-resistant outdoor cabinets
  • Critical infrastructure sites with fiber connectivity needs
  • Perimeter security for utilities, transportation, and industrial facilities
  • Remote or high-risk camera deployments needing protected power and conversion
Technical Specifications
  • Power Input: 90–175 V AC (120 V model), Max. 4 A
  • Power Output: 12 V DC, 20 W
  • RJ45 Ports: 2x 10/100 Mbps
  • SFP Ports: 2x 100/1000 Mbps
  • Operating Temperature: -40 °C to 65 °C
  • Humidity: 10–100% RH (condensing)
  • Casing: Polycarbonate with stainless steel mounting plate
  • Environmental Rating: IP66, NEMA 4X, IK10
  • Dimensions: 361 x 282 x 131 mm
  • Weight: 4.4 kg (9.7 lb)
  • Included Accessories: Electrical safety kit, power supply, surge protection, gaskets, clamps
Boost your outdoor camera reliability today

Ensure maximum protection and performance — order now.
