[shortdesc]Outdoor-ready IP66/IK10 cabinet with pre-installed 120 V AC power supply, electrical safety kit, and media converter for Axis cameras, designed for secure and vandal-resistant mounting.[/shortdesc]
[properties]
| Model |
AXIS T98A16-VE Media Converter Cabinet A 120 V (5505-361) |
| Product Type |
Outdoor media converter and power cabinet for Axis cameras |
| Casing |
Polycarbonate cabinet with stainless steel mounting plate |
| Color |
White NCS 1002-B and stainless steel |
| Environment |
Indoor/Outdoor |
| Operating Temperature |
-40 °C to 65 °C (-40 °F to 149 °F) |
| Humidity |
10–100% RH (condensing) |
| Dimensions |
361 mm (14.2 in) × 249 mm (9.8 in) × 131 mm (5.2 in) |
| Weight |
4.4 kg (9.7 lb) |
| Connectors |
2× RJ45 (10/100 Mbps), 2× SFP (100/1000 Mbps) |
| Power Input |
90–175 V AC, Max. 4 A |
| Power Output |
12 V DC, 20 W |
[/properties]
[specifications]
| Supported Cameras |
Devices using 12 V DC input |
| Performance |
Pre-installed media converter for copper and fiber deployment |
| Connectivity |
2× RJ45 10/100 Mbps; 2× SFP 100/1000 Mbps |
| Power Supply |
120 V AC model: Input 90–175 V AC; 12 V DC 20 W output |
| Security & Protection |
Electrical safety kit, surge protection, tamper-resistant construction |
| Environmental Ratings |
IP66; NEMA 250 Type 4X; IK10 |
| Certifications |
EN 50121-4, IEC 62236-4, EN 50581, IEC/EN 60529 IP66, NEMA 250 Type 4X, IEC/EN 62262 IK10, REACH, WEEE, CE, IEC 60068-2-6 4M4, IEC 60068-2-27 4M4, IEC/EN/UL 60950-1, IEC/EN/UL 60950-22, EN 62368-1, UL 50, UL 50E; FCC Part 15 Subpart B Class A, VCCI Class A, ICES-003 Class A, AS/NZS CISPR 22 Class A |
| Mounting Options |
Camera mounting on door with pre-aligned drilling pattern; includes mounting plate |
[/specifications]
[accesories]
| Included |
Installation guide, Pre-mounted cable gaskets, Pre-mounted DIN rails, Cable clamps, Pre-mounted power cover for MCB fuse, Pre-mounted surge protection, Pre-mounted 12 V DC power supply |
| Optional Accessories |
AXIS Cabinet Lock A, AXIS Door Switch A, AXIS T98-VE Sunshield, AXIS T95A64, AXIS T95A67 |
[/accesories]

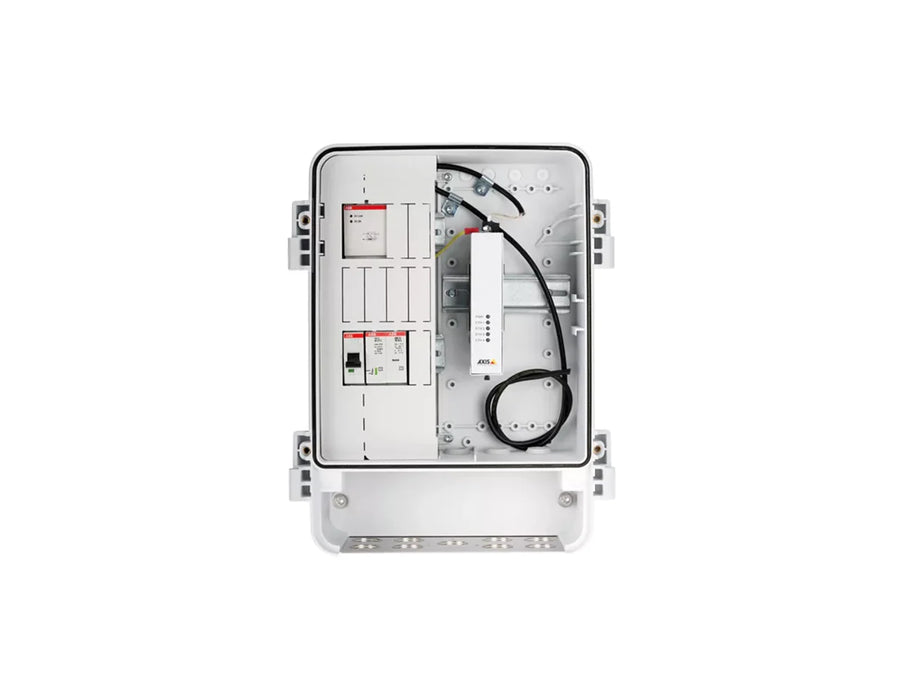

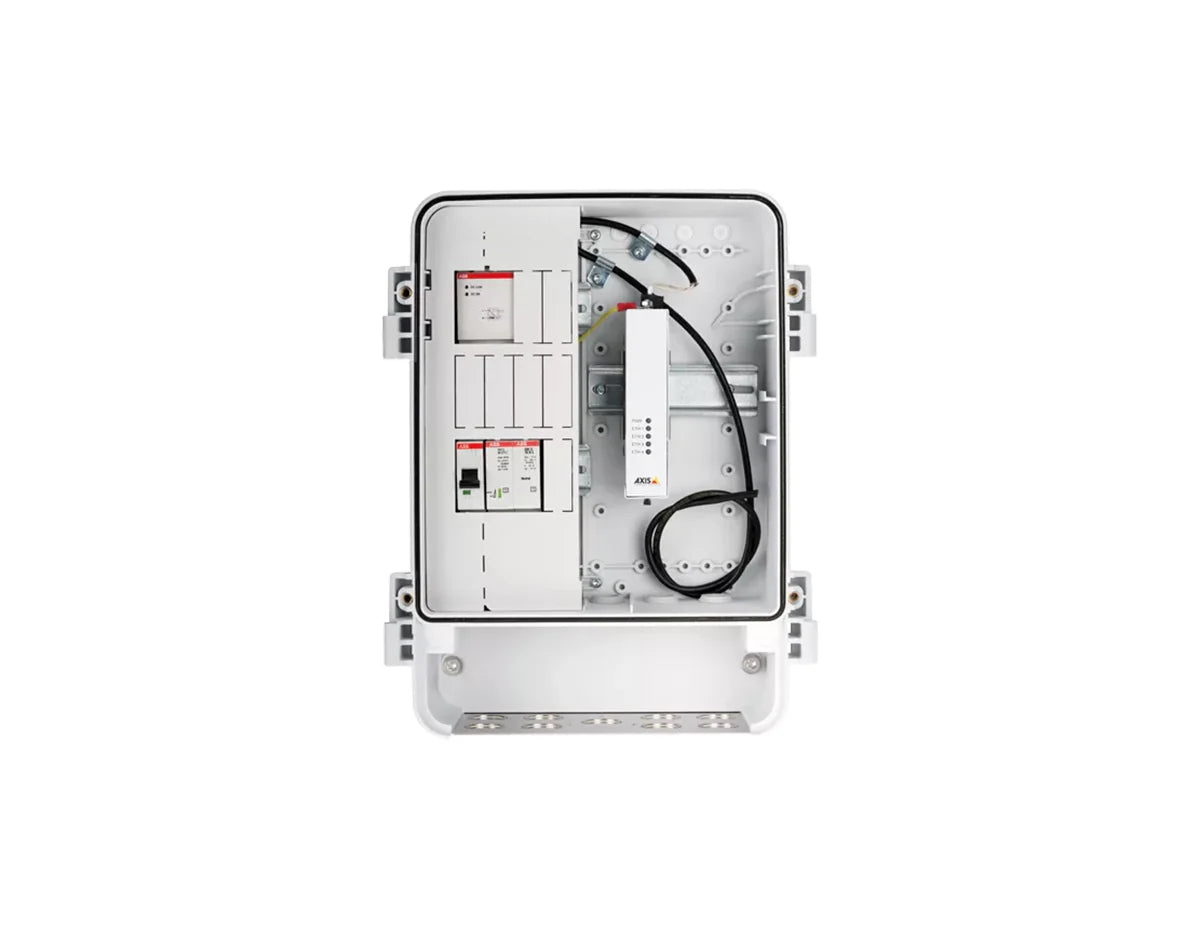

The AXIS T98A16-VE Media Converter Cabinet A 120 V is an industrial-grade enclosure designed to simplify and secure field installation of Axis outdoor cameras. It provides fast deployment, protection from weather, electrical hazards, and vandalism — ensuring long-term system reliability in demanding environments.
This cabinet arrives pre-configured with 120 V AC power supply, safety components, and a media converter supporting both standard Ethernet and fiber connectivity, reducing installation time and eliminating onsite component assembly.
