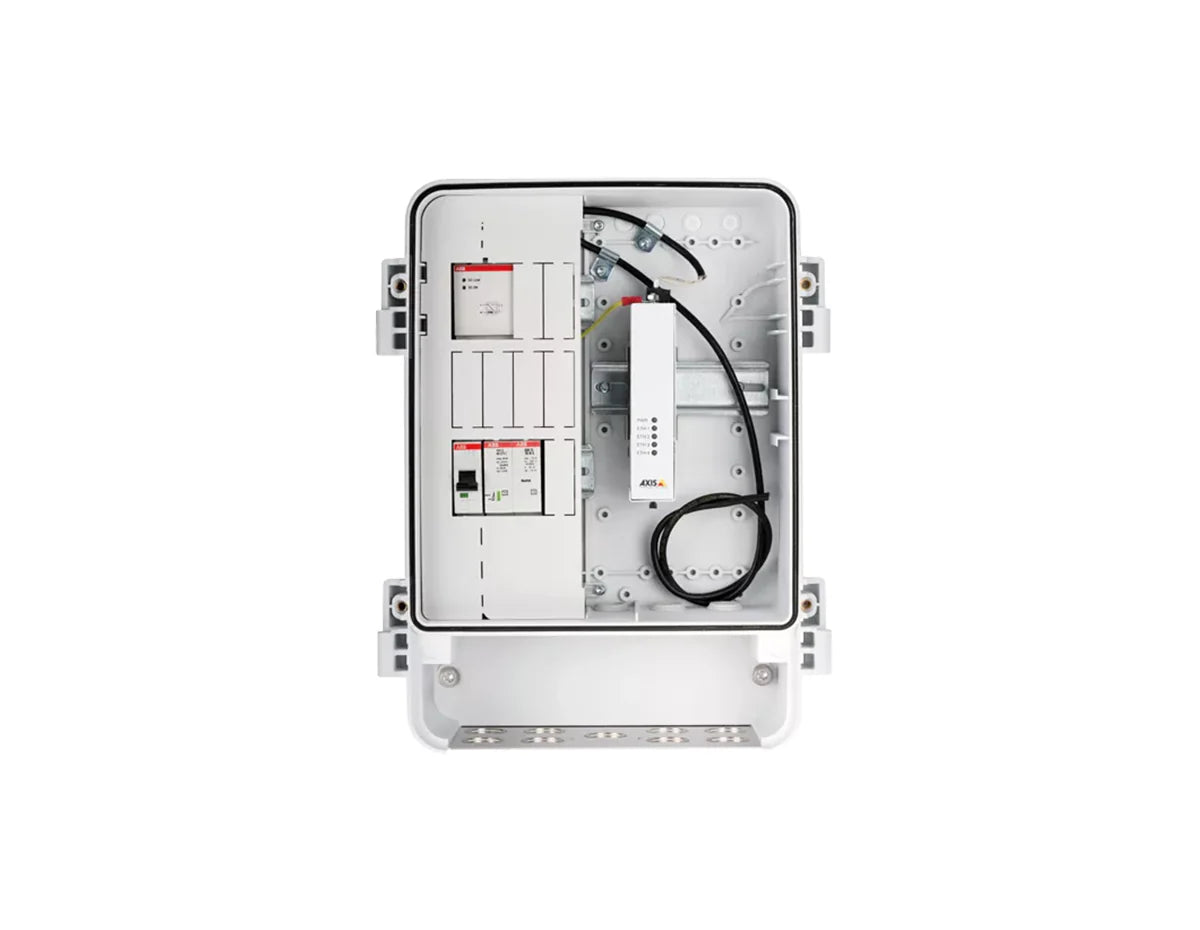

AXIS T98A15-VE Media Converter Cabinet A 120 V (5505-351)
AXIS T98A15-VE Media Converter Cabinet A 120 V (5505-351)

AXIS T98A15-VE Media Converter Cabinet A 120 V (5505-351)

por Axis
R$ 13.488,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] Outdoor-ready cabinet, 12 V DC output, IK10 impact rating, IP66 weatherproof, RJ45 and SFP ports [/shortdesc]

[properties]

Model AXIS T98A15-VE Media Converter Cabinet A 120 V
Product Type Outdoor Media Converter Cabinet
Supported Cameras Cameras using 12 V DC input
Casing Polycarbonate cabinet; Stainless steel mounting plate; Color: White NCS 1002-B
Environment Indoor/Outdoor
Power Input 90–175 V AC, Max. 4 A
Power Output 12 V DC, 20 W
Connectors 2x RJ45 (10/100 Mbps); 2x SFP (100/1000 Mbps)
Operating Temperature -40 °C to 65 °C (-40 °F to 149 °F)
Humidity 10–100% RH (condensing)
Approvals EN 50121-4, IEC 62236-4, EN 50581, IEC/EN 60529 IP66, NEMA 250 Type 4X, IEC/EN 62262 IK10, REACH, WEEE, CE, IEC 60068-2-6 4M4, IEC 60068-2-27 4M4, UL 50, UL 50E; FCC Part 15 Class A, VCCI Class A, ICES-003 Class A, AS/NZS CISPR 22 Class A
Weight 4.4 kg (9.7 lb)
Dimensions (H x W x D) 361 x 282 x 131 mm (14.2 x 11.1 x 5.2 in)

[/properties]

[specifications]

Model Variants 120 V AC (This Model); 230 V AC (Separate SKU)
Supported Cameras 12 V DC cameras (full compatibility list available online)
Network Ports 2x RJ45 (10/100 Mbps); 2x SFP slots (100/1000 Mbps)
Installation Components AXIS T98A15-VE Surveillance Cabinet; Electrical Safety Kit; Power Supply DIN CP-D 12/2.1 25 W; AXIS T8604 Media Converter Switch
Operating Conditions -40 °C to 65 °C; 10–100% RH (condensing)
Certifications IP66, NEMA 250 Type 4X, IK10, CE, FCC Class A, UL 60950-1 / 60950-22 / 62368-1
Construction Polycarbonate cabinet; Stainless steel mounting plate
Environmental Protection Weatherproof, dustproof, vandal-resistant
Additional Notes Includes pre-mounted DIN rails, cable gaskets, clamps, and power cover

[/specifications]

[accesories]

Included Installation guide; Pre-mounted cable gaskets; Pre-mounted DIN rails; Cable clamps; Pre-mounted power cover for MCB fuse
Optional AXIS Cabinet Lock A; AXIS Door Switch A; AXIS T98-VE Sunshield; AXIS T95A64; AXIS T95A67

[/accesories]

The AXIS T98A15-VE (5505-351) Media Converter Cabinet A 120 V delivers a complete, pre-configured outdoor solution for secure fiber-based installations. Designed specifically for Axis cameras, it integrates a 12 V DC power supply, electrical safety kit, and media converter to streamline deployment. Its IK10 vandal resistance, IP66 weather protection, and wide operating temperature range ensure reliable performance in harsh environments.

This cabinet is engineered to safeguard critical network components against dust, water, ice, vibration, and tampering—making it ideal for demanding surveillance, municipal, and critical infrastructure environments.

  • Pre-configured media converter: Integrated 10/100 Mbps RJ45 and dual 100/1000 Mbps SFP ports simplify fiber installation.
  • Rugged outdoor-ready build: Polycarbonate housing with stainless steel mounting plate provides IP66 and IK10 protection.
  • Reliable power delivery: 120 V AC input with 12 V DC, 20 W output meets camera temperature and power requirements.
  • Wide operating temperature: Stable performance from -40 °C to 65 °C (-40 °F to 149 °F) ensures year-round reliability.
  • Easy installation: Pre-mounted gaskets, DIN rails, cable clamps, and power safety components reduce on-site labor.
  • City surveillance deployments requiring tamper-resistant fiber connectivity
  • Critical infrastructure sites needing vandal-proof, weather-protected housings
  • Outdoor Axis camera installations using 12 V DC power
  • Remote or exposed environments where equipment security is essential
  • Installations requiring standalone cabinet-mounted networking equipment
  • Power Input: 120 V AC (90–175 V AC), Max. 4 A
  • Power Output: 12 V DC, 20 W
  • Connectors: 2x RJ45 (10/100 Mbps), 2x SFP (100/1000 Mbps)
  • Supported Cameras: Models using 12 V DC input
  • Casing: Polycarbonate cabinet with stainless steel mounting plate
  • Weather Rating: IP66, NEMA 250 Type 4X
  • Impact Resistance: IK10 vandal protection
  • Operating Temperature: -40 °C to 65 °C (-40 °F to 149 °F)
  • Humidity: 10–100% RH (condensing)
  • Weight: 4.4 kg (9.7 lb)

Enhance your surveillance reliability with the durable AXIS T98A15-VE Media Converter Cabinet A. Order now.
