[shortdesc]High-performance PoE-powered W-LED illuminator offering up to 180 m (591 ft) visibility with flexible beam angles using interchangeable lenses, robust IP66/IK09 weather-resistant construction, and easy installation for indoor and outdoor surveillance enhancement.[/shortdesc]
[properties]

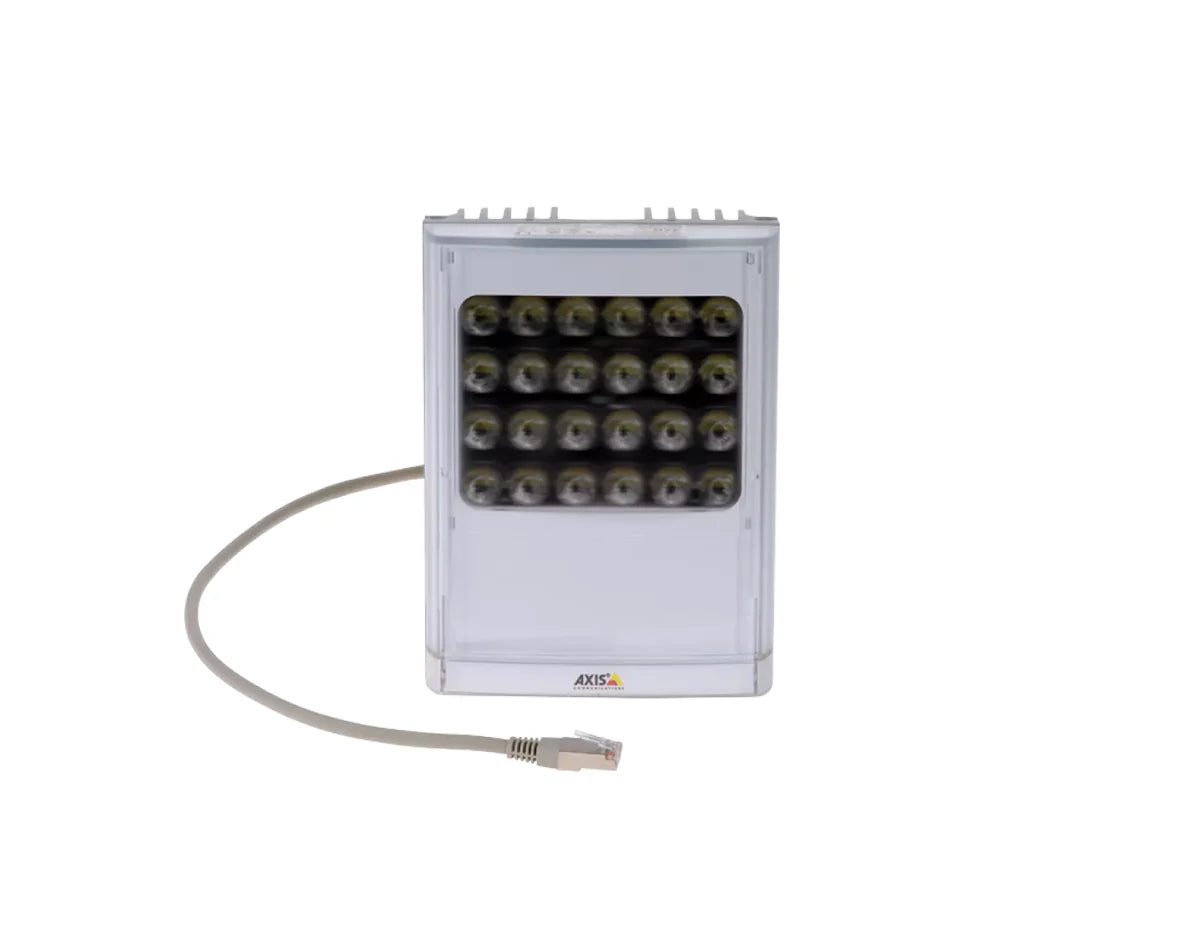

| Model |
AXIS T90D35 PoE W-LED (01218-001) |
| Product Type |
White-light LED illuminator |
| Illumination Type |
6000 K white-light output |
| Luminous Power |
3727 lm |
| Angle of Illumination |
10° (standard), 35°, 60°, 80°, 120° (with diverging lenses) |
| Illumination Distance |
Up to 180 m (591 ft) depending on lens |
| Casing |
Aluminum and polycarbonate, color: white and silver |
| Environment |
Indoor and outdoor |
| Mounting Options |
Wall, ceiling, pole, fixed box housing |
| Operating Temperature |
-50°C to 50°C (-58°F to 122°F) |
| Storage Temperature |
-50°C to 70°C (-58°F to 158°F) |
| Humidity |
10–100% RH (condensing) |
| Ingress Protection |
IP66 |
| Impact Rating |
IK09 |
| Dimensions |
135 x 180 x 68 mm (5 x 7 x 3 in) |
| Cable Length |
2.5 m (8.2 ft) |
| Weight |
1.65 kg (3.61 lb) |
[/properties]
[specifications]
| Performance |
Low-power operation with high-output 6000 K W-LED illumination, up to 3727 lm |
| Beam Angle Flexibility |
Standard 10° without lens; interchangeable diverging lenses: 35°, 60°, 80°, 120° |
| Illumination Distance |
10°: 180 m (591 ft); 35°: 95 m (312 ft); 60°: 50 m (164 ft); 80°: 35 m (115 ft); 120°: 25 m (82 ft) |
| Power Supply |
High Power over Ethernet (max 60 W); 47 W max light output; 4.5 W standby |
| Control Features |
Power level adjustment, photocell sensitivity, timer, via integrated push buttons or remote control |
| Indicators |
Indicator LEDs |
| Compatible Devices |
All Axis network cameras |
| Environmental Ratings |
IP66 dust/water protection, IK09 vandal resistance |
| Approvals – EMC |
FCC Part 15.107 & 15.109 Class B, ICES-003 Issue 6 Class B, EN 55032 Class B, RCM AS/NZS CISPR 32 Class B, VCCI Class B, EN 55015, EN 55024, EN 50130-4, EN 61547 |
| Approvals – Safety |
IEC/EN 60598-1, IEC/EN 62471 (risk group 2), C22.2 No 250.0–08, UL 2108, UL 8750 |
[/specifications]
[accesories]
| Included |
Three diverging lenses (35°, 60°, 80°), IP66 cable coupler (PoE variant only) |
| Optional accessories |
AXIS T90B Remote Control; AXIS WL Diverging Lens C 120°; AXIS T90 Wall-and-Pole Mount; AXIS T90 Single Bracket; AXIS T90 Multi Bracket; AXIS T8134 60 W Midspan; AXIS T8124-E Outdoor Midspan 60 W; AXIS T8125 AC 24V Midspan 60 W; AXIS T8144 60 W Industrial Midspan; AXIS T8504-E Outdoor PoE Network Switch; Mains adaptor PS-24; Power Supply PS24 240 W |
[/accesories]
The AXIS T90D35 PoE W-LED Illuminator is designed to provide strong white-light illumination for visible-color surveillance, improving identification and scene detail during low-light and night-time conditions. With variable beam angles and up to 180 m (591 ft) lighting coverage, it enables optimal alignment with camera fields of view, preventing overexposure and light waste.
The durable IP66/IK09 housing, extended temperature range of -50°C to 50°C (-58°F to 122°F), and high-power PoE input make it ideal for both indoor and extreme outdoor environments. Lens swapping and adjustable output power ensure maximum flexibility in professional security deployments.
