[shortdesc]High-performance PoE-powered IR LED illuminator with flexible beam angle, interchangeable lenses, and rugged IP66/IK09 outdoor rating for professional surveillance illumination.[/shortdesc]
[properties]
| Model |

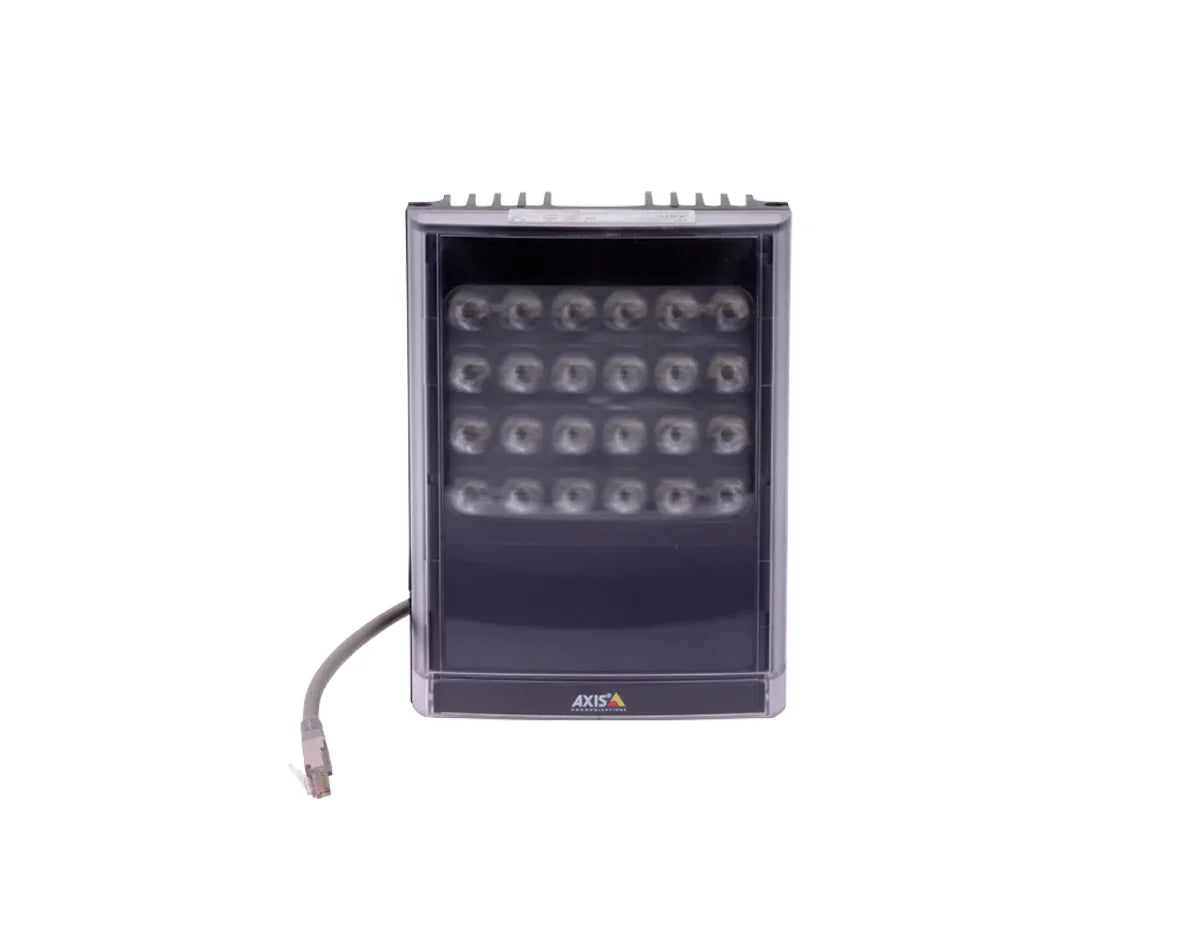

AXIS T90D30 PoE IR-LED (01213-001) |
| Product Type |
850 nm semi-covert IR LED illuminator |
| Dimensions |
135 × 180 × 68 mm (5 × 7 × 3 in) |
| Weight |
1.65 kg (3.61 lb) |
| Casing |
Aluminum and polycarbonate, black |
| Environment |
Indoor and outdoor |
| Operating Temperature |
−50 °C to 50 °C (−58 °F to 122 °F) |
| Humidity |
10–100% RH (condensing) |
| Storage Temperature |
−50 °C to 70 °C (−58 °F to 158 °F) |
| Mounting |
Wall, ceiling, pole, fixed box camera housing |
| Cable Length |
2.5 m (8.2 ft) |
| Compatibility |
All Axis cameras with infrared-cut filter |
[/properties]
[specifications]
| Distance |
350 m (1148 ft) @ 10°; 165 m (541 ft) @ 35° × 10°; 95 m (311 ft) @ 60° × 25°; 70 m (230 ft) @ 80° × 30°; 45 m (148 ft) @ 120° × 50° (optional lens) |
| IR Angle Options |
10° (without lens); 35°, 60°, 80°, 120° (with diverging lenses) |
| Power Supply |
High Power over Ethernet (max 60 W) |
| Power Consumption |
Maximum light: 49 W; Standby: 2.2 W |
| Control |
Push buttons or IR remote: power level, photocell sensitivity, timer |
| Indicators |
Indicator LEDs |
| EMC Approvals |
FCC Part 15.107 and 15.109 Class B, ICES-003 Issue 6 Class B, EN 55032 Class B, RCM AS/NZS CISPR 32 Class B, VCCI Class B, EN 55015, EN 55024, EN 50130–4, EN 61547 |
| Safety |
IEC/EN 60598-1, IEC/EN 62471 (risk group 2), C22.2 No 250.0–08, UL 2108 |
| Environmental Ratings |
IP66, IK09 |
[/specifications]
[accesories]
| Included |
Three diverging lenses (35°, 60°, 80°), IP66 cable coupler (PoE variant only) |
| Optional accessories |
AXIS T90B Remote Control; AXIS IR Diverging Lens C 120°; AXIS T90 Wall-and-Pole Mount; AXIS T90 Single Bracket; AXIS T90 Multi Bracket; AXIS T8134 60 W Midspan; AXIS T8124-E Outdoor Midspan 60 W; AXIS T8125 AC 24 V Midspan 60 W; AXIS T8144 60 W Industrial Midspan; AXIS T8504-E Outdoor PoE Network Switch; Mains adaptor PS-24; Power Supply PS24 240 W |
[/accesories]
The AXIS T90D30 PoE IR-LED Illuminator delivers powerful nighttime and low-light visibility for surveillance, using high-efficiency IR LEDs with selectable beam patterns from narrow-focus 10° to wide-coverage 120°. Its rugged IP66 and IK09-rated construction enables dependable operation in demanding outdoor conditions, including extreme cold down to −50 °C (−58 °F).
With lens-swappable beam shaping, PoE high-power input, and selectable illumination angles, the T90D30 ensures optimal IR performance for close-range coverage as well as long-distance monitoring. It is ideal for professional Axis-based surveillance systems requiring consistent IR illumination.
