[shortdesc]High-performance white-light LED illuminator with flexible beam angles, selectable AC/DC or PoE powering, and durable IP66/IK09 outdoor protection optimized for Axis cameras.[/shortdesc]
[properties]
| Model |

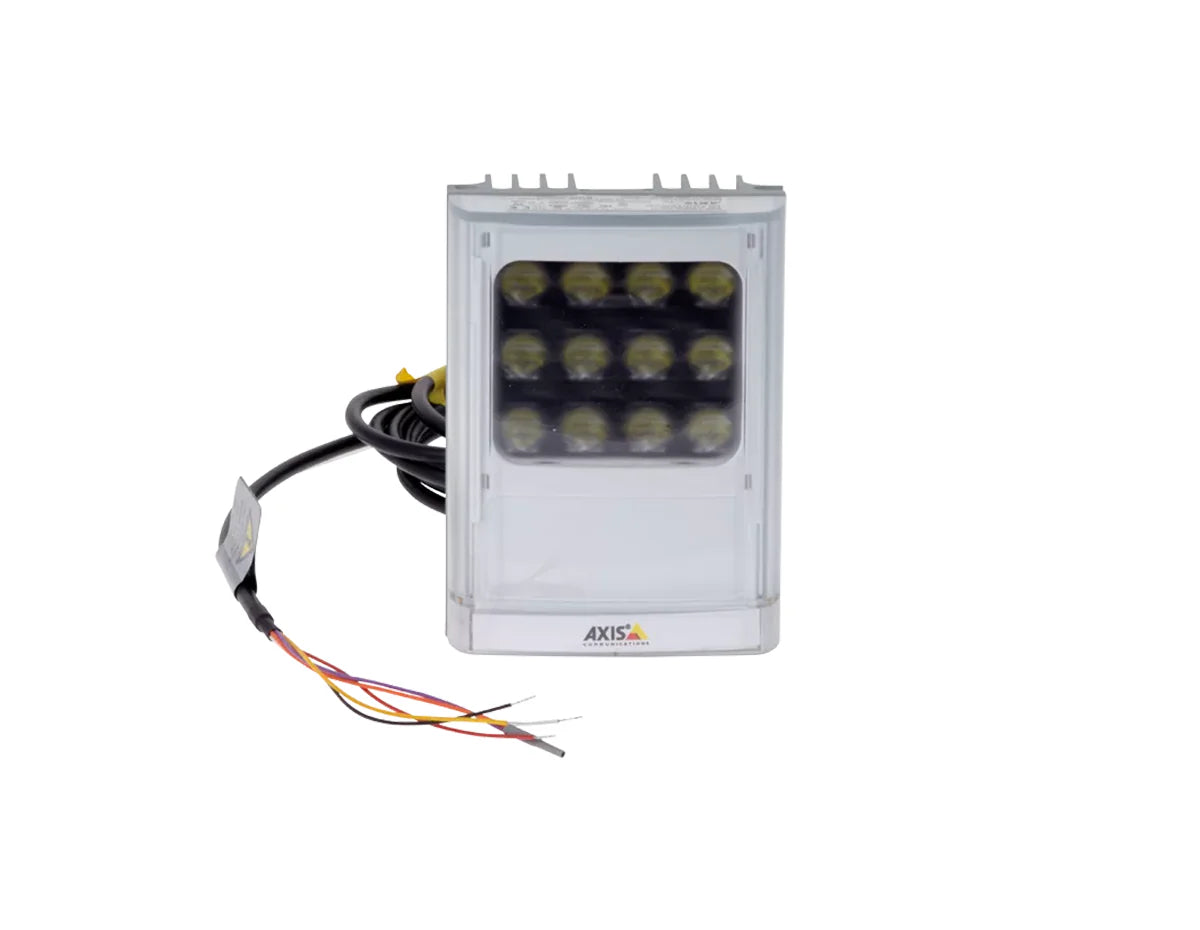

AXIS T90D25 W-LED (01215-001) |
| Product Type |
White-light LED illuminator |
| Compatible Products |
All Axis network cameras |
| Illumination Distance |
Up to 110 m (361 ft) with 10° × 10° lens |
| Casing |
Aluminum and polycarbonate |
| Color |
White and silver |
| Mounting |
Wall, ceiling, pole, fixed box camera housing |
| Operating Conditions |
-50°C to 50°C (-58°F to 122°F) |
| Humidity |
10–100% RH (condensing) |
| Storage Conditions |
-50°C to 70°C (-58°F to 158°F) |
| Dimensions |
100 × 135 × 66 mm (4 × 5 × 2.5 in) |
| Cable Length |
2.5 m (8.2 ft) |
| Weight |
950 g (2.11 lb) |
| Environmental Rating |
IP66 & IK09 |
| EMC Approvals |
FCC Part 15.107 and 15.109 Class B, ICES-003 Issue 6 Class B, EN 55032 Class B, RCM AS/NZS CISPR 32 Class B, VCCI Class B, EN 55015, EN 55024, EN 50130–4, EN 61547 |
| Safety Certifications |
IEC/EN 60598-1, IEC/EN 62471 (risk group 2), C22.2 No 250.0-08, UL 2108, UL 8750 |
[/properties]
[specifications]
| Models |
AC/DC variant, PoE variant |
| Illumination Output |
White-light 6000K, 1863 lm |
| Beam Angles (interchangeable lenses) |
10°, 35°, 60°, 80°, 120° |
| Distances by Lens |
10° × 10° = 110 m (361 ft); 35° × 10° = 65 m (213 ft); 60° × 25° = 35 m (115 ft); 80° × 30° = 25 m (82 ft); 120° × 50° = 18 m (59 ft) |
| AC/DC Power Input |
12–24 V AC/DC, 50–60 Hz, 24 W max, 0.3 W standby |
| PoE Power Input |
IEEE 802.3at Type 2 Class 4, 25 W max, 4.5 W standby |
| Control (AC/DC) |
Buttons or remote control: power level, photocell sensitivity, telemetry link (remote activation), timer |
| Control (PoE) |
Buttons or remote control: power level, photocell sensitivity, timer |
| Environment Use |
Indoor & outdoor |
| Display & Indicators |
Status LEDs |
[/specifications]
[accesories]
| Included |
Three diverging lenses (35°, 60°, 80°); IP66 cable coupler (PoE variant only) |
| Optional accessories |
AXIS T90B Remote Control; AXIS WL Diverging Lens B 120°; AXIS T90 Wall-and-Pole Mount; AXIS T90 Single Bracket; AXIS T90 Multi Bracket; AXIS T8123-E Outdoor Midspan 30 W; AXIS T8133 Midspan 30 W; AXIS T81B22 DC 30 W Midspan; AXIS T8134 60 W Midspan; AXIS T8124-E Outdoor Midspan 60 W; AXIS T8125 AC 24 V Midspan 60 W; AXIS T8144 60 W Industrial Midspan; AXIS T8508/T8516/T8524 PoE+ Switches; AXIS T8504-E Outdoor PoE Switch; Mains Adaptor PS-24; Power Supply PS24 240 W |
[/accesories]
The AXIS T90D25 W-LED delivers powerful, efficient wide-spectrum illumination for video surveillance, ensuring excellent visibility in low-light environments using optimized LED distribution. Its flexible lens system allows fine-tuning of coverage to match the exact field of view of the camera, minimizing foreground overexposure and supporting longer detection distances.
With options for either AC/DC or PoE powering, plus remote control adjustment, the T90D25 integrates seamlessly into existing installations and enables easy on-site or remote configuration. Built with rugged IP66/IK09 environmental protection, it delivers reliable performance in harsh outdoor conditions, from -50°C to +50°C.
