• The AXIS T8606 24V DC Media Converter Switch is a DIN-mounted device that enables Ethernet-to-fiber conversion, supporting long-distance surveillance installations with dual SFP and RJ45 ports.

[/shortdesc]

[specifications] [/specifications]

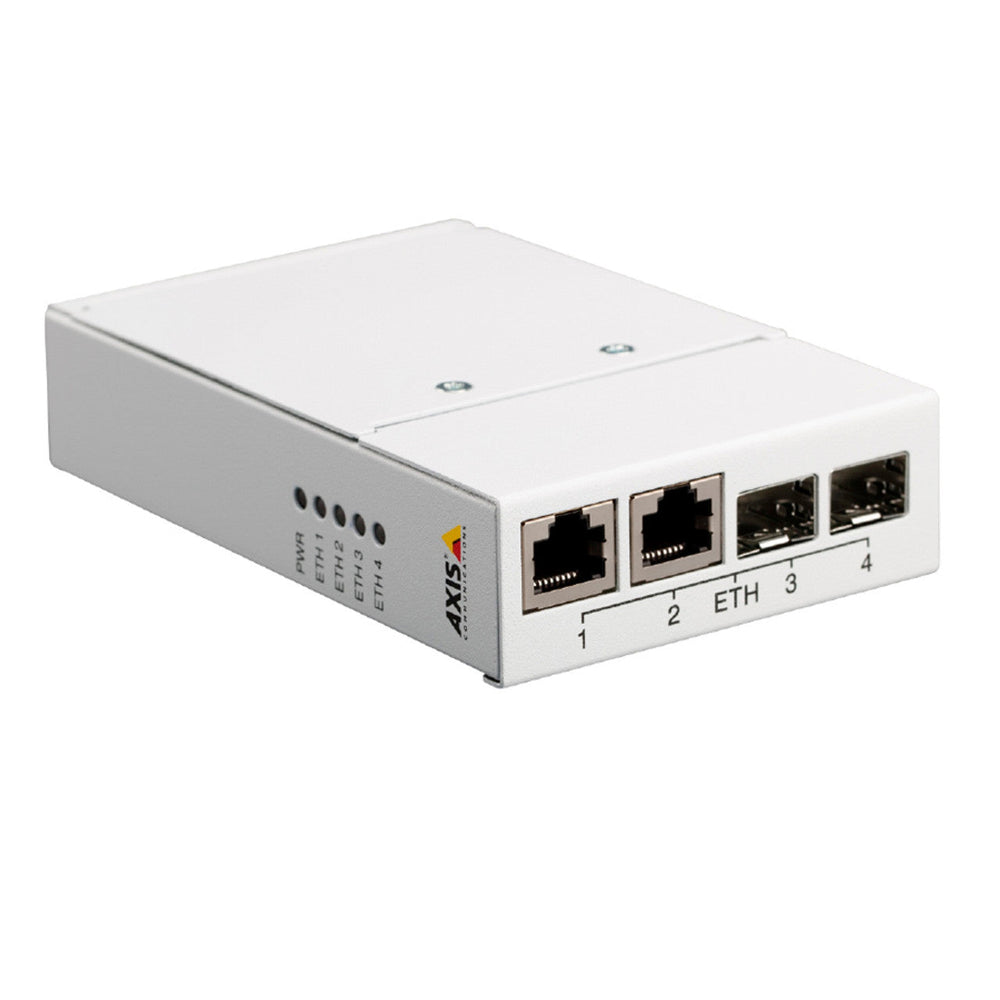

AXIS T8606 24V DC Media Converter Switch (5901-261)

The AXIS T8606 24V DC Media Converter Switch is designed for surveillance applications that require reliable long-distance data transmission over fiber optic cables. With dual SFP slots and two RJ45 Ethernet ports, this compact and durable converter allows seamless integration of Axis network products. It supports both 10/100 Mbps connections and provides a cost-effective solution for extending network reach while maintaining high data integrity. Featuring DIN rail mounting, this indoor-rated switch is ideal for city surveillance, airports, and other large-scale installations.

• Ethernet-to-Fiber Conversion: Extends network coverage using fiber optic cables.
• Dual Network Interface: Equipped with two SFP slots (100/1000 Mbps) and two RJ45 ports (10/100 Mbps).
• 24V DC Power Input: Low-power design with a maximum consumption of 3.5W.
• DIN Rail Mountable: Designed for easy installation in structured enclosures.
• Supports Axis Devices: Compatible with all Axis network video products.
• Rugged & Reliable: Operates in extreme temperatures from -40°C to 75°C (-40°F to 167°F).

• Power Input: 24V DC, max 3.5W (power supply not included)
• Network Ports: 2x RJ45 connectors (10/100 Mbps), 2x SFP slots (100/1000 Mbps)
• Mounting Type: DIN rail mount
• Operating Temperature: -40°C to 75°C (-40°F to 167°F)
• Humidity: 10-85% RH (non-condensing)
• Ingress Protection: Indoor-rated
• Compliance: RoHS, REACH, WEEE, CE, EN 50022, IEC 60715, AS 2756
• Safety Certifications: IEC/EN 60950-1
• Dimensions: 121 x 80 x 28 mm (4.76 x 3.14 x 1.1 in)
• Weight: 284 g (0.63 lb)
• Included Accessories: Bracket mount, DIN clip, installation guide
