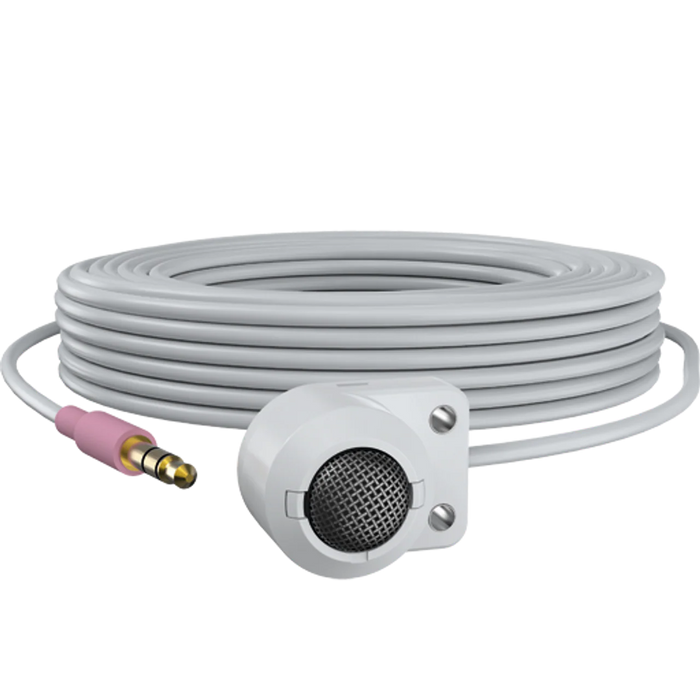

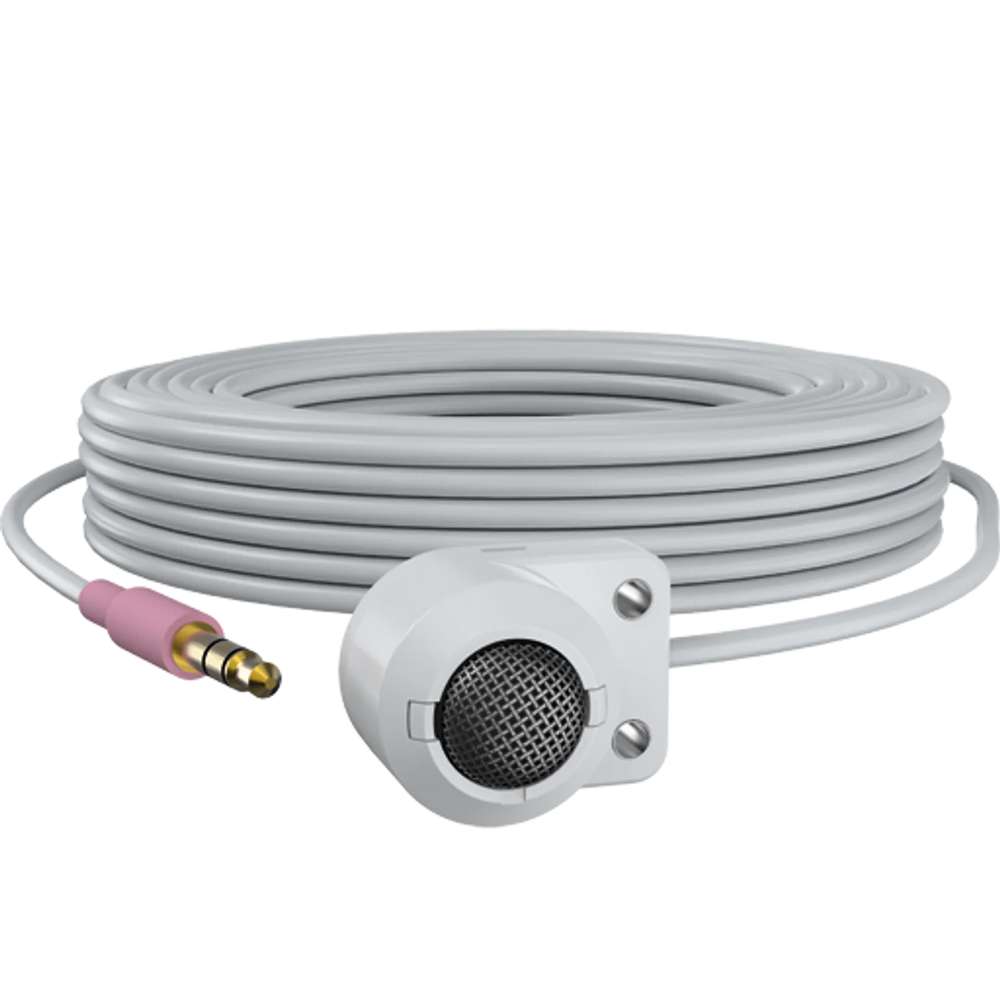

AXIS T8351 Mk II 5M Cable length 3.5 mm Microphone (01560-001)

[shortdesc]

• The AXIS T8351 Mk II Microphone 3.5 mm delivers exceptional audio quality with low noise levels, featuring a 5 m cable for superior performance in quiet indoor environments and flexible installation.

[/shortdesc]

[specifications] [/specifications]

The AXIS T8351 Mk II Microphone 3.5 mm is a high-quality, low-noise analog microphone designed for surveillance applications. It features hemispherical directionality, capturing sound from all directions for comprehensive audio monitoring. This compact microphone is compatible with network products that support a 3.5 mm stereo plug or terminal block with optional extender, offering seamless integration and flexibility. Powered by the connected device, it eliminates the need for an external power source, making it ideal for indoor installations where superior audio performance is essential.

Key Features:

• Exceptional Audio Quality: Delivers low noise-level audio with a wide frequency range (20 Hz – 20 kHz).
• Hemispherical Directionality: Ensures comprehensive sound coverage for reliable audio capture.
• Compact and Durable: IP65-rated casing with robust materials for protected indoor use.
• Flexible Installation: Includes mounting accessories and optional extension cables for versatile setups.
• Eco-friendly Design: PVC-free construction aligns with environmental responsibility standards.

Technical Specifications:

• Audio: Frequency range 20 Hz – 20 kHz, sensitivity –22 dB ±3 dB, max SPL 126 dB, SNR 82 dB.
• Power: 2–10 V DC, consumption 0.006 W (powered by network product).
• Connectivity: 3.5 mm stereo plug or terminal block with optional extender.
• Operating Conditions: –20 °C to 60 °C (–4 °F to 140 °F), 0–75 % RH (non-condensing).
• Dimensions: 27 × 20 × 20 mm (microphone), 5 m cable length.
• Approvals: EMC EN 55103-2, IP65-rated for environmental protection.
• Included Accessories: Installation guide, drill template, mounting bracket, cable holders, and gaskets.
