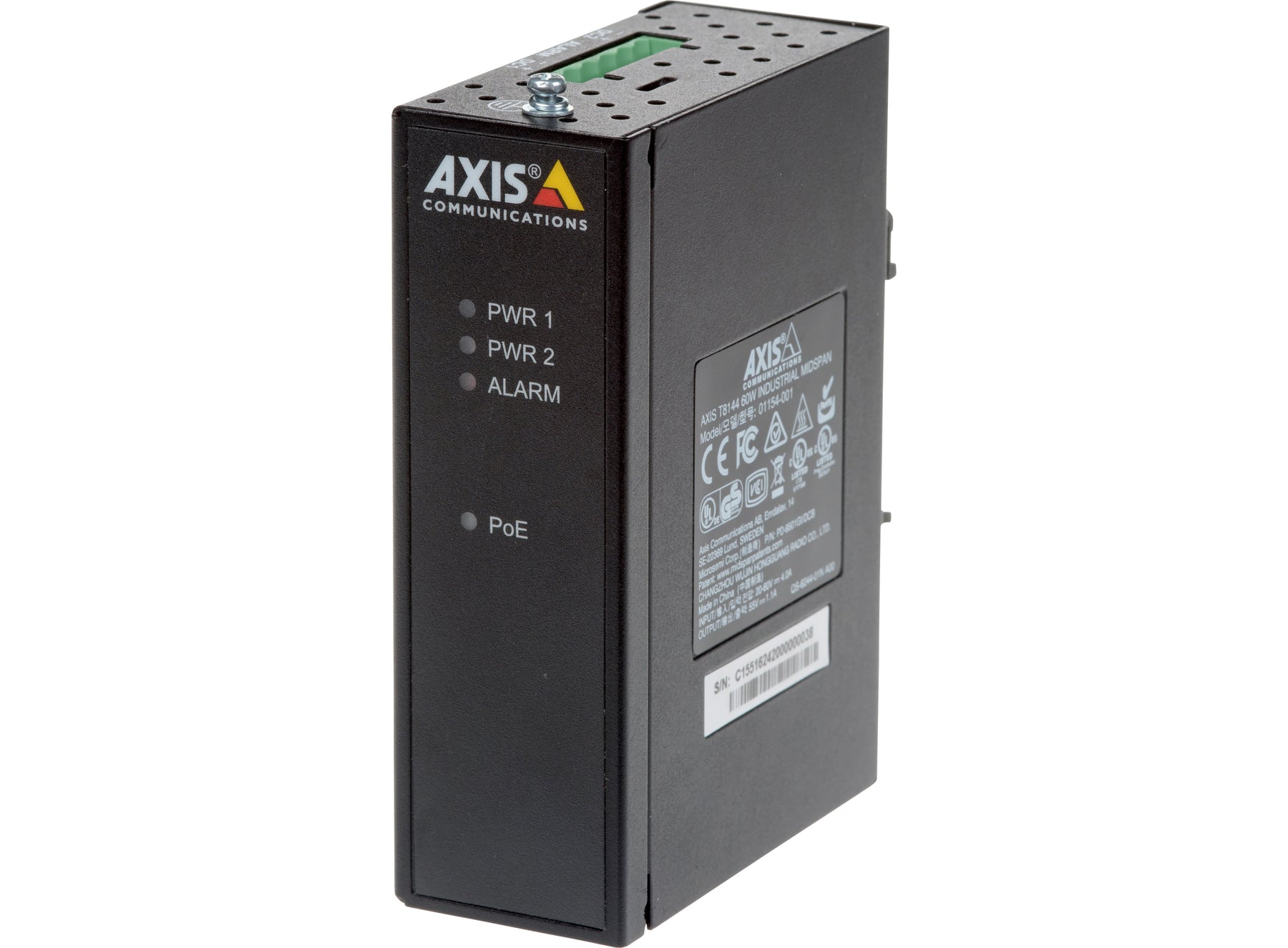

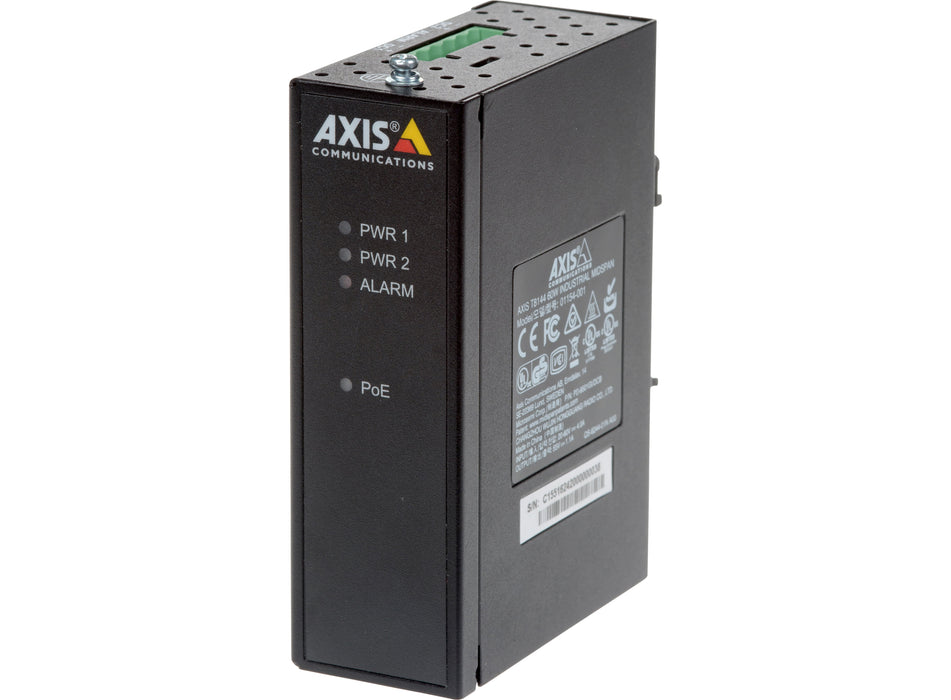

AXIS T8144 60 W Industrial Midspan (01154-001)
AXIS T8144 60 W Industrial Midspan (01154-001)

AXIS T8144 60 W Industrial Midspan (01154-001)

por Axis
R$ 4.020,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

  • Provides up to 60 W of power for high-demand network devices, Built to withstand harsh environments, ideal for industrial applications, Data Rate: 10/100/1000 Mbps.


[/shortdesc]

[properties]

Product Name AXIS T8144 60 W Industrial Midspan
Description The AXIS T8144 is an industrial-grade, 1-port midspan providing reliable PoE power up to 60 W for network devices in harsh environments. It features a rugged design, wide operating temperature range, and dual DC input for redundancy, ideal for industrial applications requiring high power delivery.
Power Output 55 V DC, max 60 W
Input Voltage 20-60 V DC, max 72 W
Data Rate 10/100/1000 Mbps
Connector Type Shielded RJ45, EIA 568A/568B, 6-pin DC power and alarm terminal connector
Dimensions 78 mm x 36 mm x 111 mm (3.1 in x 1.4 in x 4.4 in)
Weight 315 g (0.7 lb)
Mounting Options Wall or DIN rail mount
Usage Designed for powering high-power Axis network devices in industrial settings
Durability Engineered for extreme conditions with industrial-grade construction

[/properties]

[specifications]

PoE Compatibility High PoE (55 V DC output, up to 60 W), not limited to IEEE 802.3at standard
Certifications CE, FCC, UL, RoHS compliant
Environmental Safety RoHS 3 compliant (Directive 2015/863/EU)
EMC Compliance Meets EN 55032, EN 55024, and FCC Part 15 standards
Operating Temperature -40°C to 75°C (-40°F to 167°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity Max 95% RH (non-condensing)
Redundancy Dual DC input (20-60 V) for power redundancy
Power Consumption Maximum 72W input for efficient power management
Installation Features Plug-and-play for automatic device detection and setup
Reliability Tested for continuous operation in industrial and extreme environments
Security Features Standard security through shielded connections and secure power inputs
Firmware Updates Not applicable

[/specifications]

AXIS T8144 60 W Industrial Midspan

The AXIS T8144 60 W Industrial Midspan is an industrial-grade, 1-port midspan designed for powering network devices in harsh environments. With its robust construction, wide temperature range, and dual DC input for power redundancy, this midspan is ideal for industrial applications where reliable power delivery is essential. It supports Power over Ethernet (PoE) with up to 60 W of power, making it compatible with high-power Axis network devices. The AXIS T8144 is easy to install with plug-and-play functionality and can be mounted on walls or DIN rails for added versatility.

  • 60 W Power over Ethernet: Provides up to 60 W of power for high-demand network devices.
  • Wide Operating Temperature Range: Operates in extreme temperatures from -40 °C to 75 °C (-40 °F to 167 °F).
  • Dual DC Input: Ensures power redundancy with support for 20-60 V DC input.
  • Industrial-Grade Construction: Built to withstand harsh environments, ideal for industrial applications.
  • Plug-and-Play Installation: Automatically detects PoE and High PoE-enabled devices for easy setup.
  • Power Output: 55 V DC, max 60 W
  • Input Voltage: 20-60 V DC, max 72 W
  • Data Rate: 10/100/1000 Mbps
  • Connectors: Shielded RJ45, EIA 568A/568B, 6-pin DC power and alarm terminal connector
  • Operating Conditions: -40 °C to 75 °C (-40 °F to 167 °F), humidity max 95% RH (non-condensing)
  • Dimensions: 78 x 36 x 111 mm (3.1 x 1.4 x 4.4 in)
  • Weight: 315 g (0.7 lb)

For more information about the AXIS T8144 60 W Industrial Midspan, visit the Axis product page.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

  • Provides up to 60 W of power for high-demand network devices, Built to withstand harsh environments, ideal for industrial applications, Data Rate: 10/100/1000 Mbps.


[/shortdesc]

[properties]

Product Name AXIS T8144 60 W Industrial Midspan
Description The AXIS T8144 is an industrial-grade, 1-port midspan providing reliable PoE power up to 60 W for network devices in harsh environments. It features a rugged design, wide operating temperature range, and dual DC input for redundancy, ideal for industrial applications requiring high power delivery.
Power Output 55 V DC, max 60 W
Input Voltage 20-60 V DC, max 72 W
Data Rate 10/100/1000 Mbps
Connector Type Shielded RJ45, EIA 568A/568B, 6-pin DC power and alarm terminal connector
Dimensions 78 mm x 36 mm x 111 mm (3.1 in x 1.4 in x 4.4 in)
Weight 315 g (0.7 lb)
Mounting Options Wall or DIN rail mount
Usage Designed for powering high-power Axis network devices in industrial settings
Durability Engineered for extreme conditions with industrial-grade construction

[/properties]

[specifications]

PoE Compatibility High PoE (55 V DC output, up to 60 W), not limited to IEEE 802.3at standard
Certifications CE, FCC, UL, RoHS compliant
Environmental Safety RoHS 3 compliant (Directive 2015/863/EU)
EMC Compliance Meets EN 55032, EN 55024, and FCC Part 15 standards
Operating Temperature -40°C to 75°C (-40°F to 167°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity Max 95% RH (non-condensing)
Redundancy Dual DC input (20-60 V) for power redundancy
Power Consumption Maximum 72W input for efficient power management
Installation Features Plug-and-play for automatic device detection and setup
Reliability Tested for continuous operation in industrial and extreme environments
Security Features Standard security through shielded connections and secure power inputs
Firmware Updates Not applicable

[/specifications]

AXIS T8144 60 W Industrial Midspan

The AXIS T8144 60 W Industrial Midspan is an industrial-grade, 1-port midspan designed for powering network devices in harsh environments. With its robust construction, wide temperature range, and dual DC input for power redundancy, this midspan is ideal for industrial applications where reliable power delivery is essential. It supports Power over Ethernet (PoE) with up to 60 W of power, making it compatible with high-power Axis network devices. The AXIS T8144 is easy to install with plug-and-play functionality and can be mounted on walls or DIN rails for added versatility.

Key Features:
  • 60 W Power over Ethernet: Provides up to 60 W of power for high-demand network devices.
  • Wide Operating Temperature Range: Operates in extreme temperatures from -40 °C to 75 °C (-40 °F to 167 °F).
  • Dual DC Input: Ensures power redundancy with support for 20-60 V DC input.
  • Industrial-Grade Construction: Built to withstand harsh environments, ideal for industrial applications.
  • Plug-and-Play Installation: Automatically detects PoE and High PoE-enabled devices for easy setup.
Technical Specifications:
  • Power Output: 55 V DC, max 60 W
  • Input Voltage: 20-60 V DC, max 72 W
  • Data Rate: 10/100/1000 Mbps
  • Connectors: Shielded RJ45, EIA 568A/568B, 6-pin DC power and alarm terminal connector
  • Operating Conditions: -40 °C to 75 °C (-40 °F to 167 °F), humidity max 95% RH (non-condensing)
  • Dimensions: 78 x 36 x 111 mm (3.1 x 1.4 x 4.4 in)
  • Weight: 315 g (0.7 lb)

For more information about the AXIS T8144 60 W Industrial Midspan, visit the Axis product page.
