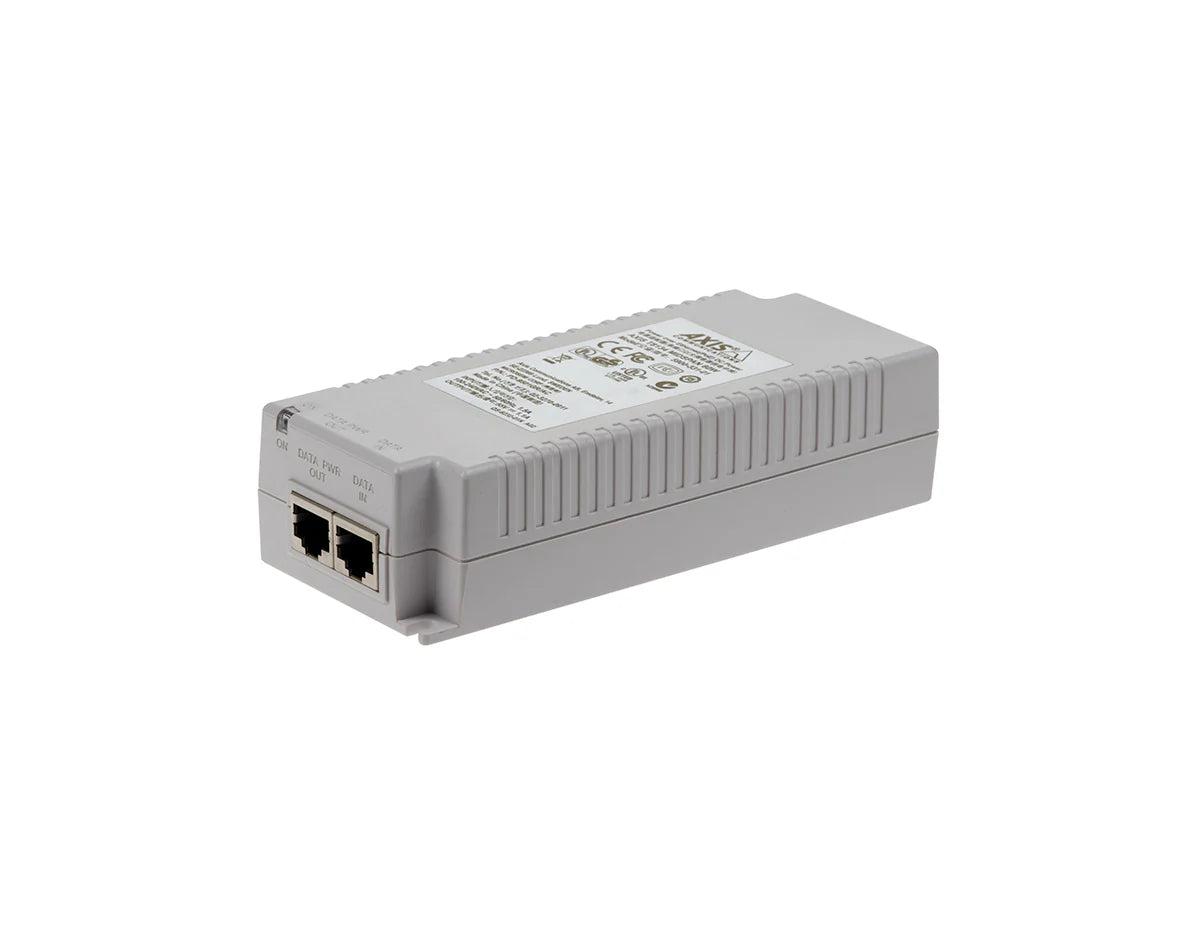

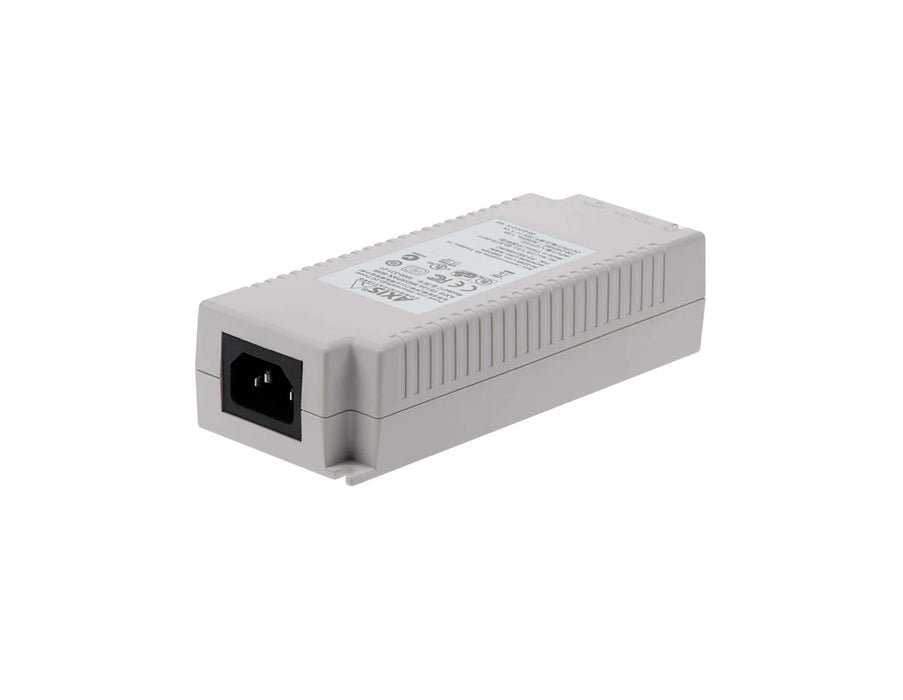

AXIS T8134 60W PoE 1-Port Midspan (5900-334)
Clique ou role para ampliar
Toque ou belisque para ampliar
AXIS T8134 60W PoE 1-Port Midspan (5900-334)
AXIS T8134 60W PoE 1-Port Midspan (5900-334)

AXIS T8134 60W PoE 1-Port Midspan (5900-334)

por Axis
R$ 2.316,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

  • Data Rate: 10/100/1000 Mbps, Automatically detects PoE and High PoE-enabled devices ensuring easy setup and integration, Supports wall, shelf, or DIN rail mounting options.


[/shortdesc]

[properties]

Product Name AXIS T8134 60 W Midspan
Description The AXIS T8134 60 W Midspan is a high-power PoE injector designed to supply up to 60 W of power to demanding network devices, such as Axis PTZ cameras, through existing Ethernet cabling. Its plug-and-play design allows easy installation and flexible mounting options, while its robust build supports operation in varied temperature ranges.
Power Output High Power over Ethernet, 55 V DC max 60 W, ideal for high-power network devices
Data Rate Supports 10/100/1000 Mbps for gigabit Ethernet speeds
Connectors Shielded RJ45 (EIA 568A/568B), C13 power input connector
Input Voltage 100–240 V AC, 50–60 Hz, for global compatibility
Operating Temperature -10 °C to 45 °C at 60 W output, up to -10 °C to 55 °C at 30 W output
Dimensions 38 mm x 62 mm x 151 mm (1.5 in x 2.4 in x 5.9 in)
Weight 320 g (0.7 lb)
Installation Options Mountable on wall, shelf, or DIN rail for versatile installation
Compatibility Compatible with PoE and High PoE devices, including Axis PTZ cameras
Environmental Impact PVC-free construction for eco-friendly installations
Compliance RoHS, REACH, CB, WEEE, CE, EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 55024, FCC Part 15 Class B, VCCI Class B, RCM, KC, KCC, CCC, S-Mark, IEC/EN/UL 60950-1, EN 62368-1, GS Mark, IS 13252.
Reliability Rigorous power and thermal stability testing conducted for high-demand applications

[/properties]

[specifications]

IEEE Standard IEEE 802.3at compliant, supporting PoE+ for high-power devices
Efficiency Tested for 92% efficiency at typical load to ensure minimal energy loss
Thermal Testing Stably operates in environments up to 45°C at 60W, and up to 55°C at 30W output, with automatic load adjustment
Overload Protection Integrated over-voltage and over-current protection to prevent device damage
EMC Compliance Meets EN 55032, EN 55024, and FCC Part 15 standards for electromagnetic compatibility
Environmental Safety RoHS 3 compliant (Directive 2015/863/EU)
Humidity Range Tested for 10% to 90% relative humidity, non-condensing, without performance degradation
Vibration Resistance Verified to withstand vibrations up to 3 Hz for reliable operation in industrial settings
Power Consumption Typical input of 60W matching output, optimized for high-demand scenarios
MTBF Rating Mean time between failures calculated at 100,000 hours under controlled test conditions
Color Finish Black, designed to blend with typical industrial and network environments
Noise Level Passively cooled for silent operation, with noise levels below 15 dB
Safety Certifications RoHS, REACH, CB, WEEE, CE, EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 55024, FCC Part 15 Class B, VCCI Class B, RCM, KC, KCC, CCC, S-Mark, IEC/EN/UL 60950-1, EN 62368-1, GS Mark, IS 13252 certified for safety and compatibility
Installation Hardware Includes screws and brackets for all mounting options
Firmware Updates Not applicable
Maintenance Requirement Minimal maintenance; designed for extended durability in demanding environments
Reliability Passed continuous power delivery tests at maximum load for 72 hours

[/specifications]

AXIS T8134 60 W Midspan

The AXIS T8134 60 W Midspan is a reliable Power over Ethernet (PoE) solution designed to supply up to 60W of power to network devices such as Axis PTZ domes and other high-power network cameras. It enables easy installation without the need for replacing existing Ethernet switches or cabling, offering a cost-effective and fast way to provide power and data through a single Ethernet cable. The midspan is ideal for operating network devices in extreme temperatures, supporting installations where power demands are high.

  • High Power Output: Delivers up to 60W of power, making it suitable for demanding devices like Axis PTZ network cameras.
  • Plug-and-Play Installation: Automatically detects PoE and High PoE-enabled devices, ensuring easy setup and integration.
  • Flexible Installation: Supports wall, shelf, or DIN rail mounting options for versatile installation.
  • Wide Operating Range: Operates in temperatures from -10 °C to 45 °C, supporting up to 60W of output, and from -10 °C to 55 °C at 30W.
  • Environmental Sustainability: Made with PVC-free materials, contributing to eco-friendly installations.
  • Power Output: 55 V DC, max 60 W
  • Data Rate: 10/100/1000 Mbps
  • Connectors: Shielded RJ45, EIA 568A and 568B, Power connector C13
  • Input Voltage: 100–240 V AC, 50–60 Hz
  • Operating Temperature: -10 °C to 45 °C (up to 60W), -10 °C to 55 °C (up to 30W)
  • Dimensions: 38 x 62 x 151 mm (1.5 x 2.4 x 5.9 in)
  • Weight: 320 g (0.7 lb)

For more information about the AXIS T8134 60 W Midspan, visit the Axis product page.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

  • Data Rate: 10/100/1000 Mbps, Automatically detects PoE and High PoE-enabled devices ensuring easy setup and integration, Supports wall, shelf, or DIN rail mounting options.


[/shortdesc]

[properties]

Product Name AXIS T8134 60 W Midspan
Description The AXIS T8134 60 W Midspan is a high-power PoE injector designed to supply up to 60 W of power to demanding network devices, such as Axis PTZ cameras, through existing Ethernet cabling. Its plug-and-play design allows easy installation and flexible mounting options, while its robust build supports operation in varied temperature ranges.
Power Output High Power over Ethernet, 55 V DC max 60 W, ideal for high-power network devices
Data Rate Supports 10/100/1000 Mbps for gigabit Ethernet speeds
Connectors Shielded RJ45 (EIA 568A/568B), C13 power input connector
Input Voltage 100–240 V AC, 50–60 Hz, for global compatibility
Operating Temperature -10 °C to 45 °C at 60 W output, up to -10 °C to 55 °C at 30 W output
Dimensions 38 mm x 62 mm x 151 mm (1.5 in x 2.4 in x 5.9 in)
Weight 320 g (0.7 lb)
Installation Options Mountable on wall, shelf, or DIN rail for versatile installation
Compatibility Compatible with PoE and High PoE devices, including Axis PTZ cameras
Environmental Impact PVC-free construction for eco-friendly installations
Compliance RoHS, REACH, CB, WEEE, CE, EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 55024, FCC Part 15 Class B, VCCI Class B, RCM, KC, KCC, CCC, S-Mark, IEC/EN/UL 60950-1, EN 62368-1, GS Mark, IS 13252.
Reliability Rigorous power and thermal stability testing conducted for high-demand applications

[/properties]

[specifications]

IEEE Standard IEEE 802.3at compliant, supporting PoE+ for high-power devices
Efficiency Tested for 92% efficiency at typical load to ensure minimal energy loss
Thermal Testing Stably operates in environments up to 45°C at 60W, and up to 55°C at 30W output, with automatic load adjustment
Overload Protection Integrated over-voltage and over-current protection to prevent device damage
EMC Compliance Meets EN 55032, EN 55024, and FCC Part 15 standards for electromagnetic compatibility
Environmental Safety RoHS 3 compliant (Directive 2015/863/EU)
Humidity Range Tested for 10% to 90% relative humidity, non-condensing, without performance degradation
Vibration Resistance Verified to withstand vibrations up to 3 Hz for reliable operation in industrial settings
Power Consumption Typical input of 60W matching output, optimized for high-demand scenarios
MTBF Rating Mean time between failures calculated at 100,000 hours under controlled test conditions
Color Finish Black, designed to blend with typical industrial and network environments
Noise Level Passively cooled for silent operation, with noise levels below 15 dB
Safety Certifications RoHS, REACH, CB, WEEE, CE, EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 55024, FCC Part 15 Class B, VCCI Class B, RCM, KC, KCC, CCC, S-Mark, IEC/EN/UL 60950-1, EN 62368-1, GS Mark, IS 13252 certified for safety and compatibility
Installation Hardware Includes screws and brackets for all mounting options
Firmware Updates Not applicable
Maintenance Requirement Minimal maintenance; designed for extended durability in demanding environments
Reliability Passed continuous power delivery tests at maximum load for 72 hours

[/specifications]

AXIS T8134 60 W Midspan

The AXIS T8134 60 W Midspan is a reliable Power over Ethernet (PoE) solution designed to supply up to 60W of power to network devices such as Axis PTZ domes and other high-power network cameras. It enables easy installation without the need for replacing existing Ethernet switches or cabling, offering a cost-effective and fast way to provide power and data through a single Ethernet cable. The midspan is ideal for operating network devices in extreme temperatures, supporting installations where power demands are high.

Key Features:
  • High Power Output: Delivers up to 60W of power, making it suitable for demanding devices like Axis PTZ network cameras.
  • Plug-and-Play Installation: Automatically detects PoE and High PoE-enabled devices, ensuring easy setup and integration.
  • Flexible Installation: Supports wall, shelf, or DIN rail mounting options for versatile installation.
  • Wide Operating Range: Operates in temperatures from -10 °C to 45 °C, supporting up to 60W of output, and from -10 °C to 55 °C at 30W.
  • Environmental Sustainability: Made with PVC-free materials, contributing to eco-friendly installations.
Technical Specifications:
  • Power Output: 55 V DC, max 60 W
  • Data Rate: 10/100/1000 Mbps
  • Connectors: Shielded RJ45, EIA 568A and 568B, Power connector C13
  • Input Voltage: 100–240 V AC, 50–60 Hz
  • Operating Temperature: -10 °C to 45 °C (up to 60W), -10 °C to 55 °C (up to 30W)
  • Dimensions: 38 x 62 x 151 mm (1.5 x 2.4 x 5.9 in)
  • Weight: 320 g (0.7 lb)

For more information about the AXIS T8134 60 W Midspan, visit the Axis product page.
