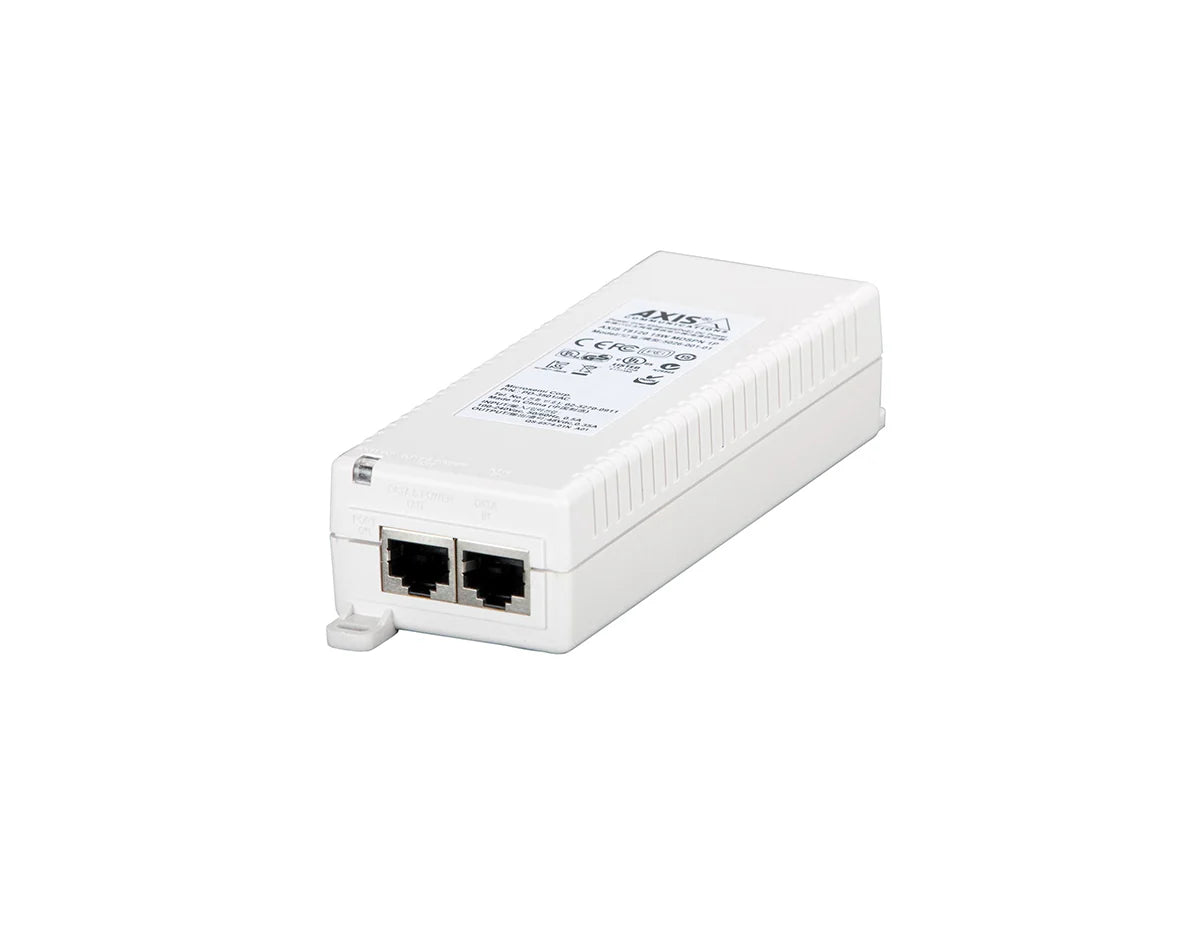

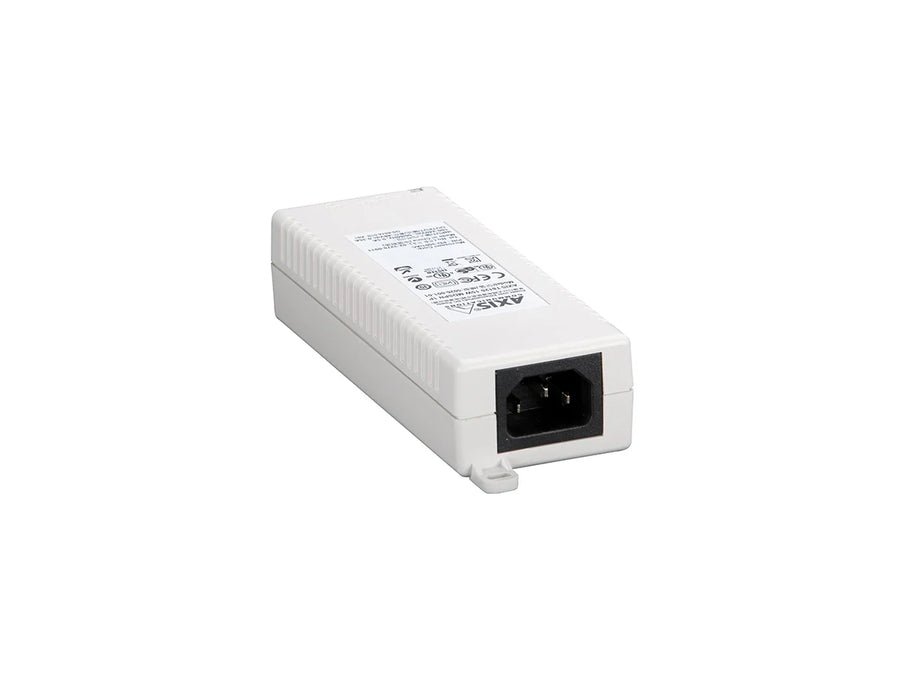

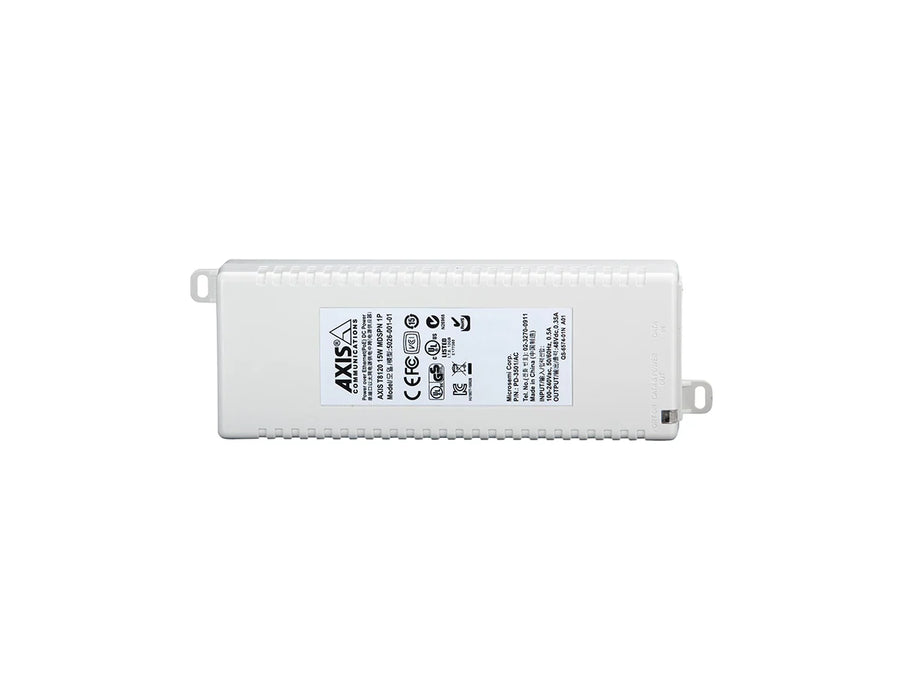

AXIS T8120 15 W 1-port Midspan (5026-204)
Clique ou role para ampliar
Toque ou belisque para ampliar
AXIS T8120 15 W 1-port Midspan (5026-204)
Clique ou role para ampliar
Toque ou belisque para ampliar
AXIS T8120 15 W 1-port Midspan (5026-204)
AXIS T8120 15 W 1-port Midspan (5026-204)

AXIS T8120 15 W 1-port Midspan (5026-204)

por Axis
R$ 828,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

  • Provides reliable power delivery to PoE-enabled devices supporting up to 15.4 W, Data Rate: 10/100/1000 Mbps.


[/shortdesc]

[properties]

Product Name AXIS T8120 15W Midspan 1-Port
Description The AXIS T8120 15W Midspan 1-Port is a compact, cost-effective Power over Ethernet (PoE) injector designed to deliver 15.4 W of power to network devices over Ethernet cables. Compatible with IEEE 802.3af standards, it provides a reliable solution for powering network cameras and other PoE-enabled devices in small to medium-sized setups.
Power Output 48 V DC (max 15.4 W per port), supporting PoE-powered devices
Data Rate Supports 10/100/1000 Mbps Ethernet speeds
Connectors Shielded RJ45 connectors, EIA 568A/568B standard
Input Power 100–240 V AC, 50–60 Hz
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F), humidity range of 10–90% RH (non-condensing)
Dimensions 33 mm x 53 mm x 140 mm (1.3 in x 2.1 in x 5.5 in)
Weight 450 g (1 lb)
Installation Type Plug-and-play with automatic device detection, local LED management display, and IEEE 802.3af auto-sensing for simplified installation
Compatibility IEEE 802.3af standard, compatible with a wide range of Axis network devices
Environmental Use Indoor use, tested within temperature and humidity ranges suitable for controlled environments
Compliance Standards Complies with EN 62368-1, FCC Part 15 Class B, EN 55022, RCM AS/NZS CISPR 22 Class B, KCC KN32 Class A, KN35, IS 13252, CE

[/properties]

[specifications]

IEEE Standard IEEE 802.3af compliant for Power over Ethernet (PoE) applications
Efficiency Tested to meet 90% efficiency under typical load conditions (as per IEEE 802.3af standard)
Thermal Testing Operationally stable up to 40°C in continuous use, with heat dissipation via passive cooling
EMC Compliance Meets EN 55032, EN 55024, FCC Part 15 standards
Overload Protection Includes built-in overload, over-voltage, and short-circuit protection for enhanced safety
Power Consumption Typical consumption matches input and output requirements for efficient power distribution
Noise Level Designed for silent operation, with noise levels below 20 dB
Power Efficiency Power factor correction of ≥ 0.9 at typical loads
Environmental Safety RoHS 3 compliant (Directive 2015/863/EU)
Humidity Testing Validated for operation in 20–80% relative humidity without performance degradation
Build Quality Constructed with high-durability components rated for 10-year operational life at 25°C
Mounting Options Supports wall or shelf mounting only
Reliability Continuous operational testing conducted over 48 hours in controlled environments without thermal shutdown
Color Neutral black finish suitable for integration in various environments
Firmware Updates Not applicable

[/specifications]

AXIS T8120 15W Midspan 1-Port

The AXIS T8120 15W Midspan 1-Port is a compact and cost-effective Power over Ethernet (PoE) solution designed to power network devices through existing Ethernet cables. Delivering up to 15.4 W of power per port, it complies with IEEE 802.3af standards, making it compatible with a wide range of Axis network devices. The midspan eliminates the need for additional power cables, offering an easy plug-and-play installation. It's ideal for powering network cameras and other PoE devices in small to medium-sized installations.

  • 15.4 W PoE Power: Provides reliable power delivery to PoE-enabled devices, supporting up to 15.4 W per port.
  • Plug-and-Play Installation: Automatically detects and powers PoE-enabled devices for simple and fast setup.
  • IEEE 802.3af Compliance: Ensures compatibility with most Axis network products with built-in PoE support.
  • Cost-Effective Solution: Reduces installation costs by eliminating the need for additional power cables.
  • Compact Design: Fits easily into network setups with its small form factor and versatile mounting options.
  • Power Output: 15.4 W per port, 48 V DC
  • Data Rate: 10/100/1000 Mbps
  • Connectors: Shielded RJ45, EIA 568A/568B
  • Power Input: 100–240 V AC, 50–60 Hz
  • Operating Conditions: 0 °C to 40 °C (32 °F to 104 °F)
  • Dimensions: 33 x 53 x 140 mm (1.3 x 2.1 x 5.5 in)
  • Weight: 450 g (1 lb)
  • Compliance: IEEE 802.3af, cUL/UL, TUV, CE
  • Input Current: 100–240 V AC, 47–63 Hz, max 0.5 A
  • Power Consumption: 2 W with no device connected, 18.9 W with 15.4 W load

For more information about the AXIS T8120 15W Midspan 1-Port, visit the Axis product page.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

  • Provides reliable power delivery to PoE-enabled devices supporting up to 15.4 W, Data Rate: 10/100/1000 Mbps.


[/shortdesc]

[properties]

Product Name AXIS T8120 15W Midspan 1-Port
Description The AXIS T8120 15W Midspan 1-Port is a compact, cost-effective Power over Ethernet (PoE) injector designed to deliver 15.4 W of power to network devices over Ethernet cables. Compatible with IEEE 802.3af standards, it provides a reliable solution for powering network cameras and other PoE-enabled devices in small to medium-sized setups.
Power Output 48 V DC (max 15.4 W per port), supporting PoE-powered devices
Data Rate Supports 10/100/1000 Mbps Ethernet speeds
Connectors Shielded RJ45 connectors, EIA 568A/568B standard
Input Power 100–240 V AC, 50–60 Hz
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F), humidity range of 10–90% RH (non-condensing)
Dimensions 33 mm x 53 mm x 140 mm (1.3 in x 2.1 in x 5.5 in)
Weight 450 g (1 lb)
Installation Type Plug-and-play with automatic device detection, local LED management display, and IEEE 802.3af auto-sensing for simplified installation
Compatibility IEEE 802.3af standard, compatible with a wide range of Axis network devices
Environmental Use Indoor use, tested within temperature and humidity ranges suitable for controlled environments
Compliance Standards Complies with EN 62368-1, FCC Part 15 Class B, EN 55022, RCM AS/NZS CISPR 22 Class B, KCC KN32 Class A, KN35, IS 13252, CE

[/properties]

[specifications]

IEEE Standard IEEE 802.3af compliant for Power over Ethernet (PoE) applications
Efficiency Tested to meet 90% efficiency under typical load conditions (as per IEEE 802.3af standard)
Thermal Testing Operationally stable up to 40°C in continuous use, with heat dissipation via passive cooling
EMC Compliance Meets EN 55032, EN 55024, FCC Part 15 standards
Overload Protection Includes built-in overload, over-voltage, and short-circuit protection for enhanced safety
Power Consumption Typical consumption matches input and output requirements for efficient power distribution
Noise Level Designed for silent operation, with noise levels below 20 dB
Power Efficiency Power factor correction of ≥ 0.9 at typical loads
Environmental Safety RoHS 3 compliant (Directive 2015/863/EU)
Humidity Testing Validated for operation in 20–80% relative humidity without performance degradation
Build Quality Constructed with high-durability components rated for 10-year operational life at 25°C
Mounting Options Supports wall or shelf mounting only
Reliability Continuous operational testing conducted over 48 hours in controlled environments without thermal shutdown
Color Neutral black finish suitable for integration in various environments
Firmware Updates Not applicable

[/specifications]

AXIS T8120 15W Midspan 1-Port

The AXIS T8120 15W Midspan 1-Port is a compact and cost-effective Power over Ethernet (PoE) solution designed to power network devices through existing Ethernet cables. Delivering up to 15.4 W of power per port, it complies with IEEE 802.3af standards, making it compatible with a wide range of Axis network devices. The midspan eliminates the need for additional power cables, offering an easy plug-and-play installation. It's ideal for powering network cameras and other PoE devices in small to medium-sized installations.

Key Features:
  • 15.4 W PoE Power: Provides reliable power delivery to PoE-enabled devices, supporting up to 15.4 W per port.
  • Plug-and-Play Installation: Automatically detects and powers PoE-enabled devices for simple and fast setup.
  • IEEE 802.3af Compliance: Ensures compatibility with most Axis network products with built-in PoE support.
  • Cost-Effective Solution: Reduces installation costs by eliminating the need for additional power cables.
  • Compact Design: Fits easily into network setups with its small form factor and versatile mounting options.
Technical Specifications:
  • Power Output: 15.4 W per port, 48 V DC
  • Data Rate: 10/100/1000 Mbps
  • Connectors: Shielded RJ45, EIA 568A/568B
  • Power Input: 100–240 V AC, 50–60 Hz
  • Operating Conditions: 0 °C to 40 °C (32 °F to 104 °F)
  • Dimensions: 33 x 53 x 140 mm (1.3 x 2.1 x 5.5 in)
  • Weight: 450 g (1 lb)
  • Compliance: IEEE 802.3af, cUL/UL, TUV, CE
  • Input Current: 100–240 V AC, 47–63 Hz, max 0.5 A
  • Power Consumption: 2 W with no device connected, 18.9 W with 15.4 W load

For more information about the AXIS T8120 15W Midspan 1-Port, visit the Axis product page.
