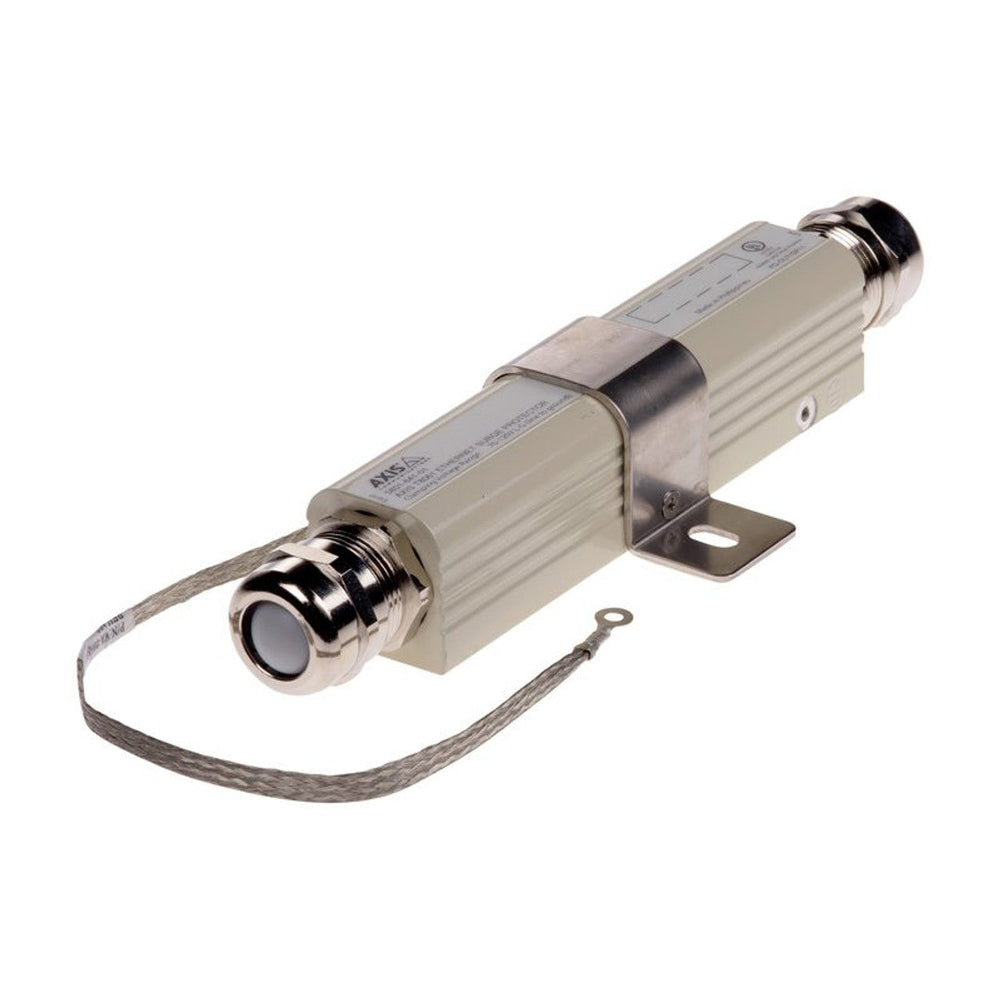

AXIS T8061 Ethernet Surge Protector (5801-641)

The AXIS T8061 Ethernet Surge Protector is a robust solution for protecting Ethernet network devices against power surges and lightning strikes. Designed for both indoor and outdoor use, it features a weatherproof metal enclosure that ensures durability in challenging environments. Supporting data rates of up to 1 Gbps, the device provides comprehensive protection for all eight lines, including PoE, and can be conveniently installed on walls or poles. Whether safeguarding outdoor cameras or securing network cables entering a building, this surge protector offers reliable protection for critical infrastructure.

• Comprehensive Surge Protection: Safeguards against up to 10 kV surges to protect network devices.
• Wide Compatibility: Compatible with 10BASE-T, 100BASE-TX, and 1000BASE-T PoE devices.
• Durable Construction: Weatherproof metal enclosure rated IP66 and NEMA 250 Type 4X for harsh conditions.
• Flexible Installation: Supports wall and pole mounting for diverse deployment scenarios.
• High Data Rate Support: Maintains data transmission speeds up to 1 Gbps.

• Power Surge Handling: Up to 10 kV, 5 kA to ground (8/20 µs); 800 V, 100 A for PoE.
• Input Power: 95 W (max); Input Current: 2 A (max).
• Operating Temperature: -40 °C to 85 °C (-40 °F to 185 °F).
• Dimensions: 30 x 30 x 190 mm (1.18 x 1.18 x 7.48 in).
• Weight: 0.6 lbs
• Approvals: IEC 60529 IP66, NEMA 250 Type 4X, UL 497B, EN 50581.
• Environmental Compliance: REACH, WEEE certifications.
• Mounting Options: Wall or pole mount (requires straps or similar).
