[shortdesc]All-in-one 1U rack appliance with 16 PoE ports, 8 TB storage, Intel i3, DDR5, Windows 11 IoT, and FIPS-certified TPM security.[/shortdesc]
[properties]
| Model |
AXIS S2216 Mk II Rack Appliance 8 TB (02809-004) |
| Form Factor |
1U rack-mount chassis |
| Processor |
Intel Core i3 |
| Memory |
16 GB DDR5 (2×8 GB) |
| Storage |
8 TB (2×4 TB surveillance-class HDD), total 4 HDD slots, 2 free |
| RAID Support |
RAID 0, 1, 10 |
| Switch |
16-port integrated PoE (260 W total PoE power budget) |
| Power |
Max 520 W total system power, 260 W PoE dedicated, 100–240 V AC, 6.5–2.5 A, 50/60 Hz |
| Typical Power Consumption |
110 W (excluding connected devices) |
| Maximum Power Consumption |
130 W (excluding connected devices) |
| Operating Conditions |
0 °C to 40 °C (32 °F to 104 °F), 10–90% RH |
| Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F), 10–90% RH |
| Dimensions |
476×440×45 mm (18.7×17.3×1.8 in) |
| Weight |
11 kg (24.3 lb) |
| Operating System |
Windows 11 IoT Enterprise LTSC 2024 |
| System Licenses Included |
16 AXIS Camera Station Pro device licenses; 10 AXIS Audio Manager Pro licenses |
[/properties]
[specifications]
| System Scalability |
Up to 16 video channels, up to 32 doors, total recording rate up to 256 Mbps, up to 200 audio streams, up to 1000 doors with access control only |
| Graphics |
Intel UHD Graphics |

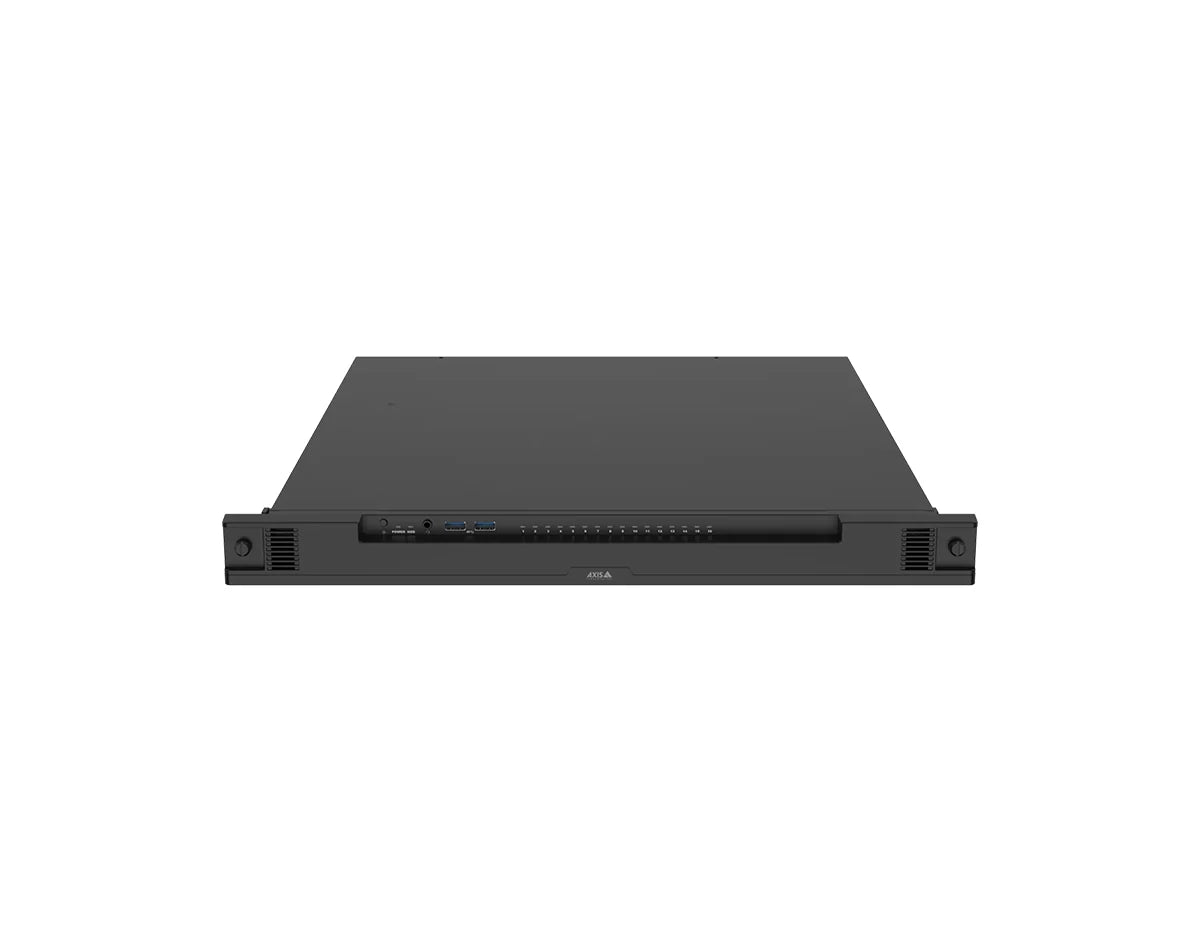

| Front Connectors |
2× USB 3.2, 1× universal audio jack |

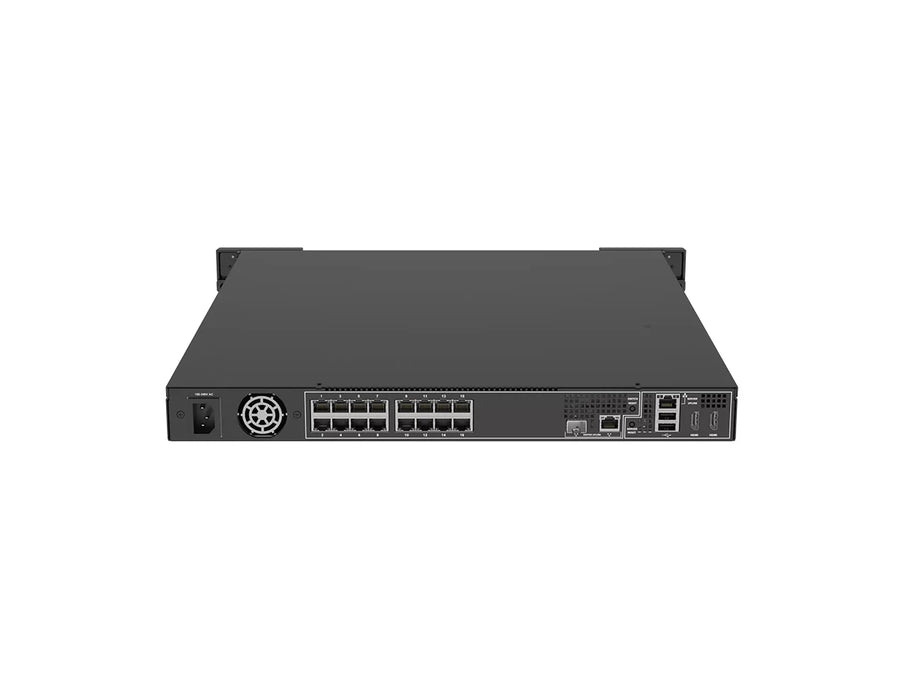

| Rear Connectors — Switch |
16× PoE RJ45 1 Gbps, 1× SFP 1 Gbps, 1× RJ45 1 Gbps |
| Rear Connectors — Server |
1× RJ45 1 Gbps, 2× USB 2.0, 2× HDMI 2.1 |
| Live Video Display (Windows Client) |
1× 8K @ 20 fps; 1× 4K @ 30 fps; 4×1080p @ 30 fps; 9×720p @30 fps; 16/25/36× 360p @ 15 fps; supports dual 4K monitors with limits |
| Live Video Display (Browser) |
1×8K @ 30 fps; 1×4K @ 30 fps; 4×1080p @ 30 fps; 9×720p @ 30 fps |
| Playback |
Supports same split layouts as live mode; multi-stream playback impacts disk load |
| Cybersecurity |
FIPS 140-2 Level 2 TPM, secure boot, signed switch firmware, encrypted OS drive and recording drive |
| EMC Approvals |
EN 55035, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, ICES(A), VCCI Class A, FCC Class A, RCM Class A, KS C 9835/9832 |
| Safety Approvals |
UL 62368-1, IEC/EN 62368-1, CSA C22.2 No. 62368-1 |
| Export Control |
Subject to export regulation compliance |
[/specifications]
[accesories]
| Included |
Rack rails, power cord |
| Optional Accessories |
Axis 4 TB and 6 TB surveillance HDDs, Axis Ethernet surge protector, Axis desktop terminals |
[/accesories]
The AXIS S2216 Mk II Rack Appliance 8 TB is engineered for mid-to-large-scale installations requiring multi-channel video surveillance, integrated PoE, and secure recording. With high-bandwidth performance, RAID-expandable storage, and fully licensed AXIS Camera Station Pro, it provides a unified management and recording platform.
The appliance features a robust security architecture including secure boot, TPM-protected encryption, and digitally signed firmware—ensuring trusted deployment in sensitive environments such as enterprise, government, and critical infrastructure.
