[shortdesc]All-in-one standalone appliance for up to 12 video channels with integrated 12-port PoE, 6 TB storage, Intel® Core i3 processor, and high-security TPM.[/shortdesc]
[properties]
| Model |
AXIS S2212 Mk II Standalone Appliance (02808-004)02808-004
|
| Product Type |
Standalone appliance with integrated PoE switch |
| CPU |
Intel® Core™ i3 |
| Memory |
16 GB DDR5 (2× 8 GB) |
| Storage |
6 TB (1× 6 TB Surveillance HDD), Total slots: 2, Free slot: 1 |
| PoE Switch |
12 ports, IEEE 802.3at Class 4, 135 W budget |
| Operating System |
Microsoft® Windows® 11 IoT Enterprise LTSC 2024 |
| Operating Temperature |
0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature |
-40 °C to 65 °C (-40 °F to 149 °F) |
| Humidity |
10–90% RH (non-condensing) |
| Dimensions |
330 × 230 × 78 mm (13 × 9.1 × 3.1 in) |
| Weight |
5.8 kg (12.8 lb) |
| Power Supply |
100–240 V AC, 50/60 Hz and 54 V DC |
| Typical Power Consumption |
75 W (maximum 95 W excluding PoE load) |
[/properties]
[specifications]
| Licenses |
12 AXIS Camera Station Pro Core Device NVR and 10 AXIS Audio Manager Pro licenses, tied to hardware |
| System Scalability |
Up to 12 video channels, 24 doors, 192 Mbps total recording rate, scalable using AXIS S30 Recorder Series |
| Video Streaming – Windows Client |
Supports: 1× 4K @30fps, 4× 1080p @30fps*, 9× 720p @30fps*, 16/25/36 split @360p @15fps; up to two 4K monitors (with noted split restrictions) |
| Video Streaming – Web Client |
Supports: 1× 8K @30fps, 1× 4K @30fps, 4× 1080p @30fps, 9× 720p @30fps*; max 18 streams across all web clients |
| Security |
FIPS 140-2 Level 2 certified TPM 2.0, secure boot, signed switch firmware, encrypted OS drive and recording drive |
| Ethernet Ports |

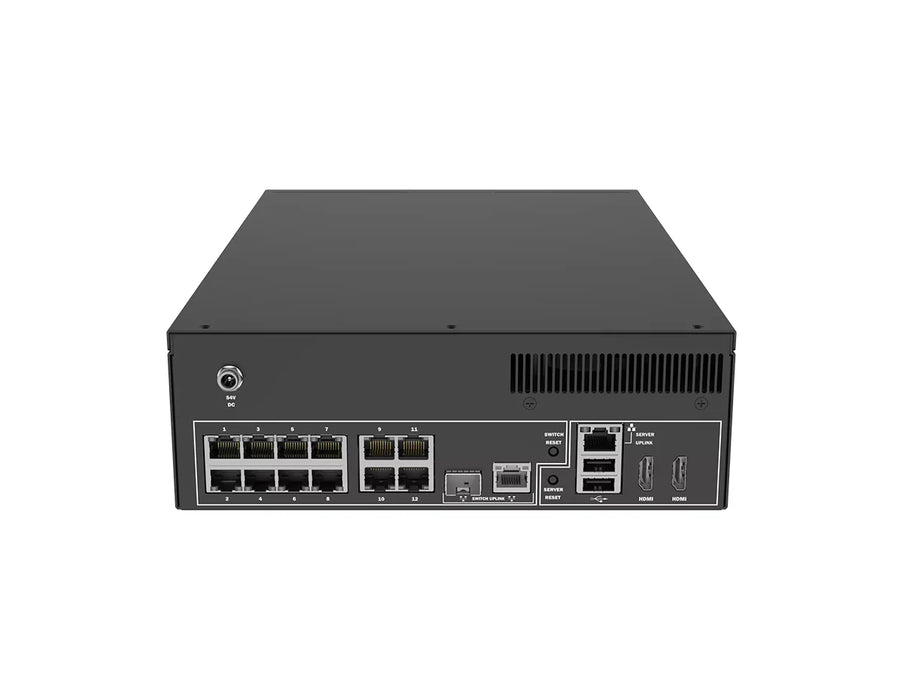

12× PoE RJ45 1 Gbps (switch), 1× RJ45 1 Gbps (switch), 1× RJ45 1 Gbps (server), 1× SFP 1 Gbps |
| Additional I/O |

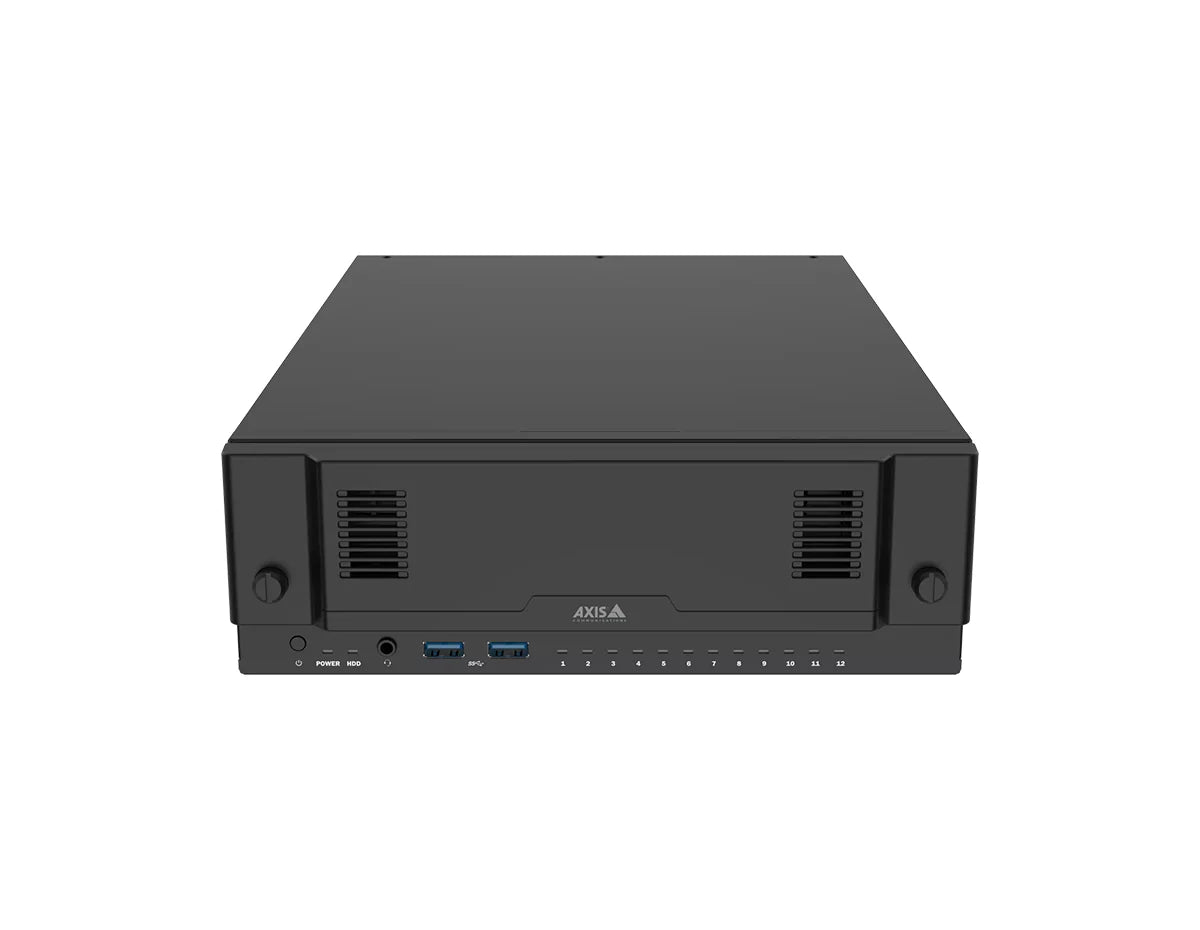

2× USB 3.2 (front), 2× USB 2.0, 2× HDMI 2.1, 1× audio jack |
| Graphics |
Intel® UHD Graphics |
| Safety Certifications |
CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, IS 13252 |
| EMC Compliance |
EN 55035, EN 55032 Class A, FCC Part 15 Class A, VCCI, KC, RCM, ICES(A)/NMB(A) |
| Product Markings |
UL/cUL, BIS, CE, KC, VCCI, RCM, BSMI, FCC, NOM |
| Supply Chain |
TAA compliant |
[/specifications]
[accesories]
| Included Accessories |
Rack ears, power adapter |
| Optional Accessories |
AXIS 6 TB Surveillance HDD, AXIS 4 TB Surveillance HDD, AXIS TS2901 Appliance Stand, Axis desktop terminals, Axis Ethernet surge protector |
[/accesories]
The AXIS S2212 Mk II Standalone Appliance delivers a silent, compact, and integrated recording solution, eliminating additional rack noise and simplifying installation. Designed for up to 12 camera channels and 24 access control doors, it provides strong processing performance with Intel® Core i3, reliable 6 TB surveillance-grade storage, and an integrated 12-port PoE switch for direct camera power and connectivity.
With advanced security features including secure boot, signed firmware, and a hardware-based TPM, this unit ensures full protection of both operating system and recorded video data. It includes AXIS Camera Station Pro licenses for immediate deployment and can scale effortlessly using the AXIS S30 Recorder Series.
