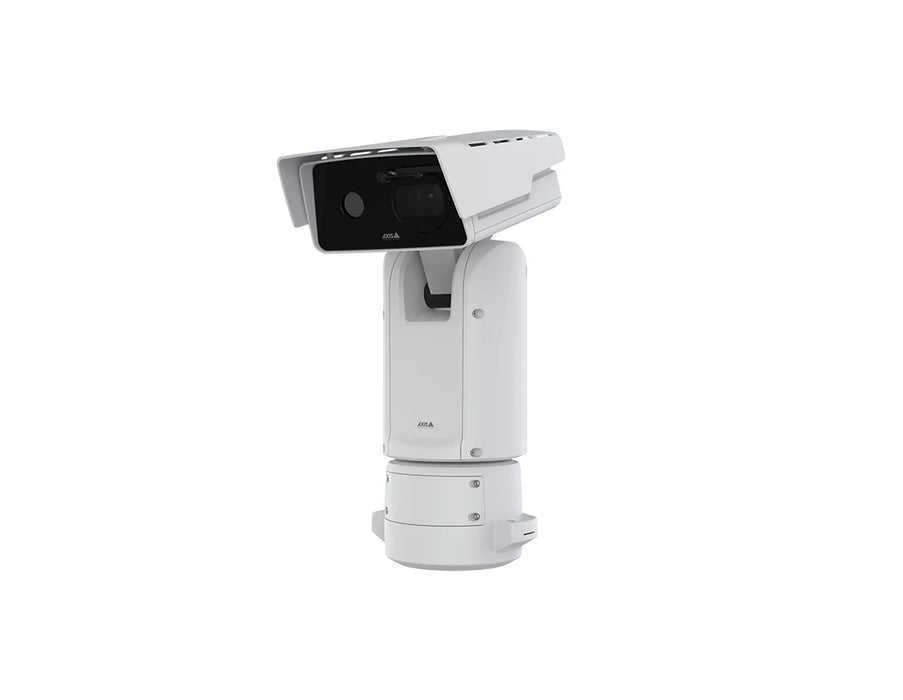

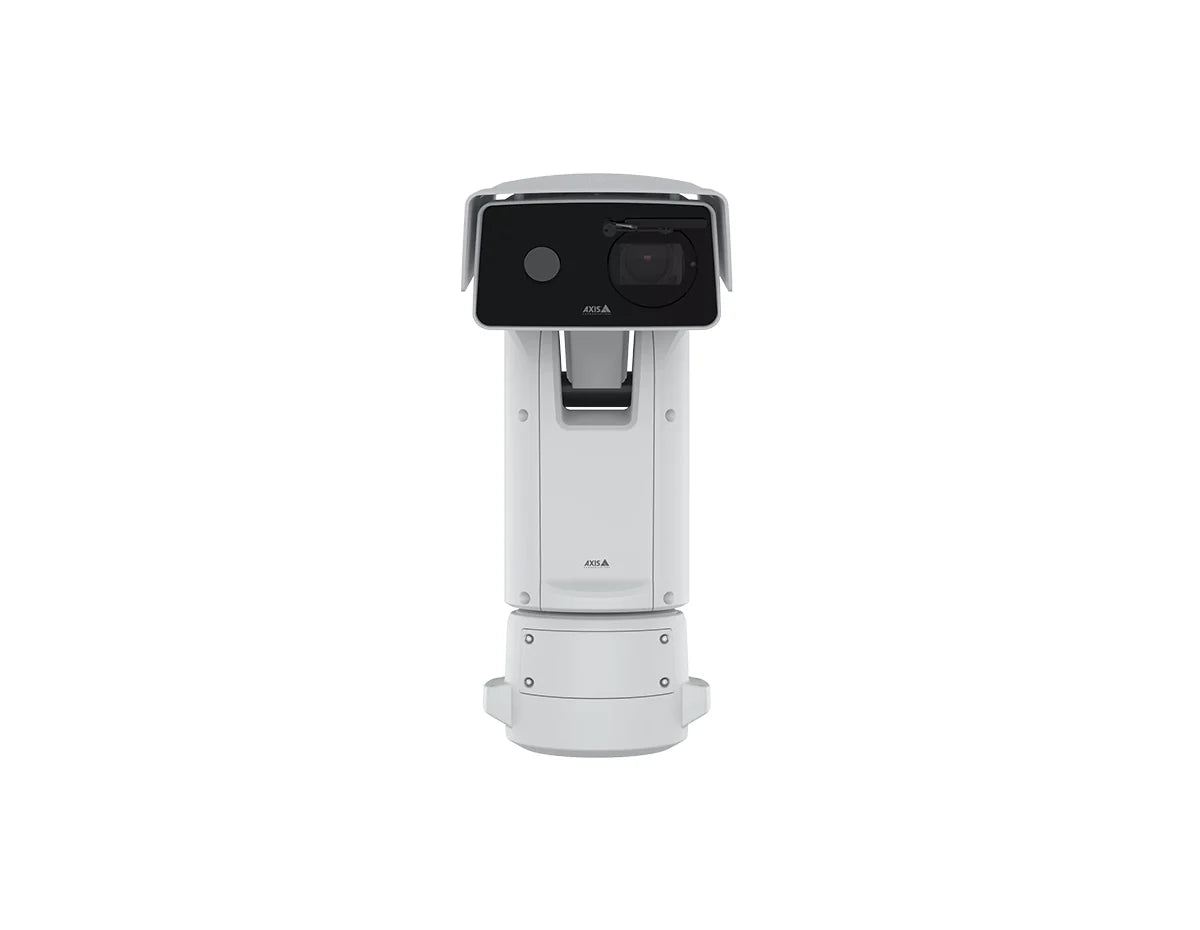

AXIS Q8752-E Mk II 35 mm 8.3 fps Bispectral PTZ Camera (03052-001)
Clique ou role para ampliar
Toque ou belisque para ampliar
AXIS Q8752-E Mk II 35 mm 8.3 fps Bispectral PTZ Camera (03052-001)
AXIS Q8752-E Mk II 35 mm 8.3 fps Bispectral PTZ Camera (03052-001)

AXIS Q8752-E Mk II 35 mm 8.3 fps Bispectral PTZ Camera (03052-001)

por Axis
R$ 191.100,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] Bispectral PTZ camera with a fixed 35 mm thermal lens, HDTV 1080p visual channel, 8.3 fps thermal imaging, 360° infinite pan, dual electronic image stabilization, and built-in cybersecurity. [/shortdesc]

[properties]

Model AXIS Q8752-E Mk II 35 mm 8.3 fps Bispectral PTZ Camera (03052-001)
Product Type Bispectral PTZ Camera
Image Sensor Visual: 1/2.8” progressive scan CMOS; Thermal: Uncooled microbolometer 640x480, 17 µm, 8–14 µm
Lens Visual: 4.3–137.6 mm varifocal, F1.4–4.0; Thermal: 35 mm athermalized, F1.2
Minimum Illumination Color: 0.06 lux at 50 IRE, F1.4; B/W: 0.01 lux at 50 IRE, F1.4
Pan/Tilt Range Pan: 360° endless; Tilt: -90° to +45°
Zoom Visual: 32x optical + 12x digital (384x total); Thermal: Fixed focal (no digital zoom)
Video Compression H.264, H.265, Motion JPEG
Resolution Visual: Up to HDTV 1080p; Thermal: 640x480 sensor (scaled up to 800x600)
Frame Rate Thermal: Up to 8.3 fps; Visual: Up to 50/60 fps in HDTV 1080p
Audio One-way audio, mic/line input
Networking RJ45 10/100/1000BASE-T; SFP slot
Storage microSD/microSDHC/microSDXC with AES-XTS-Plain64 256-bit encryption
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), 10–100% RH (condensing)
Environmental Ratings IP66, IK10, NEMA 4X, ISO 12944-6 C5, MIL-STD-810H
Power 52–58 V DC, typical 25 W, max 185 W
Dimensions 244 × 360 × 582 mm (9.5 × 14 × 23 in)
Weight 14.9 kg (32.8 lb)
Casing Powder-coated aluminum; white NCS S 1002-B; glass (visual) and germanium (thermal) windows
Certifications UL/cUL, CE, KC, VCCI, RCM, FCC, EN 55032 Class A

[/properties]

[specifications]

Camera Dual-channel bispectral PTZ with thermal and visual imaging; autofocus and auto-iris (visual)
Optics Visual: 4.3–137.6 mm, F1.4–4.0, HFOV 58.5°–2.4°, VFOV 35°–1.3°;
Thermal 35 mm: F1.2, HFOV 17°, VFOV 12.8°, near focus distance 31 m (102 ft)
Day/Night Automatic IR-cut filter
Thermal Sensitivity NETD < 50 mK
Shutter 1/66500 s to 2 s (visual)
PTZ Performance Pan 0.05°–120°/s; Tilt 0.05°–65°/s; ±0.01°/s low-speed accuracy; 256 presets; guard tour; de-icing control
Compute ARTPEC-7 SoC with Deep Learning Processing Unit (DLPU), 2 GB RAM, 512 MB Flash
Video Streaming Multiple H.264/H.265/MJPEG streams; Zipstream; VBR/ABR/MBR; low latency mode
WDR / Image Enhancements Forensic WDR up to 120 dB; dual-channel EIS; privacy masks; tone mapping; defogging
Audio AAC-LC, LPCM, G.711, G.726, Opus; configurable bitrate
Network Protocols IPv4/IPv6, HTTPS, HTTP/2, TLS, RTP/SRTP, RTSP, FTP/SFTP, SNMP v1/v2c/v3, DHCP, MQTT, LLDP, CDP
System Integration VAPIX, ACAP, ONVIF G/M/S/T, one-click cloud connection, AXIS Camera Station compatibility
Event Triggers Device status, I/O, motion, temperature states, PTZ events, storage health, MQTT
Event Actions Notifications, video and audio recordings, PTZ presets, I/O toggles, overlays, illumination control, SNMP traps
Analytics AXIS Motion Guard, Fence Guard, Loitering Guard, Orientation AID PTZ, VMD, audio detection, advanced gatekeeper
Cybersecurity Signed OS, secure boot, encrypted filesystem, TPM 2.0, brute-force delay protection, FIPS 140
Connectors RJ45, SFP slot, 3.5 mm audio in, 4× configurable I/O, DC input
Storage microSD/microSDHC/microSDXC; NAS support; AES-XTS-Plain64 256-bit encryption
Environmental -40 °C to 60 °C; NEMA TS 2; wind load up to 45 m/s (100 mph) without weathershield; EPA 0.121 m²
Construction Aluminum, IP66, IK10, NEMA 4X; UV-stabilized weathershield; long-life silicone wiper
Power 52–58 V DC, typical 25 W, max 185 W; power-loss recovery

[/specifications]

[accesories]

Included Camera, installation guide, connector kit
Optional Accessories AXIS Surveillance Cards, AXIS T94J01A Wall Mount, AXIS T94N01G Pole Mount, AXIS T95A64 Corner Bracket, AXIS Washer Kit B, AXIS Cable 24 V DC/24–240 V AC, AXIS T8611 SFP LC.LX, AXIS T8612 SFP LC.SX, AXIS PT IR Illuminator Kit C, AXIS T99 Illuminator Bracket Kit A, DIN PS56 480 W Power Supply, AXIS T61 Audio & I/O Interface Series

[/accesories]

The AXIS Q8752-E Mk II 35 mm 8.3 fps delivers precise thermal detection paired with detailed visual verification for perimeter and critical infrastructure protection. Its fixed 35 mm thermal lens provides stable, long-range thermal coverage, while the HDTV 1080p visual sensor with Lightfinder 2.0 and Forensic WDR ensures excellent clarity in low light and complex lighting conditions.

Equipped with ARTPEC-7 and a deep learning processing unit, this camera supports advanced analytics and automated event handling. Combined with IP66, IK10, NEMA 4X, ISO 12944-6 C5, and MIL-STD-810H protection, it is designed for continuous performance in harsh outdoor environments.

  • Fixed 35 mm thermal lens optimized for long-distance detection
  • Accurate thermal and visual verification in one PTZ solution
  • Dual EIS ensures stable imaging in windy or vibrating conditions
  • Lightfinder 2.0 and Forensic WDR deliver strong visual clarity in low-light scenes
  • ARTPEC-7 with DLPU enables on-device analytics and intelligent automation
  • Rugged IP66, IK10, NEMA 4X construction for extreme outdoor reliability
  • Perimeter protection with fixed long-range thermal coverage
  • Critical infrastructure monitoring
  • Power generation and utility facilities
  • Border surveillance with stable thermal imaging
  • Industrial environments requiring durable outdoor PTZ capability
  • Image sensor: 1/2.8"" CMOS (visual); 640×480 uncooled microbolometer (thermal)
  • Lens: 4.3–137.6 mm visual; 35 mm fixed thermal
  • Thermal frame rate: Up to 8.3 fps
  • Video: H.264/H.265/MJPEG; Zipstream; multiple streams
  • PTZ: 360° endless pan; -90° to +45° tilt; 32× optical zoom (visual)
  • Durability: IP66, IK10, NEMA 4X, MIL-STD-810H
  • Power: 52–58 V DC, up to 185 W max

Enhance long-range monitoring with rugged, stable, fixed-lens thermal and visual PTZ performance.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] Bispectral PTZ camera with a fixed 35 mm thermal lens, HDTV 1080p visual channel, 8.3 fps thermal imaging, 360° infinite pan, dual electronic image stabilization, and built-in cybersecurity. [/shortdesc]

[properties]

Model AXIS Q8752-E Mk II 35 mm 8.3 fps Bispectral PTZ Camera (03052-001)
Product Type Bispectral PTZ Camera
Image Sensor Visual: 1/2.8” progressive scan CMOS; Thermal: Uncooled microbolometer 640x480, 17 µm, 8–14 µm
Lens Visual: 4.3–137.6 mm varifocal, F1.4–4.0; Thermal: 35 mm athermalized, F1.2
Minimum Illumination Color: 0.06 lux at 50 IRE, F1.4; B/W: 0.01 lux at 50 IRE, F1.4
Pan/Tilt Range Pan: 360° endless; Tilt: -90° to +45°
Zoom Visual: 32x optical + 12x digital (384x total); Thermal: Fixed focal (no digital zoom)
Video Compression H.264, H.265, Motion JPEG
Resolution Visual: Up to HDTV 1080p; Thermal: 640x480 sensor (scaled up to 800x600)
Frame Rate Thermal: Up to 8.3 fps; Visual: Up to 50/60 fps in HDTV 1080p
Audio One-way audio, mic/line input
Networking RJ45 10/100/1000BASE-T; SFP slot
Storage microSD/microSDHC/microSDXC with AES-XTS-Plain64 256-bit encryption
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), 10–100% RH (condensing)
Environmental Ratings IP66, IK10, NEMA 4X, ISO 12944-6 C5, MIL-STD-810H
Power 52–58 V DC, typical 25 W, max 185 W
Dimensions 244 × 360 × 582 mm (9.5 × 14 × 23 in)
Weight 14.9 kg (32.8 lb)
Casing Powder-coated aluminum; white NCS S 1002-B; glass (visual) and germanium (thermal) windows
Certifications UL/cUL, CE, KC, VCCI, RCM, FCC, EN 55032 Class A

[/properties]

[specifications]

Camera Dual-channel bispectral PTZ with thermal and visual imaging; autofocus and auto-iris (visual)
Optics Visual: 4.3–137.6 mm, F1.4–4.0, HFOV 58.5°–2.4°, VFOV 35°–1.3°;
Thermal 35 mm: F1.2, HFOV 17°, VFOV 12.8°, near focus distance 31 m (102 ft)
Day/Night Automatic IR-cut filter
Thermal Sensitivity NETD < 50 mK
Shutter 1/66500 s to 2 s (visual)
PTZ Performance Pan 0.05°–120°/s; Tilt 0.05°–65°/s; ±0.01°/s low-speed accuracy; 256 presets; guard tour; de-icing control
Compute ARTPEC-7 SoC with Deep Learning Processing Unit (DLPU), 2 GB RAM, 512 MB Flash
Video Streaming Multiple H.264/H.265/MJPEG streams; Zipstream; VBR/ABR/MBR; low latency mode
WDR / Image Enhancements Forensic WDR up to 120 dB; dual-channel EIS; privacy masks; tone mapping; defogging
Audio AAC-LC, LPCM, G.711, G.726, Opus; configurable bitrate
Network Protocols IPv4/IPv6, HTTPS, HTTP/2, TLS, RTP/SRTP, RTSP, FTP/SFTP, SNMP v1/v2c/v3, DHCP, MQTT, LLDP, CDP
System Integration VAPIX, ACAP, ONVIF G/M/S/T, one-click cloud connection, AXIS Camera Station compatibility
Event Triggers Device status, I/O, motion, temperature states, PTZ events, storage health, MQTT
Event Actions Notifications, video and audio recordings, PTZ presets, I/O toggles, overlays, illumination control, SNMP traps
Analytics AXIS Motion Guard, Fence Guard, Loitering Guard, Orientation AID PTZ, VMD, audio detection, advanced gatekeeper
Cybersecurity Signed OS, secure boot, encrypted filesystem, TPM 2.0, brute-force delay protection, FIPS 140
Connectors RJ45, SFP slot, 3.5 mm audio in, 4× configurable I/O, DC input
Storage microSD/microSDHC/microSDXC; NAS support; AES-XTS-Plain64 256-bit encryption
Environmental -40 °C to 60 °C; NEMA TS 2; wind load up to 45 m/s (100 mph) without weathershield; EPA 0.121 m²
Construction Aluminum, IP66, IK10, NEMA 4X; UV-stabilized weathershield; long-life silicone wiper
Power 52–58 V DC, typical 25 W, max 185 W; power-loss recovery

[/specifications]

[accesories]

Included Camera, installation guide, connector kit
Optional Accessories AXIS Surveillance Cards, AXIS T94J01A Wall Mount, AXIS T94N01G Pole Mount, AXIS T95A64 Corner Bracket, AXIS Washer Kit B, AXIS Cable 24 V DC/24–240 V AC, AXIS T8611 SFP LC.LX, AXIS T8612 SFP LC.SX, AXIS PT IR Illuminator Kit C, AXIS T99 Illuminator Bracket Kit A, DIN PS56 480 W Power Supply, AXIS T61 Audio & I/O Interface Series

[/accesories]

Long-Range Detection with Fixed 35 mm Thermal Imaging

The AXIS Q8752-E Mk II 35 mm 8.3 fps delivers precise thermal detection paired with detailed visual verification for perimeter and critical infrastructure protection. Its fixed 35 mm thermal lens provides stable, long-range thermal coverage, while the HDTV 1080p visual sensor with Lightfinder 2.0 and Forensic WDR ensures excellent clarity in low light and complex lighting conditions.

Equipped with ARTPEC-7 and a deep learning processing unit, this camera supports advanced analytics and automated event handling. Combined with IP66, IK10, NEMA 4X, ISO 12944-6 C5, and MIL-STD-810H protection, it is designed for continuous performance in harsh outdoor environments.

Key Benefits
  • Fixed 35 mm thermal lens optimized for long-distance detection
  • Accurate thermal and visual verification in one PTZ solution
  • Dual EIS ensures stable imaging in windy or vibrating conditions
  • Lightfinder 2.0 and Forensic WDR deliver strong visual clarity in low-light scenes
  • ARTPEC-7 with DLPU enables on-device analytics and intelligent automation
  • Rugged IP66, IK10, NEMA 4X construction for extreme outdoor reliability
Ideal Use Cases
  • Perimeter protection with fixed long-range thermal coverage
  • Critical infrastructure monitoring
  • Power generation and utility facilities
  • Border surveillance with stable thermal imaging
  • Industrial environments requiring durable outdoor PTZ capability
Technical Specifications Summary
  • Image sensor: 1/2.8"" CMOS (visual); 640×480 uncooled microbolometer (thermal)
  • Lens: 4.3–137.6 mm visual; 35 mm fixed thermal
  • Thermal frame rate: Up to 8.3 fps
  • Video: H.264/H.265/MJPEG; Zipstream; multiple streams
  • PTZ: 360° endless pan; -90° to +45° tilt; 32× optical zoom (visual)
  • Durability: IP66, IK10, NEMA 4X, MIL-STD-810H
  • Power: 52–58 V DC, up to 185 W max
Upgrade Your Operations

Enhance long-range monitoring with rugged, stable, fixed-lens thermal and visual PTZ performance.
