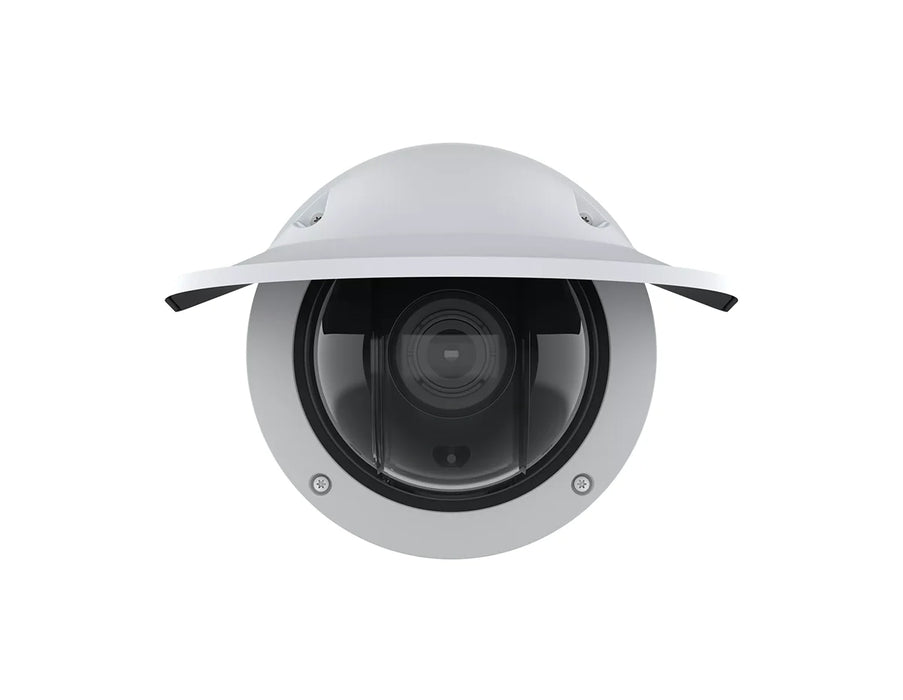

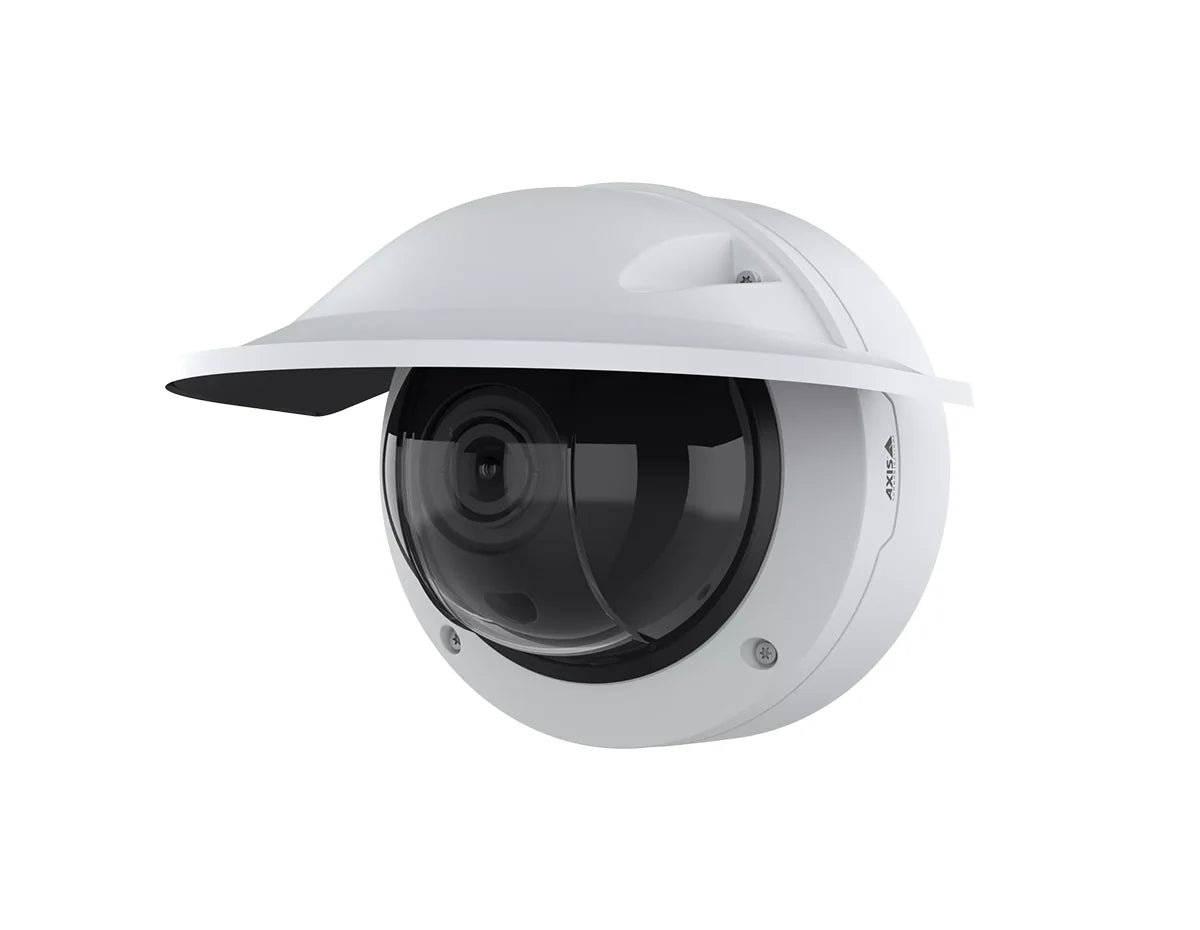

AXIS Q3548-LVE Dome Camera (02973-001)
Clique ou role para ampliar
Toque ou belisque para ampliar
AXIS Q3548-LVE Dome Camera (02973-001)
AXIS Q3548-LVE Dome Camera (02973-001)

AXIS Q3548-LVE Dome Camera (02973-001)

por Axis
R$ 21.372,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]High-performance 8 MP outdoor-ready dome with OptimizedIR 60 m, Lightfinder 2.0, Forensic WDR, and ARTPEC-9 SoC.[/shortdesc]

[properties]

Model AXIS Q3548-LVE Dome Camera (02973-001)
Product Type Dome Camera
Image Sensor 1/1.2” progressive scan RGB CMOS
Lens Varifocal 6.3–13 mm, F1.6–2.9; IR-corrected; remote zoom/focus; P-Iris control
Optical Zoom 2× optical zoom
Minimum Illumination Color: 0.04 lux at 50 IRE; B/W: 0 lux; 0 lux with IR on
SoC ARTPEC-9 with deep learning processing unit
WDR Forensic WDR: up to 120 dB depending on scene
IR Illumination OptimizedIR, 850 nm, range of reach 60 m (195 ft) or more depending on scene
Power PoE IEEE 802.3at Type 2 Class 4 (max 25.5 W); 8–28 V DC (max 25.5 W)
Operating Conditions -50 °C to 55 °C (-58 °F to 131 °F); start-up down to -40 °C (-40 °F); 10–100% RH (non-condensing)
Storage Conditions -40 °C to 65 °C (-40 °F to 149 °F); 5–95% RH (non-condensing)
Environmental Rating IP66/IP69, IP6K9K, IK10, NEMA 4X
Dimensions See datasheet dimension drawing; EPA 0.041 m²
Weight 2310 g (5.1 lb)
Casing Aluminum body; polycarbonate dome; weathershield
Storage microSD/microSDHC/microSDXC; SD encryption; NAS support
Connectivity Shielded RJ45 10/100/1000 Mbps; DC input; audio in; I/O terminal
Certifications UL, FCC, CE, RCM, VCCI, KC, NEMA 4X, ETSI EN 303 645, TAA

[/properties]

[specifications]

Performance DLPU for deep learning analytics; >55 dB SNR; electronic image stabilization
Video H.264/H.265/AV1/MJPEG; up to 3840×2160; up to 50/60 fps (no WDR), up to 25/30 fps (WDR); Axis Zipstream; multi-view up to 7 areas
Audio Two-way audio; AAC-LC, G.711, G.726, Opus, LPCM; unbalanced mic/line input; speaker pairing
Connectivity IPv4/IPv6, HTTPS/TLS, QoS, SFTP, SIP, SRTP, SNMP, MQTT, ONVIF G/M/S/T
Power Supply PoE 802.3at (max 25.5 W); DC 8–28 V (max 25.5 W); power meter
Security Features Axis Edge Vault; secure boot; signed OS; encrypted filesystem; FIPS 140; IEEE 802.1X; MACsec; secure keystore
Environmental IP66/IP69/IP6K9K; IK10; -50 °C to 55 °C (-58 °F to 131 °F); corrosion-tested (ISO 21207 Method B)
Mounting Options Bracket with junction box hole patterns; ¾” (M25) conduit entries
Sensors Built-in gyroscopic EIS sensors
Analytics AXIS Object Analytics; Image Health Analytics; Scene Metadata; Live Privacy Shield; supports ACAP apps
I/O 2 configurable supervised inputs/outputs (12 V DC output, 50 mA)
Storage microSD/microSDHC/microSDXC; SD encryption; NAS recording
Approvals CISPR, EN EMC series, EN 62368-1, IEC 60529, NEMA 4X, Railway IEC 62236-4

[/specifications]

[accesories]

Included Camera, weathershield, installation guide, terminal block connectors, connector guard, cable gaskets, owner authentication key
Optional Accessories AXIS T61 MkII Audio & I/O Interface; AXIS T8415 Wireless Installation Tool; AXIS TQ3204-E Recessed Mount; AXIS TQ3103-E Pendant Kit; AXIS Surveillance Cards; AXIS TQ3818-E Dome Smoked

[/accesories]

The AXIS Q3548-LVE is a next-generation 8 MP outdoor dome engineered for demanding environments that require crystal-clear imaging, strong low-light performance, and enterprise cybersecurity. Powered by the ARTPEC-9 SoC and a dedicated deep learning processing unit, it delivers advanced analytics directly on the edge for more accurate object detection and scene understanding.

With OptimizedIR up to 60 m, Forensic WDR, Lightfinder 2.0, and a large 1/1.2” sensor, the camera ensures superior clarity in full darkness, high-contrast scenes, and complex lighting. Rugged IP66/IP69 and IK10 protection, combined with NEMA 4X corrosion resistance, make it ideal for harsh outdoor deployments.

  • 8 MP ultra-clear imaging with a large 1/1.2” sensor for superior detail in all conditions
  • OptimizedIR up to 60 m ensures sharp visuals even in complete darkness
  • ARTPEC-9 SoC with DLPU enables advanced on-edge AI analytics
  • Forensic WDR and Lightfinder 2.0 optimize performance in challenging lighting
  • Rugged IP66/IP69, IK10, and NEMA 4X construction for extreme durability
  • Comprehensive cybersecurity with secure boot, signed OS, Edge Vault, and encrypted storage
  • Flexible installation with remote zoom/focus, multiple mount options, and full ACAP support
  • Critical infrastructure protection (energy, utilities, transportation)
  • City surveillance and perimeter security in harsh weather environments
  • Large commercial and industrial facilities requiring 24/7 monitoring
  • Ports, airports, and logistics hubs needing high-detail wide-area coverage
  • Any site needing advanced AI analytics directly on the camera
  • Image sensor: 1/1.2” progressive scan RGB CMOS
  • Lens: 6.3–13 mm varifocal, IR corrected, 2× optical zoom
  • Video: Up to 3840×2160; H.264/H.265/AV1; WDR up to 120 dB
  • IR: OptimizedIR up to 60 m
  • Analytics: AXIS Object Analytics, Scene Metadata, Image Health Analytics
  • Cybersecurity: Secure boot, Edge Vault, encrypted filesystem
  • Environmental: IP66/IP69, IK10, -50 °C to 55 °C (-58 °F to 131 °F)
  • Power: PoE 802.3at / 8–28 V DC

Deploy uncompromising 8 MP video quality with powerful AI-driven security analytics.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]High-performance 8 MP outdoor-ready dome with OptimizedIR 60 m, Lightfinder 2.0, Forensic WDR, and ARTPEC-9 SoC.[/shortdesc]

[properties]

Model AXIS Q3548-LVE Dome Camera (02973-001)
Product Type Dome Camera
Image Sensor 1/1.2” progressive scan RGB CMOS
Lens Varifocal 6.3–13 mm, F1.6–2.9; IR-corrected; remote zoom/focus; P-Iris control
Optical Zoom 2× optical zoom
Minimum Illumination Color: 0.04 lux at 50 IRE; B/W: 0 lux; 0 lux with IR on
SoC ARTPEC-9 with deep learning processing unit
WDR Forensic WDR: up to 120 dB depending on scene
IR Illumination OptimizedIR, 850 nm, range of reach 60 m (195 ft) or more depending on scene
Power PoE IEEE 802.3at Type 2 Class 4 (max 25.5 W); 8–28 V DC (max 25.5 W)
Operating Conditions -50 °C to 55 °C (-58 °F to 131 °F); start-up down to -40 °C (-40 °F); 10–100% RH (non-condensing)
Storage Conditions -40 °C to 65 °C (-40 °F to 149 °F); 5–95% RH (non-condensing)
Environmental Rating IP66/IP69, IP6K9K, IK10, NEMA 4X
Dimensions See datasheet dimension drawing; EPA 0.041 m²
Weight 2310 g (5.1 lb)
Casing Aluminum body; polycarbonate dome; weathershield
Storage microSD/microSDHC/microSDXC; SD encryption; NAS support
Connectivity Shielded RJ45 10/100/1000 Mbps; DC input; audio in; I/O terminal
Certifications UL, FCC, CE, RCM, VCCI, KC, NEMA 4X, ETSI EN 303 645, TAA

[/properties]

[specifications]

Performance DLPU for deep learning analytics; >55 dB SNR; electronic image stabilization
Video H.264/H.265/AV1/MJPEG; up to 3840×2160; up to 50/60 fps (no WDR), up to 25/30 fps (WDR); Axis Zipstream; multi-view up to 7 areas
Audio Two-way audio; AAC-LC, G.711, G.726, Opus, LPCM; unbalanced mic/line input; speaker pairing
Connectivity IPv4/IPv6, HTTPS/TLS, QoS, SFTP, SIP, SRTP, SNMP, MQTT, ONVIF G/M/S/T
Power Supply PoE 802.3at (max 25.5 W); DC 8–28 V (max 25.5 W); power meter
Security Features Axis Edge Vault; secure boot; signed OS; encrypted filesystem; FIPS 140; IEEE 802.1X; MACsec; secure keystore
Environmental IP66/IP69/IP6K9K; IK10; -50 °C to 55 °C (-58 °F to 131 °F); corrosion-tested (ISO 21207 Method B)
Mounting Options Bracket with junction box hole patterns; ¾” (M25) conduit entries
Sensors Built-in gyroscopic EIS sensors
Analytics AXIS Object Analytics; Image Health Analytics; Scene Metadata; Live Privacy Shield; supports ACAP apps
I/O 2 configurable supervised inputs/outputs (12 V DC output, 50 mA)
Storage microSD/microSDHC/microSDXC; SD encryption; NAS recording
Approvals CISPR, EN EMC series, EN 62368-1, IEC 60529, NEMA 4X, Railway IEC 62236-4

[/specifications]

[accesories]

Included Camera, weathershield, installation guide, terminal block connectors, connector guard, cable gaskets, owner authentication key
Optional Accessories AXIS T61 MkII Audio & I/O Interface; AXIS T8415 Wireless Installation Tool; AXIS TQ3204-E Recessed Mount; AXIS TQ3103-E Pendant Kit; AXIS Surveillance Cards; AXIS TQ3818-E Dome Smoked

[/accesories]

High-Performance 8 MP AI Dome Built for Extreme Outdoor Surveillance

The AXIS Q3548-LVE is a next-generation 8 MP outdoor dome engineered for demanding environments that require crystal-clear imaging, strong low-light performance, and enterprise cybersecurity. Powered by the ARTPEC-9 SoC and a dedicated deep learning processing unit, it delivers advanced analytics directly on the edge for more accurate object detection and scene understanding.

With OptimizedIR up to 60 m, Forensic WDR, Lightfinder 2.0, and a large 1/1.2” sensor, the camera ensures superior clarity in full darkness, high-contrast scenes, and complex lighting. Rugged IP66/IP69 and IK10 protection, combined with NEMA 4X corrosion resistance, make it ideal for harsh outdoor deployments.

Key Benefits
  • 8 MP ultra-clear imaging with a large 1/1.2” sensor for superior detail in all conditions
  • OptimizedIR up to 60 m ensures sharp visuals even in complete darkness
  • ARTPEC-9 SoC with DLPU enables advanced on-edge AI analytics
  • Forensic WDR and Lightfinder 2.0 optimize performance in challenging lighting
  • Rugged IP66/IP69, IK10, and NEMA 4X construction for extreme durability
  • Comprehensive cybersecurity with secure boot, signed OS, Edge Vault, and encrypted storage
  • Flexible installation with remote zoom/focus, multiple mount options, and full ACAP support
Ideal Use Cases
  • Critical infrastructure protection (energy, utilities, transportation)
  • City surveillance and perimeter security in harsh weather environments
  • Large commercial and industrial facilities requiring 24/7 monitoring
  • Ports, airports, and logistics hubs needing high-detail wide-area coverage
  • Any site needing advanced AI analytics directly on the camera
Technical Specifications Summary
  • Image sensor: 1/1.2” progressive scan RGB CMOS
  • Lens: 6.3–13 mm varifocal, IR corrected, 2× optical zoom
  • Video: Up to 3840×2160; H.264/H.265/AV1; WDR up to 120 dB
  • IR: OptimizedIR up to 60 m
  • Analytics: AXIS Object Analytics, Scene Metadata, Image Health Analytics
  • Cybersecurity: Secure boot, Edge Vault, encrypted filesystem
  • Environmental: IP66/IP69, IK10, -50 °C to 55 °C (-58 °F to 131 °F)
  • Power: PoE 802.3at / 8–28 V DC
Upgrade Your Operations

Deploy uncompromising 8 MP video quality with powerful AI-driven security analytics.
