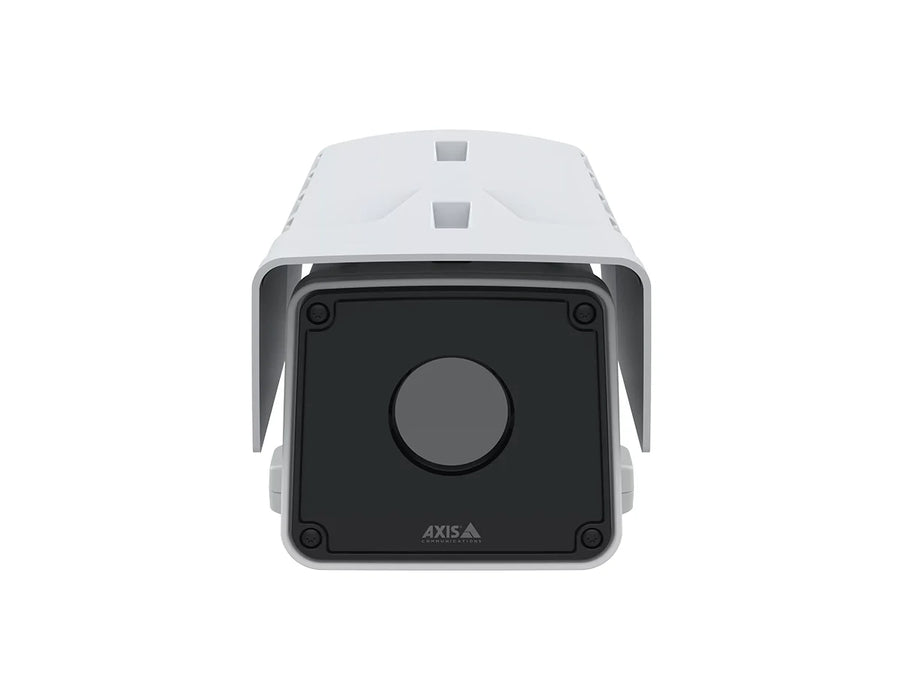

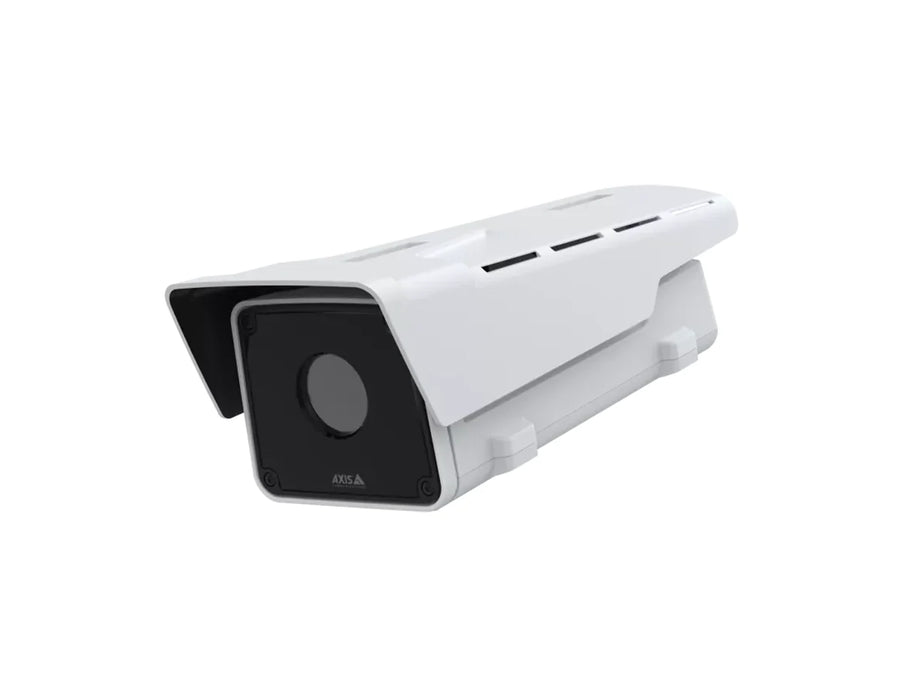

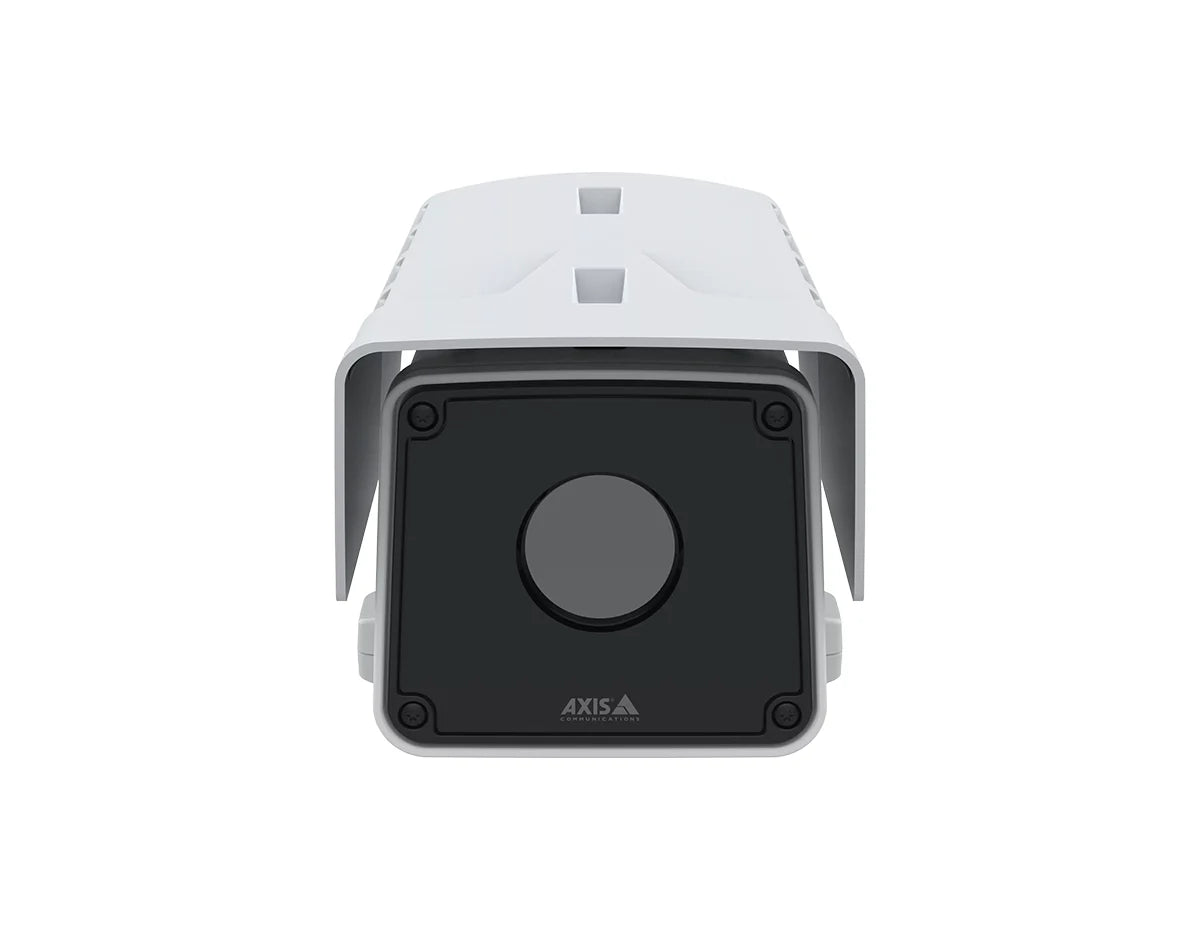

AXIS Q2112-E 10 mm 30 fps Thermal Camera (02604-001)
Clique ou role para ampliar
Toque ou belisque para ampliar
AXIS Q2112-E 10 mm 30 fps Thermal Camera (02604-001)
AXIS Q2112-E 10 mm 30 fps Thermal Camera (02604-001)

AXIS Q2112-E 10 mm 30 fps Thermal Camera (02604-001)

por Axis
R$ 80.316,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] Outdoor-ready thermal camera with a 10 mm F1.2 lens, 63° wide field of view, 640×480 thermal sensor, <20 mK sensitivity, and up to 30 fps thermal imaging powered by the ARTPEC-8 SoC with deep learning processing unit. [/shortdesc]

[properties]

Model AXIS Q2112-E 10 mm 30 fps Thermal Camera (02604-001)
Product Type Thermal Camera
Image Sensor Uncooled microbolometer, 640×480 pixels, 17 μm; spectral range 8–14 μm
Lens Athermalized 10 mm, F1.2; horizontal FOV 63°; vertical FOV 46°; near focus distance 2.8 m (9.2 ft)
Sensitivity NETD <20 mK @25 °C, F1.0
Frame Rate Up to 30 fps thermal imaging
System on Chip ARTPEC-8 with deep learning processing unit (DLPU)
Memory 2048 MB RAM, 8192 MB Flash
Power PoE IEEE 802.3af/802.3at Type 2 Class 4; typical 5.2 W, max 25.5 W; 10–28 V DC (typical 4.6 W, max 25.5 W)
Connectors RJ45 10/100/1000 PoE; terminal block for 2 supervised and 2 unsupervised I/O (12 V DC out, 50 mA); 3.5 mm mic/line in; 3.5 mm line out; 2× RS485/RS422; DC input
Operating Conditions -40 °C to 60 °C; maximum 74 °C per NEMA TS 2; humidity 10–100% RH (condensing)
Storage Conditions -40 °C to 65 °C; humidity 5–95% RH (non-condensing)
Casing IP66/IP67, IK10, and NEMA 4X-rated aluminum housing; white NCS S 1002-B
Dimensions See datasheet dimension drawing; EPA 0.05 m² (0.48 ft²)
Weight 3.3 kg (7.3 lb)
Storage microSD/microSDHC/microSDXC support; AES-XTS-Plain64 256-bit SD encryption; NAS recording
Certifications CSA, UL/cUL, CE, KC, VCCI, RCM; CISPR 32/35; EN 50121-4; FCC Part 15 Class A; IEC 62236-4
Safety CAN/CSA/IEC/EN/UL 62368-1 ed.3; IS 13252
Environmental Ratings IEC 60068-2-1/-2/-6/-14/-27/-78; ISO 21207 Method B; IP66/IP67; IK10; NEMA 4X; NEMA TS 2; MIL-STD-810H (505.7, 506.6, 507.6, 509.7, 510.7, 512.6, 521.4)
Cybersecurity Axis Edge Vault (TPM 2.0), secure boot, signed firmware, encrypted filesystem, secure keystore, Axis device ID, OAuth 2.0, brute force delay protection

[/properties]

[specifications]

Video H.264, H.265, Motion JPEG; 640×480 scalable to 800×600; up to 30 fps; up to 20 streams; Zipstream; VBR/ABR/MBR; controllable frame rate
Image Settings Contrast, brightness, sharpness, exposure zones, local contrast, compression; rotation 0°/90°/180°/270°; corridor format; mirroring; overlays; polygon privacy masks; EIS; thermal color palettes
Audio Two-way audio; AGC; EQ; external mic input; line in/out; network speaker pairing; LPCM, AAC-LC, G.711, G.726, Opus
Networking Protocols IPv4/IPv6, HTTP/HTTPS/HTTP2, TLS, FTP/SFTP, CIFS/SMB, SMTP, mDNS/Bonjour, UPnP, SNMP v1/v2c/v3, DNS, NTP, PTP, RTSP/RTP/SRTP, TCP/UDP, IGMP, MQTT, SSH, LLDP, CDP, secure syslog
System Integration VAPIX, ACAP, ONVIF Profiles G/M/S/T; one-click cloud; AXIS Camera Station & third-party VMS support
Event Conditions Audio detection; device status changes; IP address changes; storage conditions; I/O events; tampering; MQTT subscribe; bitrate degradation; scheduling
Event Actions Audio clip play/stop; toggle I/O; MQTT publish; HTTP/HTTPS/TCP/email notifications; text overlay; pre/post-alarm buffering; SD/NAS recording; FTP/SFTP/HTTP uploads; SNMP traps; LED flash
Analytics Included: Motion Detection, Motion Guard, Fence Guard, Loitering Guard, tampering alarm, audio detection; Supported: AXIS Perimeter Defender; ACAP applications
Pan/Tilt Support Supports guard tours when used with an external positioning unit (up to 256 presets)
Security TPM 2.0, secure boot, encrypted storage, MACsec, TEE, TLS v1.2/v1.3, 802.1X, password protection, brute force delay protection

[/specifications]

[accesories]

Included Camera, installation guide, terminal block connectors, connector guard, cable gaskets, owner authentication key
Optional Accessories AXIS TQ1818-E Positioning Unit; AXIS TQ1003-E Wall Mount; additional accessories available on the Axis support page

[/accesories]

The AXIS Q2112-E 10 mm 30 fps Thermal Camera delivers smooth, high-frame-rate thermal imaging for monitoring wide outdoor areas with improved tracking and motion clarity. With its wide 63° horizontal field of view, it is ideal for covering open perimeters, facility boundaries, and broad surveillance zones with fewer devices. The 640×480 thermal sensor, combined with exceptional <20 mK sensitivity, ensures high-quality contrast in complete darkness and challenging environmental conditions.

Powered by the ARTPEC-8 SoC with a deep learning processing unit, the camera supports advanced edge analytics such as AXIS Motion Guard, Fence Guard, Loitering Guard, and AXIS Perimeter Defender. Its rugged IP66/IP67, IK10, NEMA 4X, and MIL-STD-810H ratings ensure long-term reliability. Strong cybersecurity protections and broad protocol support make it easy to integrate into secure, enterprise-grade thermal monitoring systems.

  • Up to 30 fps thermal imaging improves clarity when tracking movement across wide scenes.
  • 63° wide horizontal field of view reduces camera count for large-area coverage.
  • 640×480 resolution with <20 mK sensitivity delivers strong contrast and consistent detection performance.
  • ARTPEC-8 with DLPU supports advanced on-edge analytics and accurate event detection.
  • IP66/IP67, IK10, NEMA 4X, and MIL-STD-810H durability ensure reliable outdoor operation.
  • Robust cybersecurity stack including TPM 2.0, secure boot, MACsec, and encrypted storage.
  • Comprehensive ONVIF and VAPIX support ensures seamless integration with leading VMS platforms.
  • Wide-area perimeter protection requiring smoother motion capture.
  • Logistics yards, open industrial sites, and large outdoor campuses.
  • Thermal monitoring in fog, smoke, haze, or low-light environments.
  • Border zones and open landscapes requiring broad thermal situational awareness.
  • Analytics-driven detection where high-frame-rate thermal data improves event clarity.
  • Image sensor: 640×480 uncooled microbolometer, 17 μm
  • Lens: Athermalized 10 mm F1.2; HFOV 63°; VFOV 46°; near focus 2.8 m
  • Sensitivity: NETD <20 mK @25 °C
  • Video: Up to 30 fps; H.264/H.265/MJPEG; Zipstream
  • Analytics: Motion Guard, Fence Guard, Loitering Guard; Perimeter Defender support
  • Power: PoE Type 2 Class 4; 10–28 V DC
  • Durability: IP66/IP67, IK10, NEMA 4X, MIL-STD-810H
  • Cybersecurity: TPM 2.0, secure boot, encrypted storage, MACsec

Enhance wide-area thermal monitoring with smooth, high-frame-rate imaging and powerful edge analytics.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] Outdoor-ready thermal camera with a 10 mm F1.2 lens, 63° wide field of view, 640×480 thermal sensor, <20 mK sensitivity, and up to 30 fps thermal imaging powered by the ARTPEC-8 SoC with deep learning processing unit. [/shortdesc]

[properties]

Model AXIS Q2112-E 10 mm 30 fps Thermal Camera (02604-001)
Product Type Thermal Camera
Image Sensor Uncooled microbolometer, 640×480 pixels, 17 μm; spectral range 8–14 μm
Lens Athermalized 10 mm, F1.2; horizontal FOV 63°; vertical FOV 46°; near focus distance 2.8 m (9.2 ft)
Sensitivity NETD <20 mK @25 °C, F1.0
Frame Rate Up to 30 fps thermal imaging
System on Chip ARTPEC-8 with deep learning processing unit (DLPU)
Memory 2048 MB RAM, 8192 MB Flash
Power PoE IEEE 802.3af/802.3at Type 2 Class 4; typical 5.2 W, max 25.5 W; 10–28 V DC (typical 4.6 W, max 25.5 W)
Connectors RJ45 10/100/1000 PoE; terminal block for 2 supervised and 2 unsupervised I/O (12 V DC out, 50 mA); 3.5 mm mic/line in; 3.5 mm line out; 2× RS485/RS422; DC input
Operating Conditions -40 °C to 60 °C; maximum 74 °C per NEMA TS 2; humidity 10–100% RH (condensing)
Storage Conditions -40 °C to 65 °C; humidity 5–95% RH (non-condensing)
Casing IP66/IP67, IK10, and NEMA 4X-rated aluminum housing; white NCS S 1002-B
Dimensions See datasheet dimension drawing; EPA 0.05 m² (0.48 ft²)
Weight 3.3 kg (7.3 lb)
Storage microSD/microSDHC/microSDXC support; AES-XTS-Plain64 256-bit SD encryption; NAS recording
Certifications CSA, UL/cUL, CE, KC, VCCI, RCM; CISPR 32/35; EN 50121-4; FCC Part 15 Class A; IEC 62236-4
Safety CAN/CSA/IEC/EN/UL 62368-1 ed.3; IS 13252
Environmental Ratings IEC 60068-2-1/-2/-6/-14/-27/-78; ISO 21207 Method B; IP66/IP67; IK10; NEMA 4X; NEMA TS 2; MIL-STD-810H (505.7, 506.6, 507.6, 509.7, 510.7, 512.6, 521.4)
Cybersecurity Axis Edge Vault (TPM 2.0), secure boot, signed firmware, encrypted filesystem, secure keystore, Axis device ID, OAuth 2.0, brute force delay protection

[/properties]

[specifications]

Video H.264, H.265, Motion JPEG; 640×480 scalable to 800×600; up to 30 fps; up to 20 streams; Zipstream; VBR/ABR/MBR; controllable frame rate
Image Settings Contrast, brightness, sharpness, exposure zones, local contrast, compression; rotation 0°/90°/180°/270°; corridor format; mirroring; overlays; polygon privacy masks; EIS; thermal color palettes
Audio Two-way audio; AGC; EQ; external mic input; line in/out; network speaker pairing; LPCM, AAC-LC, G.711, G.726, Opus
Networking Protocols IPv4/IPv6, HTTP/HTTPS/HTTP2, TLS, FTP/SFTP, CIFS/SMB, SMTP, mDNS/Bonjour, UPnP, SNMP v1/v2c/v3, DNS, NTP, PTP, RTSP/RTP/SRTP, TCP/UDP, IGMP, MQTT, SSH, LLDP, CDP, secure syslog
System Integration VAPIX, ACAP, ONVIF Profiles G/M/S/T; one-click cloud; AXIS Camera Station & third-party VMS support
Event Conditions Audio detection; device status changes; IP address changes; storage conditions; I/O events; tampering; MQTT subscribe; bitrate degradation; scheduling
Event Actions Audio clip play/stop; toggle I/O; MQTT publish; HTTP/HTTPS/TCP/email notifications; text overlay; pre/post-alarm buffering; SD/NAS recording; FTP/SFTP/HTTP uploads; SNMP traps; LED flash
Analytics Included: Motion Detection, Motion Guard, Fence Guard, Loitering Guard, tampering alarm, audio detection; Supported: AXIS Perimeter Defender; ACAP applications
Pan/Tilt Support Supports guard tours when used with an external positioning unit (up to 256 presets)
Security TPM 2.0, secure boot, encrypted storage, MACsec, TEE, TLS v1.2/v1.3, 802.1X, password protection, brute force delay protection

[/specifications]

[accesories]

Included Camera, installation guide, terminal block connectors, connector guard, cable gaskets, owner authentication key
Optional Accessories AXIS TQ1818-E Positioning Unit; AXIS TQ1003-E Wall Mount; additional accessories available on the Axis support page

[/accesories]

The AXIS Q2112-E 10 mm 30 fps Thermal Camera delivers smooth, high-frame-rate thermal imaging for monitoring wide outdoor areas with improved tracking and motion clarity. With its wide 63° horizontal field of view, it is ideal for covering open perimeters, facility boundaries, and broad surveillance zones with fewer devices. The 640×480 thermal sensor, combined with exceptional <20 mK sensitivity, ensures high-quality contrast in complete darkness and challenging environmental conditions.

Powered by the ARTPEC-8 SoC with a deep learning processing unit, the camera supports advanced edge analytics such as AXIS Motion Guard, Fence Guard, Loitering Guard, and AXIS Perimeter Defender. Its rugged IP66/IP67, IK10, NEMA 4X, and MIL-STD-810H ratings ensure long-term reliability. Strong cybersecurity protections and broad protocol support make it easy to integrate into secure, enterprise-grade thermal monitoring systems.

High-Frame-Rate Thermal Imaging for Wide-Area Surveillance
  • Up to 30 fps thermal imaging improves clarity when tracking movement across wide scenes.
  • 63° wide horizontal field of view reduces camera count for large-area coverage.
  • 640×480 resolution with <20 mK sensitivity delivers strong contrast and consistent detection performance.
  • ARTPEC-8 with DLPU supports advanced on-edge analytics and accurate event detection.
  • IP66/IP67, IK10, NEMA 4X, and MIL-STD-810H durability ensure reliable outdoor operation.
  • Robust cybersecurity stack including TPM 2.0, secure boot, MACsec, and encrypted storage.
  • Comprehensive ONVIF and VAPIX support ensures seamless integration with leading VMS platforms.
Ideal Use Cases
  • Wide-area perimeter protection requiring smoother motion capture.
  • Logistics yards, open industrial sites, and large outdoor campuses.
  • Thermal monitoring in fog, smoke, haze, or low-light environments.
  • Border zones and open landscapes requiring broad thermal situational awareness.
  • Analytics-driven detection where high-frame-rate thermal data improves event clarity.
Technical Specifications Summary
  • Image sensor: 640×480 uncooled microbolometer, 17 μm
  • Lens: Athermalized 10 mm F1.2; HFOV 63°; VFOV 46°; near focus 2.8 m
  • Sensitivity: NETD <20 mK @25 °C
  • Video: Up to 30 fps; H.264/H.265/MJPEG; Zipstream
  • Analytics: Motion Guard, Fence Guard, Loitering Guard; Perimeter Defender support
  • Power: PoE Type 2 Class 4; 10–28 V DC
  • Durability: IP66/IP67, IK10, NEMA 4X, MIL-STD-810H
  • Cybersecurity: TPM 2.0, secure boot, encrypted storage, MACsec
Upgrade Your Operations

Enhance wide-area thermal monitoring with smooth, high-frame-rate imaging and powerful edge analytics.
