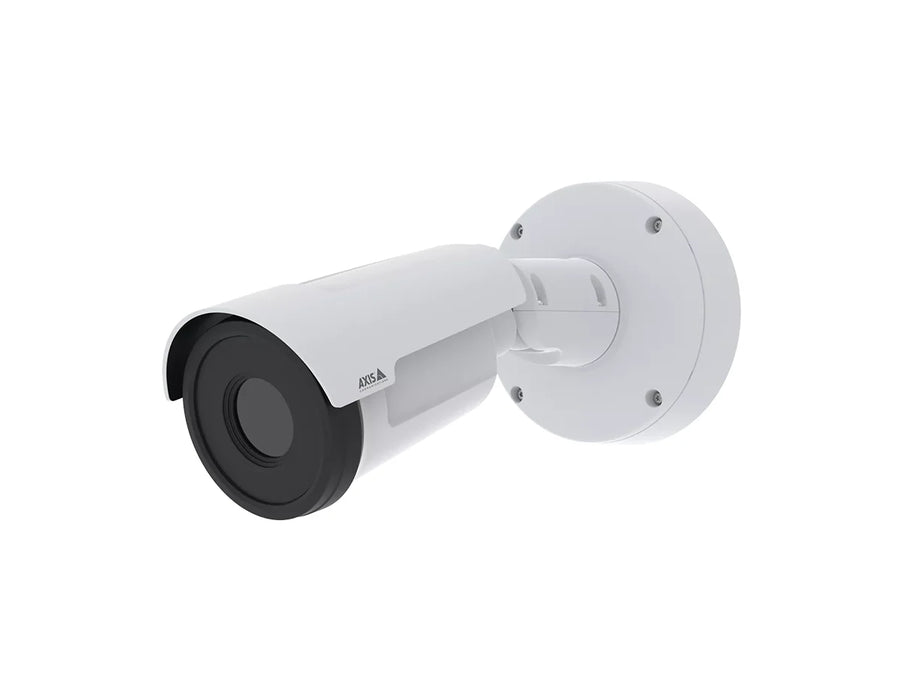

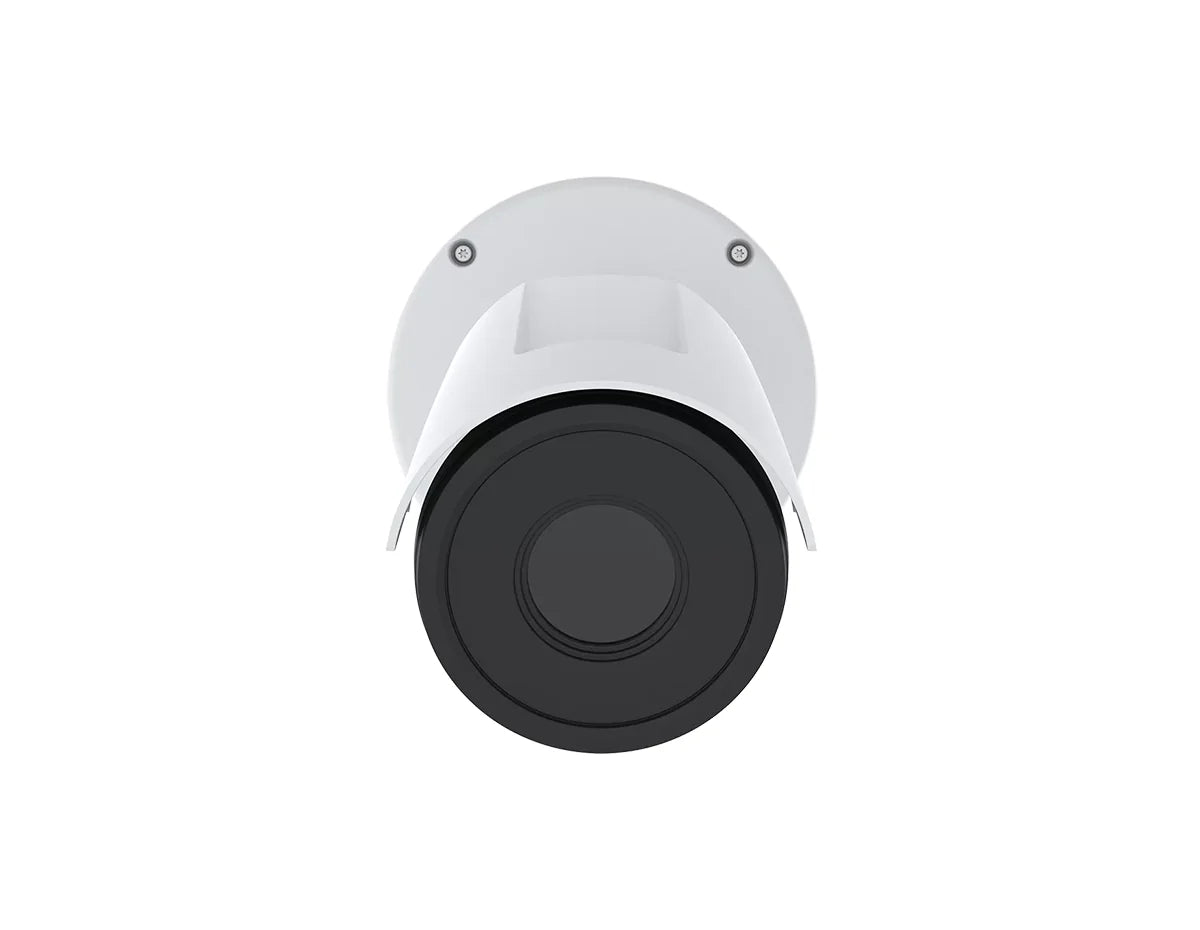

AXIS Q1972-E 35 mm 8.3 fps Thermal Camera (03034-001)
Clique ou role para ampliar
Toque ou belisque para ampliar
AXIS Q1972-E 35 mm 8.3 fps Thermal Camera (03034-001)
AXIS Q1972-E 35 mm 8.3 fps Thermal Camera (03034-001)

AXIS Q1972-E 35 mm 8.3 fps Thermal Camera (03034-001)

por Axis
R$ 83.712,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] Outdoor-ready thermal camera with a 35 mm F1.2 athermalized lens, 17° × 13° field of view, uncooled 640×480 thermal sensor, <20 mK sensitivity, 8.3 fps thermal imaging, ARTPEC-8 SoC with deep-learning unit, electronic image stabilization, and rugged IP66/IP67 & IK10 construction. [/shortdesc]

[properties]

Model AXIS Q1972-E 35 mm 8.3 fps Thermal Camera (03034-001)
Product Type Thermal Camera
Image Sensor Uncooled microbolometer, 640×480, 17 μm, 8–14 μm
Lens 35 mm F1.2 athermalized; HFOV 17°, VFOV 13°; near focus 33 m (108 ft)
Sensitivity NETD <20 mK @25 °C, F1.0
Video Resolution 640×480 (scaled up to 800×600)
Frame Rate Up to 8.3 fps
SoC ARTPEC-8 with deep-learning processing unit (DLPU)
Memory 2048 MB RAM, 8192 MB Flash
Power PoE IEEE 802.3af/at Type 1 Class 3; typical 5.0 W, max 12.95 W; 12–28 V DC, typical 4.8 W, max 12.95 W
Casing IP66/IP67, NEMA 4X, IK10-rated aluminum & polycarbonate
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F); 10–100% RH (condensing)
Storage Conditions -40 °C to 65 °C (-40 °F to 149 °F); 5–95% RH (non-condensing)
Interfaces RJ45 10/100/1000BASE-T PoE; 3.5 mm mic/line in; DC input; terminal block for 1 supervised alarm input and 1 output (12 V DC, max. 50 mA)
Storage Support for microSD/microSDHC/microSDXC card and NAS recording
Weight 1.4 kg (3.1 lb)
EPA 0.022 m² (0.24 ft²)
Certifications CSA, UL/cUL, CE, KC, TAA compliant

[/properties]

[specifications]

Performance ARTPEC-8 SoC; DLPU for AI-based analytics; electronic image stabilization (EIS); thermal palettes
Video H.264, H.265, Motion JPEG; sensor 640×480 scaled to 800×600; up to 8.3 fps; Axis Zipstream; up to 20 streams; VBR/ABR/MBR; rotation 0°/90°/180°/270°; image settings including contrast, brightness, sharpness, exposure zones, mirroring, overlays, privacy masks
Audio Two-way audio; AGC; spectrum visualizer (ACAP); 10-band EQ; mic/line in; audio detection; audio encoding: LPCM, AAC-LC, G.711, G.726, Opus
Connectivity IPv4/IPv6, HTTPS/TLS, FTP/SFTP, CIFS/SMB, SNMP v1/v2c/v3, RTSP/RTP/SRTP, MQTT, LLDP, CDP, DHCP, IGMP, ZeroConf
Power Supply PoE IEEE 802.3af/at Type 1 Class 3 or 12–28 V DC
Security Features Axis Edge Vault, TPM 2.0, secure boot, signed firmware/video, encrypted filesystem, SD-card encryption, 802.1X, MACsec, HTTPS/HSTS
Environmental / Ruggedness IP66/IP67, IK10, ISO 21207 B, MIL-STD-810H (selected), NEMA 4X; -40 °C to 60 °C operation
Mounting Options Supports wall, pole, corner, and conduit mounting
Sensors Gyroscopic sensors for EIS; shock detection
Events Audio detection; device temperature events; network lost; shock detected; I/O events; MQTT; tampering
Analytics AXIS VMD, Motion Guard, Fence Guard, Loitering Guard, active tampering alarm, audio detection; supports ACAP & AXIS Perimeter Defender
Approvals CSA, UL/cUL, CE, KC; EMC: CISPR 35/32, EN 55035/55032, FCC Part 15 Class A; NEMA TS 2; cybersecurity certifications

[/specifications]

[accesories]

Included Camera, installation guide, drill template, TORX L-keys, RESISTORX L-key, terminal block connector, connector guard, cable gaskets, owner authentication key
Optional Accessories AXIS T94F01M J-Box/Gang Box Plate; AXIS T91A47 Pole Mount; AXIS T94P01B Corner Bracket; AXIS T94F01P Conduit Back Box; AXIS Weather Shield K; Axis PoE Midspans; AXIS T8415 Wireless Installation Tool; AXIS Surveillance Cards

[/accesories]

The AXIS Q1972-E 35 mm 8.3 fps variant delivers precise long-range thermal imaging with a narrow 17° field of view, making it highly effective for perimeter protection, intrusion detection, and applications requiring accurate classification in all lighting and weather conditions. Its <20 mK sensitivity reveals subtle temperature differences, ensuring reliable detection 24/7.

Powered by the ARTPEC-8 system-on-chip with a deep-learning processing unit, this camera supports advanced analytics while maintaining low bandwidth consumption thanks to Axis Zipstream. Rugged IP66/IP67 and IK10 construction ensures durability in harsh outdoor environments.

  • 35 mm F1.2 thermal lens provides long-range, narrow-angle detection
  • High-resolution 640×480 sensor with <20 mK sensitivity captures fine thermal detail
  • ARTPEC-8 SoC with DLPU enables powerful AI-based analytics
  • Electronic image stabilization counters vibrations for stable video
  • Rugged IP66/IP67, IK10, NEMA 4X build ensures reliable all-weather performance
  • Secure design with Axis Edge Vault, TPM 2.0, signed firmware, and encrypted video and storage
  • Flexible installation with wide accessory ecosystem for pole, corner, and conduit mounting
  • Long-range perimeter protection
  • Critical infrastructure and utility monitoring
  • Harsh-weather outdoor deployments
  • Industrial site surveillance
  • Border and high-security area monitoring
  • Image sensor: 640×480 uncooled microbolometer, 17 μm, 8–14 μm spectral range
  • Lens: 35 mm F1.2; HFOV 17°, VFOV 13°; near focus 33 m
  • Sensitivity: NETD <20 mK @25 °C, F1.0
  • Video: H.264/H.265/MJPEG; up to 8.3 fps; Axis Zipstream; up to 20 configurable streams
  • Audio: Two-way audio with AGC, 10-band EQ, mic/line input and audio detection
  • Power: PoE Class 3 or 12–28 V DC, typical 4.8–5.0 W, max 12.95 W
  • Environment: IP66/IP67, IK10, MIL-STD-810H, NEMA 4X; -40 °C to 60 °C operation
  • Security: Axis Edge Vault, TPM 2.0, secure boot, signed firmware/video, encrypted filesystem and SD-card

Enhance long-range detection accuracy and system reliability with high-performance thermal imaging.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] Outdoor-ready thermal camera with a 35 mm F1.2 athermalized lens, 17° × 13° field of view, uncooled 640×480 thermal sensor, <20 mK sensitivity, 8.3 fps thermal imaging, ARTPEC-8 SoC with deep-learning unit, electronic image stabilization, and rugged IP66/IP67 & IK10 construction. [/shortdesc]

[properties]

Model AXIS Q1972-E 35 mm 8.3 fps Thermal Camera (03034-001)
Product Type Thermal Camera
Image Sensor Uncooled microbolometer, 640×480, 17 μm, 8–14 μm
Lens 35 mm F1.2 athermalized; HFOV 17°, VFOV 13°; near focus 33 m (108 ft)
Sensitivity NETD <20 mK @25 °C, F1.0
Video Resolution 640×480 (scaled up to 800×600)
Frame Rate Up to 8.3 fps
SoC ARTPEC-8 with deep-learning processing unit (DLPU)
Memory 2048 MB RAM, 8192 MB Flash
Power PoE IEEE 802.3af/at Type 1 Class 3; typical 5.0 W, max 12.95 W; 12–28 V DC, typical 4.8 W, max 12.95 W
Casing IP66/IP67, NEMA 4X, IK10-rated aluminum & polycarbonate
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F); 10–100% RH (condensing)
Storage Conditions -40 °C to 65 °C (-40 °F to 149 °F); 5–95% RH (non-condensing)
Interfaces RJ45 10/100/1000BASE-T PoE; 3.5 mm mic/line in; DC input; terminal block for 1 supervised alarm input and 1 output (12 V DC, max. 50 mA)
Storage Support for microSD/microSDHC/microSDXC card and NAS recording
Weight 1.4 kg (3.1 lb)
EPA 0.022 m² (0.24 ft²)
Certifications CSA, UL/cUL, CE, KC, TAA compliant

[/properties]

[specifications]

Performance ARTPEC-8 SoC; DLPU for AI-based analytics; electronic image stabilization (EIS); thermal palettes
Video H.264, H.265, Motion JPEG; sensor 640×480 scaled to 800×600; up to 8.3 fps; Axis Zipstream; up to 20 streams; VBR/ABR/MBR; rotation 0°/90°/180°/270°; image settings including contrast, brightness, sharpness, exposure zones, mirroring, overlays, privacy masks
Audio Two-way audio; AGC; spectrum visualizer (ACAP); 10-band EQ; mic/line in; audio detection; audio encoding: LPCM, AAC-LC, G.711, G.726, Opus
Connectivity IPv4/IPv6, HTTPS/TLS, FTP/SFTP, CIFS/SMB, SNMP v1/v2c/v3, RTSP/RTP/SRTP, MQTT, LLDP, CDP, DHCP, IGMP, ZeroConf
Power Supply PoE IEEE 802.3af/at Type 1 Class 3 or 12–28 V DC
Security Features Axis Edge Vault, TPM 2.0, secure boot, signed firmware/video, encrypted filesystem, SD-card encryption, 802.1X, MACsec, HTTPS/HSTS
Environmental / Ruggedness IP66/IP67, IK10, ISO 21207 B, MIL-STD-810H (selected), NEMA 4X; -40 °C to 60 °C operation
Mounting Options Supports wall, pole, corner, and conduit mounting
Sensors Gyroscopic sensors for EIS; shock detection
Events Audio detection; device temperature events; network lost; shock detected; I/O events; MQTT; tampering
Analytics AXIS VMD, Motion Guard, Fence Guard, Loitering Guard, active tampering alarm, audio detection; supports ACAP & AXIS Perimeter Defender
Approvals CSA, UL/cUL, CE, KC; EMC: CISPR 35/32, EN 55035/55032, FCC Part 15 Class A; NEMA TS 2; cybersecurity certifications

[/specifications]

[accesories]

Included Camera, installation guide, drill template, TORX L-keys, RESISTORX L-key, terminal block connector, connector guard, cable gaskets, owner authentication key
Optional Accessories AXIS T94F01M J-Box/Gang Box Plate; AXIS T91A47 Pole Mount; AXIS T94P01B Corner Bracket; AXIS T94F01P Conduit Back Box; AXIS Weather Shield K; Axis PoE Midspans; AXIS T8415 Wireless Installation Tool; AXIS Surveillance Cards

[/accesories]

High-Resolution Thermal Imaging for Long-Range Detection

The AXIS Q1972-E 35 mm 8.3 fps variant delivers precise long-range thermal imaging with a narrow 17° field of view, making it highly effective for perimeter protection, intrusion detection, and applications requiring accurate classification in all lighting and weather conditions. Its <20 mK sensitivity reveals subtle temperature differences, ensuring reliable detection 24/7.

Powered by the ARTPEC-8 system-on-chip with a deep-learning processing unit, this camera supports advanced analytics while maintaining low bandwidth consumption thanks to Axis Zipstream. Rugged IP66/IP67 and IK10 construction ensures durability in harsh outdoor environments.

Key Benefits
  • 35 mm F1.2 thermal lens provides long-range, narrow-angle detection
  • High-resolution 640×480 sensor with <20 mK sensitivity captures fine thermal detail
  • ARTPEC-8 SoC with DLPU enables powerful AI-based analytics
  • Electronic image stabilization counters vibrations for stable video
  • Rugged IP66/IP67, IK10, NEMA 4X build ensures reliable all-weather performance
  • Secure design with Axis Edge Vault, TPM 2.0, signed firmware, and encrypted video and storage
  • Flexible installation with wide accessory ecosystem for pole, corner, and conduit mounting
Ideal Use Cases
  • Long-range perimeter protection
  • Critical infrastructure and utility monitoring
  • Harsh-weather outdoor deployments
  • Industrial site surveillance
  • Border and high-security area monitoring
Technical Specifications Summary
  • Image sensor: 640×480 uncooled microbolometer, 17 μm, 8–14 μm spectral range
  • Lens: 35 mm F1.2; HFOV 17°, VFOV 13°; near focus 33 m
  • Sensitivity: NETD <20 mK @25 °C, F1.0
  • Video: H.264/H.265/MJPEG; up to 8.3 fps; Axis Zipstream; up to 20 configurable streams
  • Audio: Two-way audio with AGC, 10-band EQ, mic/line input and audio detection
  • Power: PoE Class 3 or 12–28 V DC, typical 4.8–5.0 W, max 12.95 W
  • Environment: IP66/IP67, IK10, MIL-STD-810H, NEMA 4X; -40 °C to 60 °C operation
  • Security: Axis Edge Vault, TPM 2.0, secure boot, signed firmware/video, encrypted filesystem and SD-card
Upgrade Your Operations

Enhance long-range detection accuracy and system reliability with high-performance thermal imaging.
