| Properties |

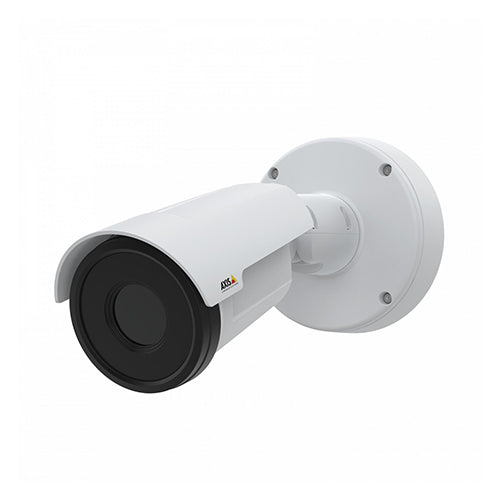

AXIS Q1952-E 10mm 30 fps Thermal Network Camera |
| Description |
The AXIS Q1952-E Thermal Camera offers high-resolution thermal imaging for 24/7 reliable detection in perimeter security. Packed with cybersecurity features, including Axis Edge Vault and a FIPS 140-2 level 2 certified TPM, it ensures unauthorized access prevention. The camera supports AI-based analytics, has a compact, robust, halogen-free design, and boasts a VGA resolution of 640x480 for detailed thermal visuals. Ideal for harsh conditions, it provides a powerful solution for advanced surveillance needs. |
| Product Family |
AXIS Q1952-E Thermal Camera Series |
| Product Type |
Thermal Camera |
|
|
| [/properties][specifications] |
|
|
|
| Specifications |
AXIS Q1952-E 10mm 30 fps PT Mount Thermal Network Camera |
| Camera |
| Image sensor |
Uncooled microbolometer 640x480 pixels, pixel size: 17 μm. |
| Spectral range: 8-14 μm |
| Lens |
Athermalized |
| 10 mm |
| Horizontal field of view: 63°, F1.17 |
| Near focus distance: 2.8 m (9.2 ft) |
| Sensitivity |
NETD 30 mK @25C, F1.0 |
| System on chip (SoC) |
| Model |
ARTPEC-7 |
| Memory |
1024 MB RAM, 512 MB Flash |
| Video |
| Video compression |
H.264 (MPEG-4 Part 10/AVC) Baseline, Main, and High Profiles |
| H.265 (MPEG-H Part 2/HEVC) Main Profile |
| Motion JPEG |
| Resolution |
Sensor is 640x480. Image can be scaled up to 800x600 (SVGA) |
| Frame rate |
Up to 8.3 fps and 30 fps |
| Video streaming |
Multiple, individually configurable streams in H.264, H.265, and |
| Motion JPEG |
| Axis Zipstream technology in H.264 and H.265 |
| Controllable frame rate and bandwidth |
| VBR/ABR/MBR H.264/H.265 |
| Video streaming indicator |
| Image settings |
Contrast, brightness, sharpness, exposure zones, compression, |
| rotation: auto, 0°, 90°, 180°, 270° including Corridor Format, |
| mirroring, dynamic text and image overlay, polygon privacy mask, |
| electronic image stabilization |
| Audio |
| Audio streaming |
Audio in, simplex, two-way audio via edge-to-edge technology |
| Audio encoding |
24bit LPCM, AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 |
| ADPCM 8 kHz, Opus 8/16/48 kHz |
| Configurable bit rate |
| Audio input/output |
External microphone input or line input, digital audio input, network speaker pairing |
| Network |
| Network protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS |
| Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), |
| UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, |
| NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, |
| DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC |
| 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| System iItegration |
| Application Programming Interface |
Open API for software integration, including VAPIX® and |
| AXIS Camera Application Platform; specifications at axis.com |
| One-click cloud connection |
| ONVIF® Profile G,13252 ONVIF® Profile S, and ONVIF® Profile T |
| Onscreen controls |
Heater, electronic image stabilization |
| Event conditions |
Analytics, operating temperature, supervised external input, edge |
| storage events, digital audio, virtual inputs through API |
| MQTT subscribe |
| Event actions |
Record video: SD card and network share |
| MQTT publish |
| Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network |
| share and email |
| Pre- and post-alarm video or image buffering for recording or |
| upload |
| Notification: email, HTTP, HTTPS, TCP and SNMP trap |
| Overlay text, play audio clip, I/O, MQTT |
| Data streaming |
Event data |
| Built-in installation aids |
Pixel counter |
| Analytics |
| Applications |
Included |
| AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard |
| AXIS Video Motion Detection, active tampering alarm, audio |
| detection |
| Supported |
| AXIS Perimeter Defender with AI-based functionality |
| Support for AXIS Camera Application Platform enabling |
| installation of third-party applications, see axis.com/acap |
| Cybersecurity |
| Edge security |
Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization |
| Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption |
| Hardware: Axis Edge Vault cybersecurity platform |
| TPM 2.0 (CC EAL4+, FIPS 140-2 Level 2), secure element (CC EAL 6+), Axis device ID, secure keystore, signed video, secure boot |
| Network security |
IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AR, |
| HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 |
| Certificate PKI, IP address filtering |
| General |
| Casing |
IP66/IP67-, NEMA 4X-, and IK10-rateda |
| casing |
| Polycarbonate blend, aluminum and a germanium window |
| Color: white NCS S 1002-B |
| Sustainability |
PVC free, BFR/CFR free |
| Power |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 |
| Typical 5.38 W, max 12.95 W |
| 12–28 V DC, typical 5.40 W, max 12.95 W |
| Connectors |
Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T |
| 3.5 mm mic/line in |
| Terminal block for 1 supervised alarm input and 1 output (12 V |
| DC output, max. load 25 mA) |
| DC input, terminal block |
| Storage |
Support for microSD/microSDHC/microSDXC card |
| Support for SD card encryption (AES-XTS-Plain64 256bit) |
| Recording to network-attached storage (NAS) |
| For SD card and NAS recommendations see axis.com |
| Operating conditions |
(-40 °C to 60 °C) (-40 °F to 140 °F) |
| Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C (165 °F) |
| Humidity 10–100% RH (condensing) |
| De-icing capability, compliant to MIL-STD-810H Method 521.4 |
| Storage conditions |
(-40 °C to 65 °C) (-40 °F to 149 °F) |
| Humidity 5-95% RH (non-condensing) |
| Approvals |
EMC |
| CISPR 24, CISPR 35, EN 50121-4, EN 55024, |
| EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, |
| FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, |
| KC KN32 Class A, KC KN35, RCM AS/NZS CISPR32 Class A, |
| VCCI Class A |
| Safety |
| IEC/EN/UL 60950-22, IEC/EN/UL 62368–1 |
| Environment |
| IEC 60068-2-1, IEC/EN 60068-2-14, IEC 60068-2-2, |
| IEC 60068-2-27, IEC 60068-2-6, IEC/EN 60068-2-78, |
| IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10a |
| , ISO 21207 Method |
| B, MIL-STD-810H (Method 501.7, 502.7, 505.7, 506.6, 507.6, |
| 509.7, 510.7, 514.8, 516.8, 521.4), NEMA 250 Type 4X, |
| NEMA TS 2 (2.2.7–2.2.9) |
| Network |
| NIST SP500-267 |
| Dimensions |
Ø132 x 272 mm (Ø5.2 x 10.7 in) |
| Weight |
1400 g (3.1 lb) |
| Included accessories |
Installation guide, Windows® decoder 1-user license, Resistorx® L-key, wall and ceiling mount bracket, terminal block connectors, connector guard |
| Video management software |
AXIS Companion, AXIS Camera Station, video management |
| software from Axis Application Development Partners available |
| at axis.com/vms |
| Languages |
English, German, French, Spanish, Italian, Russian, Simplified |
| Chinese, Japanese, Korean, Portuguese, Polish, Traditional |
| Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, |
| Vietnamese |
