[shortdesc]
- Powerful 10 MP surveillance, Ultra-high light-sensitive 4/3” image sensor, Wide or tele Canon lens, Zipstream with storage profile, Built-in cybersecurity with Axis Edge Vault, PoE out to power an additional device
[/shortdesc]
[properties]
| Product Name |

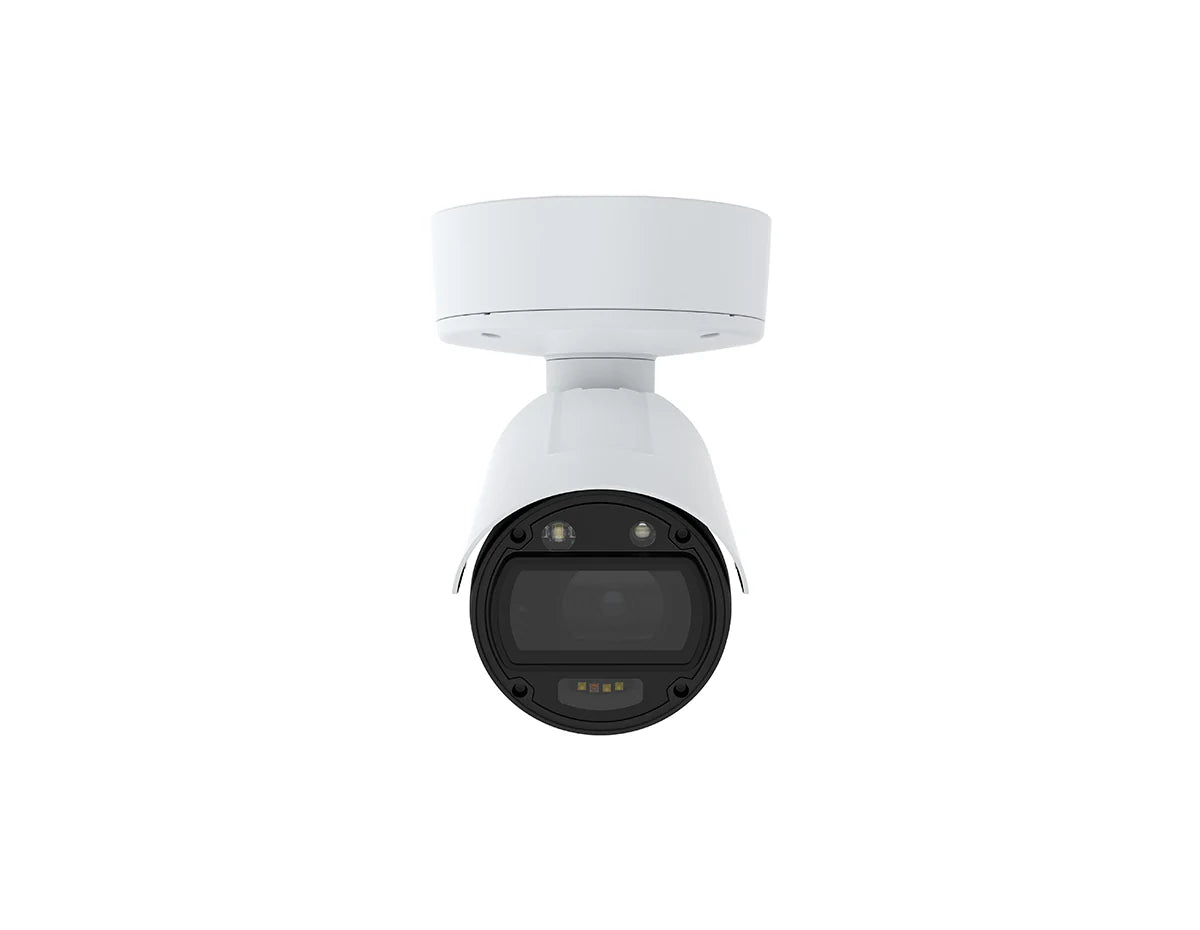

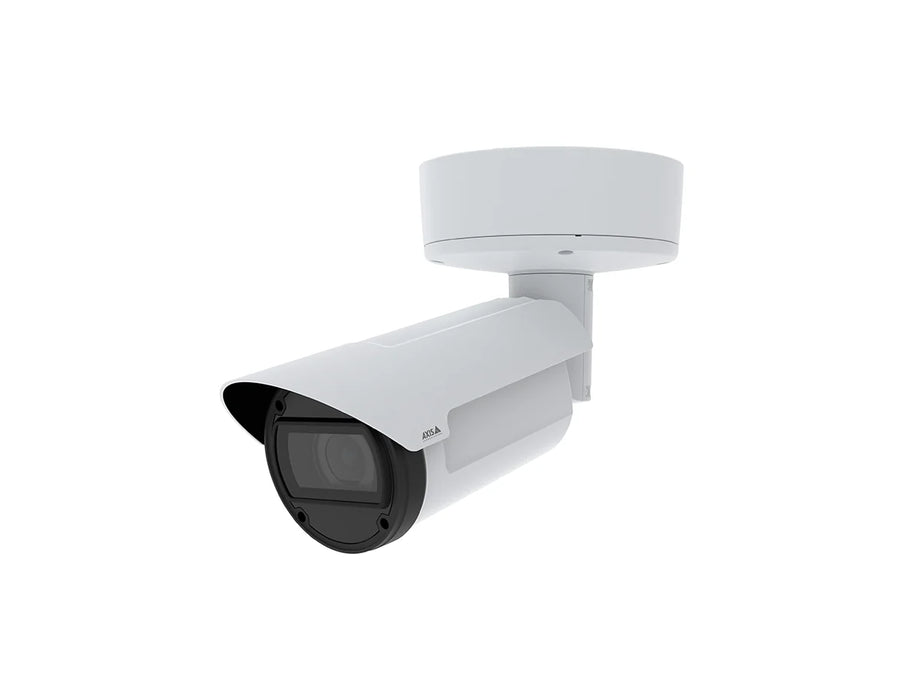

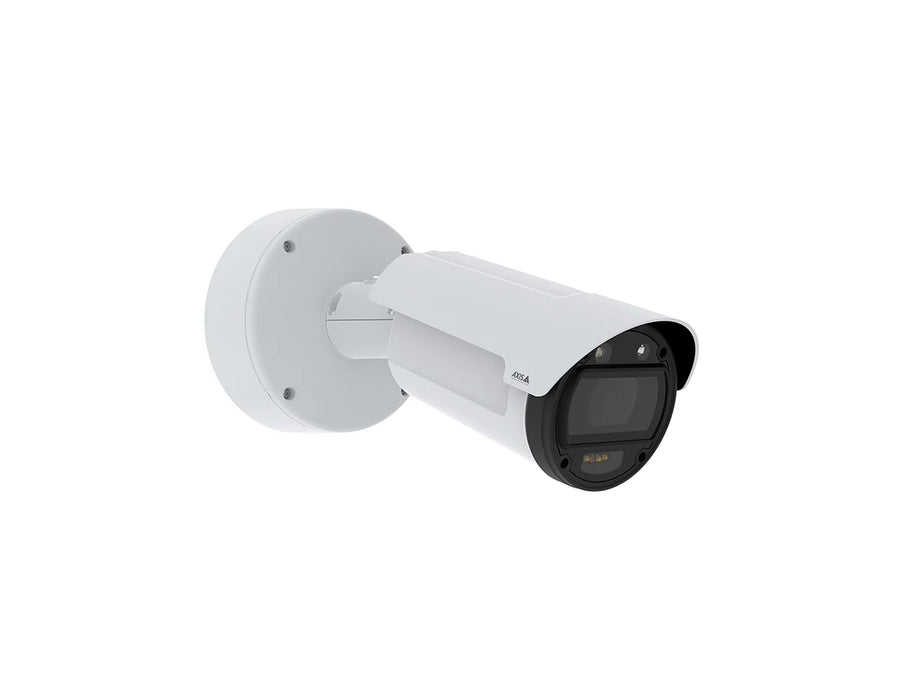

AXIS Q1808-LE 150 mm Bullet Camera |
| Product Description |
High-resolution 10 MP bullet camera with advanced imaging technologies and deep learning capabilities |
| Image Sensor |
Ultra-high light-sensitive 4/3” RGB CMOS sensor |
| Lens |
Varifocal 50–150 mm Canon lens with 3x optical zoom |
| Horizontal Field of View |
21°–7° |
| Vertical Field of View |
12°–4° |
| Resolution |
Supports up to 10 MP (3712x2784) and 4K (3840x2160) resolutions |
| Frame Rate |
Up to 60 fps in 4K mode; up to 30 fps in 10 MP mode |
| Day/Night Functionality |
Automatically removable IR-cut filter for day and night modes |
| Wide Dynamic Range |
Forensic WDR up to 120 dB for clarity in varying light conditions |
| Low-Light Performance |
Lightfinder 2.0 technology ensures true colors in low-light environments |
| Infrared Illumination |
OptimizedIR with power-efficient 850 nm IR LEDs |
| Video Compression |
Supports H.264, H.265 with Zipstream, and Motion JPEG formats |
| Analytics |
AXIS Object Analytics, video motion detection, shock detection, and active tampering alarm |
| Cybersecurity |
AXIS Edge Vault with FIPS-certified TPM for enhanced security |
| Audio Support |
Audio input and supervised I/O port for external device integration |
| Local Storage |
microSD memory card slot for edge storage |
| Operating Conditions |
Designed for temperatures ranging from -40°C to +60°C (-40°F to 140°F) |
| Power Supply |
Powered by PoE Class 4 (IEEE 802.3at), 20–28 V DC, or 20–24 V AC |
| Mounting |
Integrated bracket for easy wall and ceiling installation |
[/properties]
[specifications]
| Image Sensor |
4/3” progressive scan RGB CMOS |
| Pixel Size |
4.63 µm |
| Lens |
Varifocal 50–150 mm, F4.0; remote zoom and focus with P-Iris control |
| Horizontal Field of View |
21°–7° |
| Vertical Field of View |
12°–4° |
| Minimum Illumination |
Color: 0.1 lux at 50 IRE, F4.0; B/W: 0.02 lux at 50 IRE, F4.0; 0 lux with IR illumination on |
| Shutter Speed |
With WDR: 1/22000 s to 2 s in 4K; without WDR: 1/45500 s to 2 s |
| Video Streaming |
Up to 20 unique and configurable video streams; multi-view streaming with up to 8 individually cropped view areas |
| Noise Reduction |
Spatial (2D) and temporal (3D) noise reduction |
| Electronic Image Stabilization |
Yes |
| Audio Input |
1 |
| I/O Ports |
2 configurable supervised inputs/digital outputs |
| Local Storage |
microSD/SDHC/SDXC card slot |
| Operating Temperature |
-40°C to +60°C (-40°F to 140°F) |
| Power Consumption |
Max 25.5 W; average 13.7 W |
| Dimensions |
Ø155 mm x 377 mm (Ø6.1 in x 14.8 in) |
| Weight |
3.2 kg (7.05 lb) |
| Compliance |
Certifications: CE, FCC, IC, RCM, VCCI, KC, UL, CB, IEC/EN/UL 62368-1 |
[/specifications]
[accesories]
| Included Accessories |
Removable sunshield, IP66/IP67-rated cable glands, optional IDC punch connectors |
[/accesories]
4/3” image sensor, robust outdoor, NEMA 4X, IP66, IP67 and IK10-rated 10 MP/ 4K resolution, day/night, fixed bullet camera with Deep Learning Processing Unit (DLPU). Support Forensic WDR and Lightfinder 2.0 and OptimizedIR, a power-efficient 850 nm technology. Varifocal 50–150 mm, 3 x optical Canon zoom lens, 21°-7° HFOV with remote zoom and autofocus. Multiple, individually configurable H.264, H.265 with Zipstream and Motion JPEG. 4K up to 60 fps and 10MP at 30 fps. AXIS Object Analytics, Video motion detection, shock detection and active tampering alarm. AXIS Edge Vault with FIPS certified TPM for added cyber security. Corridor format, barrel distortion correction, defogging, electronic imaging stabilization and scene profiles. Audio in and supervised I/O port, microSD memory card slot for local storage. MQTT Support. Integrated bracket for easy mounting on wall and ceiling. Operation in -40°C to +60°C (-40 °F to 140 °F). Powered by PoE class 4 (IEEE 802-3at), 20-28 V DC or 20-24 V AC. Includes a removable sunshield, , IP66, IP67- rated cable glands and optional IDC punch connectors. 30W PoE out to power an additional device, requires Axis Midspan 60 W, IEEE 802.3bt Type 3 Class 6 Power supply or midspan not included.
