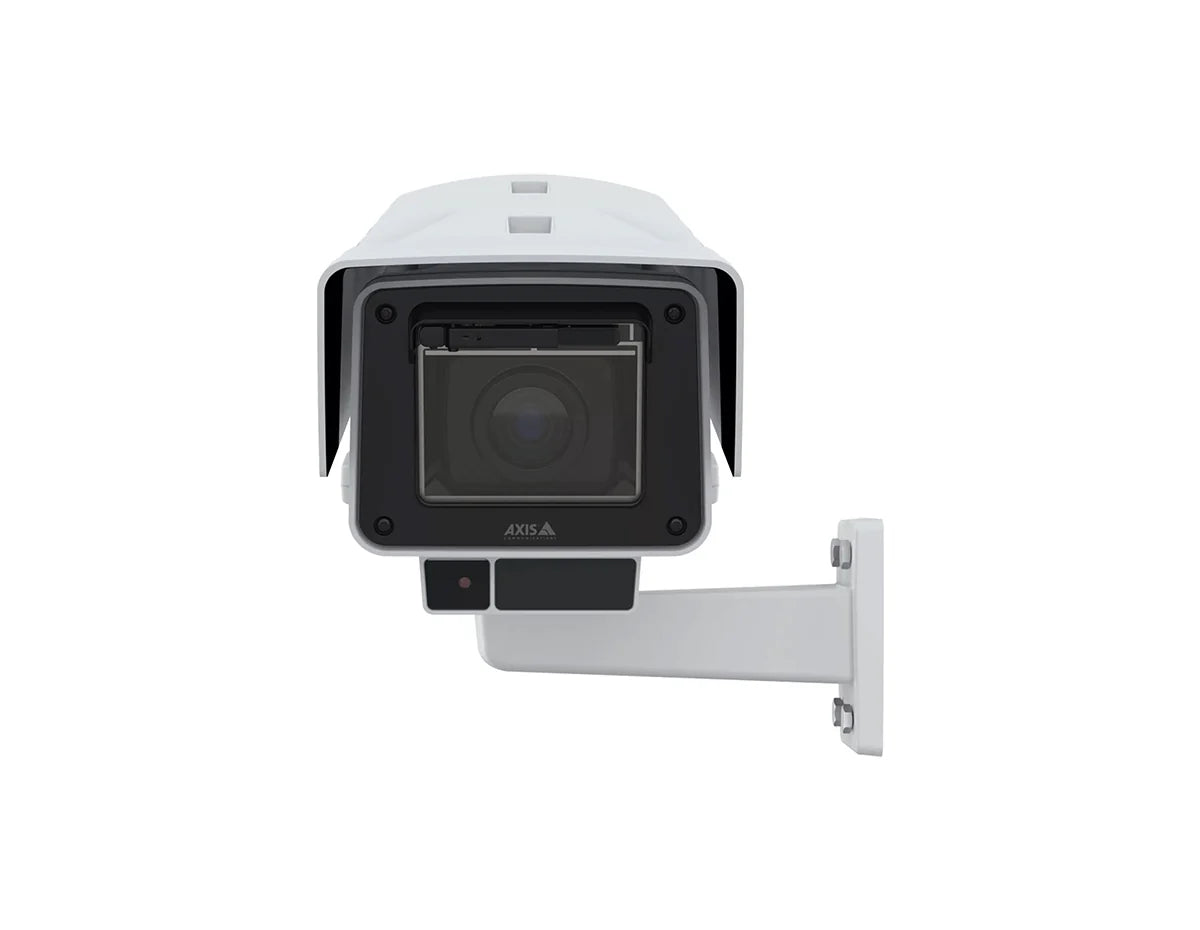

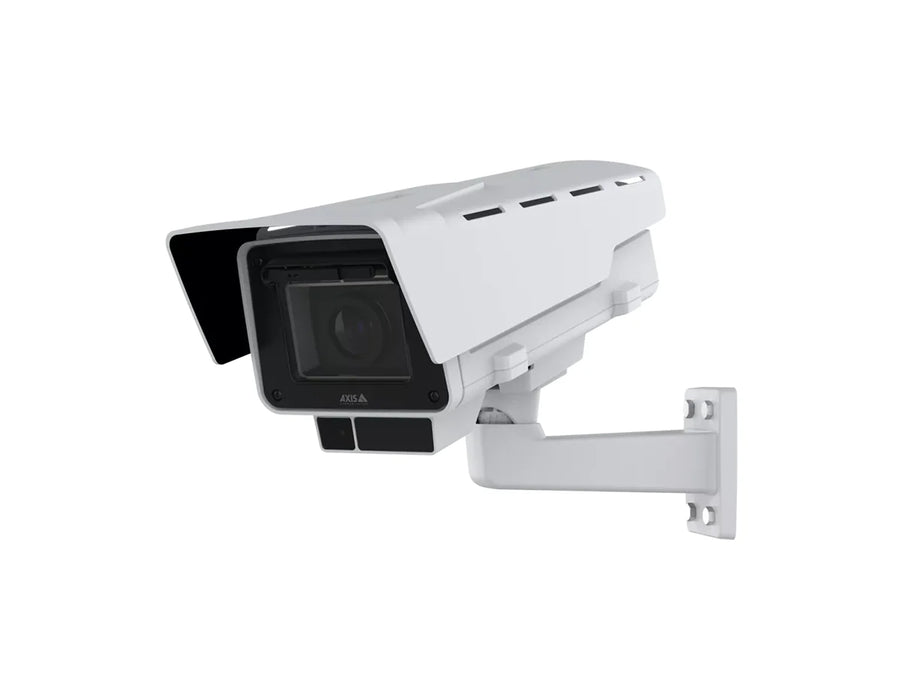

AXIS Q1728-LE 8 MP Outdoor AI-Powered 4K Block Camera (03210-001)
Clique ou role para ampliar
Toque ou belisque para ampliar
AXIS Q1728-LE 8 MP Outdoor AI-Powered 4K Block Camera (03210-001)
AXIS Q1728-LE 8 MP Outdoor AI-Powered 4K Block Camera (03210-001)

AXIS Q1728-LE 8 MP Outdoor AI-Powered 4K Block Camera (03210-001)

por Axis
R$ 25.440,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]8 MP outdoor-ready block camera with 4K resolution, 1/1.2" sensor, OptimizedIR, built-in wiper, and advanced AI-powered analytics for superior performance in all lighting conditions.[/shortdesc]

[properties]

Model AXIS Q1728-LE Block Camera (03210-001)
Product Type Outdoor block camera
Lens 13 mm varifocal lens, 5.9–13.3 mm, F1.6–2.9
Compression H.264, H.265, Motion JPEG, AV1
Color NCS S 1002-B
Dimensions Effective Projected Area (EPA): 0.068 m2 (0.73 ft2)
Weight 4800 g (10.6 lb)
Included Accessories Camera, installation guide, owner authentication key, connector guard, cable gaskets, AXIS TQ1003-E Wall Mount

[/properties]

[specifications]

Image Sensor 1/1.2'' RGB CMOS, 2.9 µm pixel size
Lens Details 13 mm lens: 5.9–13.3 mm, F1.6–2.9; HFOV 108°–49°, VFOV 58°–27°, min focus 0.5 m
Day/Night Automatic IR-cut filter; hybrid IR filter
Minimum Illumination With WDR and Lightfinder
Color: 0.05 lux at 50 IRE, F1.6–2.9
B/W: 0.01 lux at 50 IRE, F1.6–2.9
0 lux with IR illumination on
Shutter Speed 1/66500 s to 2 s
System on Chip ARTPEC-9 with Deep Learning Processing Unit
Memory 4 GB RAM, 8 GB Flash
Video Compression H.264, H.265, Motion JPEG, AV1
Video Resolution 16:9: 3840×2160 to 160×120
16:10: 2560×1600 to 160×120
4:3: 2592×1944 to 160×120
Frame Rate With WDR: Up to 25/30 fps (50/60 Hz) in all resolutions
No WDR: Up to 50/60 fps (50/60 Hz) in all resolutions
Video Streaming Up to 20 unique streams; Zipstream; VBR/ABR/MBR; low latency mode
Noise Reduction 2D and 3D noise reduction
WDR Forensic WDR: Up to 120 dB depending on scene
Multi-view Streaming Up to 7 cropped views
Image Settings Saturation, contrast, brightness, sharpness, white balance, day/night threshold, local contrast, tone mapping, exposure mode, exposure zones, defog, barrel distortion correction, EIS, compression, rotation (auto/0°/90°/180°/270°), mirroring, privacy masks, target aperture; scene profiles: forensic, vivid, traffic overview
Image Processing Zipstream, Forensic WDR, Lightfinder 2.0, OptimizedIR
PTZ Digital PTZ, presets, tours; Pelco D, Visca, APTP drivers
Audio AGC, 10-band EQ, microphone/speaker pairing
Audio in (balanced/unbalanced), digital input, line in
Audio out via speaker pairing
AAC-LC, G.711, G.726, Opus, LPCM
Network Protocols IPv4/IPv6, HTTPS, TLS, QoS, FTP/SFTP, CIFS/SMB, SMTP, mDNS, UPnP, SNMP, DNS/DDNS, NTP/NTS, RTSP/RTP/SRTP, TCP/UDP, IGMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT, secure syslog
System Integration VAPIX, ACAP, ONVIF G/M/S/T; one-click cloud; AXIS Camera Station Edge/Pro/5 support
Analytics Included: AXIS Object Analytics, Image Health Analytics, Scene Metadata, Live Privacy Shield, Speed Monitor
Object classes: humans, vehicles (cars, buses, trucks, bikes, other)
Scenarios: line crossing, object in area, time in area, crossline counting, occupancy in area, motion in area, motion line crossing
Up to 10 scenarios
Cybersecurity Signed OS, brute force delay, OAuth2/OpenID, secure boot, secure keystore (CC EAL6+, FIPS 140-3 Level 3), MACsec, IEEE 802.1X, host-based firewall
Environmental Ratings IP66, IP67, IK10, NEMA 4X, NEMA TS 2; IEC 60068-2 (vibration, shock, humidity, temp)
Power PoE IEEE 802.3af/at Type 2 Class 4 (max 25.5 W); 10–28 V DC (max 25.5 W); dynamic/low-power modes; power meter
IR Illumination 850 nm IR LED, 50 m+ range
Storage microSD/microSDHC/microSDXC; NAS; SD encryption AES-XTS-Plain64 256-bit
Operating Conditions Temperature: -40 °C to 60 °C (-40°F to 140 °F)
Maximum temperature according to NEMA TS 2 (2.2.7):
74 °C (165 °F)
Humidity: 10–100% RH (condensing)
Wind load (sustained): 60 m/s (134 mph)
Storage Conditions Temperature: -40 °C to 65 °C (-40 °F to 149 °F)
Humidity: 5–95% RH (non-condensing)
Connectors RJ45 10/100/1000 PoE, IDC PoE, 4× I/O, RS485/RS422, 3.5 mm audio in, DC block, AHI, security lock slot

[/specifications]

[accesories]

Included AXIS TQ1003-E Wall Mount, installation guide, owner authentication key, connector guard, cable gaskets
Optional Accessories AXIS T8415 Wireless Installation Tool; AXIS Surveillance Cards

[/accesories]

The AXIS Q1728-LE Block Camera delivers exceptional 4K image quality powered by a large 1/1.2" sensor, advanced Lightfinder 2.0, Forensic WDR, and OptimizedIR. Built on the ARTPEC-9 platform with DLPU, it supports next-generation AI analytics and edge-based scene understanding. Available in wide or tele variants, it is designed for demanding outdoor surveillance, ensuring precise detail capture in all lighting and weather conditions.

This camera includes a built-in wiper, rugged IP66/IP67/IK10/NEMA 4X protection, and strong cybersecurity backed by Axis Edge Vault. With AV1 compression, multi-view streaming, and extensive integration support, it is ideal for large-scale professional deployments requiring maximum reliability and intelligence.

  • Large 1/1.2" sensor delivers superior 4K clarity even in low-light environments.
  • OptimizedIR with 50 m+ reach ensures visibility in complete darkness.
  • Edge-based AI analytics provide accurate human and vehicle classification.
  • Built-in wiper and rugged environmental ratings guarantee consistent operation in harsh weather.
  • Zipstream with AV1 dramatically reduces bandwidth and storage usage.
  • Axis Edge Vault ensures best-in-class cybersecurity and device integrity.
  • Critical infrastructure and perimeter protection
  • High-security government or commercial facilities
  • Transportation hubs and traffic monitoring
  • Large outdoor surveillance installations
  • Industrial sites requiring rugged, all-weather imaging
  • Image sensor: 1/1.2" RGB CMOS, 2.9 µm
  • Lens options: 13 mm varifocal
  • Video: 4K, H.264/H.265/AV1, 25/30 fps WDR or 50/60 fps non-WDR
  • IR: 850 nm OptimizedIR, 50 m+ range
  • Analytics: AXIS Object Analytics, Image Health Analytics, Scene Metadata
  • Cybersecurity: Edge Vault, secure boot, signed OS, MACsec, 802.1X
  • Ruggedness: IP66, IP67, IK10, NEMA 4X
  • Power: PoE Type 2 Class 4 or 10–28 V DC

Deploy advanced 4K AI-powered surveillance built for maximum outdoor reliability.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]8 MP outdoor-ready block camera with 4K resolution, 1/1.2" sensor, OptimizedIR, built-in wiper, and advanced AI-powered analytics for superior performance in all lighting conditions.[/shortdesc]

[properties]

Model AXIS Q1728-LE Block Camera (03210-001)
Product Type Outdoor block camera
Lens 13 mm varifocal lens, 5.9–13.3 mm, F1.6–2.9
Compression H.264, H.265, Motion JPEG, AV1
Color NCS S 1002-B
Dimensions Effective Projected Area (EPA): 0.068 m2 (0.73 ft2)
Weight 4800 g (10.6 lb)
Included Accessories Camera, installation guide, owner authentication key, connector guard, cable gaskets, AXIS TQ1003-E Wall Mount

[/properties]

[specifications]

Image Sensor 1/1.2'' RGB CMOS, 2.9 µm pixel size
Lens Details 13 mm lens: 5.9–13.3 mm, F1.6–2.9; HFOV 108°–49°, VFOV 58°–27°, min focus 0.5 m
Day/Night Automatic IR-cut filter; hybrid IR filter
Minimum Illumination With WDR and Lightfinder
Color: 0.05 lux at 50 IRE, F1.6–2.9
B/W: 0.01 lux at 50 IRE, F1.6–2.9
0 lux with IR illumination on
Shutter Speed 1/66500 s to 2 s
System on Chip ARTPEC-9 with Deep Learning Processing Unit
Memory 4 GB RAM, 8 GB Flash
Video Compression H.264, H.265, Motion JPEG, AV1
Video Resolution 16:9: 3840×2160 to 160×120
16:10: 2560×1600 to 160×120
4:3: 2592×1944 to 160×120
Frame Rate With WDR: Up to 25/30 fps (50/60 Hz) in all resolutions
No WDR: Up to 50/60 fps (50/60 Hz) in all resolutions
Video Streaming Up to 20 unique streams; Zipstream; VBR/ABR/MBR; low latency mode
Noise Reduction 2D and 3D noise reduction
WDR Forensic WDR: Up to 120 dB depending on scene
Multi-view Streaming Up to 7 cropped views
Image Settings Saturation, contrast, brightness, sharpness, white balance, day/night threshold, local contrast, tone mapping, exposure mode, exposure zones, defog, barrel distortion correction, EIS, compression, rotation (auto/0°/90°/180°/270°), mirroring, privacy masks, target aperture; scene profiles: forensic, vivid, traffic overview
Image Processing Zipstream, Forensic WDR, Lightfinder 2.0, OptimizedIR
PTZ Digital PTZ, presets, tours; Pelco D, Visca, APTP drivers
Audio AGC, 10-band EQ, microphone/speaker pairing
Audio in (balanced/unbalanced), digital input, line in
Audio out via speaker pairing
AAC-LC, G.711, G.726, Opus, LPCM
Network Protocols IPv4/IPv6, HTTPS, TLS, QoS, FTP/SFTP, CIFS/SMB, SMTP, mDNS, UPnP, SNMP, DNS/DDNS, NTP/NTS, RTSP/RTP/SRTP, TCP/UDP, IGMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT, secure syslog
System Integration VAPIX, ACAP, ONVIF G/M/S/T; one-click cloud; AXIS Camera Station Edge/Pro/5 support
Analytics Included: AXIS Object Analytics, Image Health Analytics, Scene Metadata, Live Privacy Shield, Speed Monitor
Object classes: humans, vehicles (cars, buses, trucks, bikes, other)
Scenarios: line crossing, object in area, time in area, crossline counting, occupancy in area, motion in area, motion line crossing
Up to 10 scenarios
Cybersecurity Signed OS, brute force delay, OAuth2/OpenID, secure boot, secure keystore (CC EAL6+, FIPS 140-3 Level 3), MACsec, IEEE 802.1X, host-based firewall
Environmental Ratings IP66, IP67, IK10, NEMA 4X, NEMA TS 2; IEC 60068-2 (vibration, shock, humidity, temp)
Power PoE IEEE 802.3af/at Type 2 Class 4 (max 25.5 W); 10–28 V DC (max 25.5 W); dynamic/low-power modes; power meter
IR Illumination 850 nm IR LED, 50 m+ range
Storage microSD/microSDHC/microSDXC; NAS; SD encryption AES-XTS-Plain64 256-bit
Operating Conditions Temperature: -40 °C to 60 °C (-40°F to 140 °F)
Maximum temperature according to NEMA TS 2 (2.2.7):
74 °C (165 °F)
Humidity: 10–100% RH (condensing)
Wind load (sustained): 60 m/s (134 mph)
Storage Conditions Temperature: -40 °C to 65 °C (-40 °F to 149 °F)
Humidity: 5–95% RH (non-condensing)
Connectors RJ45 10/100/1000 PoE, IDC PoE, 4× I/O, RS485/RS422, 3.5 mm audio in, DC block, AHI, security lock slot

[/specifications]

[accesories]

Included AXIS TQ1003-E Wall Mount, installation guide, owner authentication key, connector guard, cable gaskets
Optional Accessories AXIS T8415 Wireless Installation Tool; AXIS Surveillance Cards

[/accesories]

The AXIS Q1728-LE Block Camera delivers exceptional 4K image quality powered by a large 1/1.2" sensor, advanced Lightfinder 2.0, Forensic WDR, and OptimizedIR. Built on the ARTPEC-9 platform with DLPU, it supports next-generation AI analytics and edge-based scene understanding. Available in wide or tele variants, it is designed for demanding outdoor surveillance, ensuring precise detail capture in all lighting and weather conditions.

This camera includes a built-in wiper, rugged IP66/IP67/IK10/NEMA 4X protection, and strong cybersecurity backed by Axis Edge Vault. With AV1 compression, multi-view streaming, and extensive integration support, it is ideal for large-scale professional deployments requiring maximum reliability and intelligence.

AI-Enhanced 4K Surveillance for Demanding Outdoor Environments
  • Large 1/1.2" sensor delivers superior 4K clarity even in low-light environments.
  • OptimizedIR with 50 m+ reach ensures visibility in complete darkness.
  • Edge-based AI analytics provide accurate human and vehicle classification.
  • Built-in wiper and rugged environmental ratings guarantee consistent operation in harsh weather.
  • Zipstream with AV1 dramatically reduces bandwidth and storage usage.
  • Axis Edge Vault ensures best-in-class cybersecurity and device integrity.
Ideal Use Cases
  • Critical infrastructure and perimeter protection
  • High-security government or commercial facilities
  • Transportation hubs and traffic monitoring
  • Large outdoor surveillance installations
  • Industrial sites requiring rugged, all-weather imaging
Technical Specifications Summary
  • Image sensor: 1/1.2" RGB CMOS, 2.9 µm
  • Lens options: 13 mm varifocal
  • Video: 4K, H.264/H.265/AV1, 25/30 fps WDR or 50/60 fps non-WDR
  • IR: 850 nm OptimizedIR, 50 m+ range
  • Analytics: AXIS Object Analytics, Image Health Analytics, Scene Metadata
  • Cybersecurity: Edge Vault, secure boot, signed OS, MACsec, 802.1X
  • Ruggedness: IP66, IP67, IK10, NEMA 4X
  • Power: PoE Type 2 Class 4 or 10–28 V DC
Upgrade Your Operations

Deploy advanced 4K AI-powered surveillance built for maximum outdoor reliability.
