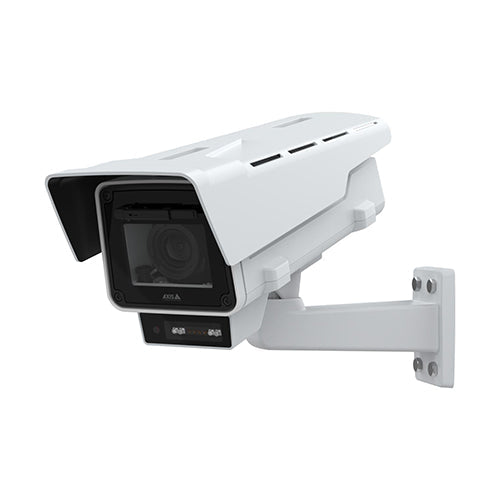

AXIS Q1656-LE Box Camera (02168-001)
AXIS Q1656-LE Box Camera (02168-001)

AXIS Q1656-LE Box Camera (02168-001)

por Axis
R$ 26.208,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

  • Outstanding performance in 4 MP, Exceptional images with 1/1.8” sensor, Support for analytics with deep learning, Built-in cybersecurity features, Premium Axis Q-line camera functionality, Built-in wiper for snow and rain

[/shortdesc]

[properties]

Properties AXIS Q1656-LE
Description With premium Q-line functionality and high video quality even in poor light, AXIS Q1656-LE is based on the latest Axis system-on-chip (SoC) and offers support for strong analytics based on deep learning on the edge.
Product Family Axis Cameras
Product Type Box Camera
Image sensor 1/1.8" progressive scan RGB CMOS
Lightfinder Lightfinder 2.0
Wide dynamic range Forensic WDR
PoE Class IEEE 802.3at Type 2 Class 4
Wireless -
Connectors RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE Terminal block for two supervised and two unsupervised configurable inputs / digital outputs (12 V DC output, max load 50 mA)
RS485/RS422, 2 pcs, 2 pos, full duplex, terminal block DC input, terminal block, 3.5 mm mic/line in, 3.5 mm line out i-CS connector (compatible with P-Iris and DC-iris) AXIS T92G20 connector, Security lock slot
Signed firmware Yes
Secure boot Yes
Remote focus Yes
Remote zoom Yes
Built-in IR Yes
Local storage (memory card slot) Yes
Outdoor Ready Yes
Vandal rating IK10 Except for front window IK08
IP rating IP66, IP67
Designed for repaint Yes
Power (max) 25.5 W
Power (average) 11.2 W
DC input voltage 10-28 V
Dimensions 404 x 159 x 182 mm (16 x 6.3 x 7.2 in)
Weight 4.4 kg (9.7 lb)
Operating Temperature -40 °C to 60 °C (-40 °F to 140 °F)
Event actions Overlay text, external output activation, play audio clip, zoom preset
I/O: toggle I/O once, toggle I/O while the rule is active
MQTT: publish
Notification: HTTP, HTTPS, TCP, and email
Pre- and post-alarm video or image buffering for recording or upload
PTZ: PTZ preset, start/stop guard tour
Record video: SD card and network share
SNMP traps: send, send while the rule is active
Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share, and email
Applications AXIS Object Analytics, AXIS Video Motion Detection
Cybersecurity Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption
Hardware: Axis Edge Vault cybersecurity platform
TPM 2.0 (CC EAL4+, FIPS 140-2 Level 2), secure element (CC
EAL 6+), system-on-chip security (TEE), Axis device ID, secure
keystore, signed video, secure boot, encrypted filesystem
(AES-XTS-Plain64 256bit)
Network security: IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509
Certificate PKI, IP address filtering

[/properties][specifications]

Specifications AXIS Q1656-LE
System on chip (SoC) Model ARTPEC-8
Memory 2048 MB RAM, 8194 MB Flash
Compute capabilities Deep learning processing unit (DLPU)
Min illumination/ light sensitivity (Color) 0.05 lux
Min illumination/ light sensitivity (B/W) 0.01 lux
Max video resolution 2688x1512
Max frames per second 50/60
Electronic image stabilization Yes
Multi-view streaming Up to 8 individually cropped out view areas
Pan/Tilt/Zoom Digital PTZ, preset positions Uploadable PTZ driver (Pelco D pre-installed)
Focal length 3.9 - 10 mm
Horizontal field of view 113-47 °
Vertical field of view 60-27 °
Lens mount CS
Replaceable lens Yes
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Motion JPEG Yes
Audio streaming Two-way, full duplex
Noise reduction
Audio input/output External microphone input or line input, line output, ring power, digital audio input, automatic gain control
Sustainability BFR/CFR free, PVC free

[/specifications] [accesories]

Included accessories
AXIS TQ1003-E Wall Mount
Sunshield
Connector kit
Resistorx® T20 tool
Installation Guide
Windows® decoder 1-user license
Optional accessories

[/accesories]

The AXIS Q1656-LE camera is an excellent choice if you need to capture high-quality videos even in low light conditions. With its 4 MP resolution, this premium Q-line camera can record at up to 60 fps, providing impressive performance. The camera is equipped with a 1/1.8” sensor that ensures the highest possible image quality, regardless of the lighting conditions. Additionally, the built-in wiper feature guarantees great images even in bad weather, such as snow and rain. The AXIS Q1656-LE camera is also enclosed in an impact-resistant IK10-rated casing for easy and reliable installation.

Quick Specs:

  • Exceptional images with 1/1.8 sensor
  • Premium Axis Q-line camera functionality
  • Built-in wiper for snow and rain
  • Support for analytics with deep learning

Please see the related tabs for the 02168-001 datasheet and compatible accessories.

Feature AXIS Q1615-LE Mk III AXIS Q1656 AXIS Q1656-B AXIS Q1656-BE AXIS Q1656-BLE AXIS Q1656-DLE AXIS Q1656-LE AXIS Q1686-DLE
Max video resolution H.264 1920x1080 2688x1512 2688x1512 2688x1512 2688x1512 2688x1512 2688x1512 2688x1512
Max frames per second 100/120 50/60 50/60 50/60 50/60 50/60 50/60 50/60
Image sensor size 1/2.8 1/1.8 1/1.8 1/1.8 1/1.8 1/1.8 1/1.8 1/1.8
Lens mount CS CS CS CS CS CS CS CS
Horizontal field of view 102 - 40 120 - 47 120 - 47 120 - 47 96 - 44 96 - 44 113 - 47 46.22 - 9.16
Alarm inputs/outputs 4 4 4 4 4 4 4 4
Lightfinder Lightfinder 2.0 Lightfinder 2.0 Lightfinder 2.0 Lightfinder 2.0 Lightfinder 2.0 Lightfinder 2.0 Lightfinder 2.0 Lightfinder 2.0
Zipstream ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Two-way audio ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
TPM ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Electronic image stabilization ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Axis Edge Vault – ✔ ✔ ✔ ✔ ✔ ✔ ✔
Analytics compute capability DLPU DLPU DLPU DLPU DLPU DLPU DLPU DLPU
