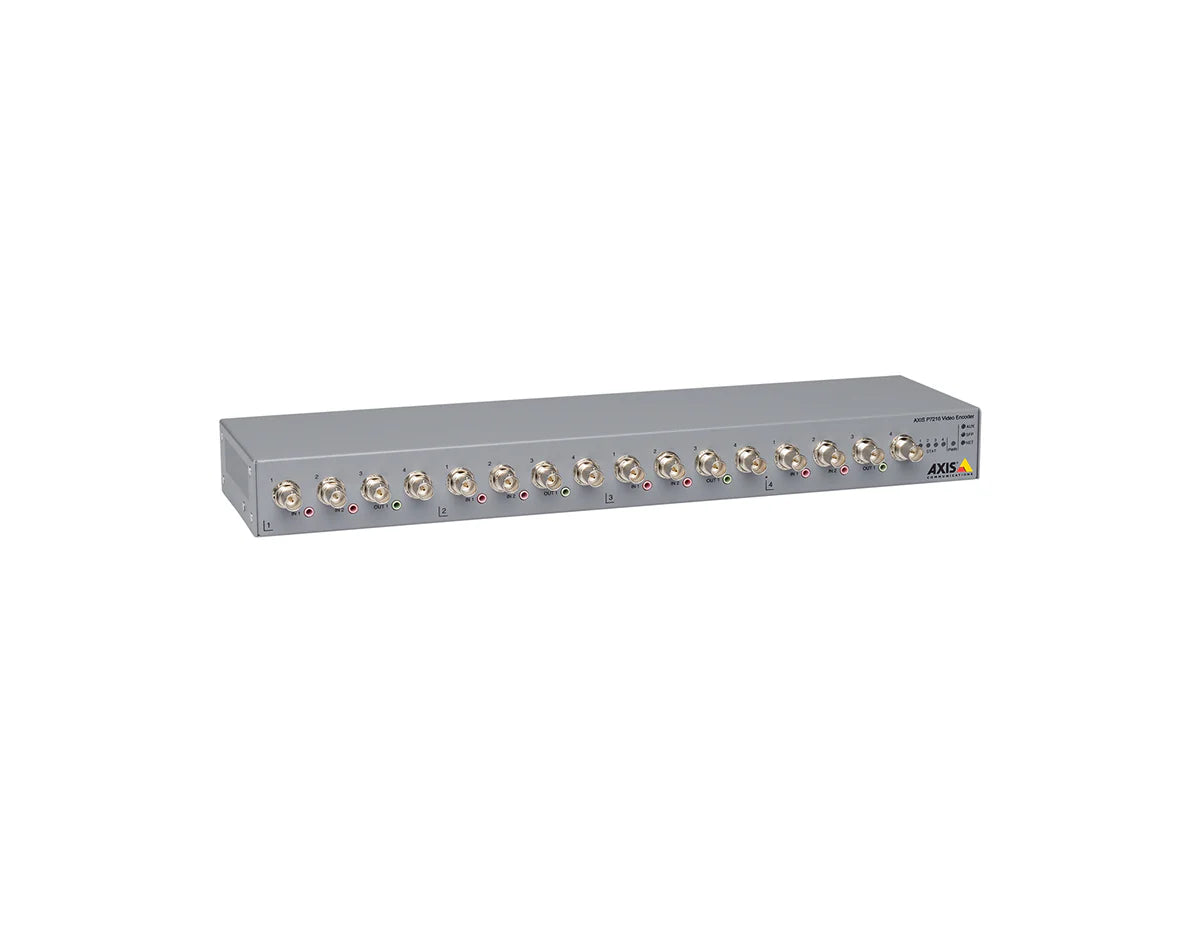

AXIS P7216 Video Encoder (0542-004)
AXIS P7216 Video Encoder (0542-004)

AXIS P7216 Video Encoder (0542-004)

por Axis
R$ 16.788,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

  • Full-featured 16-channel video encoder supporting H.264 and Motion JPEG compression, Two-way audio and quad-view for efficient analog-to-IP integration.


[/shortdesc]

[properties]

Product Name AXIS P7216 Video Encoder (0542-004)
Description A full-featured, cost-effective 16-channel video encoder designed for seamless integration of analog cameras into IP-based surveillance systems. Supports H.264 and Motion JPEG compression, quad-view, two-way audio, and edge storage with four SD card slots.
Compatibility Supports standard-resolution analog cameras and PTZ control via RS-485/422, ONVIF Profile S compliant
Video Compression H.264 (MPEG-4 Part 10/AVC) Baseline/Main, Motion JPEG
Audio Support Two-way, full-duplex audio with 8 inputs and 4 outputs, supports AAC-LC, G.711, and G.726 formats
Storage Four microSD/microSDHC/microSDXC slots for edge storage
Power Options Includes Axis PS-P power supply (no PoE support)
Usage Ideal for large analog-to-IP migration projects and centralized video management systems
Operating Conditions 0 °C to 50 °C (32 °F to 122 °F); 20–80% RH (non-condensing)
Environmental Suitability Indoor use
Certifications EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, KCC KN22/KN24, IEC/EN/UL 60950-1

[/properties]

[specifications]

Channels 16-channel video encoder for connecting up to sixteen analog cameras
Frame Rate 25/30 fps per channel, up to 15 fps in quad view full resolution
Resolution 176x120 to 720x576 (PAL) / 720x480 (NTSC); up to 1536x1152 in quad view
Image Settings Compression, color, brightness, contrast, aspect ratio correction, privacy mask, rotation, enhanced deinterlace filter, temporal noise filtering
Audio Input/Output 8x 3.5 mm inputs (mic/line), 4x 3.5 mm outputs (line), supports AU/WAV formats
Storage Four microSD/microSDHC/microSDXC slots for local recording
Connectors 16x BNC video inputs, 1x RJ45 1 Gbps Ethernet, 1x auxiliary RJ45, 1x SFP slot, terminal blocks for I/O and RS-485/422
Power 12 V DC via included Axis PS-P power supply
PTZ Control Supports analog PTZ cameras via RS-485/422, up to 100 presets per camera
Analytics AXIS Video Motion Detection, active tampering alarm, audio detection
Dimensions 440 x 44 x 175 mm (17.3 x 1.7 x 6.9 in)
Weight 1.85 kg (4.1 lb)

[/specifications]

AXIS P7216 Video Encoder (0542-004)

The AXIS P7216 Video Encoder is a high-performance 16-channel encoder designed to efficiently integrate analog cameras into IP-based video surveillance systems. It supports H.264 and Motion JPEG compression, full frame rate video in all resolutions, and two-way audio with audio detection. Featuring edge storage with four microSD card slots, SFP network redundancy, and compatibility with Axis Camera Station and other VMS platforms, it provides scalable and cost-effective IP migration for medium to large systems.

  • 16 Channels: Connects up to sixteen analog cameras with full frame rate support.
  • H.264 & Motion JPEG: Provides efficient video compression in all resolutions up to D1 and quad-view 1536x1152.
  • Two-Way Audio: Supports full-duplex audio with 8 inputs and 4 outputs.
  • Edge Storage: Includes four microSD slots for local recording.
  • Wide Integration: Compatible with Axis VAPIX, ONVIF Profile S, and major video management systems.
  • Reliable Design: Includes Axis PS-P power supply; indoor use, rack- or wall-mountable metal housing.
  • Video Compression: H.264 (Baseline/Main), Motion JPEG
  • Resolution: 176x120 to 720x576/720x480, 1536x1152 in quad view
  • Frame Rate: 25/30 fps per channel; 15 fps in quad view
  • Audio: 8 input, 4 output, AAC-LC, G.711, G.726
  • Storage: 4x microSD/microSDHC/microSDXC
  • Network: RJ45 1 Gbps, auxiliary RJ45, SFP slot
  • Power: 12 V DC (AXIS PS-P power supply included)
  • Operating Conditions: 0–50 °C (32–122 °F), 20–80% RH
  • Certifications: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class B, ICES-003 Class B, IEC/EN/UL 60950-1

This product has reached its end-of-life. The recommended replacement model is P7316 (02037-004).
